Pfsense only OpenVPN Server with only single interface WAN



  • Hi, I installed pfsense in a server's Hyper-V virtual machine by assigning only the WAN interface.
    I have configured OpenVPN Server for remote client access. The connection between the client and the VPN server works perfectly, but I can only remotely connect to the pfsense webgui: how can I connect to all the clients on the LAN of the VPN server?
    in practice I would like to use pfsense only as a VPN server to allow access from outside to my LAN. it's possible?
    thanks



  • Hi,
    basically that's possible in fact, but since your LAN devices use another upstream gateway than pfSense they will send responses to requests from a vpn client not back to pfSense.

    Best practice is to set up a transit network between the default gateway and pfSense and add a static route for the vpn tunnel network to the gateway to route vpn responses back.

    If this is not an option for you, you either have to set a static route to each of your LAN devices for the vpn tunnel network pointing to pfSense or do masquerading (S-NAT) on pfSense and translate vpn source IPs to the pfSense LAN IP.



  • @viragomann:

    Best practice is to set up a transit network between the default gateway and pfSense and add a static route for the vpn tunnel network to the gateway to route vpn responses back.

    Thanks for the reply. can you give me a guide to do this? or can you tell me specifically where I have to see?
    I have been using pfsense recently and am not very experienced.

    for example I found this tips for linux that should do for me, I would like to understand how to replicate the thing in pfsense



  • What  do want to do? I gave you three options.

    I assume, the vpn is only for your own management purposes. So I would prefer the NAT method, which is the easiest to set up, but has disadvantages when you have multiple vpn users.
    So you need an outbound NAT rule translating the source address of vpn packets to the interface address which is facing to your destination devices:

    To set it up, go to NAT > Outound, switch to hybrid mode, save this and add a new NAT rule:
    Interface: WAN
    Source: <openvpn tunnel="" network="">Destination: any
    Tranlation: interface address</openvpn>



  • thanks for the reply, I have configured the firewall and it works perfectly: D: D



  • Hello,

    I have similar problem.

    Can you help me ????

    I have setup PFSENSE on GOOGLE CLOUD with only 1 WAN interface.

    I want connect my remote office Pfsense with OpenVPN

    I can connect to Google Cloud PFSENSE Web interface

    OpenVPN connect between two PFSENSE and PING between PFSENSE work well but no communication with google internal address (10.142.0.xxx)

    Only can ping (10.142.0.7) but i want ping (10.142.0.2) it's fail.

    If I'm go in Google Cloud PFSENSE "Diagnostics" Menu and choose "Ping" it's work if choose Interface WAN for ping (10.142.0.2) but fail with interface OPENVPN

    My Setup :

    Google Cloud PFSENSE
    HTTPS - 35.237.xx.xx (Google Cloud - PFSENSE WEB INTERFACE)
    10.142.xx.xx/20 (Google Cloud WAN Internal IP)
    OPENVPN IP (192.168.50.0/24)

    Remote Office PFSENSE
    WAN IP (208.135.xx.xx/24)
    LAN IP (192.168.9.1)
    OPENVPN IP (192.168.50.0/24)

    Can you help me please ?



  • Hi,

    your problem is presumably also the vpn endpoint which is not the default gateway in its local network. Above I mentioned three ways to solve that issue:

    • Best: set up a transit network instead of LAN between pfSense and your default gateway. So you can add a route to the default gateway to direct packets meant to the remote site to the vpn endpoint.
    • Add a static route for the remote network to each of the local device.
    • Use outbound NAT on pfSense to masquerade the source address by the pfSense local address.
      Using this method you will not be capable to determine the real source on the destination device. If that's no issue for you, that will be the easiest solution.


  • Ok!

    Can you just point me in right direction for this, pfsense menu or …
    i'm searching it since one Week and i'm bit confuse now…

    For set up transit network i'm need to create a new Gateway ?

    Thx for you help !



  • No, you have to set up a separate network (VLAN) between your existing gateway and the pfSense vm. I don't know if that is possible on the gateway. If not you have to choose another option.
    Give both devices an IP in that network.
    On pfSense you have to deactivate the Outbound NAT.

    Than if the vpn is a site-to-site, add a static route to your default gateway on Google cloud for the remote LAN pointing to the new WAN address of pfSense. If it is a remote access vpn you have to set the route for the tunnel network.

    BTW: If it is a site-to-site, the tunnel network mask has to be a /30.



  • Sorry but i'm very confuse… :-(

    If I give you access to you on my PFSENSE WEB interface on Google cloud can you help me ?



  • I'm not familiar with Google cloud. Is there a virtual environment with an internet gateway, where you're able to add virtual network interfaces and internal networks?

    If that is not possible take another solution.



  • I have only network card on my pfsense VM with google cloud.

    Google cloud NAT public IP directly on private IP.

    Can access to PFSENSE WEB with public IP and WAN IP in console is private IP

    I install PFSENSE with this guide … https://blog.kylemanna.com/cloud/pfsense-on-google-cloud/

    for other method can you explain more please ?



  • The crux of the matter is the gateway here for this solution. If you cannot configure it, that won't work.

    So let's try the NAT solution.
    That is assuming that all settings are like you wrote in your first post here.
    For this one you have to enable the Outbound NAT in the pfSense web-GUI. Firewall > NAT > Outbound. Select the hybrid mode and save that.
    Add a new rule:
    Interface: WAN
    Source: any
    Destination: 10.142.xx.xx/20 (the Google Cloud local network)
    Translation address: Interface address

    That should work if the vpn is configured correctly.



  • Thx it's work now ! :-)



  • Hello,
    I'm new with pfsense, and for now I need it only because OpenVPN.

    I installed it to some cloud, also only with one interface for wan.
    Because there is no possibility on that hosting to put few servers in the same vlan, I wan't to try with OpenVPN.

    Is it possible only with bridging? I googled so much these days, and found only this 6 years old guide
    https://hardforum.com/threads/pfsense-2-0-1-openvpn-configuration-guide.1663797/
    but it seems like it is obsolete.
    Also in netgate documentation there is this link
    https://www.netgate.com/docs/pfsense/vpn/openvpn/openvpn-bridging.html
    which also not works because it is "irrelevant" for current pfsense version.

    Can you direct me how to make possible to put different cloud standalone servers to the same vlan?



  • There should exist smaller solutions for OpenVPN only.

    You can get access by a transit network and routing if you have access to the default gateway, as already mentioned here. Or by adding a route to each remote device you want to reach or by NAT.

    Also by bridging, in theory, but my experience tells me, that you will not get much support here for bridged openVPN, but you may try a new thread.
    I can't help.



  • @majinb_igor

    Hi I am trying to do the same thing, could you share a screenshot of younnat config for this?

    Thanks



  • Hello, I succeeded to setup on cloud with one WAN openvpn and connect devices from different places to one network.

    ISP is Hetzner.

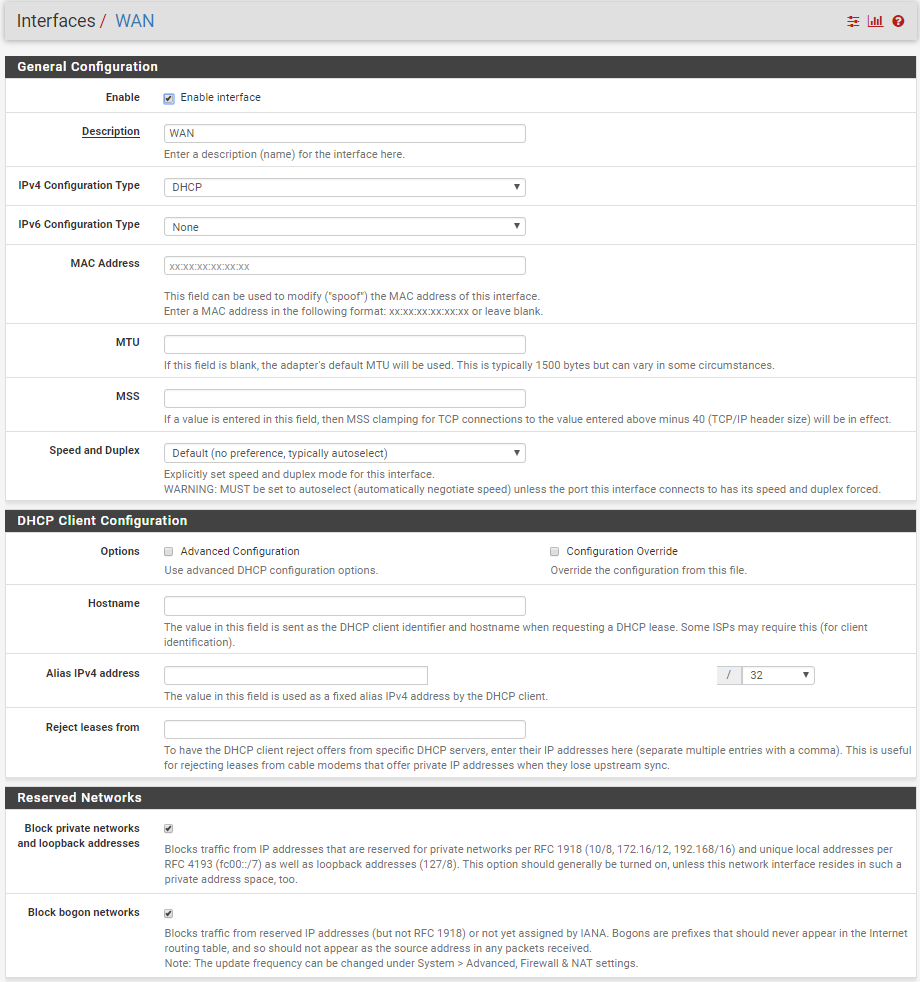

    This is the configuration if someone need. Mostly done via Wizards, with small corrections afterwards.
    Still need a little bit to harden firewall.


    1_1533718050734_02-OpenVPN server.PNG

    2_1533718050734_03-Server - General Information.PNG

    3_1533718050734_04-Server Tunnel Settings.PNG

    4_1533718050734_05-Server - Crypto Settings.PNG

    5_1533718050735_06-Server - Client settings.PNG

    6_1533718050735_07-Interface Assignments.PNG

    7_1533718050735_08-Firewall WAN.PNG

    8_1533718050735_09-Firewall OpenVPN.PNG


    10_1533718050736_11-Connected clients.PNG



  • Hello again ! :-)

    I'm setup PFSENSE (1 WAN nic) on google cloud with 6 pfsense (client) connected site-to-site, all client can PING my google cloud network 10.142.x.x/20

    But when connect to my server on my google cloud 10.142.x.4 i'm can't PING my local network client ….

    If i'm connect on pfsense GUI (server-side) 10.142.x.7 and make PING test on my internal local client 10.10.5.249 it's WORK !!!!


    pfsense server 10.142.0.7
    google cloud server 10.242.0.4

    pfsense client 10.10.5.1
    Workstation client 10.10.5.249

    ping from 10.10.5.249 to 10.142.0.7 ---- WORK
    ping from 10.10.5.249 to 10.142.0.4 ---- WORK

    ping from 10.142.0.7 to 10.10.5.249 ----- WORK
    ping from 10.142.0.4 to 10.10.5.249 ----- FAIL

    Traffic fail on one side … can you help me whit my route table please….

    THX !!!!



  • @n1tr0666 said in Pfsense only OpenVPN Server with only single interface WAN:

    I'm setup PFSENSE (1 WAN nic) on google cloud with 6 pfsense (client) connected site-to-site

    6 site-to-site clients are connected to a single server? With CSO?

    @n1tr0666 said in Pfsense only OpenVPN Server with only single interface WAN:

    ping from 10.142.0.4 to 10.10.5.249 ----- FAIL

    You have to tell the cloud server where to go to reach 10.10.5.249. Add a static route to it for the network of 10.10.5.249 and direct it to pfSense 10.142.0.7.



  • Hello,

    All client can ping 10.142.0.x but FAIL from other side ….

    When ping from 10.142.0.4 (Windows 2016) to any pfsense client it's fail :-(

    If i'm log in pfsense server GUI 10.142.0.7 and test ping to 10.10.5.249 it's only work with OPENVPN interface if I choose WAN it's fail….

    See images in this link for more informations …..

    https://cloud.ordivert.net/index.php/s/ubEciIGkjNlz3lB

    Where add static route in pfsense server or directly in google cloud interface ???

    Because my Windows 2016 server VM on google (10.142.0.4) ogtain DHCP automatic and use 10.142.0.1 for Gateway. Can add route directly in my Windows 2016 ? do you have demo route for me ?

    Thx!



  • @n1tr0666 said in Pfsense only OpenVPN Server with only single interface WAN:

    If i'm log in pfsense server GUI 10.142.0.7 and test ping to 10.10.5.249 it's only work with OPENVPN interface if I choose WAN it's fail….

    Seems that the client is missing the route to your google cloud network.



  • What do you means ?



  • On the client you have to set the route to the 10.142.xx.xx/20 network.
    In pfSense GUI enter the network into the "Remote network/s" box.



  • on the client ?

    client can ping google cloud VM

    but

    google cloud VM cannot ping client



  • Again the question:
    All 6 site-to-site clients are connected to a single server? If yes, have you added CSO?



  • Yes all 6 pfsense client is connected to same pfsense server (10.142.0.7)

    CSO ?



  • You find it in the GUI: VPN > OpenVPN > Client specific overrides
    It's necessary to tell the server into which tunnel the packets have to be routed.

    CSO only work in conjunction with TLS Auth (a unique certificate for each client).



  • Yes ! already setup it !!!!

    My error it's maybe that my Windows 2016 server 10.142.0.4 have Gateway 10.142.0.1 but my pfsense server is 10.142.0.7

    In my Windows 2016 … if add static route like the server ignore this rules ….

    route add 10.10.5.0 mask 255.255.255.0 10.142.0.7

    and cannot find option in google cloud for it and if i'm configure static ip on my google cloud VM (Windows server) I cannot reach vm after, only work in DHCP.
