    windows 10 openvpn connect to multiple remote clients

    Scheduled Pinned Locked Moved OpenVPN
    24 Posts 3 Posters 2.0k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • A
      ariban99
      last edited by

      Hi
      i have openvpn working perfectly fine on pfsense. and i can succesfully connect with my windows 10 computer to the main pfsense server lan

      so my pfsense server is 192.168.1.0/24, openvpn is remote access (user auth)

      however i have 4 more pfsense routers all connected to this main one, they are remote clients (using peer to peer shared key)
      so i have
      192.168.2.0/24
      192.168.3.0/24
      192.168.4.0/24
      192.168.5.0/24

      when i log in with my computer, i can ONLY view the main server and all its local devices on lan 192.168.1.0/24
      but i can not access anything on the other remote clients such as 192.168.2.0/24

      is there a way to connect to all remote clients?

      Thank you
      Ben

      1 Reply Last reply Reply Quote 0
      • DerelictD
        Derelict LAYER 8 Netgate
        last edited by

        Simple matter of routing.

        Your client will need to be sending all traffic over the tunnel or have routes for all of those networks (add 192.168.[2345].0/24 to the Local Network(s) on the OpenVPN server you are connecting to.)

        Those sites will need to have routes to the OpenVPN tunnel network in the server you are connecting to (192.168.1.0/24).

        Of course, all necessary firewall rules will need to be in place where traffic enters all of the various interfaces.

        Chattanooga, Tennessee, USA
        A comprehensive network diagram is worth 10,000 words and 15 conference calls.
        DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
        Do Not Chat For Help! NO_WAN_EGRESS(TM)

        1 Reply Last reply Reply Quote 0
        • A
          ariban99
          last edited by

          hi
          so i added on my openvpn server, the following in the local ipv4 networks
          192.168.1.0/24,192.168.2.0/24,192.168.3.0/24,192.168.4.0/24

          however i dont understand what i am supposed to do on the clients side? can you give me step by step?

          i have openvpn firewall allow all is that not enough?

          1 Reply Last reply Reply Quote 0
          • DerelictD
            Derelict LAYER 8 Netgate
            last edited by

            Adding them to the Local Networks on the server will push the routes to the clients as long as the client is not configured with the equivalent of Don't Pull Routes.

            In most cases you do not need to do anything.

            Chattanooga, Tennessee, USA
            A comprehensive network diagram is worth 10,000 words and 15 conference calls.
            DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
            Do Not Chat For Help! NO_WAN_EGRESS(TM)

            1 Reply Last reply Reply Quote 0
            • A
              ariban99
              last edited by

              see attached screenshot of screencapture-192-168-1-1-vpn-openvpn-server-php-2019-06-28-07_30_08_Page_3.jpg screencapture-192-168-1-1-vpn-openvpn-server-php-2019-06-28-07_30_08_Page_2.jpg screencapture-192-168-1-1-vpn-openvpn-server-php-2019-06-28-07_30_08_Page_1.jpg my server. as its still not working.
              the clients are my openvpn software on windows 10. not sure how to see the config files on windows 10. i dont think they are saying dont pull routes.
              i simply used the export wizard to export the setup file for windows 10.

              1 Reply Last reply Reply Quote 0
              • DerelictD
                Derelict LAYER 8 Netgate
                last edited by

                And? Look at the routing table on a connected client.

                Chattanooga, Tennessee, USA
                A comprehensive network diagram is worth 10,000 words and 15 conference calls.
                DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
                Do Not Chat For Help! NO_WAN_EGRESS(TM)

                A 1 Reply Last reply Reply Quote 0
                • A
                  ariban99 @Derelict
                  last edited by

                  @Derelict
                  how do i see that in windows 10
                  the config file for windows 10 openvpn program shows only
                  dev tun
                  persist-tun
                  persist-key
                  cipher AES-256-CBC
                  ncp-ciphers AES-256-GCM:AES-128-GCM
                  auth SHA1
                  tls-client
                  client
                  resolv-retry infinite
                  remote xx.xxx.xx.xx 1194 udp
                  auth-user-pass
                  ca firewall-UDP4-1194-ca.crt
                  tls-auth firewall-UDP4-1194-tls.key 1
                  remote-cert-tls server

                  1 Reply Last reply Reply Quote 0
                  • RicoR
                    Rico LAYER 8 Rebel Alliance
                    last edited by

                    route print

                    -Rico

                    1 Reply Last reply Reply Quote 0
                    • A
                      ariban99
                      last edited by

                      This post is deleted!
                      1 Reply Last reply Reply Quote 0
                      • DerelictD
                        Derelict LAYER 8 Netgate
                        last edited by Derelict

                        OK so the routes are there. Are you passing the traffic into pfSense on the OpenVPN firewall rules?

                        Are the services on 192.168.1.0/24, 192.168.2.0/24, and 192.168.3.0/24 being blocked by some local firewall on the target hosts? (think windows firewall there.)

                        Chattanooga, Tennessee, USA
                        A comprehensive network diagram is worth 10,000 words and 15 conference calls.
                        DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
                        Do Not Chat For Help! NO_WAN_EGRESS(TM)

                        A 1 Reply Last reply Reply Quote 0
                        • A
                          ariban99
                          last edited by


                          i imagine i type that command in CMD of windows? if yes, here is the screenshot of the results.

                          1 Reply Last reply Reply Quote 0
                          • DerelictD
                            Derelict LAYER 8 Netgate
                            last edited by

                            bump ^

                            Chattanooga, Tennessee, USA
                            A comprehensive network diagram is worth 10,000 words and 15 conference calls.
                            DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
                            Do Not Chat For Help! NO_WAN_EGRESS(TM)

                            1 Reply Last reply Reply Quote 0
                            • A
                              ariban99 @Derelict
                              last edited by

                              @Derelict
                              my firewall in pfsense has a rule for openvpn interface to pass any protocal from ipv4
                              source and destination is set to any.
                              do i need another firewall rule in pfsense?

                              1 Reply Last reply Reply Quote 0
                              • DerelictD
                                Derelict LAYER 8 Netgate
                                last edited by

                                Post said rule.

                                Chattanooga, Tennessee, USA
                                A comprehensive network diagram is worth 10,000 words and 15 conference calls.
                                DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
                                Do Not Chat For Help! NO_WAN_EGRESS(TM)

                                A 1 Reply Last reply Reply Quote 0
                                • A
                                  ariban99 @Derelict
                                  last edited by

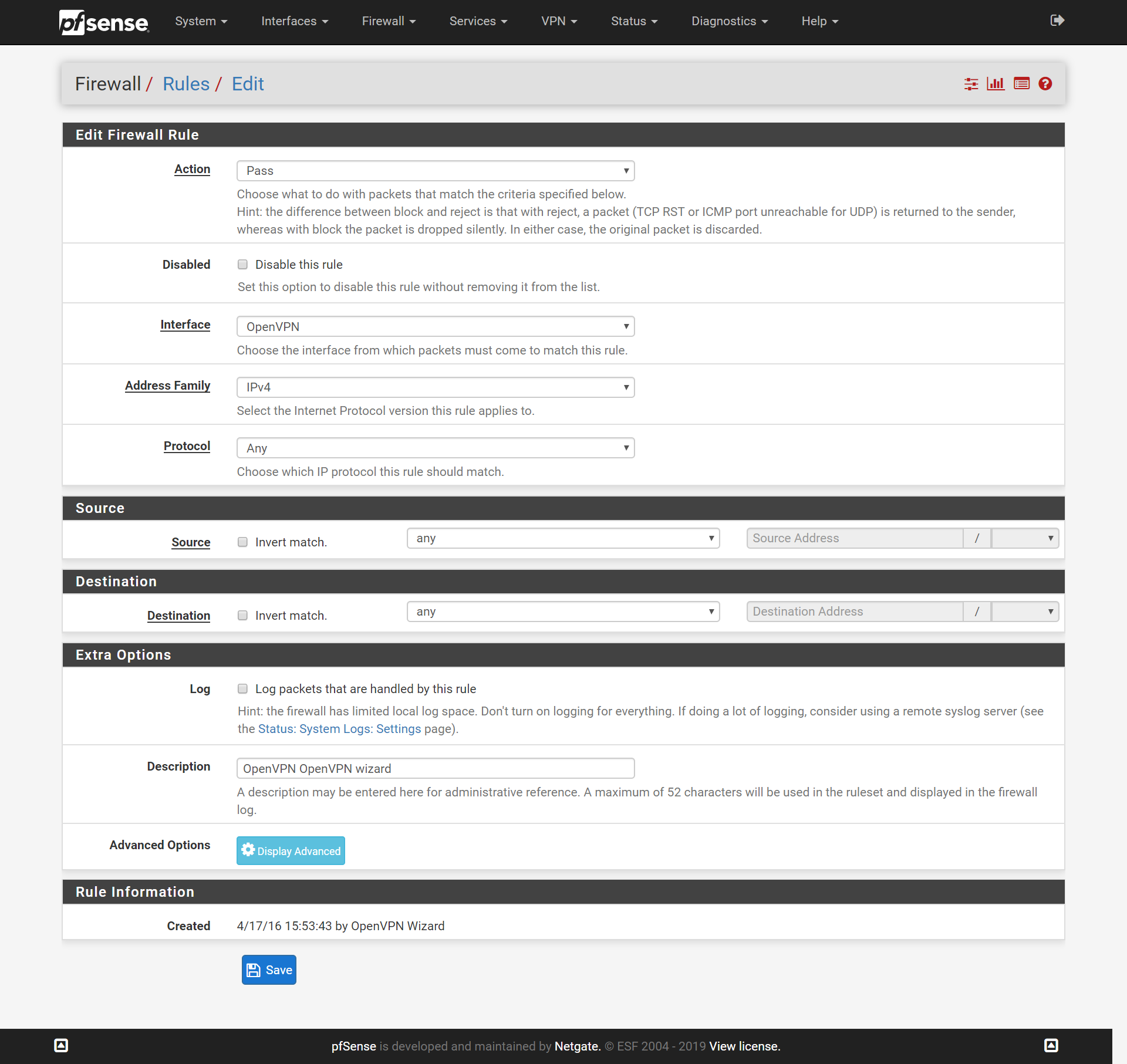

                                  @Derelict see attached
                                  sorry for the delay in responses, i have to wait 120 seconds between each postscreencapture-192-168-1-1-firewall-rules-edit-php-2019-07-02-17_39_13.png

                                  1 Reply Last reply Reply Quote 0
                                  • DerelictD
                                    Derelict LAYER 8 Netgate
                                    last edited by

                                    OK it's not that. check the firewalls on the target hosts.

                                    Try to ping the pfSense interface addresses.

                                    Chattanooga, Tennessee, USA
                                    A comprehensive network diagram is worth 10,000 words and 15 conference calls.
                                    DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
                                    Do Not Chat For Help! NO_WAN_EGRESS(TM)

                                    1 Reply Last reply Reply Quote 0
                                    • A
                                      ariban99
                                      last edited by

                                      ping from pfsense router 192.168.1.1 to a remote one 192.168.3.1

                                      PING 192.168.3.1 (192.168.3.1): 56 data bytes
                                      64 bytes from 192.168.3.1: icmp_seq=0 ttl=64 time=31.684 ms
                                      64 bytes from 192.168.3.1: icmp_seq=1 ttl=64 time=34.436 ms
                                      64 bytes from 192.168.3.1: icmp_seq=2 ttl=64 time=33.773 ms

                                      --- 192.168.3.1 ping statistics ---
                                      3 packets transmitted, 3 packets received, 0.0% packet loss
                                      round-trip min/avg/max/stddev = 31.684/33.298/34.436/1.173 ms

                                      ping from CMD windows 10
                                      Pinging 192.168.3.1 with 32 bytes of data:
                                      Request timed out.

                                      1 Reply Last reply Reply Quote 0
                                      • DerelictD
                                        Derelict LAYER 8 Netgate
                                        last edited by

                                        No. From an OpenVPN client, man.

                                        Chattanooga, Tennessee, USA
                                        A comprehensive network diagram is worth 10,000 words and 15 conference calls.
                                        DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
                                        Do Not Chat For Help! NO_WAN_EGRESS(TM)

                                        1 Reply Last reply Reply Quote 0
                                        • A
                                          ariban99
                                          last edited by

                                          im sorry if im new and not understanding this properly and i appreciate your help.
                                          isnt my windows 10 computer considered the client? this is a vpn connection on my laptop when i travel i have openvpn installed and i login and i can connect only to the main pfsense server that is hosting my openvpn to my laptop client as a remote access user auth.
                                          however the same pfsense main server has other openvpn connections to remote pfsense routers in 2 other office locations using peer to peer shared key, and from my laptop i can not access those remote offices that are connected to my main pfsense server at the main office

                                          1 Reply Last reply Reply Quote 0
                                          • DerelictD
                                            Derelict LAYER 8 Netgate
                                            last edited by

                                            Your client is connecting and getting an address in the tunnel network, 10.1.0.0/24 (10.1.0.2)

                                            It is being pushed routes to route 192.168.1.0/24, 192.168.2.0/24, 192.168.3.0/24 over the tunnel. That looks like it's working.

                                            So from that connected client, ping 192.168.3.1. If that works, the VPN is working.

                                            Then try to access a host on that network (or one of the others.) if that fails it is almost certainly a firewall on the TARGET host, not on the pfSense firewall. Windows in particular likes to filter connections to it to just it's local subnet. Yout 10.1.0.0/24 tunnel network will be outside of that subnet.

                                            Chattanooga, Tennessee, USA
                                            A comprehensive network diagram is worth 10,000 words and 15 conference calls.
                                            DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
                                            Do Not Chat For Help! NO_WAN_EGRESS(TM)

                                            1 Reply Last reply Reply Quote 0
