Маршрутизация клиента OpenVPN в две сети IPSec



  • День добрый, помогите советом или ткните ссылкой.

    Есть 2 офиса которые между собой объединены IPSec, и есть клиенты которые подключаются на один сервер OpenVPN (№1) которых надо запустить на оба сервера. Локально в любой из сети всё ходит нормально, а клиенты ovpn видят только сеть сервера №1, вторую сеть не видят.

    Сервер №1
    192.168.0.1 (/24)
    255.255.255.0
    сеть ovpn 192.168.192.0/24

    Сервер №2
    192.168.1.1 (/24)
    255.255.255.0

    В доп. настройках ovpn указано push "route 192.168.192.0 255.255.255.0"
    На форме прочитал что надо указывать еще одну фазу 2 для IPSec
    https://forum.netgate.com/topic/48678/openvpn-route-to-ipsec-remote-site
    Но что то не получается, если указывать фазу
    на 1 сервере LAN(192.168.0.0)-ovpn net (192.168.192.0)
    на сервере 2 LAN(192.168.1.0)-ovpn net (192.168.192.0)
    то локально пропадает доступ ко всем клиентам ovpn и в статусе IPSec во второй фазе не появляется вторая настройка, только основная.
    В правилах ovpn, ipsec и lan можно всё.



  • @Kowex Здр
    По уму у Вас должно быть 2 фазы-2 на обоих серверах
    Сервер 1
    1 фаза-2 192.168.0.0/24 <-> 192.168.1.0/24
    2 фаза-2 192.168.192.0/24 <-> 192.168.1.0/24

    На сервере 2 зеркальное отражение обеих фаз-2 сервера 1

    если нет доступа к настройкам сервера-2 , то надо использовать NAT в настройках дополнительной фазы-2 сервера-1
    тогда будет 2 фазы-2 на сервере-1 и 1 одна фаза-2 на сервере-2



  • @Kowex said in Маршрутизация клиента OpenVPN в две сети IPSec:

    push "route 192.168.192.0 255.255.255.0"

    Да, не так фазу вносил, появилась в статусе 2 фазы, но странно одинаковые.
    Локально всё работает, клиент так и не видит кроме сети ovpn
    Сервер №1

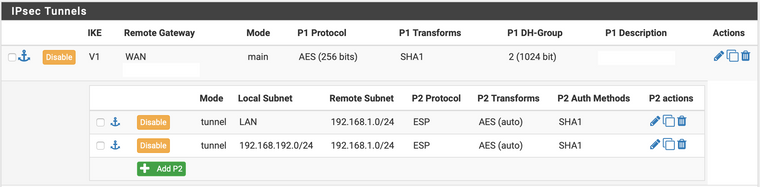

    Снимок экрана 2020-05-20 в 22.23.56.png
    Снимок экрана 2020-05-20 в 22.25.35.png

    Сервер №2
    Снимок экрана 2020-05-20 в 22.24.27.png
    Снимок экрана 2020-05-20 в 22.25.21.png



  • @Kowex
    Сервер-2 , по-моему, ошибка
    Должно быть
    Lan -> 0.0/24
    Lan -> 192.0/24

    а у Вас
    Lan -> 0.0/24
    192.0/24 -> 0.0/24 - ошибка



  • Если так делаю, то вторая фаза в фазах не запускается вообще

    Сервер №2
    Снимок экрана 2020-05-20 в 22.36.57.png
    Снимок экрана 2020-05-20 в 22.38.13.png



  • @Kowex
    Логи фазы-2 покажите



  • May 20 22:41:39	charon		08[IKE] <con1000|29> queueing ISAKMP_DPD task
    May 20 22:41:39	charon		08[IKE] <con1000|29> activating new tasks
    May 20 22:41:39	charon		08[IKE] <con1000|29> activating ISAKMP_DPD task
    May 20 22:41:39	charon		08[ENC] <con1000|29> generating INFORMATIONAL_V1 request 3332412499 [ HASH N(DPD_ACK) ]
    May 20 22:41:39	charon		08[NET] <con1000|29> sending packet: from 1.1.1.2[500] to 1.1.1.1[500] (92 bytes)
    May 20 22:41:39	charon		08[IKE] <con1000|29> activating new tasks
    May 20 22:41:39	charon		08[IKE] <con1000|29> nothing to initiate
    May 20 22:41:52	charon		08[IKE] <con1000|29> sending DPD request
    May 20 22:41:52	charon		08[IKE] <con1000|29> queueing ISAKMP_DPD task
    May 20 22:41:52	charon		08[IKE] <con1000|29> activating new tasks
    May 20 22:41:52	charon		08[IKE] <con1000|29> activating ISAKMP_DPD task
    May 20 22:41:52	charon		08[ENC] <con1000|29> generating INFORMATIONAL_V1 request 748839859 [ HASH N(DPD) ]
    May 20 22:41:52	charon		08[NET] <con1000|29> sending packet: from 1.1.1.2[500] to 1.1.1.1[500] (92 bytes)
    May 20 22:41:52	charon		08[IKE] <con1000|29> activating new tasks
    May 20 22:41:52	charon		08[IKE] <con1000|29> nothing to initiate
    May 20 22:41:52	charon		08[NET] <con1000|29> received packet: from 1.1.1.1[500] to 1.1.1.2[500] (92 bytes)
    May 20 22:41:52	charon		08[ENC] <con1000|29> parsed INFORMATIONAL_V1 request 219244393 [ HASH N(DPD_ACK) ]
    May 20 22:41:52	charon		08[IKE] <con1000|29> activating new tasks
    May 20 22:41:52	charon		08[IKE] <con1000|29> nothing to initiate
    May 20 22:42:13	charon		08[NET] <con1000|29> received packet: from 1.1.1.1[500] to 1.1.1.2[500] (92 bytes)
    May 20 22:42:13	charon		08[ENC] <con1000|29> parsed INFORMATIONAL_V1 request 4025856574 [ HASH N(DPD) ]
    May 20 22:42:13	charon		08[IKE] <con1000|29> queueing ISAKMP_DPD task
    May 20 22:42:13	charon		08[IKE] <con1000|29> activating new tasks
    May 20 22:42:13	charon		08[IKE] <con1000|29> activating ISAKMP_DPD task
    May 20 22:42:13	charon		08[ENC] <con1000|29> generating INFORMATIONAL_V1 request 3355157915 [ HASH N(DPD_ACK) ]
    May 20 22:42:13	charon		08[NET] <con1000|29> sending packet: from 1.1.1.2[500] to 1.1.1.1[500] (92 bytes)
    May 20 22:42:13	charon		08[IKE] <con1000|29> activating new tasks
    May 20 22:42:13	charon		08[IKE] <con1000|29> nothing to initiate
    May 20 22:42:23	charon		08[IKE] <con1000|29> sending DPD request
    May 20 22:42:23	charon		08[IKE] <con1000|29> queueing ISAKMP_DPD task
    May 20 22:42:23	charon		08[IKE] <con1000|29> activating new tasks
    May 20 22:42:23	charon		08[IKE] <con1000|29> activating ISAKMP_DPD task
    May 20 22:42:23	charon		08[ENC] <con1000|29> generating INFORMATIONAL_V1 request 1194493161 [ HASH N(DPD) ]
    May 20 22:42:23	charon		08[NET] <con1000|29> sending packet: from 1.1.1.2[500] to 1.1.1.1[500] (92 bytes)
    May 20 22:42:23	charon		08[IKE] <con1000|29> activating new tasks
    May 20 22:42:23	charon		08[IKE] <con1000|29> nothing to initiate
    May 20 22:42:23	charon		08[NET] <con1000|29> received packet: from 1.1.1.1[500] to 1.1.1.2[500] (92 bytes)
    May 20 22:42:23	charon		08[ENC] <con1000|29> parsed INFORMATIONAL_V1 request 3002549347 [ HASH N(DPD_ACK) ]
    May 20 22:42:23	charon		08[IKE] <con1000|29> activating new tasks
    May 20 22:42:23	charon		08[IKE] <con1000|29> nothing to initiate
    May 20 22:42:35	charon		08[NET] <con1000|29> received packet: from 1.1.1.1[500] to 1.1.1.2[500] (92 bytes)
    May 20 22:42:35	charon		08[ENC] <con1000|29> parsed INFORMATIONAL_V1 request 484372825 [ HASH N(DPD) ]
    May 20 22:42:35	charon		08[IKE] <con1000|29> queueing ISAKMP_DPD task
    May 20 22:42:35	charon		08[IKE] <con1000|29> activating new tasks
    May 20 22:42:35	charon		08[IKE] <con1000|29> activating ISAKMP_DPD task
    May 20 22:42:35	charon		08[ENC] <con1000|29> generating INFORMATIONAL_V1 request 30301262 [ HASH N(DPD_ACK) ]
    May 20 22:42:35	charon		08[NET] <con1000|29> sending packet: from 1.1.1.2[500] to 1.1.1.1[500] (92 bytes)
    May 20 22:42:35	charon		08[IKE] <con1000|29> activating new tasks
    May 20 22:42:35	charon		08[IKE] <con1000|29> nothing to initiate
    May 20 22:42:45	charon		11[NET] <con1000|29> received packet: from 1.1.1.1[500] to 1.1.1.2[500] (92 bytes)
    May 20 22:42:45	charon		11[ENC] <con1000|29> parsed INFORMATIONAL_V1 request 3214602504 [ HASH N(DPD) ]
    May 20 22:42:45	charon		11[IKE] <con1000|29> queueing ISAKMP_DPD task
    May 20 22:42:45	charon		11[IKE] <con1000|29> activating new tasks
    May 20 22:42:45	charon		11[IKE] <con1000|29> activating ISAKMP_DPD task
    May 20 22:42:45	charon		11[ENC] <con1000|29> generating INFORMATIONAL_V1 request 871769119 [ HASH N(DPD_ACK) ]
    May 20 22:42:45	charon		11[NET] <con1000|29> sending packet: from 1.1.1.2[500] to 1.1.1.1[500] (92 bytes)
    May 20 22:42:45	charon		11[IKE] <con1000|29> activating new tasks
    May 20 22:42:45	charon		11[IKE] <con1000|29> nothing to initiate
    May 20 22:42:57	charon		11[NET] <con1000|29> received packet: from 1.1.1.1[500] to 1.1.1.2[500] (92 bytes)
    May 20 22:42:57	charon		11[ENC] <con1000|29> parsed INFORMATIONAL_V1 request 560429149 [ HASH N(DPD) ]
    May 20 22:42:57	charon		11[IKE] <con1000|29> queueing ISAKMP_DPD task
    May 20 22:42:57	charon		11[IKE] <con1000|29> activating new tasks
    May 20 22:42:57	charon		11[IKE] <con1000|29> activating ISAKMP_DPD task
    May 20 22:42:57	charon		11[ENC] <con1000|29> generating INFORMATIONAL_V1 request 2874258477 [ HASH N(DPD_ACK) ]
    May 20 22:42:57	charon		11[NET] <con1000|29> sending packet: from 1.1.1.2[500] to 1.1.1.1[500] (92 bytes)
    May 20 22:42:57	charon		11[IKE] <con1000|29> activating new tasks
    May 20 22:42:57	charon		11[IKE] <con1000|29> nothing to initiate
    May 20 22:43:07	charon		15[NET] <con1000|29> received packet: from 1.1.1.1[500] to 1.1.1.2[500] (92 bytes)
    May 20 22:43:07	charon		15[ENC] <con1000|29> parsed INFORMATIONAL_V1 request 1885910885 [ HASH N(DPD) ]
    May 20 22:43:07	charon		15[IKE] <con1000|29> queueing ISAKMP_DPD task
    May 20 22:43:07	charon		15[IKE] <con1000|29> activating new tasks
    May 20 22:43:07	charon		15[IKE] <con1000|29> activating ISAKMP_DPD task
    May 20 22:43:07	charon		15[ENC] <con1000|29> generating INFORMATIONAL_V1 request 3325439433 [ HASH N(DPD_ACK) ]
    May 20 22:43:07	charon		15[NET] <con1000|29> sending packet: from 1.1.1.2[500] to 1.1.1.1[500] (92 bytes)
    May 20 22:43:07	charon		15[IKE] <con1000|29> activating new tasks
    May 20 22:43:07	charon		15[IKE] <con1000|29> nothing to initiate
    May 20 22:43:10	charon		09[CFG] vici client 799 connected
    May 20 22:43:10	charon		14[CFG] vici client 799 registered for: list-sa
    May 20 22:43:10	charon		15[CFG] vici client 799 requests: list-sas
    May 20 22:43:10	charon		09[CFG] vici client 799 disconnected
    May 20 22:43:15	charon		15[CFG] vici client 800 connected
    May 20 22:43:15	charon		09[CFG] vici client 800 registered for: list-sa
    May 20 22:43:15	charon		09[CFG] vici client 800 requests: list-sas
    May 20 22:43:15	charon		15[CFG] vici client 800 disconnected
    May 20 22:43:19	charon		15[IKE] <con1000|29> sending DPD request
    May 20 22:43:19	charon		15[IKE] <con1000|29> queueing ISAKMP_DPD task
    May 20 22:43:19	charon		15[IKE] <con1000|29> activating new tasks
    May 20 22:43:19	charon		15[IKE] <con1000|29> activating ISAKMP_DPD task
    May 20 22:43:19	charon		15[ENC] <con1000|29> generating INFORMATIONAL_V1 request 258169317 [ HASH N(DPD) ]
    May 20 22:43:19	charon		15[NET] <con1000|29> sending packet: from 1.1.1.2[500] to 1.1.1.1[500] (92 bytes)
    May 20 22:43:19	charon		15[IKE] <con1000|29> activating new tasks
    May 20 22:43:19	charon		15[IKE] <con1000|29> nothing to initiate
    May 20 22:43:19	charon		15[NET] <con1000|29> received packet: from 1.1.1.1[500] to 1.1.1.2[500] (92 bytes)
    May 20 22:43:19	charon		15[ENC] <con1000|29> parsed INFORMATIONAL_V1 request 1271110288 [ HASH N(DPD_ACK) ]
    May 20 22:43:19	charon		15[IKE] <con1000|29> activating new tasks
    May 20 22:43:19	charon		15[IKE] <con1000|29> nothing to initiate
    May 20 22:43:20	charon		13[CFG] vici client 801 connected
    May 20 22:43:20	charon		13[CFG] vici client 801 registered for: list-sa
    May 20 22:43:20	charon		15[CFG] vici client 801 requests: list-sas
    May 20 22:43:20	charon		10[CFG] vici client 801 disconnected



  • @Kowex
    Это немного не то
    Это просто обмен DPD пакетами
    Нужен журнал установления соединения .... и нужно увидеть , в чем ошибка



  • @Konstanti не пинайте, а где он?



  • @Kowex
    Это тот же журнал , кусок которого Вы показали
    только немного раньше .... когда устанавливается соединение



  • May 20 22:58:37	charon		15[CFG] vici client 809 connected
    May 20 22:58:37	charon		10[CFG] vici client 809 registered for: list-sa
    May 20 22:58:37	charon		10[CFG] vici client 809 requests: list-sas
    May 20 22:58:37	charon		10[CFG] vici client 809 disconnected
    May 20 22:58:41	charon		14[CFG] rereading secrets
    May 20 22:58:41	charon		14[CFG] loading secrets from '/var/etc/ipsec/ipsec.secrets'
    May 20 22:58:41	charon		14[CFG] loaded IKE secret for %any 1.1.1.1
    May 20 22:58:41	charon		14[CFG] rereading ca certificates from '/usr/local/etc/ipsec.d/cacerts'
    May 20 22:58:41	charon		14[CFG] rereading aa certificates from '/usr/local/etc/ipsec.d/aacerts'
    May 20 22:58:41	charon		14[CFG] rereading ocsp signer certificates from '/usr/local/etc/ipsec.d/ocspcerts'
    May 20 22:58:41	charon		14[CFG] rereading attribute certificates from '/usr/local/etc/ipsec.d/acerts'
    May 20 22:58:41	charon		14[CFG] rereading crls from '/usr/local/etc/ipsec.d/crls'
    May 20 22:58:41	charon		07[CFG] received stroke: unroute 'bypasslan'
    May 20 22:58:41	ipsec_starter	54100	shunt policy 'bypasslan' uninstalled
    May 20 22:58:41	charon		14[CFG] received stroke: delete connection 'bypasslan'
    May 20 22:58:41	charon		14[CFG] deleted connection 'bypasslan'
    May 20 22:58:41	charon		08[CFG] received stroke: unroute 'con1000'
    May 20 22:58:41	charon		08[CHD] CHILD_SA con1000{72} state change: ROUTED => DESTROYING
    May 20 22:58:41	ipsec_starter	54100	trap policy 'con1000' unrouted
    May 20 22:58:41	charon		14[CFG] received stroke: delete connection 'con1000'
    May 20 22:58:41	charon		14[CFG] deleted connection 'con1000'
    May 20 22:58:41	charon		08[CFG] received stroke: unroute 'con1001'
    May 20 22:58:41	charon		08[CHD] CHILD_SA con1001{73} state change: ROUTED => DESTROYING
    May 20 22:58:41	ipsec_starter	54100	trap policy 'con1001' unrouted
    May 20 22:58:41	charon		14[CFG] received stroke: delete connection 'con1001'
    May 20 22:58:41	charon		14[CFG] deleted connection 'con1001'
    May 20 22:58:41	charon		08[CFG] received stroke: add connection 'bypasslan'
    May 20 22:58:41	charon		08[CFG] conn bypasslan
    May 20 22:58:41	charon		08[CFG] left=%any
    May 20 22:58:41	charon		08[CFG] leftsubnet=192.168.1.0/24
    May 20 22:58:41	charon		08[CFG] right=%any
    May 20 22:58:41	charon		08[CFG] rightsubnet=192.168.1.0/24
    May 20 22:58:41	charon		08[CFG] dpddelay=30
    May 20 22:58:41	charon		08[CFG] dpdtimeout=150
    May 20 22:58:41	charon		08[CFG] sha256_96=no
    May 20 22:58:41	charon		08[CFG] mediation=no
    May 20 22:58:41	charon		08[CFG] added configuration 'bypasslan'
    May 20 22:58:41	charon		14[CFG] received stroke: route 'bypasslan'
    May 20 22:58:41	ipsec_starter	54100	'bypasslan' shunt PASS policy installed
    May 20 22:58:41	charon		09[CFG] received stroke: add connection 'con1000'
    May 20 22:58:41	charon		09[CFG] conn con1000
    May 20 22:58:41	charon		09[CFG] left=1.1.1.2
    May 20 22:58:41	charon		09[CFG] leftsubnet=192.168.1.0/24
    May 20 22:58:41	charon		09[CFG] leftauth=psk
    May 20 22:58:41	charon		09[CFG] leftid=1.1.1.2
    May 20 22:58:41	charon		09[CFG] right=office.domen.ru
    May 20 22:58:41	charon		09[CFG] rightsubnet=192.168.0.0/24
    May 20 22:58:41	charon		09[CFG] rightauth=psk
    May 20 22:58:41	charon		09[CFG] rightid=1.1.1.1
    May 20 22:58:41	charon		09[CFG] ike=aes256-sha1-modp1024!
    May 20 22:58:41	charon		09[CFG] esp=aes256-sha1,aes192-sha1,aes128-sha1!
    May 20 22:58:41	charon		09[CFG] dpddelay=10
    May 20 22:58:41	charon		09[CFG] dpdtimeout=60
    May 20 22:58:41	charon		09[CFG] dpdaction=3
    May 20 22:58:41	charon		09[CFG] sha256_96=no
    May 20 22:58:41	charon		09[CFG] mediation=no
    May 20 22:58:41	charon		09[CFG] keyexchange=ikev1
    May 20 22:58:41	charon		09[CFG] added configuration 'con1000'
    May 20 22:58:41	charon		08[CFG] received stroke: route 'con1000'
    May 20 22:58:41	charon		08[CFG] configured proposals: ESP:AES_CBC_256/HMAC_SHA1_96/NO_EXT_SEQ, ESP:AES_CBC_192/HMAC_SHA1_96/NO_EXT_SEQ, ESP:AES_CBC_128/HMAC_SHA1_96/NO_EXT_SEQ
    May 20 22:58:41	charon		08[CHD] CHILD_SA con1000{74} state change: CREATED => ROUTED
    May 20 22:58:41	ipsec_starter	54100	'con1000' routed
    May 20 22:58:41	charon		09[CFG] received stroke: add connection 'con1001'
    May 20 22:58:41	charon		09[CFG] conn con1001
    May 20 22:58:41	charon		09[CFG] left=1.1.1.2
    May 20 22:58:41	charon		09[CFG] leftsubnet=192.168.1.0/24
    May 20 22:58:41	charon		09[CFG] leftauth=psk
    May 20 22:58:41	charon		09[CFG] leftid=1.1.1.2
    May 20 22:58:41	charon		09[CFG] right=office.domen.ru
    May 20 22:58:41	charon		09[CFG] rightsubnet=192.168.192.0/24
    May 20 22:58:41	charon		09[CFG] rightauth=psk
    May 20 22:58:41	charon		09[CFG] rightid=1.1.1.1
    May 20 22:58:41	charon		09[CFG] ike=aes256-sha1-modp1024!
    May 20 22:58:41	charon		09[CFG] esp=aes256-sha1,aes192-sha1,aes128-sha1!
    May 20 22:58:41	charon		09[CFG] dpddelay=10
    May 20 22:58:41	charon		09[CFG] dpdtimeout=60
    May 20 22:58:41	charon		09[CFG] dpdaction=3
    May 20 22:58:41	charon		09[CFG] sha256_96=no
    May 20 22:58:41	charon		09[CFG] mediation=no
    May 20 22:58:41	charon		09[CFG] keyexchange=ikev1
    May 20 22:58:41	charon		09[CFG] added child to existing configuration 'con1000'
    May 20 22:58:41	charon		08[CFG] received stroke: route 'con1001'
    May 20 22:58:41	charon		08[CFG] configured proposals: ESP:AES_CBC_256/HMAC_SHA1_96/NO_EXT_SEQ, ESP:AES_CBC_192/HMAC_SHA1_96/NO_EXT_SEQ, ESP:AES_CBC_128/HMAC_SHA1_96/NO_EXT_SEQ
    May 20 22:58:41	charon		08[CHD] CHILD_SA con1001{75} state change: CREATED => ROUTED
    May 20 22:58:41	ipsec_starter	54100	'con1001' routed
    May 20 22:58:43	charon		15[CFG] vici client 810 connected
    May 20 22:58:43	charon		15[CFG] vici client 810 registered for: list-sa
    May 20 22:58:43	charon		12[CFG] vici client 810 requests: list-sas
    May 20 22:58:43	charon		15[CFG] vici client 810 disconnected
    May 20 22:58:44	charon		15[IKE] <con1000|29> sending DPD request
    May 20 22:58:44	charon		15[IKE] <con1000|29> queueing ISAKMP_DPD task
    May 20 22:58:44	charon		15[IKE] <con1000|29> activating new tasks
    May 20 22:58:44	charon		15[IKE] <con1000|29> activating ISAKMP_DPD task
    May 20 22:58:44	charon		15[ENC] <con1000|29> generating INFORMATIONAL_V1 request 3985228861 [ HASH N(DPD) ]
    May 20 22:58:44	charon		15[NET] <con1000|29> sending packet: from 1.1.1.2[500] to 1.1.1.1[500] (92 bytes)
    May 20 22:58:44	charon		15[IKE] <con1000|29> activating new tasks
    May 20 22:58:44	charon		15[IKE] <con1000|29> nothing to initiate
    May 20 22:58:44	charon		15[NET] <con1000|29> received packet: from 1.1.1.1[500] to 1.1.1.2[500] (92 bytes)
    May 20 22:58:44	charon		15[ENC] <con1000|29> parsed INFORMATIONAL_V1 request 3367427594 [ HASH N(DPD_ACK) ]
    May 20 22:58:44	charon		15[IKE] <con1000|29> activating new tasks
    May 20 22:58:44	charon		15[IKE] <con1000|29> nothing to initiate
    May 20 22:58:46	charon		11[CFG] vici client 811 connected
    May 20 22:58:46	charon		15[CFG] vici client 811 registered for: list-sa
    May 20 22:58:46	charon		11[CFG] vici client 811 requests: list-sas
    May 20 22:58:46	charon		11[CFG] vici client 811 disconnected
    May 20 22:58:54	charon		11[IKE] <con1000|29> sending DPD request
    May 20 22:58:54	charon		11[IKE] <con1000|29> queueing ISAKMP_DPD task
    May 20 22:58:54	charon		11[IKE] <con1000|29> activating new tasks
    May 20 22:58:54	charon		11[IKE] <con1000|29> activating ISAKMP_DPD task
    May 20 22:58:54	charon		11[ENC] <con1000|29> generating INFORMATIONAL_V1 request 923050361 [ HASH N(DPD) ]
    May 20 22:58:54	charon		11[NET] <con1000|29> sending packet: from 1.1.1.2[500] to 1.1.1.1[500] (92 bytes)
    May 20 22:58:54	charon		11[IKE] <con1000|29> activating new tasks
    May 20 22:58:54	charon		11[IKE] <con1000|29> nothing to initiate
    May 20 22:58:54	charon		10[NET] <con1000|29> received packet: from 1.1.1.1[500] to 1.1.1.2[500] (92 bytes)
    May 20 22:58:54	charon		10[ENC] <con1000|29> parsed INFORMATIONAL_V1 request 3973572512 [ HASH N(DPD) ]
    May 20 22:58:54	charon		10[IKE] <con1000|29> queueing ISAKMP_DPD task
    May 20 22:58:54	charon		10[IKE] <con1000|29> activating new tasks
    May 20 22:58:54	charon		10[IKE] <con1000|29> activating ISAKMP_DPD task
    May 20 22:58:54	charon		10[ENC] <con1000|29> generating INFORMATIONAL_V1 request 1379165606 [ HASH N(DPD_ACK) ]
    May 20 22:58:54	charon		10[NET] <con1000|29> sending packet: from 1.1.1.2[500] to 1.1.1.1[500] (92 bytes)
    May 20 22:58:54	charon		10[IKE] <con1000|29> activating new tasks
    May 20 22:58:54	charon		10[IKE] <con1000|29> nothing to initiate
    May 20 22:58:54	charon		10[NET] <con1000|29> received packet: from 1.1.1.1[500] to 1.1.1.2[500] (92 bytes)
    May 20 22:58:54	charon		10[ENC] <con1000|29> parsed INFORMATIONAL_V1 request 1704107891 [ HASH N(DPD_ACK) ]
    May 20 22:58:54	charon		10[IKE] <con1000|29> activating new tasks
    May 20 22:58:54	charon		10[IKE] <con1000|29> nothing to initiate
    May 20 22:59:06	charon		10[NET] <con1000|29> received packet: from 1.1.1.1[500] to 1.1.1.2[500] (92 bytes)
    May 20 22:59:06	charon		10[ENC] <con1000|29> parsed INFORMATIONAL_V1 request 1403021559 [ HASH N(DPD) ]
    May 20 22:59:06	charon		10[IKE] <con1000|29> queueing ISAKMP_DPD task
    May 20 22:59:06	charon		10[IKE] <con1000|29> activating new tasks
    May 20 22:59:06	charon		10[IKE] <con1000|29> activating ISAKMP_DPD task
    May 20 22:59:06	charon		10[ENC] <con1000|29> generating INFORMATIONAL_V1 request 1202476669 [ HASH N(DPD_ACK) ]
    May 20 22:59:06	charon		10[NET] <con1000|29> sending packet: from 1.1.1.2[500] to 1.1.1.1[500] (92 bytes)
    May 20 22:59:06	charon		10[IKE] <con1000|29> activating new tasks
    May 20 22:59:06	charon		10[IKE] <con1000|29> nothing to initiate



  • @Kowex
    Ради интереса
    Покажите вывод команды "ipsec statusall" из консоли

    и что можно увидеть в
    /Status/IPsec/SPDs



  • @Konstanti

    Status of IKE charon daemon (strongSwan 5.8.2, FreeBSD 11.3-STABLE, amd64):
      uptime: 50 minutes, since May 20 22:19:26 2020
      worker threads: 11 of 16 idle, 5/0/0/0 working, job queue: 0/0/0/0, scheduled: 3
      loaded plugins: charon unbound aes des blowfish rc2 sha2 sha1 md4 md5 random nonce x509 revocation constraints pubkey pkcs1 pkcs7 pkcs8 pkcs12 pgp dnskey sshkey ipseckey pem openssl fips-prf curve25519 xcbc cmac hmac drbg curl attr kernel-pfkey kernel-pfroute resolve socket-default stroke vici updown eap-identity eap-sim eap-md5 eap-mschapv2 eap-dynamic eap-radius eap-tls eap-ttls eap-peap xauth-generic xauth-eap xauth-pam whitelist addrblock counters
    Listening IP addresses:
      192.168.0.254
      1.1.1.1
      192.168.192.1
    Connections:
       bypasslan:  %any...%any  IKEv1/2
       bypasslan:   local:  uses public key authentication
       bypasslan:   remote: uses public key authentication
       bypasslan:   child:  192.168.0.0/24|/0 === 192.168.0.0/24|/0 PASS
         con1000:  1.1.1.1...shop.domen.ru  IKEv1, dpddelay=10s
         con1000:   local:  [1.1.1.1] uses pre-shared key authentication
         con1000:   remote: [1.1.1.2] uses pre-shared key authentication
         con1000:   child:  192.168.0.0/24|/0 === 192.168.1.0/24|/0 TUNNEL, dpdaction=restart
         con1001:   child:  192.168.192.0/24|/0 === 192.168.1.0/24|/0 TUNNEL, dpdaction=restart
    Shunted Connections:
       bypasslan:  192.168.0.0/24|/0 === 192.168.0.0/24|/0 PASS
    Routed Connections:
         con1001{9}:  ROUTED, TUNNEL, reqid 5
         con1001{9}:   192.168.192.0/24|/0 === 192.168.1.0/24|/0
         con1000{8}:  ROUTED, TUNNEL, reqid 3
         con1000{8}:   192.168.0.0/24|/0 === 192.168.1.0/24|/0
    Security Associations (1 up, 0 connecting):
         con1000[4]: ESTABLISHED 33 minutes ago, 1.1.1.1[1.1.1.1]...1.1.1.2[1.1.1.2]
         con1000[4]: IKEv1 SPIs: 41e4c753c5391f47_i* ffa36a079875b43d_r, rekeying disabled
         con1000[4]: IKE proposal: AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024
         con1000{7}:  INSTALLED, TUNNEL, reqid 3, ESP SPIs: c2f50112_i c1845d41_o
         con1000{7}:  AES_CBC_256/HMAC_SHA1_96, 2741944 bytes_i (3232 pkts, 18s ago), 868272 bytes_o (2176 pkts, 18s ago), rekeying disabled
         con1000{7}:   192.168.0.0/24|/0 === 192.168.1.0/24|/0



  • @Kowex
    Попробуйте не перезапустить , а остановить IPSEC и запустить заново
    И покажите журнал установления соединения



  • 192.168.1.0/24	192.168.0.0/24	◄ Inbound	ESP	1.1.1.2 -> 1.1.1.1
    192.168.1.0/24	192.168.192.0/24	◄ Inbound	ESP	1.1.1.2 -> 1.1.1.1
    192.168.0.0/24	192.168.1.0/24	► Outbound	ESP	1.1.1.1 -> 1.1.1.2
    192.168.192.0/24	192.168.1.0/24	► Outbound	ESP	1.1.1.1 -> 1.1.1.2



  • May 20 23:25:38	ipsec_starter	4358	Starting strongSwan 5.8.2 IPsec [starter]...
    May 20 23:25:38	charon		00[DMN] Starting IKE charon daemon (strongSwan 5.8.2, FreeBSD 11.3-STABLE, amd64)
    May 20 23:25:38	charon		00[KNL] unable to set UDP_ENCAP: Invalid argument
    May 20 23:25:38	charon		00[NET] enabling UDP decapsulation for IPv6 on port 4500 failed
    May 20 23:25:38	charon		00[CFG] loading unbound resolver config from '/etc/resolv.conf'
    May 20 23:25:38	charon		00[CFG] loading unbound trust anchors from '/usr/local/etc/ipsec.d/dnssec.keys'
    May 20 23:25:38	charon		00[CFG] ipseckey plugin is disabled
    May 20 23:25:38	charon		00[CFG] loading ca certificates from '/usr/local/etc/ipsec.d/cacerts'
    May 20 23:25:38	charon		00[CFG] loading aa certificates from '/usr/local/etc/ipsec.d/aacerts'
    May 20 23:25:38	charon		00[CFG] loading ocsp signer certificates from '/usr/local/etc/ipsec.d/ocspcerts'
    May 20 23:25:38	charon		00[CFG] loading attribute certificates from '/usr/local/etc/ipsec.d/acerts'
    May 20 23:25:38	charon		00[CFG] loading crls from '/usr/local/etc/ipsec.d/crls'
    May 20 23:25:38	charon		00[CFG] loading secrets from '/var/etc/ipsec/ipsec.secrets'
    May 20 23:25:38	charon		00[CFG] loaded IKE secret for %any 1.1.1.2
    May 20 23:25:38	charon		00[CFG] loaded IKE secret for 1
    May 20 23:25:38	charon		00[CFG] opening triplet file /usr/local/etc/ipsec.d/triplets.dat failed: No such file or directory
    May 20 23:25:38	charon		00[CFG] loaded 0 RADIUS server configurations
    May 20 23:25:38	charon		00[LIB] loaded plugins: charon unbound aes des blowfish rc2 sha2 sha1 md4 md5 random nonce x509 revocation constraints pubkey pkcs1 pkcs7 pkcs8 pkcs12 pgp dnskey sshkey ipseckey pem openssl fips-prf curve25519 xcbc cmac hmac drbg curl attr kernel-pfkey kernel-pfroute resolve socket-default stroke vici updown eap-identity eap-sim eap-md5 eap-mschapv2 eap-dynamic eap-radius eap-tls eap-ttls eap-peap xauth-generic xauth-eap xauth-pam whitelist addrblock counters
    May 20 23:25:38	charon		00[JOB] spawning 16 worker threads
    May 20 23:25:38	ipsec_starter	4787	charon (4926) started after 20 ms
    May 20 23:25:38	charon		16[CFG] received stroke: add connection 'bypasslan'
    May 20 23:25:38	charon		16[CFG] conn bypasslan
    May 20 23:25:38	charon		16[CFG] left=%any
    May 20 23:25:38	charon		16[CFG] leftsubnet=192.168.0.0/24
    May 20 23:25:38	charon		16[CFG] right=%any
    May 20 23:25:38	charon		16[CFG] rightsubnet=192.168.0.0/24
    May 20 23:25:38	charon		16[CFG] dpddelay=30
    May 20 23:25:38	charon		16[CFG] dpdtimeout=150
    May 20 23:25:38	charon		16[CFG] sha256_96=no
    May 20 23:25:38	charon		16[CFG] mediation=no
    May 20 23:25:38	charon		16[CFG] added configuration 'bypasslan'
    May 20 23:25:38	charon		13[CFG] received stroke: route 'bypasslan'
    May 20 23:25:38	ipsec_starter	4787	'bypasslan' shunt PASS policy installed
    May 20 23:25:38	charon		16[CFG] received stroke: add connection 'con1000'
    May 20 23:25:38	charon		16[CFG] conn con1000
    May 20 23:25:38	charon		16[CFG] left=1.1.1.1
    May 20 23:25:38	charon		16[CFG] leftsubnet=192.168.0.0/24
    May 20 23:25:38	charon		16[CFG] leftauth=psk
    May 20 23:25:38	charon		16[CFG] leftid=1.1.1.1
    May 20 23:25:38	charon		16[CFG] right=shop.domen.ru
    May 20 23:25:38	charon		16[CFG] rightsubnet=192.168.1.0/24
    May 20 23:25:38	charon		16[CFG] rightauth=psk
    May 20 23:25:38	charon		16[CFG] rightid=1.1.1.2
    May 20 23:25:38	charon		16[CFG] ike=aes256-sha1-modp1024!
    May 20 23:25:38	charon		16[CFG] esp=aes256-sha1,aes192-sha1,aes128-sha1!
    May 20 23:25:38	charon		16[CFG] dpddelay=10
    May 20 23:25:38	charon		16[CFG] dpdtimeout=60
    May 20 23:25:38	charon		16[CFG] dpdaction=3
    May 20 23:25:38	charon		16[CFG] sha256_96=no
    May 20 23:25:38	charon		16[CFG] mediation=no
    May 20 23:25:38	charon		16[CFG] keyexchange=ikev1
    May 20 23:25:38	charon		16[CFG] added configuration 'con1000'
    May 20 23:25:38	charon		13[CFG] received stroke: route 'con1000'
    May 20 23:25:38	charon		13[CFG] configured proposals: ESP:AES_CBC_256/HMAC_SHA1_96/NO_EXT_SEQ, ESP:AES_CBC_192/HMAC_SHA1_96/NO_EXT_SEQ, ESP:AES_CBC_128/HMAC_SHA1_96/NO_EXT_SEQ
    May 20 23:25:38	charon		13[CHD] CHILD_SA con1000{1} state change: CREATED => ROUTED
    May 20 23:25:38	ipsec_starter	4787	'con1000' routed
    May 20 23:25:38	charon		16[CFG] received stroke: add connection 'con1001'
    May 20 23:25:38	charon		16[CFG] conn con1001
    May 20 23:25:38	charon		16[CFG] left=1.1.1.1
    May 20 23:25:38	charon		16[CFG] leftsubnet=192.168.192.0/24
    May 20 23:25:38	charon		16[CFG] leftauth=psk
    May 20 23:25:38	charon		16[CFG] leftid=1.1.1.1
    May 20 23:25:38	charon		16[CFG] right=shop.domen.ru
    May 20 23:25:38	charon		16[CFG] rightsubnet=192.168.1.0/24
    May 20 23:25:38	charon		16[CFG] rightauth=psk
    May 20 23:25:38	charon		16[CFG] rightid=1.1.1.2
    May 20 23:25:38	charon		16[CFG] ike=aes256-sha1-modp1024!
    May 20 23:25:38	charon		16[CFG] esp=aes256-sha1,aes192-sha1,aes128-sha1!
    May 20 23:25:38	charon		16[CFG] dpddelay=10
    May 20 23:25:38	charon		16[CFG] dpdtimeout=60
    May 20 23:25:38	charon		16[CFG] dpdaction=3
    May 20 23:25:38	charon		16[CFG] sha256_96=no
    May 20 23:25:38	charon		16[CFG] mediation=no
    May 20 23:25:38	charon		16[CFG] keyexchange=ikev1
    May 20 23:25:38	charon		16[CFG] added child to existing configuration 'con1000'
    May 20 23:25:38	charon		13[CFG] received stroke: route 'con1001'
    May 20 23:25:38	charon		13[CFG] configured proposals: ESP:AES_CBC_256/HMAC_SHA1_96/NO_EXT_SEQ, ESP:AES_CBC_192/HMAC_SHA1_96/NO_EXT_SEQ, ESP:AES_CBC_128/HMAC_SHA1_96/NO_EXT_SEQ
    May 20 23:25:38	charon		13[CHD] CHILD_SA con1001{2} state change: CREATED => ROUTED
    May 20 23:25:38	ipsec_starter	4787	'con1001' routed
    May 20 23:25:38	charon		15[KNL] creating acquire job for policy 1.1.1.1/32|/0 === 1.1.1.2/32|/0 with reqid {1}
    May 20 23:25:38	charon		16[IKE] <con1000|1> queueing ISAKMP_VENDOR task
    May 20 23:25:38	charon		16[IKE] <con1000|1> queueing ISAKMP_CERT_PRE task
    May 20 23:25:38	charon		16[IKE] <con1000|1> queueing MAIN_MODE task
    May 20 23:25:38	charon		16[IKE] <con1000|1> queueing ISAKMP_CERT_POST task
    May 20 23:25:38	charon		16[IKE] <con1000|1> queueing ISAKMP_NATD task
    May 20 23:25:38	charon		16[IKE] <con1000|1> queueing QUICK_MODE task
    May 20 23:25:38	charon		16[IKE] <con1000|1> activating new tasks
    May 20 23:25:38	charon		16[IKE] <con1000|1> activating ISAKMP_VENDOR task
    May 20 23:25:38	charon		16[IKE] <con1000|1> activating ISAKMP_CERT_PRE task
    May 20 23:25:38	charon		16[IKE] <con1000|1> activating MAIN_MODE task
    May 20 23:25:38	charon		16[IKE] <con1000|1> activating ISAKMP_CERT_POST task
    May 20 23:25:38	charon		16[IKE] <con1000|1> activating ISAKMP_NATD task
    May 20 23:25:38	charon		16[IKE] <con1000|1> sending XAuth vendor ID
    May 20 23:25:38	charon		16[IKE] <con1000|1> sending DPD vendor ID
    May 20 23:25:38	charon		16[IKE] <con1000|1> sending FRAGMENTATION vendor ID
    May 20 23:25:38	charon		16[IKE] <con1000|1> sending NAT-T (RFC 3947) vendor ID
    May 20 23:25:38	charon		16[IKE] <con1000|1> sending draft-ietf-ipsec-nat-t-ike-02\n vendor ID
    May 20 23:25:38	charon		16[IKE] <con1000|1> initiating Main Mode IKE_SA con1000[1] to 1.1.1.2
    May 20 23:25:38	charon		16[IKE] <con1000|1> IKE_SA con1000[1] state change: CREATED => CONNECTING
    May 20 23:25:38	charon		16[CFG] <con1000|1> configured proposals: IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024
    May 20 23:25:38	charon		16[ENC] <con1000|1> generating ID_PROT request 0 [ SA V V V V V ]
    May 20 23:25:38	charon		16[NET] <con1000|1> sending packet: from 1.1.1.1[500] to 1.1.1.2[500] (180 bytes)
    May 20 23:25:38	charon		16[NET] <con1000|1> received packet: from 1.1.1.2[500] to 1.1.1.1[500] (160 bytes)
    May 20 23:25:38	charon		16[ENC] <con1000|1> parsed ID_PROT response 0 [ SA V V V V ]
    May 20 23:25:38	charon		16[IKE] <con1000|1> received XAuth vendor ID
    May 20 23:25:38	charon		16[IKE] <con1000|1> received DPD vendor ID
    May 20 23:25:38	charon		16[IKE] <con1000|1> received FRAGMENTATION vendor ID
    May 20 23:25:38	charon		16[IKE] <con1000|1> received NAT-T (RFC 3947) vendor ID
    May 20 23:25:38	charon		16[CFG] <con1000|1> selecting proposal:
    May 20 23:25:38	charon		16[CFG] <con1000|1> proposal matches
    May 20 23:25:38	charon		16[CFG] <con1000|1> received proposals: IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024
    May 20 23:25:38	charon		16[CFG] <con1000|1> configured proposals: IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024
    May 20 23:25:38	charon		16[CFG] <con1000|1> selected proposal: IKE:AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024
    May 20 23:25:38	charon		16[IKE] <con1000|1> reinitiating already active tasks
    May 20 23:25:38	charon		16[IKE] <con1000|1> ISAKMP_VENDOR task
    May 20 23:25:38	charon		16[IKE] <con1000|1> MAIN_MODE task
    May 20 23:25:38	charon		16[ENC] <con1000|1> generating ID_PROT request 0 [ KE No NAT-D NAT-D ]
    May 20 23:25:38	charon		16[NET] <con1000|1> sending packet: from 1.1.1.1[500] to 1.1.1.2[500] (244 bytes)
    May 20 23:25:38	charon		16[NET] <con1000|1> received packet: from 1.1.1.2[500] to 1.1.1.1[500] (244 bytes)
    May 20 23:25:38	charon		16[ENC] <con1000|1> parsed ID_PROT response 0 [ KE No NAT-D NAT-D ]
    May 20 23:25:38	charon		16[IKE] <con1000|1> reinitiating already active tasks
    May 20 23:25:38	charon		16[IKE] <con1000|1> ISAKMP_VENDOR task
    May 20 23:25:38	charon		16[IKE] <con1000|1> MAIN_MODE task
    May 20 23:25:38	charon		16[ENC] <con1000|1> generating ID_PROT request 0 [ ID HASH N(INITIAL_CONTACT) ]
    May 20 23:25:38	charon		16[NET] <con1000|1> sending packet: from 1.1.1.1[500] to 1.1.1.2[500] (108 bytes)
    May 20 23:25:38	charon		16[NET] <con1000|1> received packet: from 1.1.1.2[500] to 1.1.1.1[500] (76 bytes)
    May 20 23:25:38	charon		16[ENC] <con1000|1> parsed ID_PROT response 0 [ ID HASH ]
    May 20 23:25:38	charon		16[IKE] <con1000|1> IKE_SA con1000[1] established between 1.1.1.1[1.1.1.1]...1.1.1.2[1.1.1.2]
    May 20 23:25:38	charon		16[IKE] <con1000|1> IKE_SA con1000[1] state change: CONNECTING => ESTABLISHED
    May 20 23:25:38	charon		16[IKE] <con1000|1> activating new tasks
    May 20 23:25:38	charon		16[IKE] <con1000|1> activating QUICK_MODE task
    May 20 23:25:38	charon		16[CFG] <con1000|1> configured proposals: ESP:AES_CBC_256/HMAC_SHA1_96/NO_EXT_SEQ, ESP:AES_CBC_192/HMAC_SHA1_96/NO_EXT_SEQ, ESP:AES_CBC_128/HMAC_SHA1_96/NO_EXT_SEQ
    May 20 23:25:38	charon		16[CFG] <con1000|1> configured proposals: ESP:AES_CBC_256/HMAC_SHA1_96/NO_EXT_SEQ, ESP:AES_CBC_192/HMAC_SHA1_96/NO_EXT_SEQ, ESP:AES_CBC_128/HMAC_SHA1_96/NO_EXT_SEQ
    May 20 23:25:38	charon		16[CFG] <con1000|1> proposing traffic selectors for us:
    May 20 23:25:38	charon		16[CFG] <con1000|1> 192.168.0.0/24|/0
    May 20 23:25:38	charon		16[CFG] <con1000|1> proposing traffic selectors for other:
    May 20 23:25:38	charon		16[CFG] <con1000|1> 192.168.1.0/24|/0
    May 20 23:25:38	charon		16[ENC] <con1000|1> generating QUICK_MODE request 2775791088 [ HASH SA No ID ID ]
    May 20 23:25:38	charon		16[NET] <con1000|1> sending packet: from 1.1.1.1[500] to 1.1.1.2[500] (220 bytes)
    May 20 23:25:38	charon		16[NET] <con1000|1> received packet: from 1.1.1.2[500] to 1.1.1.1[500] (188 bytes)
    May 20 23:25:38	charon		16[ENC] <con1000|1> parsed QUICK_MODE response 2775791088 [ HASH SA No ID ID ]
    May 20 23:25:38	charon		16[CFG] <con1000|1> selecting proposal:
    May 20 23:25:38	charon		16[CFG] <con1000|1> proposal matches
    May 20 23:25:38	charon		16[CFG] <con1000|1> received proposals: ESP:AES_CBC_256/HMAC_SHA1_96/NO_EXT_SEQ
    May 20 23:25:38	charon		16[CFG] <con1000|1> configured proposals: ESP:AES_CBC_256/HMAC_SHA1_96/NO_EXT_SEQ, ESP:AES_CBC_192/HMAC_SHA1_96/NO_EXT_SEQ, ESP:AES_CBC_128/HMAC_SHA1_96/NO_EXT_SEQ
    May 20 23:25:38	charon		16[CFG] <con1000|1> selected proposal: ESP:AES_CBC_256/HMAC_SHA1_96/NO_EXT_SEQ
    May 20 23:25:38	charon		16[IKE] <con1000|1> received 28800s lifetime, configured 0s
    May 20 23:25:38	charon		16[CHD] <con1000|1> CHILD_SA con1000{3} state change: CREATED => INSTALLING
    May 20 23:25:38	charon		16[CHD] <con1000|1> using AES_CBC for encryption
    May 20 23:25:38	charon		16[CHD] <con1000|1> using HMAC_SHA1_96 for integrity
    May 20 23:25:38	charon		16[CHD] <con1000|1> adding inbound ESP SA
    May 20 23:25:38	charon		16[CHD] <con1000|1> SPI 0xcf0cb126, src 1.1.1.2 dst 1.1.1.1
    May 20 23:25:38	charon		16[CHD] <con1000|1> adding outbound ESP SA
    May 20 23:25:38	charon		16[CHD] <con1000|1> SPI 0xc32a300a, src 1.1.1.1 dst 1.1.1.2
    May 20 23:25:38	charon		16[IKE] <con1000|1> CHILD_SA con1000{3} established with SPIs cf0cb126_i c32a300a_o and TS 192.168.0.0/24|/0 === 192.168.1.0/24|/0
    May 20 23:25:38	charon		16[CHD] <con1000|1> CHILD_SA con1000{3} state change: INSTALLING => INSTALLED
    May 20 23:25:38	charon		16[IKE] <con1000|1> reinitiating already active tasks
    May 20 23:25:38	charon		16[IKE] <con1000|1> QUICK_MODE task
    May 20 23:25:38	charon		16[ENC] <con1000|1> generating QUICK_MODE request 2775791088 [ HASH ]
    May 20 23:25:38	charon		16[NET] <con1000|1> sending packet: from 1.1.1.1[500] to 1.1.1.2[500] (60 bytes)
    May 20 23:25:38	charon		16[IKE] <con1000|1> activating new tasks
    May 20 23:25:38	charon		16[IKE] <con1000|1> nothing to initiate
    May 20 23:25:43	charon		10[CFG] vici client 1 connected
    May 20 23:25:43	charon		09[CFG] vici client 1 registered for: list-sa
    May 20 23:25:43	charon		08[CFG] vici client 1 requests: list-sas
    May 20 23:25:43	charon		09[CFG] vici client 1 disconnected




  • @Kowex В настройках фазы 1 есть опция

    Попробуйте ее отметить с обеих сторон и посмотреть результат



  • @Konstanti странно, но у меня в фазе 1 нет такого параметра.



  • @Kowex В самом низу , Advanced options



  • @Konstanti да я уже понял что там должно быть.

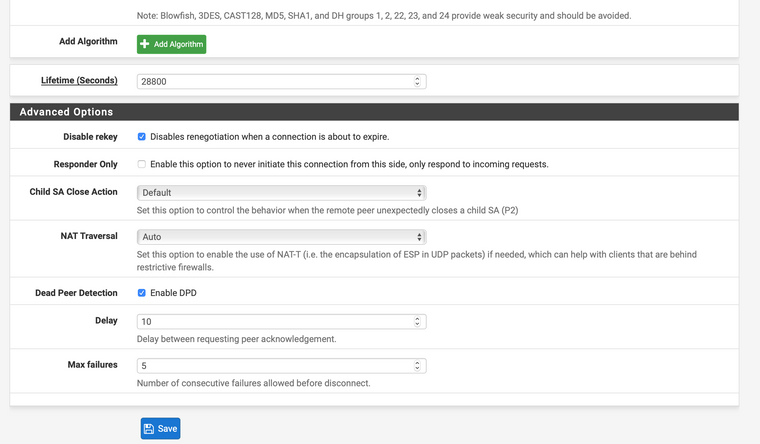

    Снимок экрана 2020-05-20 в 23.51.59.png



  • @Kowex
    Поменяйте ikeV1 на ikeV2



  • @Konstanti вторая фаза в фазе 2 появилась, но так и не видно сеть сервера 2

    Снимок экрана 2020-05-21 в 00.00.09.png Снимок экрана 2020-05-20 в 23.59.47.png



  • @Kowex
    Не видно кому и откуда ???
    В любом случае - проверьте правила на Ipsec интерфейсе
    и если там все нормально , то надо уже подключать Packet Capture и смотреть , что происходит



  • @Konstanti да там и правил то нету.

    Снимок экрана 2020-05-21 в 00.07.54.png

    И точно так же на сервере №2



  • И после перезагрузки серверов опять пропала вторая фаза из фаз.
    Сплит подключения надо галки поставить на обеих серверах?



  • @Kowex
    Здр
    Для начала нужно перейти на IKEv2 и снова смотреть логи , почему не поднимается дополнительная фаза-2. Или все заработало ?



  • Добрый.
    @Kowex
    Когда настроите ipsec + openvpn , то меняйте адресацию в своих сетях. И никогда не пользуйте сети 192.168.(0|1).X в работе. Потому что такая адресация со 100% вероятностью будет у тех, кто вам подключается извне по впн со своих ви-фи "мыльниц". 100500 раз говорено было (



  • @Konstanti Добрый день. Нет не заработало, но фаза вторая поднялась.



  • @Kowex Если поднялась вторая фаза-2 , то запускайте tcpdump и смотрите , где теряются пакеты



  • @werter если стоит такая адресация, значит так и надо и я знаю какие клиенты с какими адресами будут подключаться.



  • @Kowex
    Запустите бесконечный пинг со стороны любого клиента , который не работает
    и покажите ,для начала , вывод tcpdump на на wan интерфейсах с обеих сторон туннеля
    в идеале должно выглядеть вот так

    [2.4.4-RELEASE][admin@ru.xxxxxx.org]/root: tcpdump -netti igb0 esp
    tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
    listening on igb0, link-type EN10MB (Ethernet), capture size 262144 bytes
    1590054954.221616 , ethertype IPv4 (0x0800), length 346: 79.1.1.1 > 94.1.1.1: ESP(spi=0xc9790a7d,seq=0x3a79), length 312
    1590054954.392088  ethertype IPv4 (0x0800), length 138: 94.1.1.1 > 79.1.1.1: ESP(spi=0xc3f0cd08,seq=0x4e1a), length 104




  • @Konstanti said in Маршрутизация клиента OpenVPN в две сети IPSec:

    tcpdump -netti igb0 esp

    сервер №1 - WAN

    [2.4.5-RELEASE][admin@office.domen.ru]/root: tcpdump -netti re0 esp
    tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
    listening on re0, link-type EN10MB (Ethernet), capture size 262144 bytes
    1590065560.560319 00:9a:67:33:1b:02 > 6c:1e:d5:11:82:01, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2e83), length 148
    1590065560.560424 00:9a:67:33:1b:02 > 6c:1e:d5:11:82:01, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2e84), length 148
    1590065560.560481 00:9a:67:33:1b:02 > 6c:1e:d5:11:82:01, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2e85), length 148
    1590065570.849217 00:9a:67:33:1b:02 > 6c:1e:d5:11:82:01, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2e86), length 148
    1590065570.849363 00:9a:67:33:1b:02 > 6c:1e:d5:11:82:01, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2e87), length 148
    1590065570.849396 00:9a:67:33:1b:02 > 6c:1e:d5:11:82:01, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2e88), length 148
    1590065580.891418 00:9a:67:33:1b:02 > 6c:1e:d5:11:82:01, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2e89), length 148
    1590065580.891486 00:9a:67:33:1b:02 > 6c:1e:d5:11:82:01, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2e8a), length 148
    1590065580.891529 00:9a:67:33:1b:02 > 6c:1e:d5:11:82:01, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2e8b), length 148
    1590065620.561597 00:9a:67:33:1b:02 > 6c:1e:d5:11:82:01, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2e8c), length 148
    1590065620.561694 00:9a:67:33:1b:02 > 6c:1e:d5:11:82:01, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2e8d), length 148
    1590065620.562191 00:9a:67:33:1b:02 > 6c:1e:d5:11:82:01, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2e8e), length 148
    1590065630.895852 00:9a:67:33:1b:02 > 6c:1e:d5:11:82:01, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2e8f), length 148
    1590065630.895920 00:9a:67:33:1b:02 > 6c:1e:d5:11:82:01, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2e90), length 148
    1590065630.895961 00:9a:67:33:1b:02 > 6c:1e:d5:11:82:01, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2e91), length 148
    1590065640.897340 00:9a:67:33:1b:02 > 6c:1e:d5:11:82:01, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2e92), length 148
    1590065640.897411 00:9a:67:33:1b:02 > 6c:1e:d5:11:82:01, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2e93), length 148
    1590065640.897454 00:9a:67:33:1b:02 > 6c:1e:d5:11:82:01, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2e94), length 148



  • @Kowex said in Маршрутизация клиента OpenVPN в две сети IPSec:

    @werter если стоит такая адресация, значит так и надо и я знаю какие клиенты с какими адресами будут подключаться.

    Уверен на 146%, что будет иначе. Дело ваше.

    Есть 2 офиса которые между собой объединены IPSec,

    Мысль использовать openvpn вместо ipsec для связи между офисами приходила? Овпн и проще и гибче.



  • This post is deleted!


  • Сервер №2 - WAN
    всё что прошло, больше ничего не было.

    [2.4.5-RELEASE][admin@shop.domen.ru]/root: tcpdump -netti re1 esp
    tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
    listening on re1, link-type EN10MB (Ethernet), capture size 262144 bytes
    1590066544.951370 14:6b:1e:2a:a5:03 > 00:9a:67:33:1b:02, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2f16), length 148
    1590066544.951398 14:6b:1e:2a:a5:03 > 00:9a:67:33:1b:02, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2f17), length 148
    1590066544.951420 14:6b:1e:2a:a5:03 > 00:9a:67:33:1b:02, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2f18), length 148
    1590066554.951883 14:6b:1e:2a:a5:03 > 00:9a:67:33:1b:02, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2f19), length 148
    1590066554.951975 14:6b:1e:2a:a5:03 > 00:9a:67:33:1b:02, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2f1a), length 148
    1590066554.951991 14:6b:1e:2a:a5:03 > 00:9a:67:33:1b:02, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2f1b), length 148
    1590066594.434426 14:6b:1e:2a:a5:03 > 00:9a:67:33:1b:02, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2f1c), length 148
    1590066594.434461 14:6b:1e:2a:a5:03 > 00:9a:67:33:1b:02, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2f1d), length 148
    1590066594.434551 14:6b:1e:2a:a5:03 > 00:9a:67:33:1b:02, ethertype IPv4 (0x0800), length 182: 1.1.1.2 > 1.1.1.1: ESP(spi=0xced89d52,seq=0x2f1e), length 148


    @werter said in Маршрутизация клиента OpenVPN в две сети IPSec:

    Уверен на 146%, что будет иначе.

    Вот интересно, откуда такая уверенность? Написал же что я знаю из каких сетей будут клиенты, а вы опять про своё.

    @werter said in Маршрутизация клиента OpenVPN в две сети IPSec:

    Мысль использовать openvpn вместо ipsec для связи между офисами приходила?

    Ну вот в последнее время эта мысль приходит всё чаще. Просто изначально всё было сделано на ipsec, только потом уже прикрутил ovpn.



  • @Kowex

    Те что видим
    что от 1.1.1.2 к 1.1.1.1 пакеты приходят , те в данном случае это уже не проблема сервера-2.
    Дальше можете , смотреть так
    tcpdump -i ovpn1 (или как он у Вас называется) icmp

    и смотреть , что происходит на этом интерфейсе в момент пинга
    и так дальше по цепочке

    лично мое мнение - проблема в настройке маршрутизации OpenVPN ( но это мое мнение , субъективное)



  • @Konstanti said in Маршрутизация клиента OpenVPN в две сети IPSec:

    лично мое мнение - проблема в настройке маршрутизации OpenVPN ( но это мое мнение , субъективное)

    У меня если честно складывается такое же мнение, но где ошибка.
    Перевел с IPsec на ovpn site to site, но результат такой же.



  • @Kowex
    Надо дальше идти по цепочке tcpdump-ом и смотреть, где теряются пакеты .
    По поводу смены ipsec на openvpn - по-моему , это лишнее .



  • @Kowex

    1. На Сервере №1 подключающимся овпн-клиентам пушить 192.168.1.0/24 (push "route 192.168.1.0 255.255.255.0";), а не 192.168.192.0/24
    2. На Сервере №2 выдать маршрут в сеть 192.168.192.0/24 (создать доп фазу №2 между серверами)

    Если трогали NAT на обоих - вернуть в дефолт.

    Вот интересно, откуда такая уверенность? Написал же что я знаю из каких сетей будут клиенты, а вы опять про своё.

    Поверьте, я знаю, что говорю.
    Вы точно не в состоянии проконтролировать КАКАЯ внутренняя сеть будет у ОЧЕРЕДНОГО внешнего овпн-клиента. Столкнетесь и будете голову ломать "ПОЧЕМУ этому клиенту недоступен адрес 192.168.(1|0).10"? А потому, что это его ЛОКАЛЬНЫЙ адрес, к-ый ему выдала ви-фи "мыльница" в кафе. КАК еще объяснить?
    По-хорошему, за использование ТАКОЙ адресации в сети ПРЕДПРИЯТИЯ(-Й) нужно уволнять за профнепригодность. Вам мало 10.0.0.0/8? В чем проблема пользовать 10.0.130.0/24, напр.?



  • @werter said in Маршрутизация клиента OpenVPN в две сети IPSec:

    На Сервере №2 выдать маршрут в сеть 192.168.192.0/24 (создать доп фазу №2 между серверами)

    На скринах есть доп фаза.

    @werter said in Маршрутизация клиента OpenVPN в две сети IPSec:

    КАК еще объяснить?

    Ну я уже тоже не знаю как объяснить. У меня нет левых клиентов с "мыльницами", по ovpn подключается оборудование c известной мне адресацией.

    @werter said in Маршрутизация клиента OpenVPN в две сети IPSec:

    за использование ТАКОЙ адресации в сети ПРЕДПРИЯТИЯ(-Й) нужно уволнять за профнепригодность

    Ну это ваше личное мнение с которым вы можете выступать только у себя на предприятии.


Log in to reply
