No IP Alias/Group defined from Feed?



  • Running pfBlockerNG-deve 2.2.1

    I have created an IP IPv4 block from the Feeds tab (CINS_Army) and it does not show up in the IP/IPv4 list. See pics. I know it is working as I can see blocks from it.

    Should it be appearing in the list (IP/IPv4)?

    If it is not supposed to appear here, how does it get removed if I want to turn off/remove it?

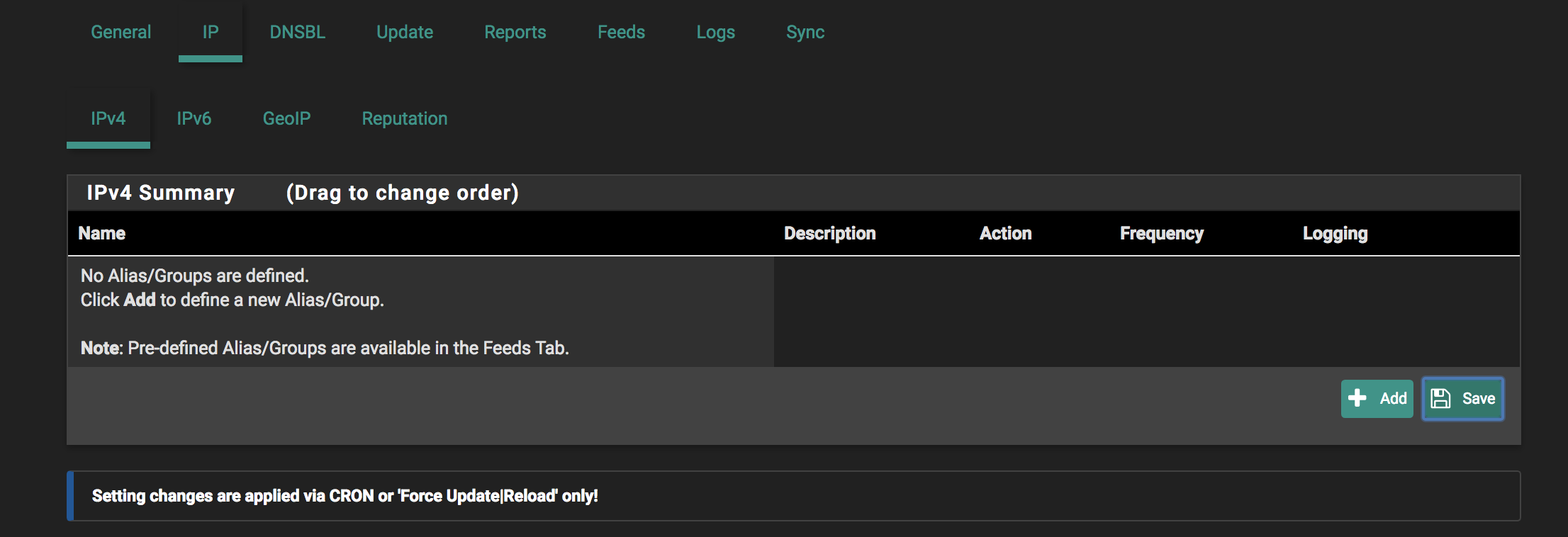

    0_1528948550258_Screen Shot 2018-06-13 at 8.45.49 PM.png
    .

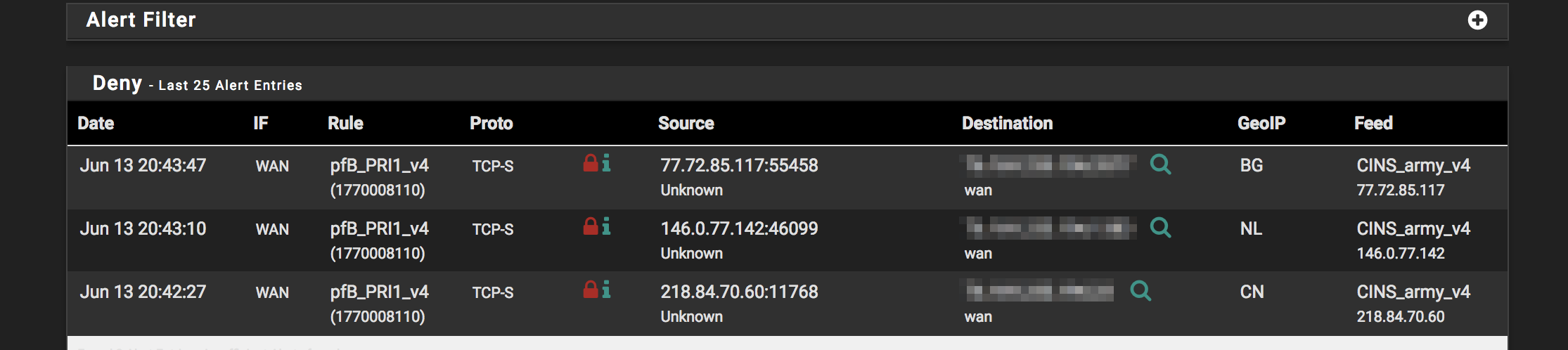

    1_1528948558792_Screen Shot 2018-06-13 at 8.46.03 PM.png
    .

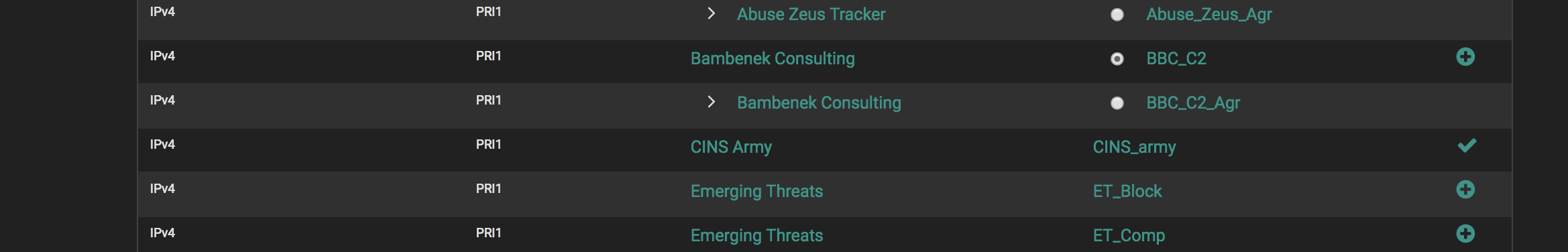

    0_1528948558792_Screen Shot 2018-06-13 at 8.46.35 PM.png



  • Bump...



  • Can you force a reload of the IP addreses from the pfBlockerNG update tab.



  • Did that a few times, and just now again. The reload completes fine, but still no Alias/Group entry shows in the IPv4 Summary.

    Here's the output if it matters:

     UPDATE PROCESS START [ 06/15/18 09:06:55 ]

    ===[  DNSBL Process  ]================================================

     Loading DNSBL Statistics... completed
     Loading DNSBL Whitelist... completed

    [ EasyList ]			 exists.
    [ Adaway ]			 exists.
    [ D_Me_ADs ]			 exists.
    [ D_Me_Tracking ]		 exists.
    [ hpHosts_ATS ]			 exists.
    [ Cameleon ]			 exists.
    [ SBL_ADs ]			 exists.
    [ Yoyo ]			 exists.
    [ Abuse_DOMBL ]			 exists.
    [ Abuse_URLBL ]			 exists.
    [ Abuse_urlhaus ]		 exists.
    [ Abuse_Zeus_BD ]		 exists.
    [ BBC_DC2 ]			 exists.
    [ Botvrij_Dom ]			 exists.
    [ Ponmocup ]			 exists.
    [ CCT_BD ]			 exists.
    [ SWC ]				 exists.
    [ D_Me_Malv ]			 exists.
    [ D_Me_Malw ]			 exists.
    [ H3X_1M ]			 exists.
    [ ISC_SDL ]			 exists.
    [ Malc0de ]			 exists.
    [ MDS ]				 exists.
    [ MDS_Immortal ]		 exists.
    [ MDL ]				 exists.
    [ MVPS ]			 exists.
    [ Spam404 ]			 exists.
    [ SFS_Toxic_BD ]		 exists.
    [ VXVault ]			 exists.
    [ hpHosts_EMD ]			 exists.
    [ hpHosts_EXP ]			 exists.
    [ hpHosts_FSA ]			 exists.
    [ hpHosts_GRM ]			 exists.
    [ hpHosts_HFS ]			 exists.
    [ hpHosts_MMT ]			 exists.
    [ hpHosts_PHA ]			 exists.
    [ hpHosts_PSH ]			 exists.
    [ hpHosts_PUP ]			 exists.
    [ hpHosts_WRZ ]			 exists.
    [ MS_2 ]			 exists.
    [ BBC_DGA_Agr ]			 exists.
    [ CoinBlocker_All ]		 exists.
    [ CoinBlocker_Opt ]		 exists.
    [ MoneroMiner ]			 exists.
    [ NoCoin ]			 exists.
    Saving DNSBL database... completed


    ===[  GeoIP Process  ]============================================


    ===[  IPv4 Process  ]=================================================

    [ CINS_army_v4 ]		 Reload [ 06/15/18 09:06:56 ] . completed ..


    ===[  IPv6 Process  ]=================================================


    ===[  Aliastables / Rules  ]==========================================

    No changes to Firewall rules, skipping Filter Reload

     Updating: pfB_PRI1_v4
    no changes.

    ===[  Kill States  ]==================================================

    Firewall state(s) validation for [ 56 ] IPv4 address(es)...
    No matching states found

    ======================================================================

    ===[ FINAL Processing ]=====================================

       [ Original IP count   ]  [ 15000 ]

    ===[ Deny List IP Counts ]===========================

       15000 /var/db/pfblockerng/deny/CINS_army_v4.txt

    ===[ DNSBL Domain/IP Counts ] ===================================

     1545135 total
      812936 /var/db/pfblockerng/dnsbl/BBC_DGA_Agr.txt
      191246 /var/db/pfblockerng/dnsbl/hpHosts_FSA.txt
      157561 /var/db/pfblockerng/dnsbl/hpHosts_PSH.txt
      152030 /var/db/pfblockerng/dnsbl/hpHosts_EMD.txt
       43443 /var/db/pfblockerng/dnsbl/hpHosts_ATS.txt
       27890 /var/db/pfblockerng/dnsbl/hpHosts_PUP.txt
       21529 /var/db/pfblockerng/dnsbl/MDS.txt
       14752 /var/db/pfblockerng/dnsbl/EasyList.txt
       14716 /var/db/pfblockerng/dnsbl/MS_2.txt
       14596 /var/db/pfblockerng/dnsbl/Cameleon.txt
       14236 /var/db/pfblockerng/dnsbl/SFS_Toxic_BD.txt
       13403 /var/db/pfblockerng/dnsbl/hpHosts_PHA.txt
        9681 /var/db/pfblockerng/dnsbl/SWC.txt
        8563 /var/db/pfblockerng/dnsbl/CCT_BD.txt
        7738 /var/db/pfblockerng/dnsbl/Abuse_URLBL.txt
        7002 /var/db/pfblockerng/dnsbl/Spam404.txt
        6360 /var/db/pfblockerng/dnsbl/Abuse_urlhaus.txt
        5490 /var/db/pfblockerng/dnsbl/CoinBlocker_All.txt
        3985 /var/db/pfblockerng/dnsbl/hpHosts_MMT.txt
        2596 /var/db/pfblockerng/dnsbl/MDS_Immortal.txt
        2255 /var/db/pfblockerng/dnsbl/D_Me_ADs.txt
        2047 /var/db/pfblockerng/dnsbl/hpHosts_WRZ.txt
        1899 /var/db/pfblockerng/dnsbl/Abuse_DOMBL.txt
        1440 /var/db/pfblockerng/dnsbl/ISC_SDL.txt
        1144 /var/db/pfblockerng/dnsbl/hpHosts_EXP.txt
        1082 /var/db/pfblockerng/dnsbl/MDL.txt
        1015 /var/db/pfblockerng/dnsbl/D_Me_Malv.txt
         929 /var/db/pfblockerng/dnsbl/MVPS.txt
         701 /var/db/pfblockerng/dnsbl/BBC_DC2.txt
         552 /var/db/pfblockerng/dnsbl/hpHosts_HFS.txt
         527 /var/db/pfblockerng/dnsbl/hpHosts_GRM.txt
         496 /var/db/pfblockerng/dnsbl/SBL_ADs.txt
         402 /var/db/pfblockerng/dnsbl/Adaway.txt
         311 /var/db/pfblockerng/dnsbl/Yoyo.txt
         263 /var/db/pfblockerng/dnsbl/CoinBlocker_Opt.txt
         139 /var/db/pfblockerng/dnsbl/Ponmocup.txt
          49 /var/db/pfblockerng/dnsbl/Botvrij_Dom.txt
          43 /var/db/pfblockerng/dnsbl/Abuse_Zeus_BD.txt
          28 /var/db/pfblockerng/dnsbl/D_Me_Tracking.txt
          20 /var/db/pfblockerng/dnsbl/NoCoin.txt
          16 /var/db/pfblockerng/dnsbl/H3X_1M.txt
          13 /var/db/pfblockerng/dnsbl/Malc0de.txt
           8 /var/db/pfblockerng/dnsbl/VXVault.txt
           3 /var/db/pfblockerng/dnsbl/MoneroMiner.txt
           0 /var/db/pfblockerng/dnsbl/D_Me_Malw.txt

    ====================[ IPv4/6 Last Updated List Summary ]==============

    Jun 15	08:20	CINS_army_v4

    ====================[ DNSBL Last Updated List Summary ]==============

    Jul 31	2015	D_Me_Tracking
    Mar 9	2016	D_Me_ADs
    Jan 19	17:42	hpHosts_HFS
    Jan 20	10:32	Adaway
    Mar 18	02:51	Cameleon
    Mar 19	15:51	ISC_SDL
    Apr 4	23:38	hpHosts_MMT
    Apr 15	02:34	MVPS
    May 9	03:18	hpHosts_GRM
    May 25	01:53	hpHosts_EXP
    Jun 6	17:10	EasyList
    Jun 6	17:14	Abuse_Zeus_BD
    Jun 6	23:58	MDL
    Jun 7	08:15	Spam404
    Jun 7	08:15	CoinBlocker_All
    Jun 7	08:15	CoinBlocker_Opt
    Jun 7	08:15	MoneroMiner
    Jun 8	11:21	UnifiedGamblingPorn
    Jun 9	01:14	Botvrij_Dom
    Jun 9	11:56	hpHosts_ATS
    Jun 9	16:48	hpHosts_WRZ
    Jun 11	00:03	MS_2
    Jun 11	03:17	hpHosts_PUP
    Jun 12	12:57	Yoyo
    Jun 12	14:20	MDS_Immortal
    Jun 13	00:05	NoCoin
    Jun 13	22:16	SWC
    Jun 14	06:10	Malc0de
    Jun 14	06:11	SBL_ADs
    Jun 14	10:21	hpHosts_PSH
    Jun 14	14:39	MDS
    Jun 14	17:06	hpHosts_PHA
    Jun 14	17:15	BBC_DGA_Agr
    Jun 14	18:08	hpHosts_EMD
    Jun 14	18:09	hpHosts_FSA
    Jun 14	23:14	BBC_DC2
    Jun 14	23:21	D_Me_Malw
    Jun 14	23:21	D_Me_Malv
    Jun 14	23:55	Abuse_urlhaus
    Jun 14	23:55	Abuse_URLBL
    Jun 14	23:55	Abuse_DOMBL
    Jun 14	23:57	SFS_Toxic_BD
    Jun 15	00:01	CCT_BD
    Jun 15	00:01	H3X_1M
    Jun 15	00:02	VXVault
    Jun 15	00:33	Ponmocup

    Alias table IP Counts
    -----------------------------
       15000 /var/db/aliastables/pfB_PRI1_v4.txt

    pfSense Table Stats
    -------------------
    table-entries hard limit  2000000
    Table Usage Count         18572

     UPDATE PROCESS ENDED [ 06/15/18 09:06:59 ]




  • rm /var/db/aliastables/pfB_PRI1_v4.txt
    rm /var/db/pfblockerng/original/CIArmy_v4.orig
    rm /var/db/pfblockerng/deny/CIArmy_v4.txt


    Then reload again, that should fully remove all of CIArmy.

    Another way would be to add back CINS_army feed from the feeds tab, set the update options for the PRI1 IPv4 list. Force an update then go back and delete the PRI1 IPV4 group.



  • Can you create any IPV4 table ? Maybe you config.xml is borked.



  • Interesting, after adding a 'test' Alias/group the CINS_Army entry now shows.

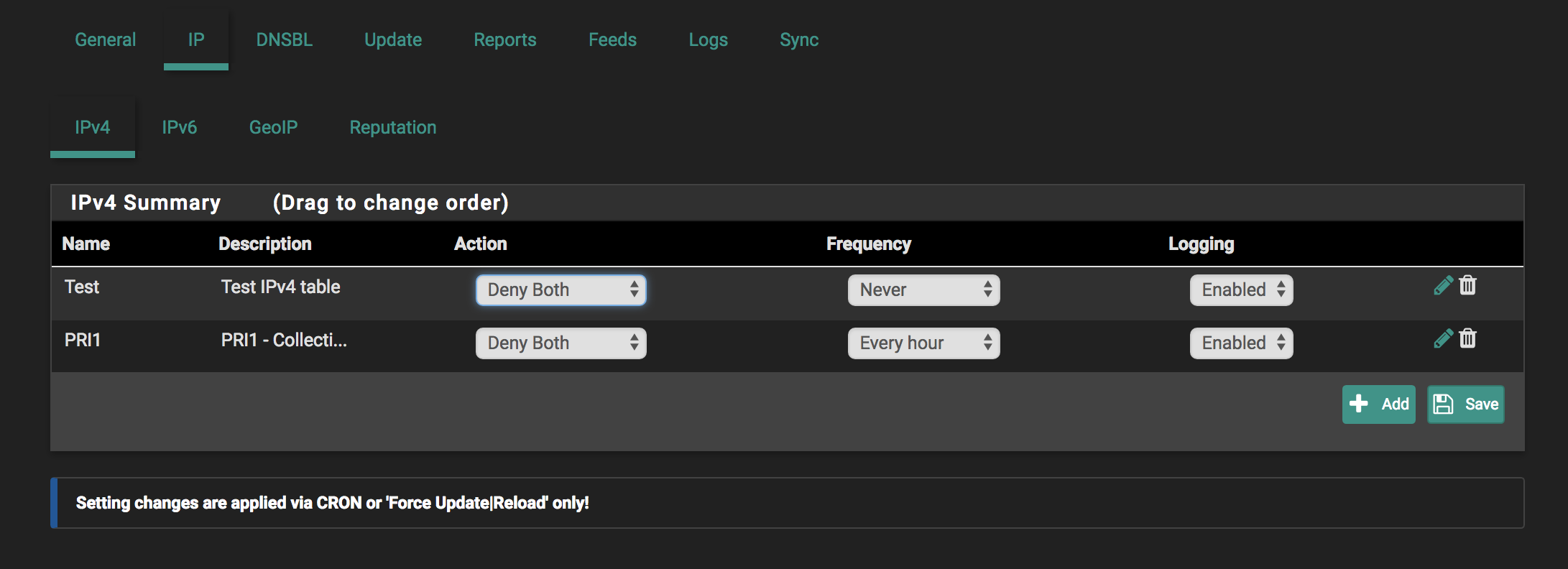

    0_1529082897296_Screen Shot 2018-06-15 at 10.12.23 AM.png

    I deleted the 'test' entry and the CINS_Army is maintained in the list it seems. Maybe it was the config.xml being re-written?

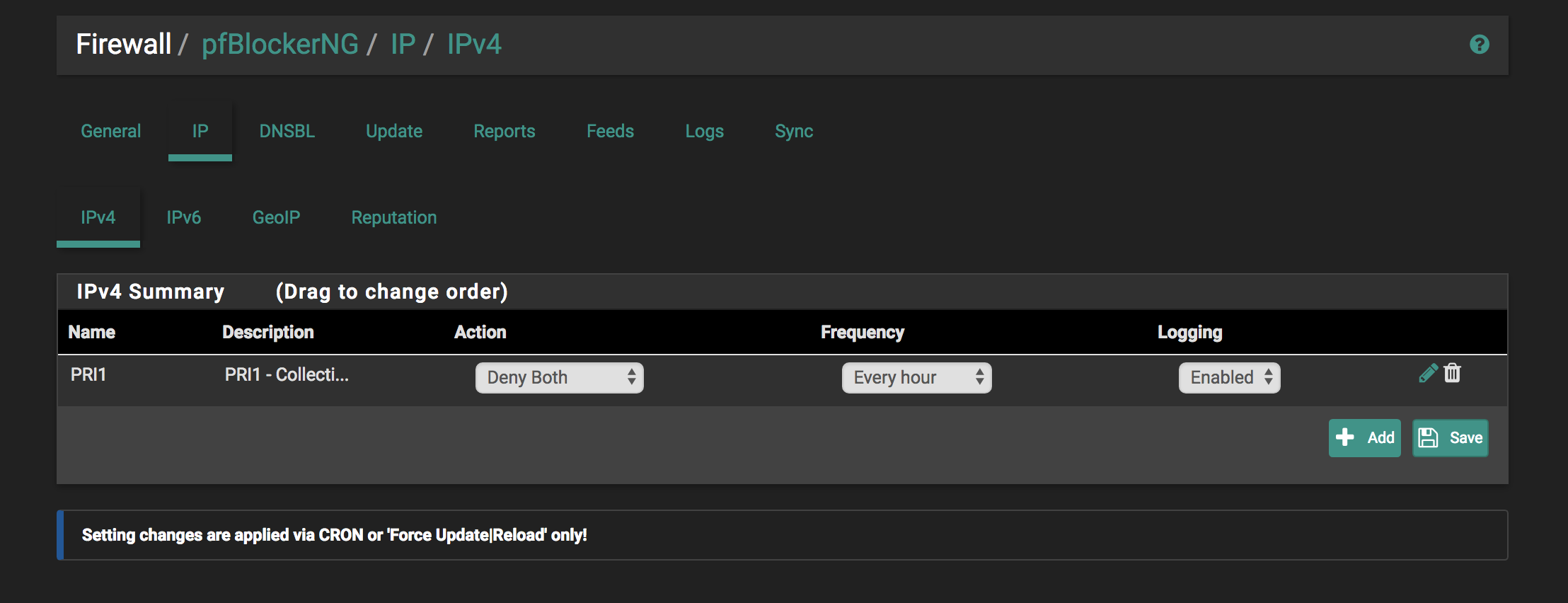

    0_1529082984406_Screen Shot 2018-06-15 at 10.14.23 AM.png



  • @ar15usr said in No IP Alias/Group defined from Feed?:

    Interesting, after adding a โ€˜testโ€™ Alias/group the CINS_Army entry now shows.

    ๐Ÿ˜Œ Maybe a specific case of a new installation.

    Can you keep a copy ( Diagnostics / Backup & Restore / Config History) of the config.xml before installation, after installation and the one after adding the feed from the Feeds Tab and maybe the one before the Test table and the one you have now in case BBcan177 need them to debug the code.



  • Looks like its too late for the installation configs. I'll try and save before/after the feeds setup..


  • Moderator

    What does this command report?

    grep -A30 "<pfblockernglistsv4" /conf/config.xml


    Looks like there might be an empty <config></config> tag causing issues...



  • <pfblockernglistsv4>
    			<config>
    				<aliasname>PRI1</aliasname>
    				<description><![CDATA[PRI1 - Collection of Feeds from the most reputable blocklist providers. (Primary tier)]]></description>
    				<action>Deny_Outbound</action>
    				<cron>01hour</cron>
    				<dow>1</dow>
    				<aliaslog>enabled</aliaslog>
    				<stateremoval><![CDATA[enabled]]></stateremoval>
    				<autoaddrnot_in></autoaddrnot_in>
    				<autoports_in></autoports_in>
    				<aliasports_in></aliasports_in>
    				<autoaddr_in></autoaddr_in>
    				<autonot_in></autonot_in>
    				<aliasaddr_in></aliasaddr_in>
    				<autoproto_in></autoproto_in>
    				<agateway_in>default</agateway_in>
    				<autoaddrnot_out></autoaddrnot_out>
    				<autoports_out></autoports_out>
    				<aliasports_out></aliasports_out>
    				<autoaddr_out></autoaddr_out>
    				<autonot_out></autonot_out>
    				<aliasaddr_out></aliasaddr_out>
    				<autoproto_out></autoproto_out>
    				<agateway_out>default</agateway_out>
    				<suppression_cidr>Disabled</suppression_cidr>
    				<whois_convert></whois_convert>
    				<custom></custom>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>


  • Moderator

    @bbcan17 said in No IP Alias/Group defined from Feed?:

    grep -A30

    Increase the A count in the Grep command until you get to "</pfblockernglistsv4>" which is the end XML tag. Then we can tell if there are any empty tags.



  • I have noticed the same issue, here is my Grep output. Hope it helps.

    <pfblockernglistsv4>
    			<config></config>
    			<config>
    				<aliasname>PRI1</aliasname>
    				<description><![CDATA[PRI1 - Collection of Feeds from the most reputable blocklist providers. (Primary tier)]]></description>
    				<action>Deny_Both</action>
    				<cron>01hour</cron>
    				<dow>1</dow>
    				<aliaslog>enabled</aliaslog>
    				<stateremoval><![CDATA[enabled]]></stateremoval>
    				<autoaddrnot_in></autoaddrnot_in>
    				<autoports_in></autoports_in>
    				<aliasports_in></aliasports_in>
    				<autoaddr_in></autoaddr_in>
    				<autonot_in></autonot_in>
    				<aliasaddr_in></aliasaddr_in>
    				<autoproto_in></autoproto_in>
    				<agateway_in>default</agateway_in>
    				<autoaddrnot_out></autoaddrnot_out>
    				<autoports_out></autoports_out>
    				<aliasports_out></aliasports_out>
    				<autoaddr_out></autoaddr_out>
    				<autonot_out></autonot_out>
    				<aliasaddr_out></aliasaddr_out>
    				<autoproto_out></autoproto_out>
    				<agateway_out>default</agateway_out>
    				<suppression_cidr>Disabled</suppression_cidr>
    				<whois_convert></whois_convert>
    				<custom></custom>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://sslbl.abuse.ch/blacklist/dyre_sslipblacklist.csv</url>
    					<header>Abuse_DYRE</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://feodotracker.abuse.ch/blocklist/?download=badips</url>
    					<header>Feodo_BadIPs</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://feodotracker.abuse.ch/blocklist/?download=ipblocklist</url>
    					<header>Feodo_Block</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://ransomwaretracker.abuse.ch/downloads/RW_IPBL.txt</url>
    					<header>Abuse_IPBL</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://sslbl.abuse.ch/blacklist/sslipblacklist.csv</url>
    					<header>Abuse_SSLBL</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://zeustracker.abuse.ch/blocklist.php?download=badips</url>
    					<header>Abuse_Zeus</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://osint.bambenekconsulting.com/feeds/c2-ipmasterlist-high.txt</url>
    					<header>BBC_C2</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://cinsarmy.com/list/ci-badguys.txt</url>
    					<header>CINS_army</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://rules.emergingthreats.net/fwrules/emerging-Block-IPs.txt</url>
    					<header>ET_Block</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://rules.emergingthreats.net/blockrules/compromised-ips.txt</url>
    					<header>ET_Comp</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://isc.sans.edu/api/sources/attacks/1000/30?text</url>
    					<header>ISC_1000_30</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://isc.sans.edu/feeds/block.txt</url>
    					<header>ISC_Block</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Disabled]]></state>
    					<url>https://pulsedive.com/premium?key=_API_KEY_&amp;types=ip</url>
    					<header>Pulsedive</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.spamhaus.org/drop/drop.txt</url>
    					<header>Spamhaus_Drop</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.spamhaus.org/drop/edrop.txt</url>
    					<header>Spamhaus_eDrop</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.talosintelligence.com/feeds/ip-filter.blf</url>
    					<header>Talos_BL</header>
    				</row>
    			</config>
    			<config>
    				<aliasname>PRI2</aliasname>
    				<description><![CDATA[PRI2 - Collection of Feeds from Secondary Tier providers.]]></description>
    				<action>Deny_Both</action>
    				<cron>01hour</cron>
    				<dow>1</dow>
    				<aliaslog>enabled</aliaslog>
    				<stateremoval><![CDATA[enabled]]></stateremoval>
    				<autoaddrnot_in></autoaddrnot_in>
    				<autoports_in></autoports_in>
    				<aliasports_in></aliasports_in>
    				<autoaddr_in></autoaddr_in>
    				<autonot_in></autonot_in>
    				<aliasaddr_in></aliasaddr_in>
    				<autoproto_in></autoproto_in>
    				<agateway_in>default</agateway_in>
    				<autoaddrnot_out></autoaddrnot_out>
    				<autoports_out></autoports_out>
    				<aliasports_out></aliasports_out>
    				<autoaddr_out></autoaddr_out>
    				<autonot_out></autonot_out>
    				<aliasaddr_out></aliasaddr_out>
    				<autoproto_out></autoproto_out>
    				<agateway_out>default</agateway_out>
    				<suppression_cidr>Disabled</suppression_cidr>
    				<whois_convert></whois_convert>
    				<custom></custom>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://reputation.alienvault.com/reputation.snort.gz</url>
    					<header>Alienvault</header>
    				</row>
    			</config>
    			<config>
    				<aliasname>PRI3</aliasname>
    				<description><![CDATA[PRI3 - Collection of Feeds from Tertiary Tier providers.]]></description>
    				<action>Deny_Both</action>
    				<cron>01hour</cron>
    				<dow>1</dow>
    				<aliaslog>enabled</aliaslog>
    				<stateremoval><![CDATA[enabled]]></stateremoval>
    				<autoaddrnot_in></autoaddrnot_in>
    				<autoports_in></autoports_in>
    				<aliasports_in></aliasports_in>
    				<autoaddr_in></autoaddr_in>
    				<autonot_in></autonot_in>
    				<aliasaddr_in></aliasaddr_in>
    				<autoproto_in></autoproto_in>
    				<agateway_in>default</agateway_in>
    				<autoaddrnot_out></autoaddrnot_out>
    				<autoports_out></autoports_out>
    				<aliasports_out></aliasports_out>
    				<autoaddr_out></autoaddr_out>
    				<autonot_out></autonot_out>
    				<aliasaddr_out></aliasaddr_out>
    				<autoproto_out></autoproto_out>
    				<agateway_out>default</agateway_out>
    				<suppression_cidr>Disabled</suppression_cidr>
    				<whois_convert></whois_convert>
    				<custom></custom>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Disabled]]></state>
    					<url>https://www.autoshun.org/download/?api_key=_API_KEY_&amp;format=csv</url>
    					<header>Shunlist</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Disabled]]></state>
    					<url>https://lists.blocklist.de/lists/all.txt</url>
    					<header>BlockListDE_All</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://botscout.com/last_caught_cache.txt</url>
    					<header>BotScout</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>http://danger.rulez.sk/projects/bruteforceblocker/blist.php</url>
    					<header>DangerRulez</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://blocklist.greensnow.co/greensnow.txt</url>
    					<header>GreenSnow</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.juniper.net/security/auto/spam</url>
    					<header>Juniper</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.malwaredomainlist.com/hostslist/ip.txt</url>
    					<header>MDL</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.maxmind.com/en/high-risk-ip-sample-list</url>
    					<header>MaxMind_BD_Proxy</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>http://www.nothink.org/blacklist/blacklist_malware_dns.txt</url>
    					<header>NoThink_DNS</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>http://www.nothink.org/blacklist/blacklist_malware_http.txt</url>
    					<header>NoThink_HTTP</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>http://www.nothink.org/blacklist/blacklist_malware_irc.txt</url>
    					<header>NoThink_IRC</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>http://www.nothink.org/blacklist/blacklist_ssh_week.txt</url>
    					<header>NoThink_SSH</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>http://www.nothink.org/blacklist/blacklist_snmp_week.txt</url>
    					<header>NoThink_SNMP</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>http://www.nothink.org/blacklist/blacklist_telnet_week.txt</url>
    					<header>NoThink_Telnet</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.stopforumspam.com/downloads/toxic_ip_cidr.txt</url>
    					<header>SFS_Toxic</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://suspect-networks.io/downloads/suspect_networks.txt</url>
    					<header>SuspectNetworks</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>http://www.reputationauthority.org/toptens.php</url>
    					<header>WatchGuard</header>
    				</row>
    			</config>
    			<config>
    				<aliasname>PRI4</aliasname>
    				<description><![CDATA[PRI4 - Collection of Feeds from Fourth Tier providers.]]></description>
    				<action>Deny_Both</action>
    				<cron>01hour</cron>
    				<dow>1</dow>
    				<aliaslog>enabled</aliaslog>
    				<stateremoval><![CDATA[enabled]]></stateremoval>
    				<autoaddrnot_in></autoaddrnot_in>
    				<autoports_in></autoports_in>
    				<aliasports_in></aliasports_in>
    				<autoaddr_in></autoaddr_in>
    				<autonot_in></autonot_in>
    				<aliasaddr_in></aliasaddr_in>
    				<autoproto_in></autoproto_in>
    				<agateway_in>default</agateway_in>
    				<autoaddrnot_out></autoaddrnot_out>
    				<autoports_out></autoports_out>
    				<aliasports_out></aliasports_out>
    				<autoaddr_out></autoaddr_out>
    				<autonot_out></autonot_out>
    				<aliasaddr_out></aliasaddr_out>
    				<autoproto_out></autoproto_out>
    				<agateway_out>default</agateway_out>
    				<suppression_cidr>Disabled</suppression_cidr>
    				<whois_convert></whois_convert>
    				<custom></custom>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.badips.com/get/list/any/2?age=30d</url>
    					<header>BadIPs_30d</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.binarydefense.com/banlist.txt</url>
    					<header>BDS_Ban</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.botvrij.eu/data/ioclist.ip-dst.raw</url>
    					<header>Botvrij_IP</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://cybercrime-tracker.net/fuckerz.php</url>
    					<header>CCT_IP</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.darklist.de/raw.php</url>
    					<header>Darklist</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://isc.sans.edu/api/threatlist/miner</url>
    					<header>ISC_Miner</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://malc0de.com/bl/IP_Blacklist.txt</url>
    					<header>Malc0de</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>http://malwaredb.malekal.com/export.php?type=url</url>
    					<header>Malekal_BL</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.myip.ms/files/blacklist/csf/latest_blacklist.txt</url>
    					<header>Myip_BL</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>http://www.ipspamlist.com/public_feeds.csv</url>
    					<header>NVT_BL</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://zerodot1.gitlab.io/CoinBlockerLists/MiningServerIPList.txt</url>
    					<header>CoinBlocker</header>
    				</row>
    			</config>
    			<config>
    				<aliasname>PRI5</aliasname>
    				<description><![CDATA[PRI5 - Collection of Feeds from Fifth Tier providers.]]></description>
    				<action>Deny_Both</action>
    				<cron>EveryDay</cron>
    				<dow>1</dow>
    				<aliaslog>enabled</aliaslog>
    				<stateremoval><![CDATA[enabled]]></stateremoval>
    				<autoaddrnot_in></autoaddrnot_in>
    				<autoports_in></autoports_in>
    				<aliasports_in></aliasports_in>
    				<autoaddr_in></autoaddr_in>
    				<autonot_in></autonot_in>
    				<aliasaddr_in></aliasaddr_in>
    				<autoproto_in></autoproto_in>
    				<agateway_in>default</agateway_in>
    				<autoaddrnot_out></autoaddrnot_out>
    				<autoports_out></autoports_out>
    				<aliasports_out></aliasports_out>
    				<autoaddr_out></autoaddr_out>
    				<autonot_out></autonot_out>
    				<aliasaddr_out></aliasaddr_out>
    				<autoproto_out></autoproto_out>
    				<agateway_out>default</agateway_out>
    				<suppression_cidr>Disabled</suppression_cidr>
    				<whois_convert></whois_convert>
    				<custom></custom>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://gist.githubusercontent.com/BBcan177/bf29d47ea04391cb3eb0/raw</url>
    					<header>MS_1</header>
    				</row>
    			</config>
    			<config>
    				<aliasname>SFS</aliasname>
    				<description><![CDATA[SFS - Stop Forum Spam]]></description>
    				<action>Deny_Both</action>
    				<cron>08hours</cron>
    				<dow>1</dow>
    				<aliaslog>enabled</aliaslog>
    				<stateremoval><![CDATA[enabled]]></stateremoval>
    				<autoaddrnot_in></autoaddrnot_in>
    				<autoports_in></autoports_in>
    				<aliasports_in></aliasports_in>
    				<autoaddr_in></autoaddr_in>
    				<autonot_in></autonot_in>
    				<aliasaddr_in></aliasaddr_in>
    				<autoproto_in></autoproto_in>
    				<agateway_in>default</agateway_in>
    				<autoaddrnot_out></autoaddrnot_out>
    				<autoports_out></autoports_out>
    				<aliasports_out></aliasports_out>
    				<autoaddr_out></autoaddr_out>
    				<autonot_out></autonot_out>
    				<aliasaddr_out></aliasaddr_out>
    				<autoproto_out></autoproto_out>
    				<agateway_out>default</agateway_out>
    				<suppression_cidr>Disabled</suppression_cidr>
    				<whois_convert></whois_convert>
    				<custom></custom>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Disabled]]></state>
    					<url>https://www.stopforumspam.com/downloads/bannedips.zip</url>
    					<header>SFS_IPs</header>
    				</row>
    			</config>
    			<config>
    				<aliasname>TOR</aliasname>
    				<description><![CDATA[TOR - Collection of Feeds for the TOR network.]]></description>
    				<action>Deny_Both</action>
    				<cron>01hour</cron>
    				<dow>1</dow>
    				<aliaslog>enabled</aliaslog>
    				<stateremoval><![CDATA[enabled]]></stateremoval>
    				<autoaddrnot_in></autoaddrnot_in>
    				<autoports_in></autoports_in>
    				<aliasports_in></aliasports_in>
    				<autoaddr_in></autoaddr_in>
    				<autonot_in></autonot_in>
    				<aliasaddr_in></aliasaddr_in>
    				<autoproto_in></autoproto_in>
    				<agateway_in>default</agateway_in>
    				<autoaddrnot_out></autoaddrnot_out>
    				<autoports_out></autoports_out>
    				<aliasports_out></aliasports_out>
    				<autoaddr_out></autoaddr_out>
    				<autonot_out></autonot_out>
    				<aliasaddr_out></aliasaddr_out>
    				<autoproto_out></autoproto_out>
    				<agateway_out>default</agateway_out>
    				<suppression_cidr>Disabled</suppression_cidr>
    				<whois_convert></whois_convert>
    				<custom></custom>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.binarydefense.com/tor.txt</url>
    					<header>BDS_TOR</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://rules.emergingthreats.net/blockrules/emerging-tor.rules</url>
    					<header>ET_TOR_All</header>
    				</row>
    			</config>
    			<config>
    				<aliasname>MAIL</aliasname>
    				<description><![CDATA[MAIL - Collection of Feeds for Mail Server specific blocklists.]]></description>
    				<action>Deny_Both</action>
    				<cron>01hour</cron>
    				<dow>1</dow>
    				<aliaslog>enabled</aliaslog>
    				<stateremoval><![CDATA[enabled]]></stateremoval>
    				<autoaddrnot_in></autoaddrnot_in>
    				<autoports_in></autoports_in>
    				<aliasports_in></aliasports_in>
    				<autoaddr_in></autoaddr_in>
    				<autonot_in></autonot_in>
    				<aliasaddr_in></aliasaddr_in>
    				<autoproto_in></autoproto_in>
    				<agateway_in>default</agateway_in>
    				<autoaddrnot_out></autoaddrnot_out>
    				<autoports_out></autoports_out>
    				<aliasports_out></aliasports_out>
    				<autoaddr_out></autoaddr_out>
    				<autonot_out></autonot_out>
    				<aliasaddr_out></aliasaddr_out>
    				<autoproto_out></autoproto_out>
    				<agateway_out>default</agateway_out>
    				<suppression_cidr>Disabled</suppression_cidr>
    				<whois_convert></whois_convert>
    				<custom></custom>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>http://antispam.imp.ch/spamlist</url>
    					<header>Improware</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Disabled]]></state>
    					<url>https://www.unsubscore.com/blacklist.txt</url>
    					<header>LB_BL</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>http://www.dnsbl.manitu.net/download/nixspam-ip.dump.gz</url>
    					<header>Nix_Spam</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.spamcop.net/w3m?action=map;net=cmaxratio;mask=65535;sort=spamcnt;format=text</url>
    					<header>SpamCop_SC</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>http://toastedspam.com/deny</url>
    					<header>Toastedspam</header>
    				</row>
    			</config>
    			<config>
    				<aliasname>Internic_4</aliasname>
    				<description><![CDATA[Internic - List of the 13 IPv4 Root DNS servers via Internic Domain Registration service.]]></description>
    				<action>Permit_Outbound</action>
    				<cron>Weekly</cron>
    				<dow>1</dow>
    				<aliaslog>enabled</aliaslog>
    				<stateremoval><![CDATA[enabled]]></stateremoval>
    				<autoaddrnot_in></autoaddrnot_in>
    				<autoports_in></autoports_in>
    				<aliasports_in></aliasports_in>
    				<autoaddr_in></autoaddr_in>
    				<autonot_in></autonot_in>
    				<aliasaddr_in></aliasaddr_in>
    				<autoproto_in></autoproto_in>
    				<agateway_in>default</agateway_in>
    				<autoaddrnot_out></autoaddrnot_out>
    				<autoports_out></autoports_out>
    				<aliasports_out></aliasports_out>
    				<autoaddr_out></autoaddr_out>
    				<autonot_out></autonot_out>
    				<aliasaddr_out></aliasaddr_out>
    				<autoproto_out></autoproto_out>
    				<agateway_out>default</agateway_out>
    				<suppression_cidr>Disabled</suppression_cidr>
    				<whois_convert></whois_convert>
    				<custom></custom>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.internic.net/domain/named.root</url>
    					<header>Resolver4</header>
    				</row>
    			</config>
    			<config>
    				<aliasname>BlockListDE</aliasname>
    				<description><![CDATA[Collection of specific fail2ban reporting service Feeds.]]></description>
    				<action>Deny_Both</action>
    				<cron>01hour</cron>
    				<dow>1</dow>
    				<aliaslog>enabled</aliaslog>
    				<stateremoval><![CDATA[enabled]]></stateremoval>
    				<autoaddrnot_in></autoaddrnot_in>
    				<autoports_in></autoports_in>
    				<aliasports_in></aliasports_in>
    				<autoaddr_in></autoaddr_in>
    				<autonot_in></autonot_in>
    				<aliasaddr_in></aliasaddr_in>
    				<autoproto_in></autoproto_in>
    				<agateway_in>default</agateway_in>
    				<autoaddrnot_out></autoaddrnot_out>
    				<autoports_out></autoports_out>
    				<aliasports_out></aliasports_out>
    				<autoaddr_out></autoaddr_out>
    				<autonot_out></autonot_out>
    				<aliasaddr_out></aliasaddr_out>
    				<autoproto_out></autoproto_out>
    				<agateway_out>default</agateway_out>
    				<suppression_cidr>Disabled</suppression_cidr>
    				<whois_convert></whois_convert>
    				<custom></custom>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://lists.blocklist.de/lists/apache.txt</url>
    					<header>BlockListDE_Apache</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.blocklist.de/lists/asterisk.txt</url>
    					<header>BlockListDE_Asterisk</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://lists.blocklist.de/lists/bots.txt</url>
    					<header>BlockListDE_Bots</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://lists.blocklist.de/lists/bruteforcelogin.txt</url>
    					<header>BlockListDE_Brute</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.blocklist.de/lists/email.txt</url>
    					<header>BlockListDE_Email</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://lists.blocklist.de/lists/ftp.txt</url>
    					<header>BlockListDE_FTP</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.blocklist.de/lists/proftpd.txt</url>
    					<header>BlockListDE_FTPD</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.blocklist.de/lists/ircbot.txt</url>
    					<header>BlockListDE_IRC</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://lists.blocklist.de/lists/imap.txt</url>
    					<header>BlockListDE_IMAP</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://lists.blocklist.de/lists/mail.txt</url>
    					<header>BlockListDE_Mail</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.blocklist.de/lists/pop3.txt</url>
    					<header>BlockListDE_POP3</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://www.blocklist.de/lists/postfix.txt</url>
    					<header>BlockListDE_Postfix</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://lists.blocklist.de/lists/sip.txt</url>
    					<header>BlockListDE_SIP</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://lists.blocklist.de/lists/ssh.txt</url>
    					<header>BlockListDE_SSH</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://lists.blocklist.de/lists/strongips.txt</url>
    					<header>BlockListDE_Strong</header>
    				</row>
    			</config>
    			<config>
    				<aliasname>Abuse_PS</aliasname>
    				<description><![CDATA[Abuse Ransomware Tracker - Payment Sites]]></description>
    				<action>Deny_Both</action>
    				<cron>01hour</cron>
    				<dow>1</dow>
    				<aliaslog>enabled</aliaslog>
    				<stateremoval><![CDATA[enabled]]></stateremoval>
    				<autoaddrnot_in></autoaddrnot_in>
    				<autoports_in></autoports_in>
    				<aliasports_in></aliasports_in>
    				<autoaddr_in></autoaddr_in>
    				<autonot_in></autonot_in>
    				<aliasaddr_in></aliasaddr_in>
    				<autoproto_in></autoproto_in>
    				<agateway_in>default</agateway_in>
    				<autoaddrnot_out></autoaddrnot_out>
    				<autoports_out></autoports_out>
    				<aliasports_out></aliasports_out>
    				<autoaddr_out></autoaddr_out>
    				<autonot_out></autonot_out>
    				<aliasaddr_out></aliasaddr_out>
    				<autoproto_out></autoproto_out>
    				<agateway_out>default</agateway_out>
    				<suppression_cidr>Disabled</suppression_cidr>
    				<whois_convert></whois_convert>
    				<custom></custom>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://ransomwaretracker.abuse.ch/downloads/CW_PS_IPBL.txt</url>
    					<header>Abuse_CW_PS</header>
    				</row>
    				<row>
    					<format>auto</format>
    					<state><![CDATA[Enabled]]></state>
    					<url>https://ransomwaretracker.abuse.ch/downloads/LY_PS_IPBL.txt</url>
    					<header>Abuse_LY_PS</header>
    				</row>
    			</config>
    		</pfblockernglistsv4>


  • Moderator

    @morgion said in No IP Alias/Group defined from Feed?:

    <pfblockernglistsv4>
    <config></config>

    To fix that:

    1. Make a pfSense Backup of the config.xml
    2. Goto pfSense > Diagnostics > Edit File
    3. Enter "/conf/config/xml"
    4. Scroll down and find "<pfBlockernglistsv4>"
    5. Remove the line "<config></config>"
    6. Save


  • @bbcan177 said in No IP Alias/Group defined from Feed?:

    /conf/config/xml

    Worked both IPv4 & IPv6 List are now present, Thank you again for your help.



  • @bbcan177
    Sorry, been away for the weekend...

    I'm seeing 11 of these empty configs. Should I change them all?

    <pfblockernglistsv6>
    			<config></config>

    	<pfblockerngafrica>
    			<config></config>
    		</pfblockerngafrica>
    		<pfblockerngantarctica>
    			<config></config>
    		</pfblockerngantarctica>
    		<pfblockerngasia>
    			<config></config>
    		</pfblockerngasia>
    		<pfblockerngeurope>
    			<config></config>
    		</pfblockerngeurope>
    		<pfblockerngnorthamerica>
    			<config></config>
    		</pfblockerngnorthamerica>
    		<pfblockerngoceania>
    			<config></config>
    		</pfblockerngoceania>
    		<pfblockerngsouthamerica>
    			<config></config>
    		</pfblockerngsouthamerica>
    		<pfblockerngtopspammers>
    			<config></config>
    		</pfblockerngtopspammers>
    		<pfblockerngproxyandsatellite>
    			<config></config>

    <pfblockerngreputation>
    			<config></config>



  • This post is deleted!


  • @ar15usr said in No IP Alias/Group defined from Feed?:

    Should I change them all?

    No, those are normal when nothing is defined / configured for these entries.
