    Not getting DHCP on VLAN, configuration issue?

    Scheduled Pinned Locked Moved
    L2/Switching/VLANs
    2
    2
    365
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • S
      setser
      last edited by

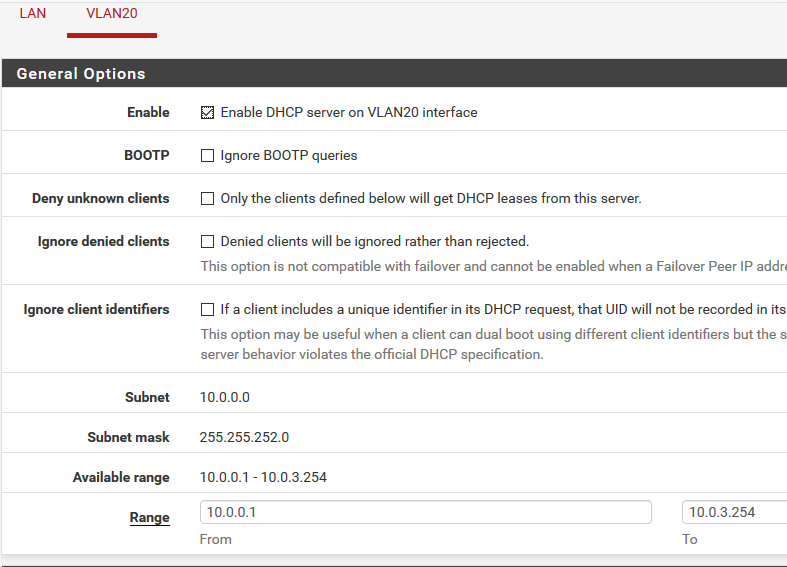

      Looking for some help on configuring a VLAN, I believe I'm setting everything up right but, I'm not getting DHCP. I have disabled the DHCP server on the LAN interface and enabled DHCP on the VLAN, but when I plug directly in, I'm still not getting DHCP. Below are some screenshots of my configuration, any help is greatly appreciated!


      1 Reply Last reply Reply Quote 0
      • DerelictD
        Derelict LAYER 8 Netgate
        last edited by

        That all looks good. Whatever you connect to igb2 has to be tagged VLAN 20. After that any access port on the switch that is on VLAN 20 should get DHCP.

        Chattanooga, Tennessee, USA
        A comprehensive network diagram is worth 10,000 words and 15 conference calls.
        DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
        Do Not Chat For Help! NO_WAN_EGRESS(TM)

        1 Reply Last reply Reply Quote 0
