SOLVED - VPN Slow Speeds with AES-NI - SOLVED!

Scheduled Pinned Locked Moved OpenVPN
3 Posts 1 Posters 8.2k Views
Loading More Posts
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • C
    choder
    last edited by choder Sep 8, 2018, 2:11 PM Sep 8, 2018, 2:08 AM

    I am getting very slow speeds with PIA VPN enabled even with AES-NI. Its like pfsense is not taking advantage of AES-NI support that my hardware has.

    My cable is a 100Mbps down / 10Mbps up.
    But with my PIA VPN enabled I only get 40Mbps down.
    If I use the PIA app on windows I get very close to 100Mbps down.

    I assumed that this hardware below was sufficient at handling these speeds with VPN and the AES-NI.

    Any help would be greatly appreciated.

    2.4.3-RELEASE (amd64)
    Intel(R) Celeron(R) CPU N3150 @ 1.60GHz
    4 CPUs: 1 package(s) x 4 core(s)
    AES-NI CPU Crypto: Yes (active)

    Followed these instructions to set it up.
    https://www.privateinternetaccess.com/archive/forum/discussion/29231/tutorial-setup-pia-on-pfsense-2-4-2
    and
    https://forum.netgate.com/topic/125360/tutorial-configure-pia-private-internet-access-vpn-on-pfsense-2-4/2

    1 Reply Last reply Reply Quote 0
    • C
      choder
      last edited by Sep 8, 2018, 1:37 PM

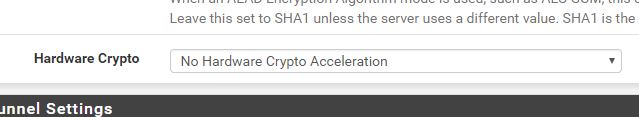

      Nothing changes if I enable or disable crypto


      1 Reply Last reply Reply Quote 0
      • C
        choder
        last edited by Sep 8, 2018, 2:11 PM

        This fixed my speed issues.

        In your open vpn client settings I added this to my custom options.
        My speeds went from 40Mbps, to 90Mbps.
        My ping times also went from 27ms to 20ms
        This was recommended from this thread. https://forum.netgate.com/topic/114212/aes-ni-cryptodev-openvpn-help-a-n00b-understand/23

        fast-io
        sndbuf 524288
        rcvbuf 524288

        1 Reply Last reply Reply Quote 0
