x11sdv-8c-tp8f (xeon-d 2146NT) compatibility?
-
@latez I haven't done this build yet so I can't really say, but it should work as far as I'm able to tell.
-
@latez Keep in mind that (as of this moment in time) pfSense CE does not support QAT only pfSense+ does.
-
@InstanceExtension Yeah but you can get a pf+ license for any hardware you want, so it's still a viable thing to try and build a custom firewall that supports QAT.
-
QAT is in base and hence in CE now.
-
@stephenw10 OH yeah, forgot about that lol. Thanks for the reminder.
-
@stephenw10 Sorry and maybe I am mistaken but I thought QAT was a Plus exclusive feature? I actually installed 2.8.1 just now, none of my QAT hardware appears to have been detected by default. Are there additional steps to enable the modules?
-
@latez said in x11sdv-8c-tp8f (xeon-d 2146NT) compatibility?:
Are there additional steps to enable the modules?
What QAT hardware did you get and is it supported by FreeBSD FreeBSD Manual Pages: qat
In the Dashboard you would see something like below, if it's supported but not yet active:
Intel(R) Atom(TM) CPU C3758R @ 2.40GHz 8 CPUs: 1 package(s) x 8 core(s) AES-NI CPU Crypto: Yes (active) QAT Crypto: Yes (inactive)If it is supported you have to enable it, see pfSense docu: Cryptographic Hardware
-
Yeah you have to enable it in Sys > Adv > Misc.
-

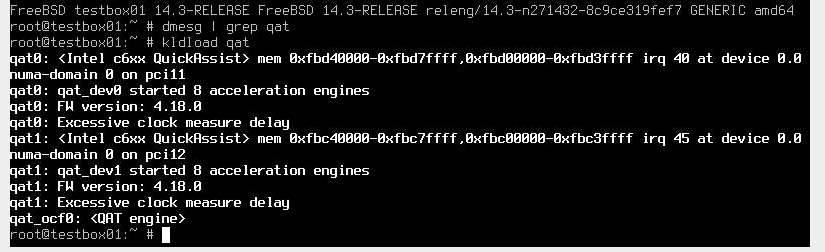

@stephenw10 I apologize for not being more clear. On FreeBSD 14.3
Where as I cannot kldload qat on the latest pfsense CE release. Hence the module is never loaded. You mentioned it should be in base now, am I doing something wrong?
-
Hmm, I could be mistaken here. The GUI option is there but I don't see the module. Digging....
-
Yup sorry that's my mistake. Too many test machines! QAT is still a Plus only feature.
Somehow the CE gui seems to show the option but it can't do anything. That looks like a bug.
-
@stephenw10 OK good, I was going to submit a redmine for the manual since it still listed it as plus only, glad to see that the manual is accurate hah.
Thanks!
-
Bug for the rogue gui element: https://redmine.pfsense.org/issues/16451
