All traffic routed through VPN - Rule ignored



  • Please see the diagram:

    On router B I am running an OpenVPN client, which is working.
    The idea is that all traffic from the 192.168.32.0/24 network is routed through the VPN, EXCEPT
    for one host residing on a network from router A. So router B has a static route to the 172.20.0.0/16 network. and on the LAN interface (192 net), there is a rule (policy based routing) sending all traffic over the static route.

    The client can now only communicate over the VPN and can no longer reach the host in the 172.20.0.0/16 network.
    When I ping from the client, I get a response from the VPN gateway, and not for the LAN gateway.

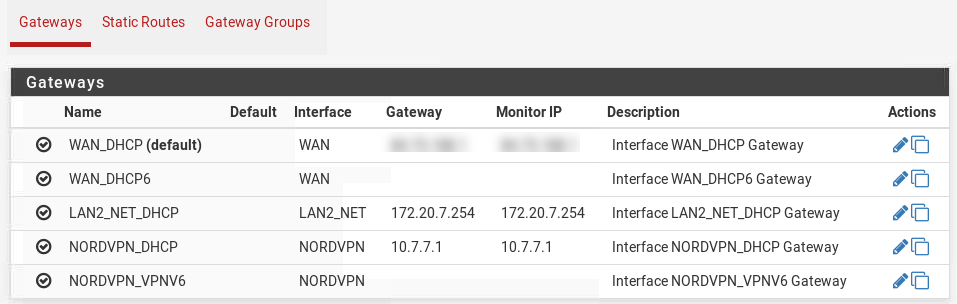

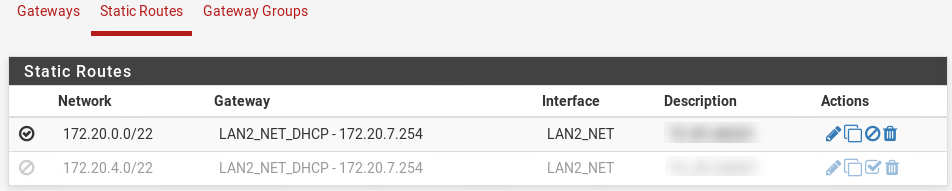

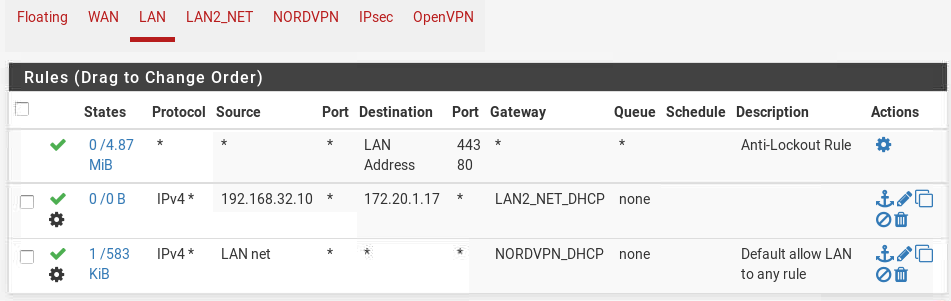

    Please see the relevant config:
    3_1538470356611_1.png 2_1538470356610_2.png 1_1538470356610_3.png 0_1538470356610_4.png



  • Consider that there is also a static route for 192.168.32.0/24 needed on router A.
    However, the interface on B facing to router A a is a DHCP configured. It should have a static IP.
