    Plex and HD Homerun

    Firewalling
    3
    5
    311
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • W
      wyzard last edited by

      Good afternoon.

      I have plex running on my main network (let's say 1.1.1.1). I have an HD Homerun on a VLAN network with other IOT things (let's say 2.2.2.2). What type of rule do i need to allow plex to see my HD Homerun so I can use plex to watch live tv and record shows?
      As I'm new to firewall rules, any details would be appreciated.

      Thanks.

      1 Reply Last reply Reply Quote 0
      • stephenw10
        stephenw10 Netgate Administrator last edited by

        You need a pass rule on the main network interface (probably LAN) to allow the plex to connect to the home run device.
        So source: 1.1.1.1. Destination: 2.2.2.2 Protocol: Any. You probably could use tcp/udp as the protocol there but allowing any in that rule won't hurt.
        You could narrow that down if you know the required ports etc but again I would leave the destination port set to any until you know it works.

        Steve

        W 1 Reply Last reply Reply Quote 0
        • W
          wyzard @stephenw10 last edited by

          @stephenw10

          Thanks. I entered that rule. Here's what's odd.

          1. I can ping the HD Homerun.
          2. I can enter it's IP address in a web browser and get to it's interface.
          3. Plex doesn't see it when trying to add automatically or manually.

          Not sure if there's something in Plex that needs to be changed or if the rule is just slightly off.

          johnpoz 1 Reply Last reply Reply Quote 0
          • johnpoz
            johnpoz LAYER 8 Global Moderator @wyzard last edited by johnpoz

            @wyzard said in Plex and HD Homerun:

            Plex doesn't see it when trying to add automatically or manually.

            Well whats the discovery protocol - prob uses some multicast/broadcast BS... They try and make things simple for your typical user that has 1 flat network.. While breaking shit for more complex networks..

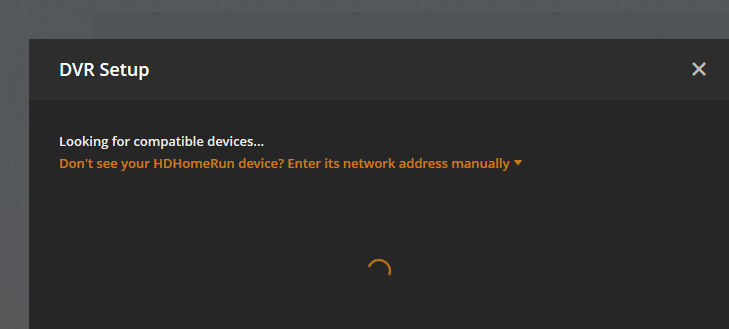

            I just told my plex to look for a dvr, and its sending out broadcasts on port 65001 UDP..


            And then if I put in a manual IP... It does the same thing, and not seeing the directed traffic to 65001 still only broadcast to the .255 address..

            https://forum.silicondust.com/forum/viewtopic.php?t=21009

            Not sure why it would not just send directed traffic to the IP you put in on UDP 65001? All I was seeing was broadcast trafffic.

            An intelligent man is sometimes forced to be drunk to spend time with his fools
            If you get confused: Listen to the Music Play
            Please don't Chat/PM me for help, unless mod related
            2440 2.4.5p1 | 2x 3100 2.4.4p3 | 2x 3100 22.01 | 4860 22.01

            1 Reply Last reply Reply Quote 0
            • stephenw10
              stephenw10 Netgate Administrator last edited by

              Ah, well that's fun. 🙄

              At least they allow you to enter an IP which is more then many. Not much help if it ignores it though!

              Steve
