VPN client to client ok, but cannot access local network

Dogfish · Oct 11, 2018, 7:53 PM

Hi,
I am able to connect and ping vpn client to vpn client, but vpn clients cannot access my local network.

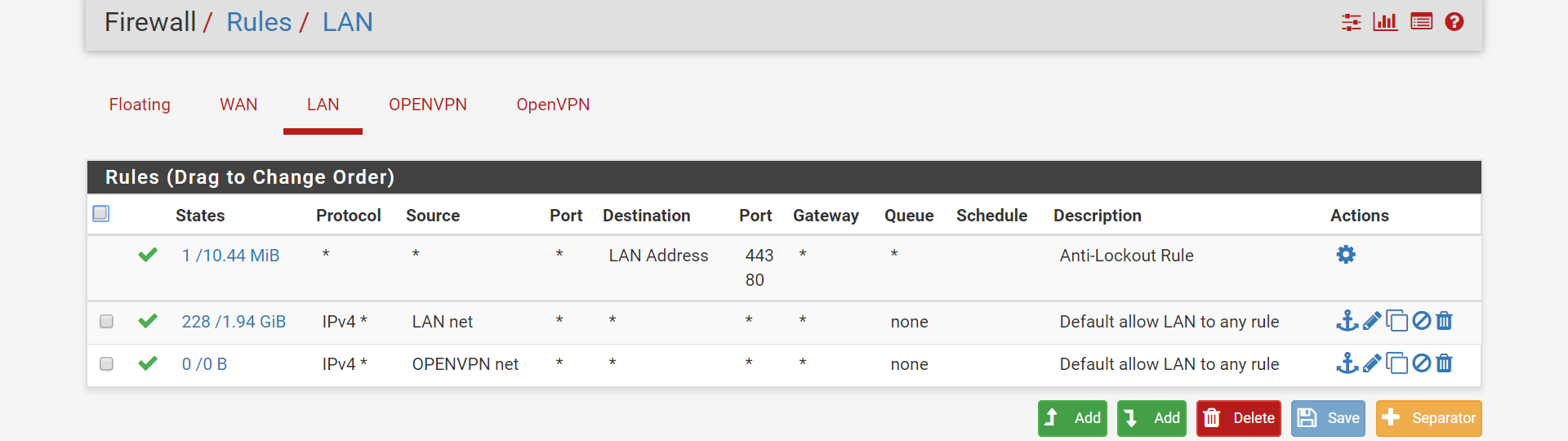

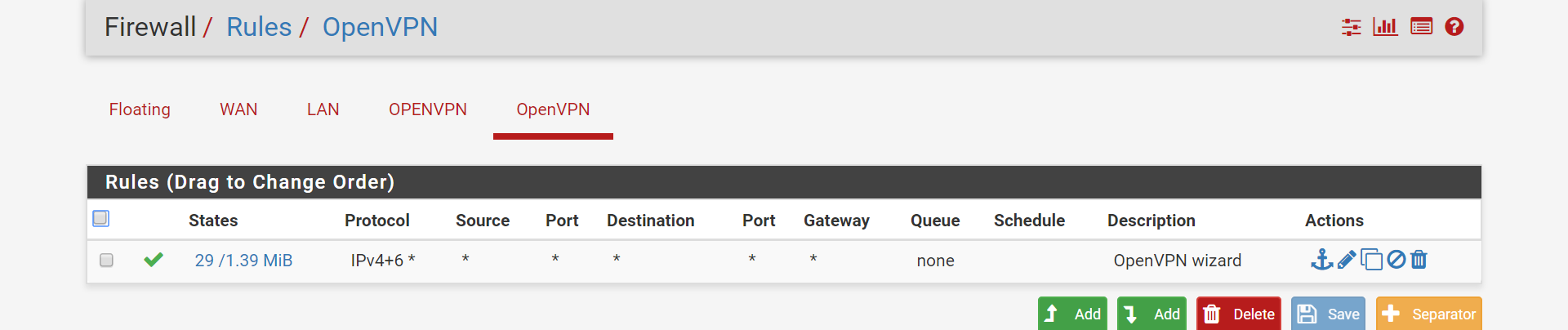

Firewall is open:

🔒 Log in to view 🔒 Log in to view 🔒 Log in to view 🔒 Log in to view 🔒 Log in to view

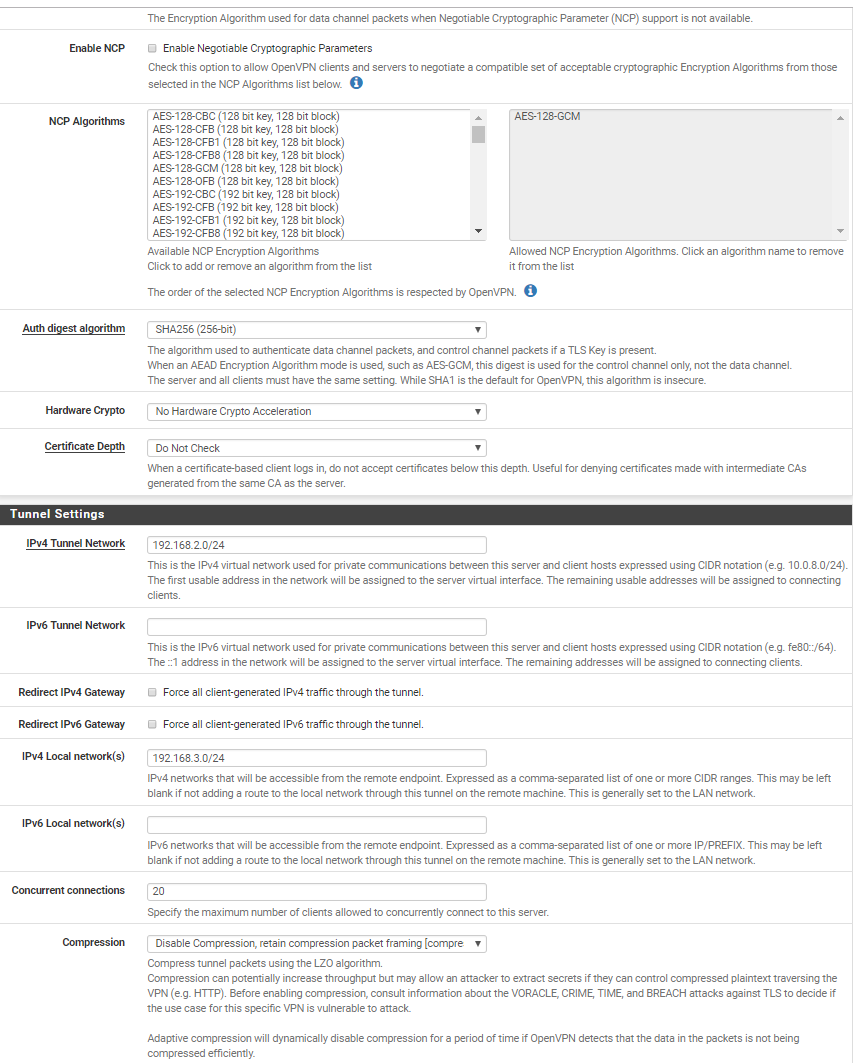

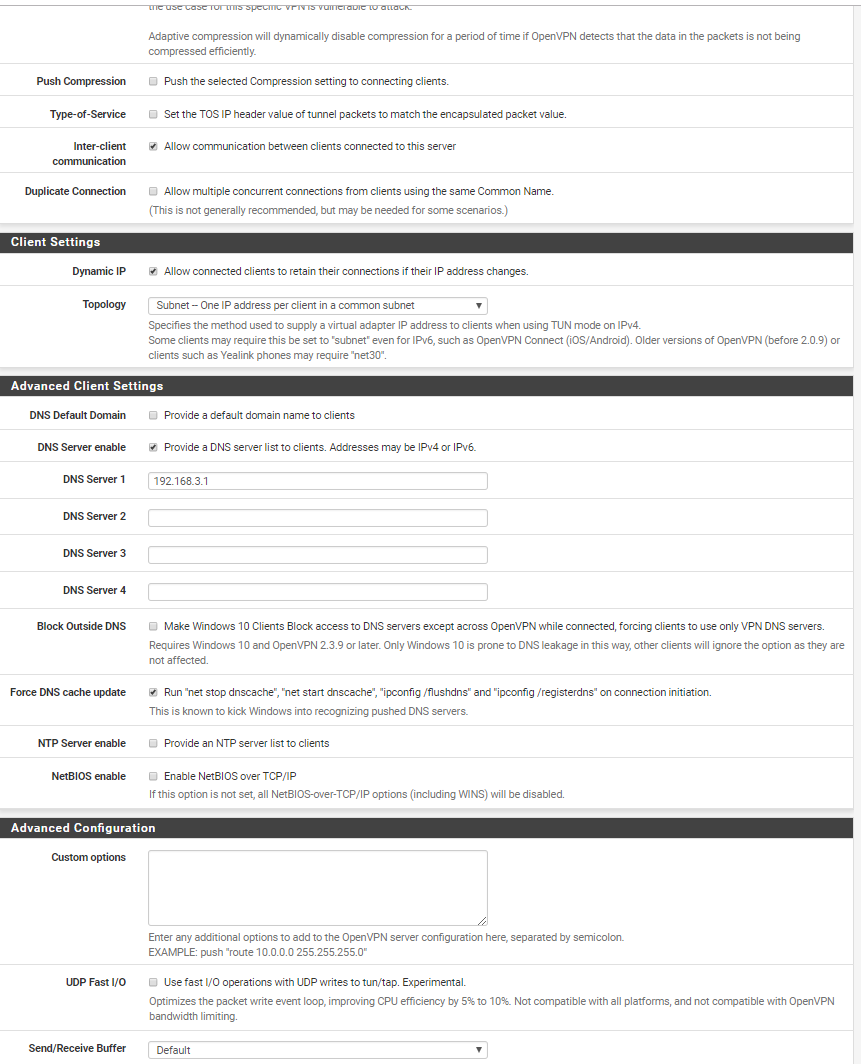

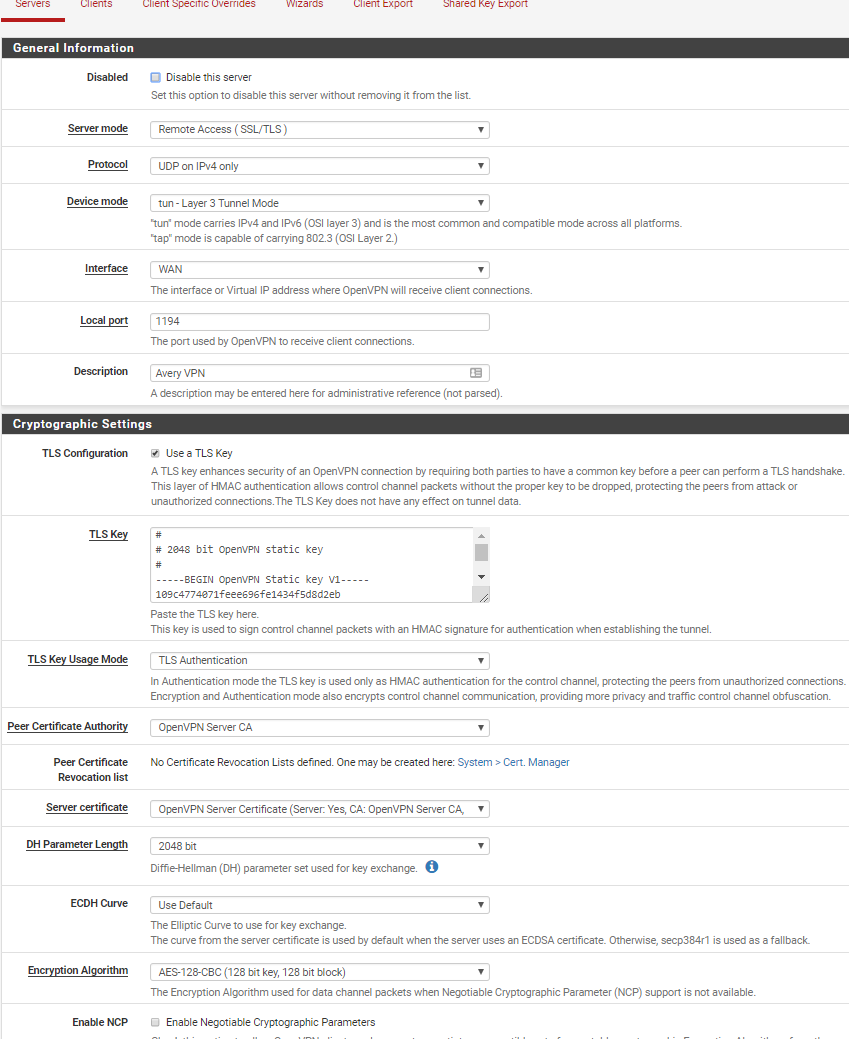

VPN Settings:
🔒 Log in to view 🔒 Log in to view 🔒 Log in to view

NAT:
🔒 Log in to view

Thanks for any help!

KOM · Oct 11, 2018, 8:10 PM

Why do you have two different OpenVPN instances? How are you testing, from LAN or from WAN?

Dogfish · Oct 11, 2018, 8:24 PM

Hi,

Second VPN (192.168.4.0/24) was just to see wizard settings and compare. Its not being used (no vpn clients).

I tested ping from remote VPN client to LAN - and also through pfsense diagnostic ping to VPN client from LAN.

I use the VPN for remote desktop. I can remote desktop from vpn client to vpn client, but not vpn client to any LAN machines.

Also tracert from VPN client (192.168.2.39) to machine on LAN (192.168.3.16) reaches pfsense box (192.168.3.1) but no further.

KOM · Oct 11, 2018, 8:59 PM

IIRC on Windows you had to run the OpenVPN client as Administrator or it wouldn't create the routes propeprly. It would look like it was working but you had no error messages and no access.
