HAProxy Down with HTTP site [ 503 Service Unavailable ]

wesleylc1 · Nov 8, 2018, 2:14 PM

Hello everyone.
My "pfsense 2.4.4-RELEASE", has "haproxy-1.8.14", with two frontend for ports "80 and 443", until yesterday both were running, but now only the frontend of port 443 is UP, below some images .
Can anyone give any suggestions on what I can do?

log when accessing http site

Nov 8 11:52:28 haproxy haproxy[3148]: 46.191.239.96:39168 [08/Nov/2018:11:52:28.981] HA_Sistemas-https/187.75.209.246:443: SSL handshake failure
Nov 8 11:52:33 haproxy haproxy[3148]: 189.62.164.137:39986 [08/Nov/2018:11:52:33.207] HA_Sistemas-https~ HA_Sistemas-45-14_80-www_ipvANY/<NOSRV> 0/-1/-1/-1/0 503 212 - - SC-- 16/12/0/0/0 0/0 "GET / HTTP/1.1"
Nov 8 11:52:33 haproxy haproxy[3148]: 189.62.164.137:39990 [08/Nov/2018:11:52:33.681] HA_Sistemas-https~ HA_Sistemas-45-14_80-www_ipvANY/<NOSRV> 0/-1/-1/-1/0 503 212 - - SC-- 16/12/0/0/0 0/0 "GET /favicon.ico HTTP/1.1"

Nov 8 12:11:03 haproxy haproxy[17124]: Server HA_Sistemas-45-14_80-www_ipvANY/site is DOWN, reason: Layer7 timeout, check duration: 1002ms. 0 active and 0 backup servers left. 1 sessions active, 0 requeued, 0 remaining in queue.
Nov 8 12:11:03 haproxy haproxy[17124]: backend HA_Sistemas-45-14_80-www_ipvANY has no server available!

PiBa · Nov 8, 2018, 4:39 PM

@wesleylc1 said in HAProxy Down with HTTP site [ 503 Service Unavailable ]:

Server HA_Sistemas-45-14_80-www_ipvANY/site is DOWN, reason: Layer7 timeout, check duration: 1002ms

Seems the webserver is slow to respond? (it takes more than 1 second.)

wesleylc1 · Nov 8, 2018, 4:41 PM

@piba said in HAProxy Down with HTTP site [ 503 Service Unavailable ]:

Seems the webserver is slow to respond? (it takes more than 1 second.)

Do you think the problem may be without backend?

wesleylc1 · Nov 8, 2018, 4:44 PM

Restart the web server.
Now it looks like it's online

PiBa · Nov 8, 2018, 4:55 PM

Yes it looks 'up' but with a health check time
of above 900ms its not ideal.
And might go down if load slightly increases.
Perhaps a different 'status' page to check would be better
than the default '/' url? Or the webserver still has issues?

wesleylc1 · Nov 8, 2018, 4:48 PM

@piba said in HAProxy Down with HTTP site [ 503 Service Unavailable ]:

Yes it looks 'up', but with a health-check time of above 900ms its not ideal.. And might go down if load slightly increases.. Perhaps a different 'status' page to check would be better than the default '/' url.?. Or the webserver still has issues?

Piter, hint to fix this problem?

PiBa · Nov 8, 2018, 4:56 PM

@wesleylc1
Perhaps checking a different 'status' page would be better than the default '/' url.?. One that is faster?

Or if the webserver has issues, fix them .. How? that depends on the issue ..

wesleylc1 · Nov 8, 2018, 5:03 PM

@piba said in HAProxy Down with HTTP site [ 503 Service Unavailable ]:

Perhaps checking a different 'status' page would be better than the default '/' url.?. One that is faster?
Or if the webserver has issues, fix them .. How? that depends on the issue ..

Pieter, how can I set up a different status page?

wesleylc1 · Nov 8, 2018, 6:43 PM

@piba

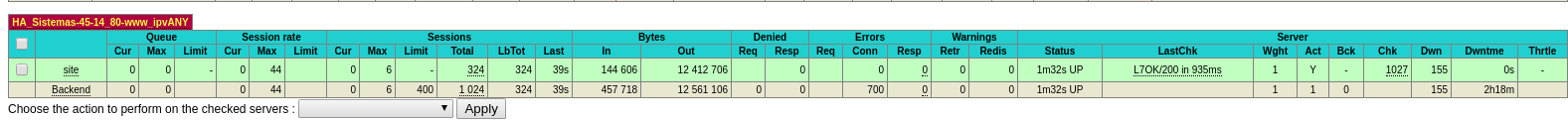

How do I get information about this image?
