  • Hi there,

    we are currently setting up our new environment in azure. So we have now the opportunity to implement a firewall in front of the virtual machines.

    pfSense has now a virtual appliance on the azure marketplace. Is it recommended to use this version?
    I had created a marketplace vm and added a secondary LAN Interface, because this is not possible in the first steps.

    We would like to have the following Azure environment:

    1x pfSense Firewall with Public IP
    1x Virtual Network with Subnet 100.100.10.0/24 -> WAN Network
    1x Virtual Network with Subnet 100.100.1.0/24 -> LAN Network
    several VM´s inside the LAN Subnet 100.100.1.0/24 but with public IP´s to reach the VM´s directly.

    All Network Traffic from LAN Network routed through the pfSense.

    My local environment:
    2x pfSense HA with 3x Subnets and 3x WAN Interfaces

    • Subnet = 10.10.10.0/24
    • Subnet = 10.10.20.0/24

    I have tested this with this resources:

    1x Virtual Network Gatway on Azure IPSEC -> Azure to Local Environment Connection

    1x Virtual Appliance with 2 NICs:

    • WAN = 100.100.10.5 (Gateway WAN = 100.100.10.1)
    • LAN = 100.100.1.5 (Gatway LAN = 100.100.1.1)

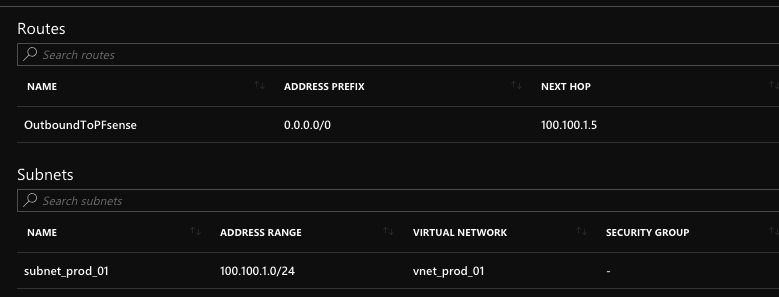

    i added a route in azure:

    On pfSense in Azure i can access my local network and my lan network:

    • Port test to host: 10.10.10.10 Port: 443 successful. (Local)
    • Port test to host: 100.100.1.10 Port: 3389 successful. (Azure LAN)

    On my local network i can access:

    • Port test to host: 100.100.10.5 Port: 443 successful (Azure pfSense)
    • but can´t access my LAN Network 100.100.1.10 Port: 3389 failed

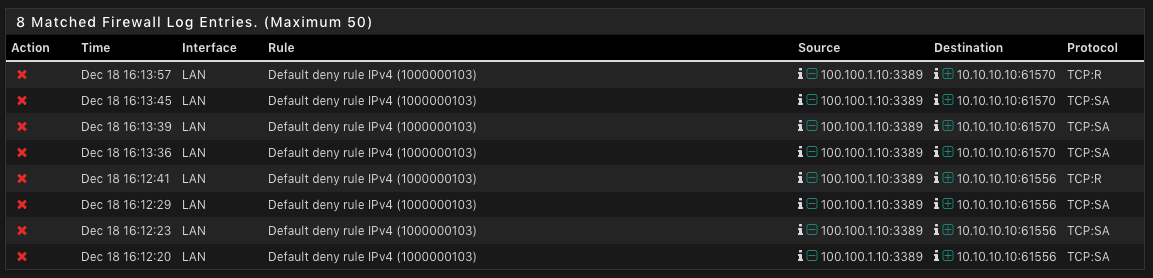

    In the firewall log there are following entries:

    This is my pfSense firewall configuration:

    I think there is a mistake which i cant see right now. Can you please help me?

    Thanks and kind regards,
    David



  • Stay within RFC1918 space for local networks.



  • @grimson

    but for local network im staying in this space?

    Local Network: 10.10.10.0/16

    • Subnets: 10.10.10.0/24, 10.10.20.0/24, 10.10.30.0/24

    Azure Network: 100.100.0.0/16

    • Subnets: 100.100.10.0/24, 100.100.1.0/24, 100.100.2.0/24




  • This post is deleted!


  • @grimson Do you mean i have to stay in both local networks between the space? 10.0.0.0 - 10.255.255.255

    Azure and my local network?


  • LAYER 8 Rebel Alliance

    10.0.0.0/8
    172.16.0.0/12
    192.168.0.0/16

    -Rico
