Captive portal not redirecting on https requests. problem on every browser

fahad77678 · Jan 7, 2019, 11:08 AM

@gertjan said in Captive portal not redirecting on https requests. problem on every browser:

nslookup google.com

C:\Users\fahad>nslookup google.com
Server: pfsense.localdomain
Address: 192.168.1.1

Non-authoritative answer:
Name: google.com
Addresses: 2404:6800:4003:806::200e
74.125.130.113
74.125.130.102
74.125.130.139
74.125.130.138
74.125.130.101
74.125.130.100

fahad77678 · Jan 7, 2019, 11:10 AM

C:\Users\fahad>ipconfig/all

Windows IP Configuration

Host Name . . . . . . . . . . . . : Muhammad-Fahad
Primary Dns Suffix . . . . . . . :
Node Type . . . . . . . . . . . . : Hybrid
IP Routing Enabled. . . . . . . . : No
WINS Proxy Enabled. . . . . . . . : No
DNS Suffix Search List. . . . . . : localdomain

Ethernet adapter Ethernet:

Connection-specific DNS Suffix . : localdomain
Description . . . . . . . . . . . : Intel(R) 82579LM Gigabit Network Connection
Physical Address. . . . . . . . . : D4-C9-EF-E5-F4-27
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes
Link-local IPv6 Address . . . . . : fe80::1998:6eb8:b089:d1a6%24(Preferred)
IPv4 Address. . . . . . . . . . . : 192.168.1.10(Preferred)
Subnet Mask . . . . . . . . . . . : 255.255.255.0
Lease Obtained. . . . . . . . . . : Monday, January 7, 2019 4:05:06 PM
Lease Expires . . . . . . . . . . : Monday, January 7, 2019 5:50:52 PM
Default Gateway . . . . . . . . . : fe80::1:1%24
192.168.1.1
DHCP Server . . . . . . . . . . . : 192.168.1.1
DHCPv6 IAID . . . . . . . . . . . : 164940271
DHCPv6 Client DUID. . . . . . . . : 00-01-00-01-21-ED-F6-29-D4-C9-EF-E5-F4-27
DNS Servers . . . . . . . . . . . : 192.168.1.1
NetBIOS over Tcpip. . . . . . . . : Enabled
Connection-specific DNS Suffix Search List :
localdomain

Wireless LAN adapter Local Area Connection* 4:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Microsoft Wi-Fi Direct Virtual Adapter #3
Physical Address. . . . . . . . . : 3C-A9-F4-2E-A0-41
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes

Wireless LAN adapter Local Area Connection* 5:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Microsoft Wi-Fi Direct Virtual Adapter #4
Physical Address. . . . . . . . . : 3E-A9-F4-2E-A0-40
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes

Wireless LAN adapter Wi-Fi:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . : Home
Description . . . . . . . . . . . : Intel(R) Centrino(R) Ultimate-N 6300 AGN
Physical Address. . . . . . . . . : 3C-A9-F4-2E-A0-40
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes

Gertjan · Jan 7, 2019, 11:25 AM

@fahad77678 said in Captive portal not redirecting on https requests. problem on every browser:

92.168.1.1

Ok, looks all good.
DNS works - pfSense is the DNS resolver for your clients.

You use the default login page ?

What GUI firewall rules on your captive portal interface ?

fahad77678 · Jan 8, 2019, 5:43 AM

All is on default settings. Gui Login all is on default settings. Yoy can say that firewall is on default settings i had just configure captive portal

free4 · Jan 8, 2019, 6:00 AM

@fahad77678 said in Captive portal not redirecting on https requests. problem on every browser:

Its only works when i delete the browser history. Then when i entered the google.com and every dns with .com when i use the it redirects to login page. but when the session expire the its does not redirecting to me on login page. i want that if i entered only a single word in google it should redirect to me into login page if i am not logged in

Again : that is an expected behaviour.

It is not possible to redirect HTTPS connections. Not only with pfSense, but also with any other router. HTTPS connections just can't be redirected, that's by design. You can learn more here : https://stackoverflow.com/questions/51562003/captive-portal-and-https-redirect

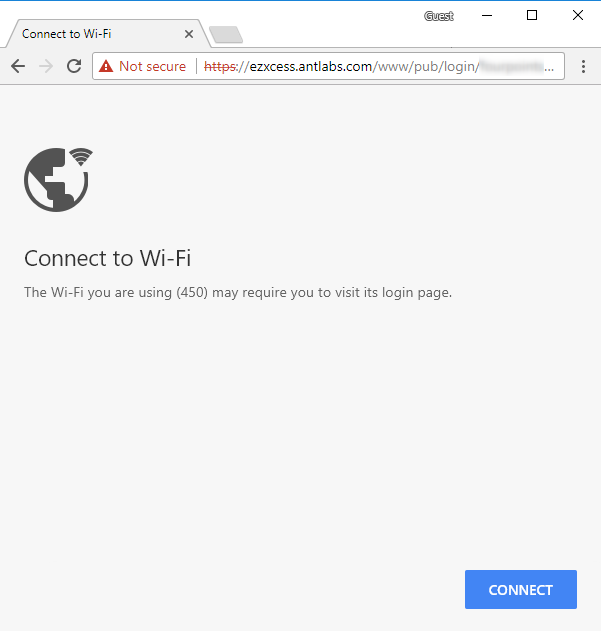

That shoudn't be an issue because modern web browsers do handle captive portals pretty well, using HTTP test requests (cf my picture above)

fahad77678 · Jan 8, 2019, 7:15 AM

@free4
yeah i have checked your picture but its only works in firefox not on another browsers. how would it be possible on google chrome?

free4 · Jan 8, 2019, 7:23 AM

@fahad77678 chrome also implement captive portal tests

Android and apple devices also implement this feature

fahad77678 · Jan 8, 2019, 7:37 AM

@free4
But in my case chrome not doing like this.
can you come on teamviwer ?

fahad77678 · Jan 8, 2019, 7:55 AM

@free4
Did you enable https login enable in captive portal or not?
in my case if i disable https login then it cant reach the login page. chrome says site cant be reach if i search some sites.
same case in firefox. firefox only promt for login netwrok but not redirecting to catptive page.

Gertjan · Jan 9, 2019, 5:55 AM

The browser indicates that a user action is needed.
It's probably not directing you right away some where else, which seems rather logic to me: the user wants to browse site a.b.c. - the browser won't take him to d.e.f (our captive portal login page) but suggests the a user action is needed.

These are my observations :
Use http (default) and the https portal login. Things will go very smooth.
Chrome might be "portal aware" these days. I'm using the captive portal in a hotel - do not explain clients how to connect - and they connect (mostly not being IT experts, they all manage to connect using whatever device).

As said here - and in the doc : https you should obtain a certificate signed by an authority.
This implies that you should use an existing domain name on your portal LAN, like
portal.your-domaine.tld
You can buy such a corticate - or use the acme package.
True : the acme package works for you if you know what to do and how to do it

fahad77678 · Jan 9, 2019, 5:55 AM

@gertjan
Use http (default) and the https portal login. Things will go very smooth.
what do you mean by this how can i do this in pfsense. actually i m new in pfsesne

fahad77678 · Jan 9, 2019, 9:00 AM

@gertjan
can you give me the step step configuration of captive portal with dns resolver?

Gertjan · Jan 9, 2019, 1:44 PM

@fahad77678 said in Captive portal not redirecting on https requests. problem on every browser:

@gertjan
can you give me the step step configuration of captive portal with dns resolver?

https://www.youtube.com/watch?v=qb5TDpihnq4&t=111s
https://www.netgate.com/docs/pfsense/captiveportal/index.html

The Resolver : nothing to do. The default settings - as set on installation, are just perfect.

fahad77678 · Jan 11, 2019, 6:13 AM

@gertjan
is it necessary to add captive portal ports add in firewall's wan and lan rules ?
it it is? the which ports should i add to the rules ?

Gertjan · Jan 11, 2019, 10:18 AM

@fahad77678 said in Captive portal not redirecting on https requests. problem on every browser:

@gertjan
is it necessary to add captive portal ports add in firewall's wan and lan rules ?
it it is? the which ports should i add to the rules ?

Two cases :
If you activate the portal on the LAN you have nothing to do : the default firewall rule is a pass-all, the portal will work right away.
If you activate the captive portal on an extra interface (the best choice !), like OPT1, you have to, initially, add one firewall rule : the same one as you can find on the LAN interface.
Like this :

login-to-view

Never ever add firewall rules to the WAN interface. Rules for that interface belong to the experts.
