    Issue Connecting pfsense as a client to OpenVPN Access Server

    Scheduled Pinned Locked Moved OpenVPN
    20 Posts 3 Posters 3.3k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • S
      shahid3507
      last edited by

      Hi all,

      I have setup an OpenVPN Access Server on AWS using the AMI.
      I tried connecting to it via a normal windows client and it worked fine, but when I configured it through pfsense OpenVPN client (Auto login) it constantly shows the following status.

      ping restart; reconnecting or status : down

      When I tailed the logs on the Access server side than the following error was found in the logs.

      2019-02-04 09:15:51+0000 [-] OVPN 1 OUT: 'Mon Feb  4 09:15:51 2019 Authenticate/Decrypt packet error: packet HMAC authentication failed'
      2019-02-04 09:15:51+0000 [-] OVPN 1 OUT: 'Mon Feb  4 09:15:51 2019 TLS Error: incoming packet authentication failed from [AF_INET]x.x.x.x:40511 (via [AF_INET]x.x.x.x%eth0)'
      2019-02-04 09:15:59+0000 [-] OVPN 1 OUT: 'Mon Feb  4 09:15:59 2019 Authenticate/Decrypt packet error: packet HMAC authentication failed'
      2019-02-04 09:15:59+0000 [-] OVPN 1 OUT: 'Mon Feb  4 09:15:59 2019 TLS Error: incoming packet authentication failed from [AF_INET]x.x.x.x:40511 (via [AF_INET]x.x.x.x%eth0)'
      2019-02-04 09:16:15+0000 [-] OVPN 1 OUT: 'Mon Feb  4 09:16:15 2019 Authenticate/Decrypt packet error: packet HMAC authentication failed'
      2019-02-04 09:16:15+0000 [-] OVPN 1 OUT: 'Mon Feb  4 09:16:15 2019 TLS Error: incoming packet authentication failed from [AF_INET]x.x.x.x:40511 (via [AF_INET]x.x.x.x%eth0)'


      Can someone please help me in this ?

      Thanks

      1 Reply Last reply Reply Quote 0
      • johnpozJ
        johnpoz LAYER 8 Global Moderator
        last edited by johnpoz

        Without showing what you did or didn't do when you set it up. Ho wae we suppose to help you.

        I have openvpn-as running on vps... Click Click to connect to it. Post up your config from your server and your client so we can see what your doing wrong.

        An intelligent man is sometimes forced to be drunk to spend time with his fools
        If you get confused: Listen to the Music Play
        Please don't Chat/PM me for help, unless mod related
        SG-4860 24.11 | Lab VMs 2.8, 24.11

        1 Reply Last reply Reply Quote 0
        • S
          shahid3507
          last edited by

          @johnpoz

          here is the client configuration.

          dev ovpnc1
          verb 1
          dev-type tun
          dev-node /dev/tun1
          writepid /var/run/openvpn_client1.pid
          #user nobody
          #group nobody
          script-security 3
          daemon
          keepalive 10 60
          ping-timer-rem
          persist-tun
          persist-key
          proto udp4
          cipher AES-256-CBC
          auth none
          up /usr/local/sbin/ovpn-linkup
          down /usr/local/sbin/ovpn-linkdown
          local x.x.x.x
          tls-client
          client
          lport 0
          management /var/etc/openvpn/client1.sock unix
          remote x.x.x.x 1194
          ifconfig x.0.0.x x.0.0.x
          route x.x.0.0 255.255.0.0
          ca /var/etc/openvpn/client1.ca
          cert /var/etc/openvpn/client1.cert
          key /var/etc/openvpn/client1.key
          tls-crypt /var/etc/openvpn/client1.tls-crypt
          ncp-disable
          comp-lzo no
          passtos
          resolv-retry infinite
          topology subnet
          key-direction 1
          setenv opt tls-version-min 1.0 or highest
          setenv FORWARD_COMPATIBLE 1
          ns-cert-type server
          setenv PUSH_PEER_INFO

          1 Reply Last reply Reply Quote 0
          • RicoR
            Rico LAYER 8 Rebel Alliance
            last edited by

            And how about the Server configuration?

            -Rico

            1 Reply Last reply Reply Quote 0
            • S
              shahid3507
              last edited by shahid3507

              @Rico Is this what you are talking about ?
              As I am not able to find any other configuration files.

              #
              # NOTE:  The ~ symbol used below expands to the directory that
              # the configuration file is saved in

              # remove for production
              # DEBUG=false

              # enable AS Connect functionality
              AS_CONNECT=true

              # temporary directory
              tmp_dir=~/tmp

              lic.dir=~/licenses

              # run_start retries
              run_start_retry.give_up=60
              run_start_retry.resample=10

              # enable client gateway
              sa.show_c2s_routes=true

              # certificates database
              certs_db=sqlite:///~/db/certs.db

              # user properties DB
              user_prop_db=sqlite:///~/db/userprop.db

              # configuration DB
              config_db=sqlite:///~/db/config.db

              # log DB
              log_db=sqlite:///~/db/log.db

              # wait this many seconds between failed retries
              db_retry.interval=1

              # how many retries to attempt before failing
              db_retry.n_attempts=6

              # On startup, wait up to n seconds for DB files to become
              # available if they do not yet exist.  This is generally
              # only useful on secondary nodes used for standby purposes.
              # db_startup_wait=

              # Node type: PRIMARY|SECONDARY.  Defaults to PRIMARY.
              # node_type=

              # bootstrap authentication via PAM -- allows
              # admin to log into web UI before authentication
              # system has been configured.  Configure PAM users
              # allowed to access via the bootstrap auth mechanism.
              boot_pam_service=openvpnas
              boot_pam_users.0=openvpn
              # boot_pam_users.1=
              # boot_pam_users.2=
              # boot_pam_users.3=
              # boot_pam_users.4=

              # System users that are allowed to access the server agent XML API.
              # The user that the web server will run as should be in this list.
              system_users_local.0=root
              system_users_local.1=openvpn_as

              # The user/group that the web server will run as
              cs.user=openvpn_as
              cs.group=openvpn_as

              # socket directory
              general.sock_dir=~/sock

              # path to linux openvpn executable
              # if undefined, find openvpn on the PATH
              #general.openvpn_exe_path=

              # source directory for OpenVPN Windows executable
              # (Must have been built with MultiFileExtract)
              sa.win_exe_dir=~/exe

              # The company name will be shown in the UI
              sa.company_name=OpenVPN, Inc.

              # server agent socket
              sa.sock=~/sock/sagent

              # If enabled, automatically generate a client configuration
              # when a client logs into the site and successfully authenticates
              cs.auto_generate=true

              # files for web server (PEM format)
              cs.ca_bundle=~/web-ssl/ca.crt
              cs.priv_key=~/web-ssl/server.key
              cs.cert=~/web-ssl/server.crt

              # web server will use three consecutive ports starting at this
              # address, for use with the OpenVPN port share feature
              cs.dynamic_port_base=870

              # which service groups should be started during
              # server agent initialization
              sa.initial_run_groups.0=web_group
              #sa.initial_run_groups.1=openvpn_group

              # use this twisted reactor
              sa.reactor=epoll

              # The unit number of this particular AS configuration.
              # Normally set to 0.  If you have multiple, independent AS instances
              # running on the same machine, each should have a unique unit number.
              sa.unit=0

              # If true, open up web ports on the firewall using iptables
              iptables.web=true

              vpn.server.user=openvpn_as
              vpn.server.group=openvpn_as```
              1 Reply Last reply Reply Quote 0
              • RicoR
                Rico LAYER 8 Rebel Alliance
                last edited by

                Hmmm no idea what this is. ;-)

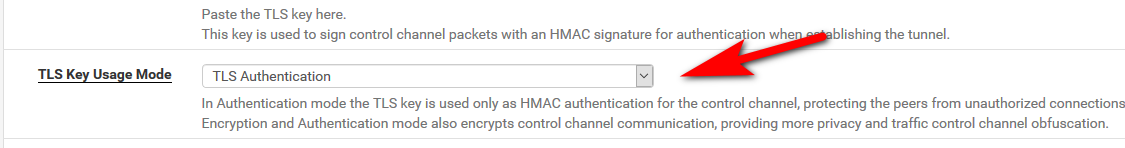

                However please try to switch TLS Encryption and Authentication to TLS Authentication in your pfSense Client.

                -Rico

                1 Reply Last reply Reply Quote 0
                • S
                  shahid3507
                  last edited by

                  @Rico Thanks a lot!! I was able to to connect after switching TLS Encryption and Authentication to TLS Authentication and than after that Added SHA1(160 bit)

                  Now I am able to ping the AWS network from pfsense end but not able to ping the remote network (pfsense) side from the AWS end.

                  I am not able to ping bidirectionally, Is this a normal behaviour in case of OpenVPN our some pfsense configuration needs to be done ?

                  1 Reply Last reply Reply Quote 1
                  • RicoR
                    Rico LAYER 8 Rebel Alliance
                    last edited by Rico

                    You need to setup your Rules in the Firewall -> Rules -> OpenVPN tab (pfSense WebGUI).
                    For testing just do any-any and check if everything works.

                    -Rico

                    1 Reply Last reply Reply Quote 0
                    • johnpozJ
                      johnpoz LAYER 8 Global Moderator
                      last edited by johnpoz

                      @shahid3507 said in Issue Connecting pfsense as a client to OpenVPN Access Server:

                      tls-crypt /var/etc/openvpn/client1.tls-crypt

                      I am like 99% sure that openvpn-as does not support tls-crypt.. Atleast not current 2.6.1 version..

                      The AS stores its config in a db, so its a bit harder to show - but there is zero place to turn on crypt for tls in the gui. And do believe reading something about it - they did a while back enable crypt for the connect client (ios and android) but I do not believe the AS server supports it as of yet.

                      When you setup the client in pfsense - did you download the client config from the AS to validate what you need to set?

                      example - just download my client config from my AS

                       Automatically generated OpenVPN client config file
                      # Generated on Mon Feb  4 07:15:51 2019 by ns1
                      # Note: this config file contains inline private keys
                      #       and therefore should be kept confidential!
                      # Note: this configuration is user-locked to the username below


                      Certs will all be inline

                      And its just doing auth

                      key-direction 1
                      <tls-auth>
                      #
                      # 2048 bit OpenVPN static key (Server Agent)
                      #
                      -----BEGIN OpenVPN Static key V1-----
                      12303adb7486e4ef9d4dae4742741a22
                      10f785d43598499de66a7da89ee45221
                      <snipped>
                      235863ac6188180030d13ab6481e966c
                      a8bd1f1b1c08bd009430af58ab3e0b88
                      -----END OpenVPN Static key V1-----
                      </tls-auth>


                      An intelligent man is sometimes forced to be drunk to spend time with his fools
                      If you get confused: Listen to the Music Play
                      Please don't Chat/PM me for help, unless mod related
                      SG-4860 24.11 | Lab VMs 2.8, 24.11

                      1 Reply Last reply Reply Quote 0
                      • S
                        shahid3507
                        last edited by

                        @johnpoz I have just downloaded the config from AS and followed this document.
                        https://www.netgate.com/docs/pfsense/vpn/openvpn/connecting-pfsense-to-an-openvpn-access-server.html

                        1 Reply Last reply Reply Quote 0
                        • johnpozJ
                          johnpoz LAYER 8 Global Moderator
                          last edited by johnpoz

                          Seems you didn't follow the part where it says
                          " pfSense may be configured to use the info in the .ovpn file"

                          ☺


                          And not encryption and auth. Double check all your other settings.

                          example here is my client config form pfsense for my openvpn-as server

                          dev ovpnc3
                          verb 1
                          dev-type tun
                          dev-node /dev/tun3
                          writepid /var/run/openvpn_client3.pid
                          #user nobody
                          #group nobody
                          script-security 3
                          daemon
                          keepalive 10 60
                          ping-timer-rem
                          persist-tun
                          persist-key
                          proto udp4
                          cipher AES-256-CBC
                          auth SHA256
                          up /usr/local/sbin/ovpn-linkup
                          down /usr/local/sbin/ovpn-linkdown
                          local 64.53.<snipped>
                          engine rdrand
                          tls-client
                          client
                          lport 0
                          management /var/etc/openvpn/client3.sock unix
                          remote <snipped> 1195
                          ca /var/etc/openvpn/client3.ca
                          cert /var/etc/openvpn/client3.cert
                          key /var/etc/openvpn/client3.key
                          tls-auth /var/etc/openvpn/client3.tls-auth 1
                          ncp-ciphers AES-128-GCM:AES-192-GCM:AES-256-GCM:AES-128-CBC:AES-192-CBC:AES-256-CBC
                          comp-lzo no
                          resolv-retry infinite
                          route-nopull
                          fast-io
                          sndbuf 524288
                          rcvbuf 524288
                          [2.4.4-RELEASE][root@sg4860.local.lan]/var/etc/openvpn:


                          notice
                          tls-auth /var/etc/openvpn/client3.tls-auth 1

                          An intelligent man is sometimes forced to be drunk to spend time with his fools
                          If you get confused: Listen to the Music Play
                          Please don't Chat/PM me for help, unless mod related
                          SG-4860 24.11 | Lab VMs 2.8, 24.11

                          1 Reply Last reply Reply Quote 0
                          • S
                            shahid3507
                            last edited by

                            @johnpoz
                            My bad, missed it.
                            By the way do you know anything regarding Bidirectional ping part ?
                            I have added any to any config in firewall for all interfaces still it dosen't work.

                            Can you please help me in this on how to do it ?
                            cc: @Rico

                            1 Reply Last reply Reply Quote 0
                            • johnpozJ
                              johnpoz LAYER 8 Global Moderator
                              last edited by

                              What are you trying to ping?

                              An intelligent man is sometimes forced to be drunk to spend time with his fools
                              If you get confused: Listen to the Music Play
                              Please don't Chat/PM me for help, unless mod related
                              SG-4860 24.11 | Lab VMs 2.8, 24.11

                              1 Reply Last reply Reply Quote 0
                              • S
                                shahid3507
                                last edited by

                                The tunnel is connecting and I am able to ping the AWS side (Access server subnet) but when I am trying to ping the client side form the access server or the subnet than it's not reachable.

                                1 Reply Last reply Reply Quote 0
                                • S
                                  shahid3507
                                  last edited by

                                  Any Idea regarding this connectivity stuff @Rico ??

                                  1 Reply Last reply Reply Quote 0
                                  • RicoR
                                    Rico LAYER 8 Rebel Alliance
                                    last edited by

                                    Not atm, I don't have any experience with OpenVPN AS or AWS, sorry. 😑
                                    But my guess is @johnpoz will come back with some ideas. 😀

                                    -Rico

                                    1 Reply Last reply Reply Quote 0
                                    • johnpozJ
                                      johnpoz LAYER 8 Global Moderator
                                      last edited by

                                      Ping what exactly? Can you ping the lan IP of pfsense from your aws side?

                                      An intelligent man is sometimes forced to be drunk to spend time with his fools
                                      If you get confused: Listen to the Music Play
                                      Please don't Chat/PM me for help, unless mod related
                                      SG-4860 24.11 | Lab VMs 2.8, 24.11

                                      1 Reply Last reply Reply Quote 0
                                      • S
                                        shahid3507
                                        last edited by

                                        No I can't @johnpoz

                                        1 Reply Last reply Reply Quote 0
                                        • johnpozJ
                                          johnpoz LAYER 8 Global Moderator
                                          last edited by

                                          What is your routing on your aws side show you how to get to your lan network?

                                          An intelligent man is sometimes forced to be drunk to spend time with his fools
                                          If you get confused: Listen to the Music Play
                                          Please don't Chat/PM me for help, unless mod related
                                          SG-4860 24.11 | Lab VMs 2.8, 24.11

                                          1 Reply Last reply Reply Quote 0
                                          • S
                                            shahid3507
                                            last edited by

                                            There was a need to add route for specific traffic and change the OpenVPN settings to act as site to site VPN.
                                            It is now working.

                                            Thanks for your help @johnpoz @Rico

                                            1 Reply Last reply Reply Quote 0
                                            • First post
                                              Last post
                                            Copyright 2025 Rubicon Communications LLC (Netgate). All rights reserved.
