    Site2Site-OpenVPN Tunnel routing wont work on one of two tunnels

    OpenVPN
    2
    7
    271
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • M
      mannebk last edited by mannebk

      I created the Tunnel following this guide.

      https://docs.netgate.com/pfsense/en/latest/vpn/openvpn/configuring-a-site-to-site-static-key-openvpn-instance.html

      We have several sites and a host.

      With some sites, we have to use IPsec, as the remote hardware (fritz.box) only does IP sec and is very slow at it. So I changed one location from IPsec in Fritzbox to oVPN in OMV4. Works like a charm.

      BUT:

      I copied this to an other location, no luck. routing just wont work.

      From Host, i can ping VPN IP on client, but not network behind it
      From client remote network, i can ping VPN IP on client, but not network on host

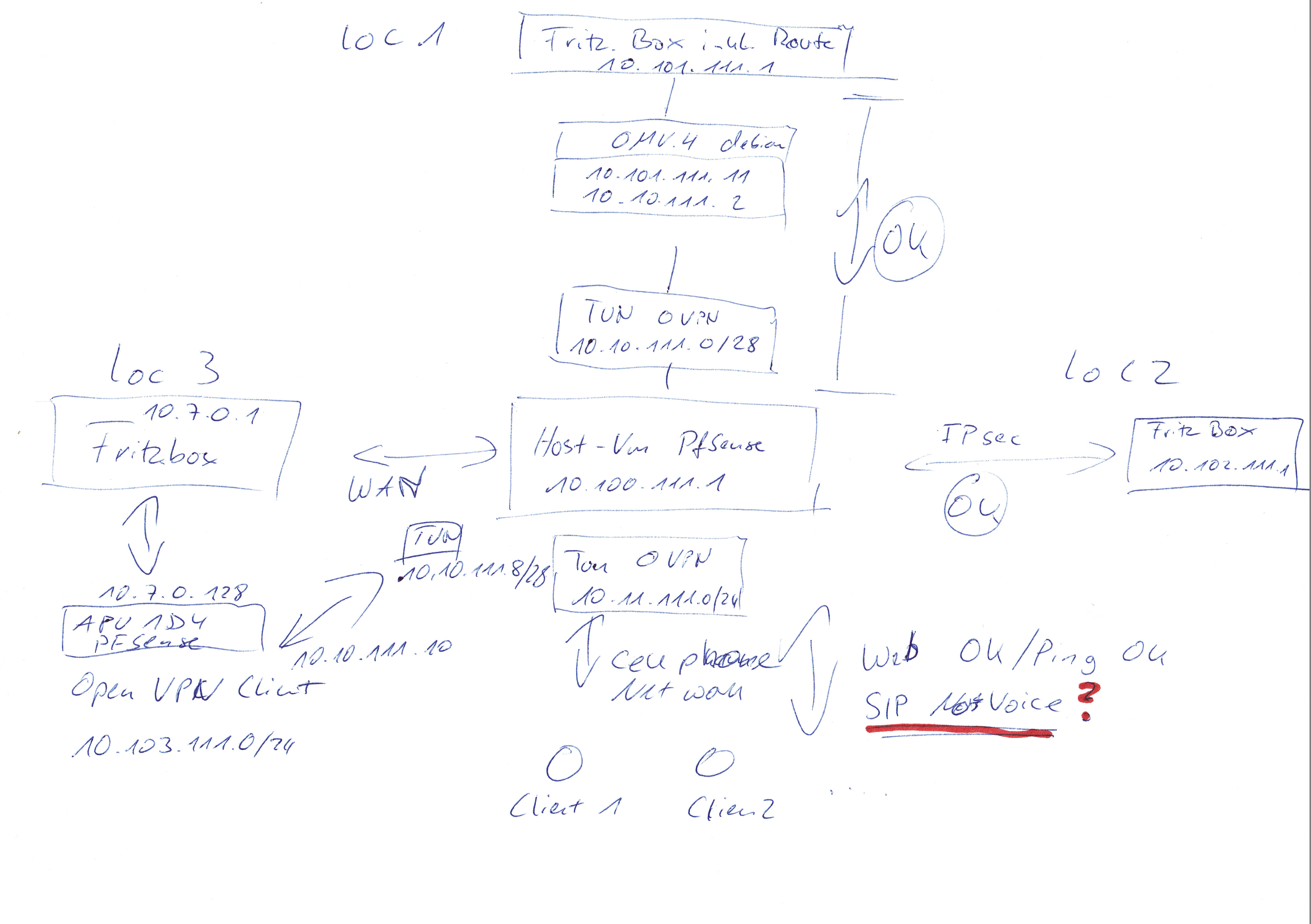

      Here is the network grid as pictrure and as a description:

      The host (a hetzner machine) does run a VM with pfSense.

      host with the network 10.100.111.0/24 with pfSense being 10.100.111.1

      loc1 (changed sucessfully from IPsec to oVPN) with the network 10.101.111.0/24 with the oVPN client being 10.101.111.11 (OMV4 debian server and static routs from Fritz.Box to .11 for the host network, not the tunnel) Tunnel is 10.10.111.0/28 while host is .1 and OMV client is .2 (works greate)

      loc2 with the network 10.102.111.0/24 with IPsec to Fritz.Box (.1) (works greate while beeing slow, but ok for current use)

      loc3 with the network 10.7.0.0/24 with IPsec to Fritz.Box (.1) is the one I want to change from FB(IPsec) to APU(pfSense oVPN)

      For this I have a test hardware: pcengine.ch APU1D4 (i know, no crypto, but still 40% more power than the Fritbox) this is also a pfSense OS. I configured the FritzBox to have the APU1D3 (the one and onyl client on 10.7.0.0 net) as an exposed client, full port forward, no joy.

      I want to have 10.103.111.0/24 as local net. every single hardware behind the APU. I have no inter site traffic, only site2host.

      No matter what I try on the host or the remote system, i cant get through. It is a exact copy of the loc1 settings, only IP chagned to other tunnel and local net. routing just wonk work.

      I even set 3 servers, to make sure the stuff wont get mixed up in the host. no joy.

      I dont know what els I shold try.

      I apriciate any advice.

      Pictures from server Settings:

      3 servers, becaus the roadwarrios and the 2nd site the routing just wont work,

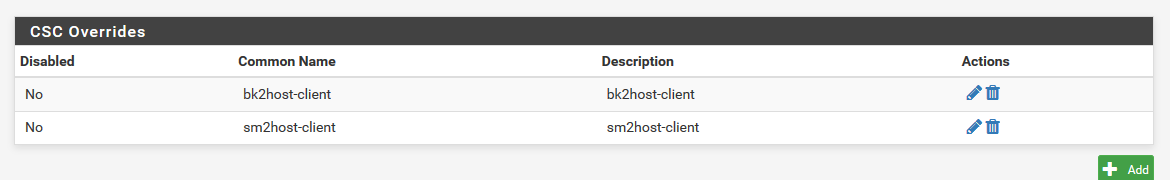

      This is all client override for remote networks site2site (site1 and site 2)

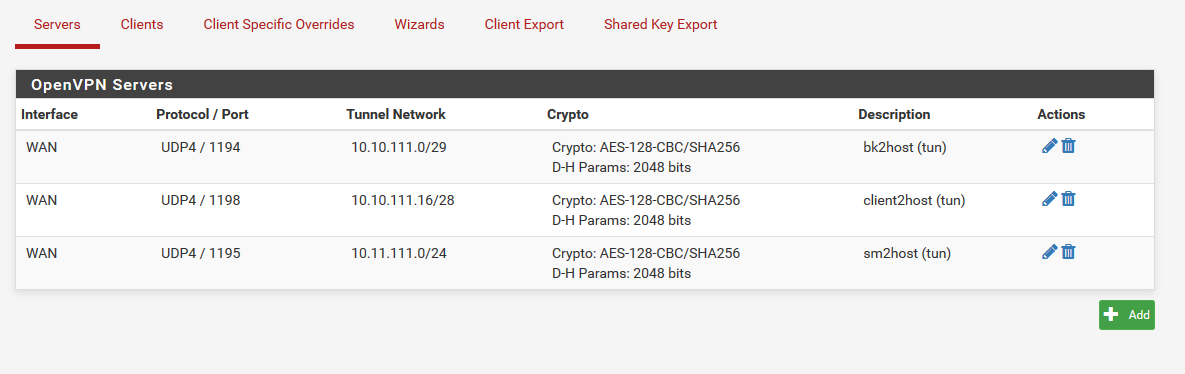

      This is client override setting for remote network on site2site

      This is server3 setting for IP ragens

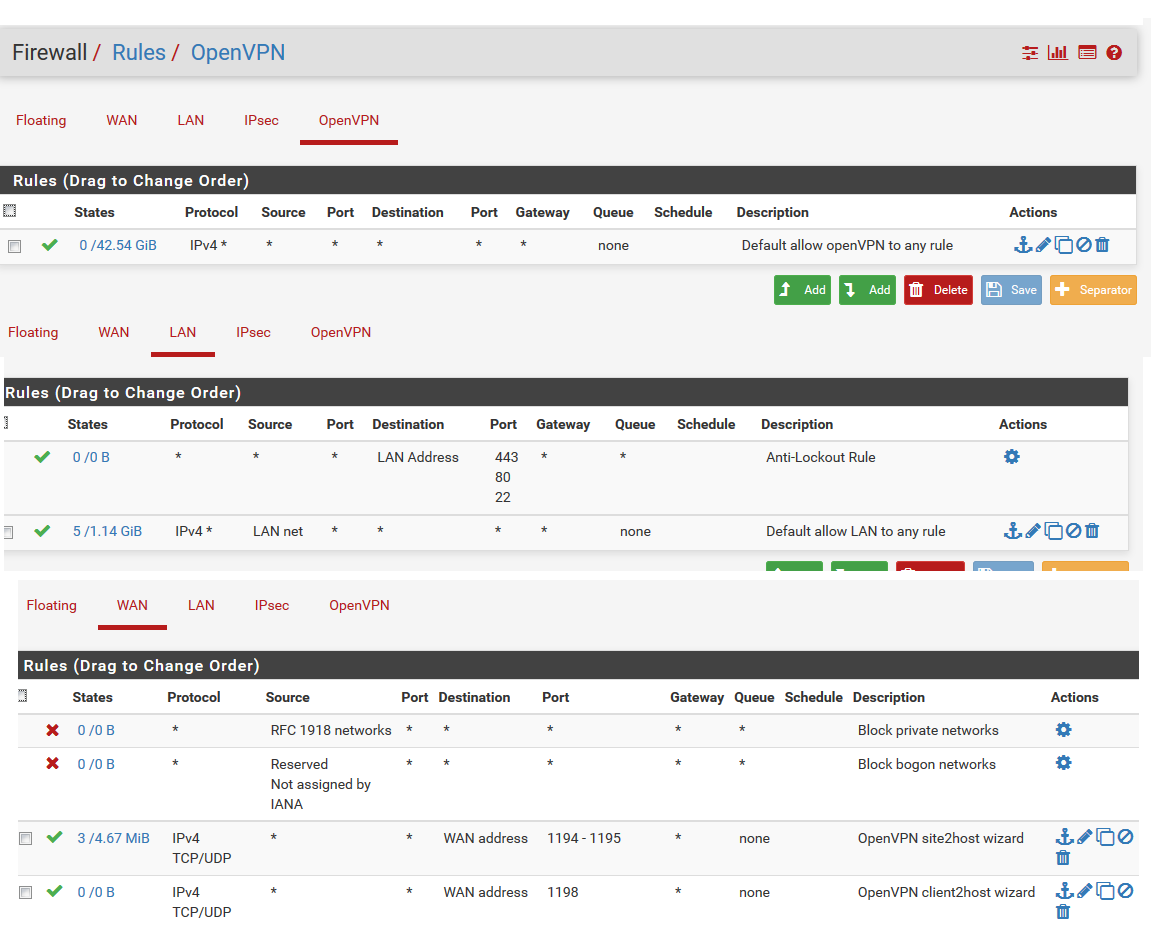

      and Firewall rules

      client site: (follows, need to change the computer :-))

      VPN clint

      tunnel is up and running (host network can ping ip of tunnel client (10.11.111.2), but not remote network.

      0_1552407324085_41f890a2-1cdc-4cf8-9be9-fd734e9d4632-grafik.png ^

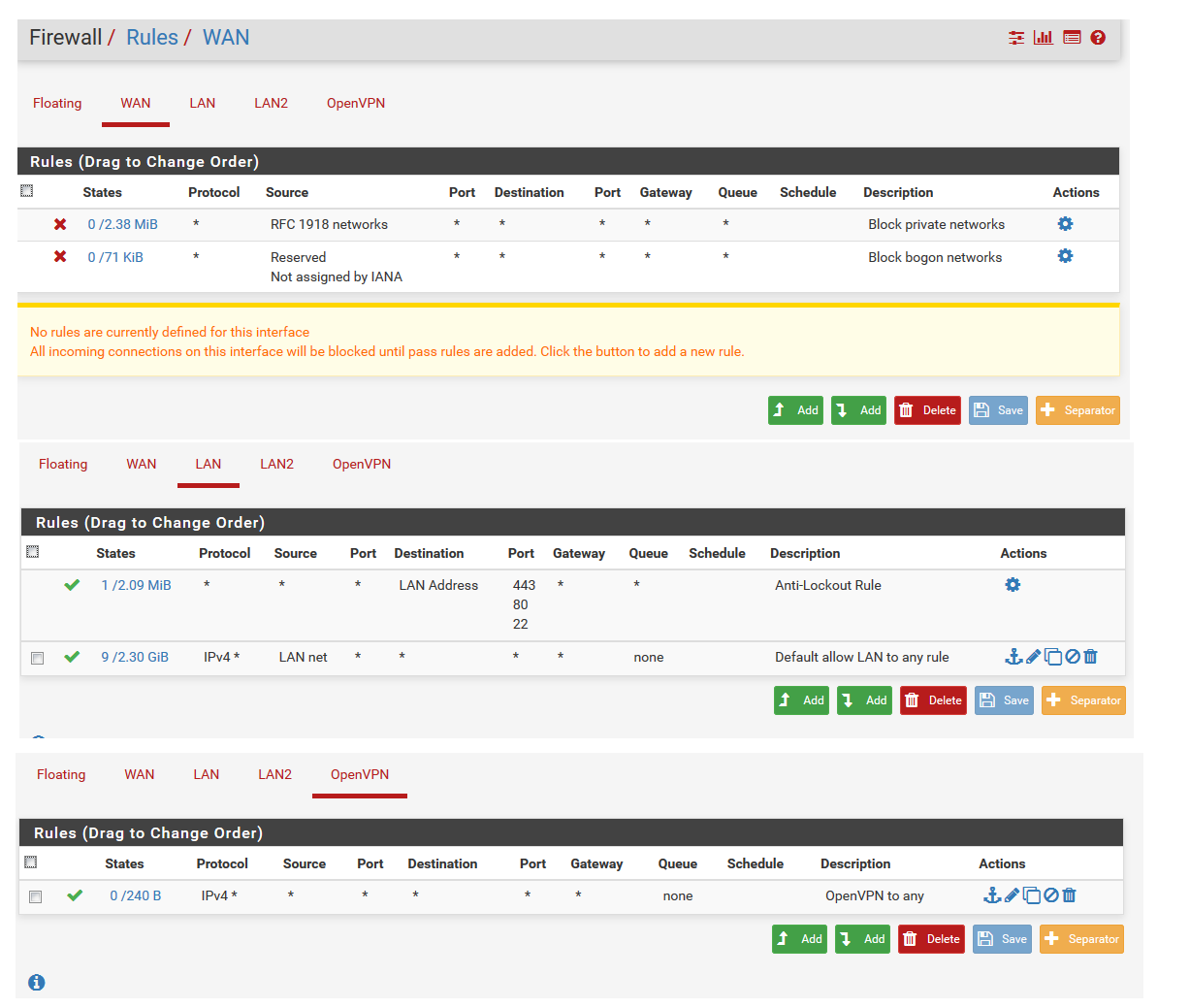

      firewall settings on client


      1 Reply Last reply Reply Quote 0
      • M
        marvosa last edited by

        Post the server1.conf from the server and client1.conf from the client.

        1 Reply Last reply Reply Quote 0
        • M
          mannebk last edited by mannebk

          cleand server.conf pls pn me if I missed something.
          openvpn-config-fw.intern-20190318083528.xml

          and the client conf
          openvpn-config-pfSenseSM.fw.sm-20190318085809.xml

          M 1 Reply Last reply Reply Quote 0
          • M
            marvosa @mannebk last edited by

            @mannebk my apologies, please post the .conf files located here -> /var/etc/openvpn. You can get to it via the shell or Diagnostics -> Edit File in the GUI. The server-side will have a serverX.conf and the client-side will have a clientX.conf file. If it's the first server or client that was configured on the box, they should be server1.conf and client1.conf.

            The .conf files are much easier to read than .xml (for me at least).

            1 Reply Last reply Reply Quote 0
            • M
              mannebk last edited by

              server2.conf

              dev ovpns2
              verb 1
              dev-type tun
              dev-node /dev/tun2
              writepid /var/run/openvpn_server2.pid
              #user nobody
              #group nobody
              script-security 3
              daemon
              keepalive 10 60
              ping-timer-rem
              persist-tun
              persist-key
              proto udp4
              cipher AES-128-CBC
              auth SHA256
              up /usr/local/sbin/ovpn-linkup
              down /usr/local/sbin/ovpn-linkdown
              local ip-deleted
              tls-server
              server 10.11.111.0 255.255.255.0
              client-config-dir /var/etc/openvpn-csc/server2
              ifconfig 10.11.111.1 10.11.111.2
              tls-verify "/usr/local/sbin/ovpn_auth_verify tls 'bk2host-server' 1"
              lport 1195
              management /var/etc/openvpn/server2.sock unix
              max-clients 4
              push "route 10.100.111.0 255.255.255.0"
              push "route 10.101.111.0 255.255.255.0"
              push "route 10.102.111.0 255.255.255.0"
              route 10.103.111.0 255.255.255.0
              ca /var/etc/openvpn/server2.ca
              cert /var/etc/openvpn/server2.cert
              key /var/etc/openvpn/server2.key
              dh /etc/dh-parameters.2048
              tls-auth /var/etc/openvpn/server2.tls-auth 0
              ncp-ciphers AES-128-GCM
              compress
              persist-remote-ip
              float
              topology subnet
              sndbuf 1048576
              rcvbuf 1048576


              1 Reply Last reply Reply Quote 0
              • M
                mannebk last edited by

                client1.conf

                dev ovpnc1
                verb 1
                dev-type tun
                dev-node /dev/tun1
                writepid /var/run/openvpn_client1.pid
                #user nobody
                #group nobody
                script-security 3
                daemon
                keepalive 10 60
                ping-timer-rem
                persist-tun
                persist-key
                proto udp4
                cipher AES-128-CBC
                auth SHA256
                up /usr/local/sbin/ovpn-linkup
                down /usr/local/sbin/ovpn-linkdown
                local 10.7.0.104
                tls-client
                client
                lport 0
                management /var/etc/openvpn/client1.sock unix
                remote deleted 1195
                ca /var/etc/openvpn/client1.ca
                cert /var/etc/openvpn/client1.cert
                key /var/etc/openvpn/client1.key
                tls-auth /var/etc/openvpn/client1.tls-auth 1
                ncp-disable
                compress
                resolv-retry infinite


                1 Reply Last reply Reply Quote 0
                • M
                  marvosa last edited by

                  On the server-side (if that's the right config), looks like it's set up as a remote access server, which isn't what you want. You need to change the server mode to one of the Peer to Peer options and configure the server for either a shared key or PKI setup.

                  On the client-side, the client is not routing any networks over the tunnel.

                  So, there appear to be several issues:

                  1. The server-side needs to be reconfigured for Peer to Peer mode
                  2. The client-side is not routing any networks over the tunnel.
                    a. If the objective was shared key, here's one of your issues
                    b. If the objective was PKI, the server-side will need iroute statements for the client's network(s) in the CSO section
                  3. The client override screenshot posted in your OP is missing an entry in the "IPv4 Remote Network/s", which will autogenerate the iroute statements needed for the server to reach the client's network behind this connection. Assuming you went with a PKI setup.
                  4. This is unlikely, but the client-side is double NAT'd behind an edge device, so if basic end-to-end IP communication still isn't working after making your corrections, it's possible that the client may need a static route on the edge device for the tunnel network.
                  1 Reply Last reply Reply Quote 0
