    SG-3100 - routing all internet access over IPSEC tunnel

    Scheduled Pinned Locked Moved IPsec
    33 Posts 5 Posters 3.0k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • D
      dhb
      last edited by

      I have configured a working IPSEC v2 tunnel between a remote location and my location. The far end user can see servers and PCs on my local network as desired.

      However I would like the far end to access all external internet connections through the local gateway here, rather than the SG-3100 gateway at the far end, is this possible?

      Thanks

      D.

      1 Reply Last reply Reply Quote 0
      • stephenw10S
        stephenw10 Netgate Administrator
        last edited by

        Yes. Screenshots here are outdated but the settings are the same:
        https://docs.netgate.com/pfsense/en/latest/vpn/ipsec/routing-internet-traffic-through-a-site-to-site-ipsec-vpn.html

        Steve

        1 Reply Last reply Reply Quote 0
        • D
          dhb
          last edited by

          Aha that's great, thanks. Just need to change the one Phase 2 setting to 0.0.0.0/0 on the existing tunnel it appears.

          Since we have a Barracuda F-series on the near end I'll need to translate those Netgate DEST NAT settings over, I imagine that should be do-able.

          Cheers.

          D.

          1 Reply Last reply Reply Quote 0
          • C
            ccb056
            last edited by

            @dhb said in SG-3100 - routing all internet access over IPSEC tunnel:

            Cheers.

            I have been trying to achieve this in the routed ipsec, but it isn't working, any ideas?

            1 Reply Last reply Reply Quote 0
            • stephenw10S
              stephenw10 Netgate Administrator
              last edited by

              Where is it failing? Where does traffic reach in a packet capture?

              There is an issue with VTI IPSec and NAT which you might be hitting here.

              Steve

              1 Reply Last reply Reply Quote 0
              • C
                ccb056
                last edited by

                Not really sure how to do a packet capture.

                What is the issue with VTI IPSEC and NAT?

                DerelictD 1 Reply Last reply Reply Quote 0
                • stephenw10S
                  stephenw10 Netgate Administrator
                  last edited by

                  As I understand it pf cannot apply NAT to a VTI interface. That may apply here. I have a feeling we tried something similar and it failed.

                  Start a continuous ping at the remote site to some external IP. Run a packet capture on the IPSec interface at the remote location to make sure that is leaving over the VPN. Run a packet capture at the SG-3100 end on the IPSec interface to make sure it is arriving then run it on the WAN to make sure it is leaving there and has been NAT'd.

                  Steve

                  1 Reply Last reply Reply Quote 0
                  • DerelictD
                    Derelict LAYER 8 Netgate @ccb056
                    last edited by

                    @ccb056 said in SG-3100 - routing all internet access over IPSEC tunnel:

                    Not really sure how to do a packet capture.

                    What is the issue with VTI IPSEC and NAT?

                    Outbound NAT on a VTI interface does not work.

                    1 Reply Last reply Reply Quote 0
                    • C
                      ccb056
                      last edited by

                      Is there a bug in redmine for this?

                      1 Reply Last reply Reply Quote 0
                      • DerelictD
                        Derelict LAYER 8 Netgate
                        last edited by

                        Has to be fixed upstream in freebsd.

                        1 Reply Last reply Reply Quote 0
                        • stephenw10S
                          stephenw10 Netgate Administrator
                          last edited by

                          If you're configured as expected though the outbound NAT is on the SG-3100 WAN not actually on the VTI interface. But I have a feeling this also hits it somehow. Try it and see.

                          You can run a packet capture from the webgui in Diag > Packet Capture. Filter by protocol ICMP and whatever the external IP is you're pinging.

                          Steve

                          1 Reply Last reply Reply Quote 0
                          • DerelictD
                            Derelict LAYER 8 Netgate
                            last edited by

                            This post is deleted!
                            1 Reply Last reply Reply Quote 0
                            • C
                              ccb056
                              last edited by ccb056

                              Is there a FreeBSD bug report?

                              I can't seem to find one:
                              https://bugs.freebsd.org/bugzilla/buglist.cgi?order=Importance&query_format=advanced&short_desc=ipsec%20nat&short_desc_type=allwordssubstr

                              I did find this pfsense bug:
                              https://redmine.pfsense.org/issues/9230

                              And this opnsense thread:
                              https://github.com/opnsense/core/issues/440

                              1 Reply Last reply Reply Quote 0
                              • stephenw10S
                                stephenw10 Netgate Administrator
                                last edited by

                                That pfSense bug report is probably the closest thing. That is NATing over a VTI interface.

                                The Opnsense bug is refering to policy based IPSec which also has NAT limitations but is when you're hitting here specifically.

                                Were you able to run that test and get the pcaps?

                                Steve

                                1 Reply Last reply Reply Quote 0
                                • DerelictD
                                  Derelict LAYER 8 Netgate
                                  last edited by Derelict

                                  I worked with a guy doing exactly this. He first tried this:

                                  LAN <-> VTI (OB NAT) <-> VTI <-> WAN (OB NAT) <-> Internet

                                  He changed it to this because of this limitation on NAT on the VTI interface:

                                  LAN <-> VTI <-> VTI <-> WAN (OB NAT) <-> Internet

                                  Setting the Outbound NAT on the WAN to NAT the LAN source addresses.

                                  All works fine. I think he said he's getting 500Mbps or more over it.

                                  You just have to make sure the WAN side has a gateway and a route back to the LAN network over the VTI.

                                  I believe he used policy routing to send the internet traffic from certain local hosts over the VTI, not a 0.0.0.0/0 route. Both methods should work, but if I was going to try the route method I would probably adopt the OpenVPN strategy and add these instead of 0.0.0.0/0: 0.0.0.0/1 128.0.0.0/1 so your existing default route stays unmolested.

                                  G 1 Reply Last reply Reply Quote 1
                                  • stephenw10S
                                    stephenw10 Netgate Administrator
                                    last edited by

                                    Ah nice!

                                    1 Reply Last reply Reply Quote 0
                                    • C
                                      ccb056
                                      last edited by ccb056

                                      Both my laptop and my phone can ping google.com through the ipsec tunnel, packet captures below

                                      pings from phone.zip

                                      pings from laptop.zip

                                      Here is the traceroute from my laptop without going through the tunnel:

                                      Here is the traceroute from my laptop going through the tunnel, but using local dns:
                                      traceroute.remote routing.local dns.PNG

                                      And this is what it looks like going through the tunnel and using remote dns:
                                      traceroute.remote routing.remote dns.PNG

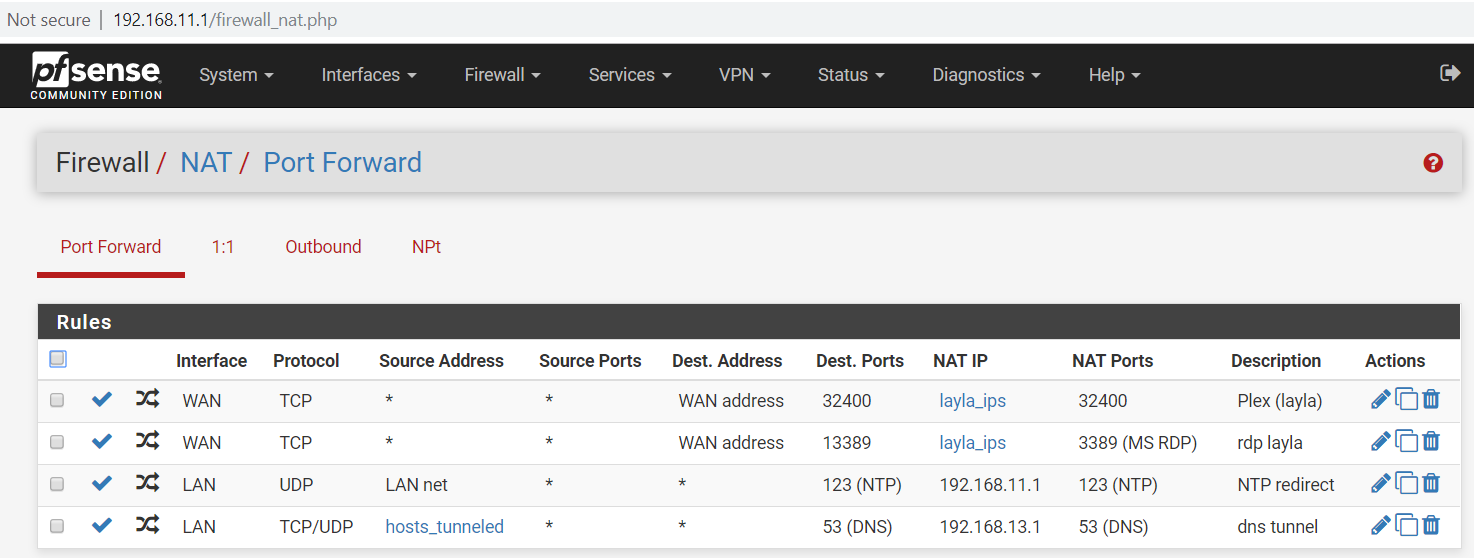

                                      Here are some photos of the configs on both routers:




                                      Note, the browser on the laptop seems to load the google.com webpage, but the phone cannot browse to any webpage

                                      What do I need to change to get this working properly?

                                      DerelictD 1 Reply Last reply Reply Quote 0
                                      • DerelictD
                                        Derelict LAYER 8 Netgate
                                        last edited by

                                        None of that really gives us anything to go on.

                                        How are you selecting traffic to go over the tunnel? Policy routing or the routing table? How is that set up?

                                        How are the two devices configured for both IP routing and DNS?

                                        Not sure why you're showing us traceroutes and mentioning DNS. Use DNS tools to troubleshoot DNS and traceroute to troubleshoot routing.

                                        It looks like you are routing through the tunnel and out the charter WAN so everything including outbound NAT there is working.

                                        1 Reply Last reply Reply Quote 0
                                        • DerelictD
                                          Derelict LAYER 8 Netgate @ccb056
                                          last edited by

                                          @ccb056 No idea why you're making it so complicated. Just policy route everything from hosts_tunneled out the VTI interface, get that working, then worry about whatever it is you're trying to do with DNS.

                                          1 Reply Last reply Reply Quote 0
                                          • C
                                            ccb056
                                            last edited by

                                            I am selecting traffic to go over the tunnel using this LAN rule on the local router:
                                            firewall rule.redirect to remote gateway.PNG

                                            Here are the routing tables on the local and remote routers:
                                            route table.local router.PNG

                                            route table.remote router.PNG

                                            Not everything is working.
                                            The laptop is very spotty when accessing webpages, it can access google right now, but not yahoo, msn, etc.

                                            The phone cannot access anything.

                                            1 Reply Last reply Reply Quote 0
