    WAN traffic graph not showing outbound traffic

    Scheduled Pinned Locked Moved IDS/IPS
    11 Posts 4 Posters 1.4k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • P
      pwnell
      last edited by pwnell

      My pfSense (2.4.4) was working perfectly on my previous internet connection. I upgraded to Fibre and since then my WAN graph never shows outbound traffic, only inbound. This is impossible clearly. Here is me copying a large file from my LAN to a host on the internet:

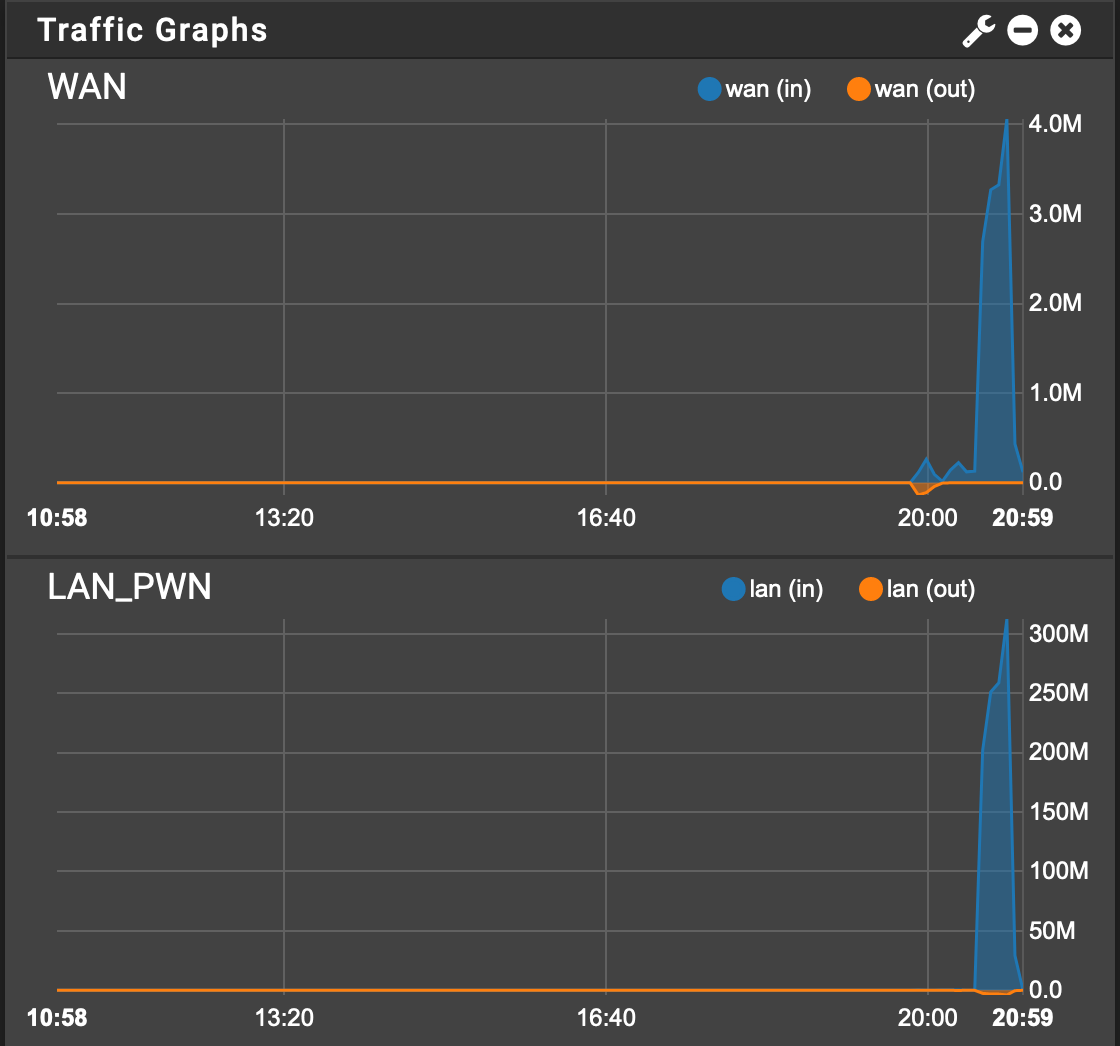

      WAN graph not reflecting outbound traffic

      The WAN in traffic must be the ACK packets from the copy. The LAN interface correctly reflects the outbound traffic (as inbound on the LAN interface).

      I cleared my browser's cache. It made no change. I rebooted the firewall - no change. The fibre modem is in bridge mode.

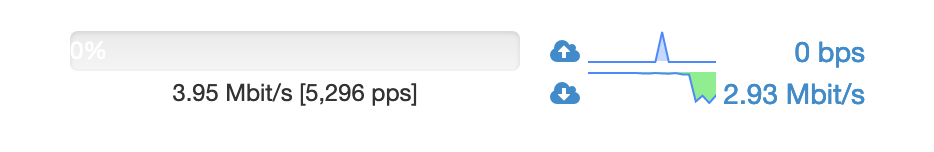

      Even NTOP does not show the outbound traffic:

      NTOP

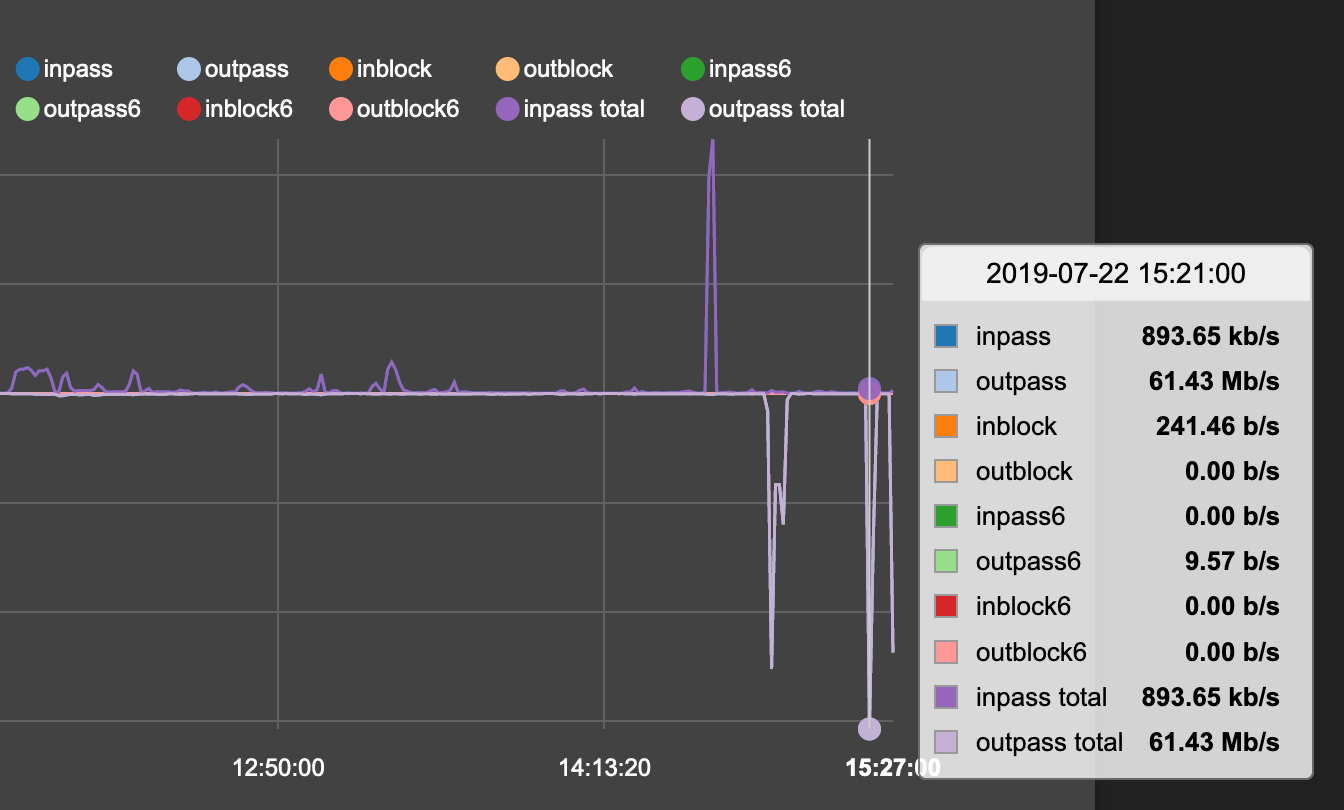

      Monitoring shows the correct values though but it is not real time:

      Monitoring

      What is the problem?

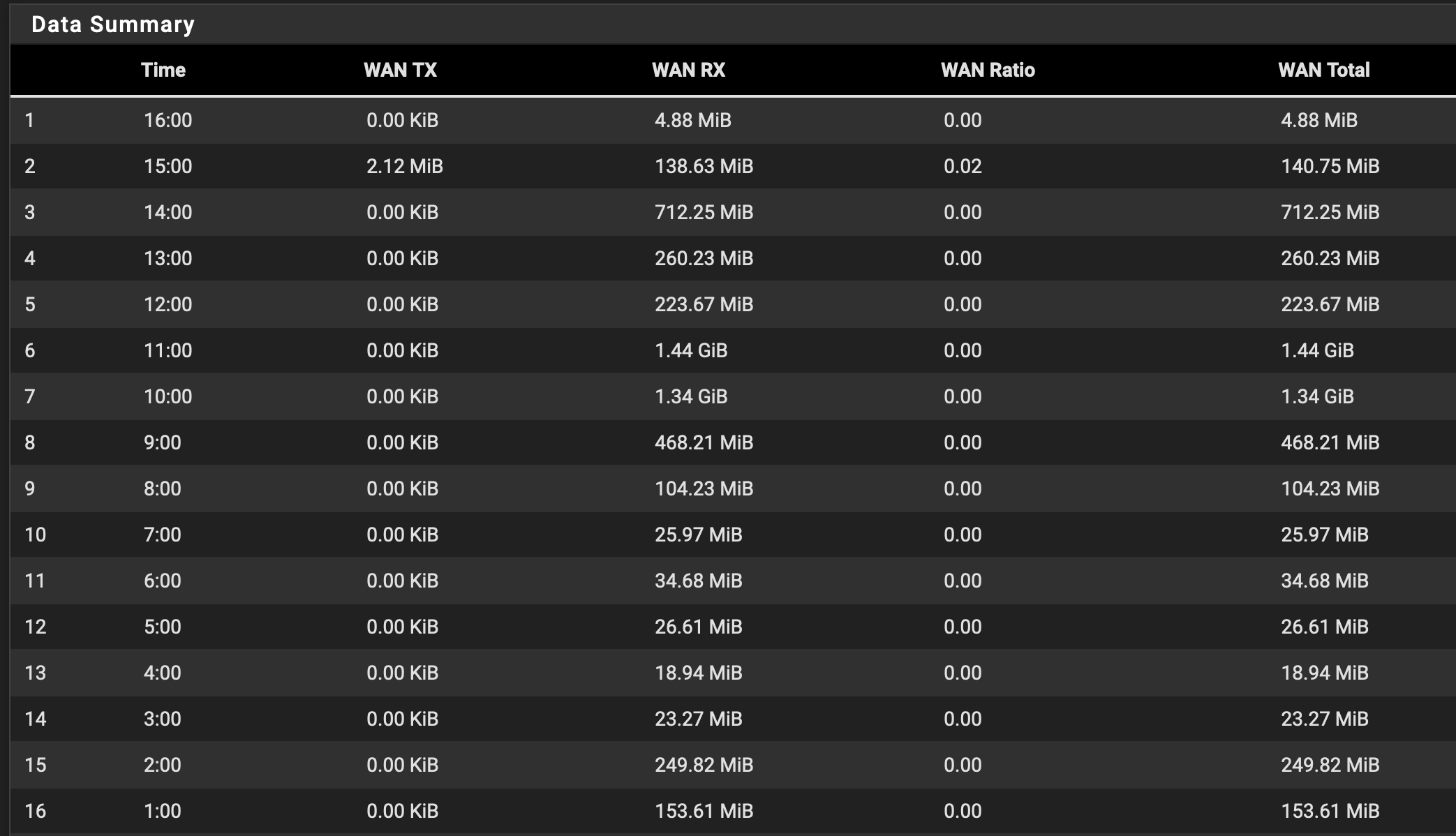

      Even traffic totals show no outbound WAN traffic:

      Traffic Totals

      UPDATE: tcpdump on the WAN interface only ever shows traffic from external hosts to the WAN IP - never anything that originates from the WAN adapter destined for external IP addresses. So this is much deeper than just a graph not working.

      I am running Suricata IPS - and had to disable some hardware offloading. Not sure if this would affect anything. Traffic flow works fine - i.e. I have full internet access.

      UPDATE2: When I disable Suricate IPS (Inline) mode the graphs all work fine. Is there any way to get Suricata in IPS mode (non legacy) and still get to see outbound WAN traffic?

      1 Reply Last reply Reply Quote 0
      • stephenw10S
        stephenw10 Netgate Administrator
        last edited by

        Hmm, well that's odd!

        I assume you're running Suricata on the WAN? What happens if you run it on LAN instread? That's usually preferred anyway as it gives you internal IP info.

        Steve

        P 1 Reply Last reply Reply Quote 1
        • P
          pwnell @stephenw10
          last edited by

          @stephenw10 Yes I am running Suricata in IPS on WAN, but as IDS on LAN. I always assumed it is better to stop the bad packets when they enter the WAN as opposed to when they have already had a chance to affect the firewall if you check it only on the LAN side.

          1 Reply Last reply Reply Quote 0
          • johnpozJ
            johnpoz LAYER 8 Global Moderator
            last edited by

            @pwnell said in WAN traffic graph not showing outbound traffic:

            When I disable Suricate IPS (Inline) mode the graphs all work fine

            I'm going to move this to the IPS section, you prob get better traction there with people that have more exp with Suricata

            An intelligent man is sometimes forced to be drunk to spend time with his fools
            If you get confused: Listen to the Music Play
            Please don't Chat/PM me for help, unless mod related
            SG-4860 24.11 | Lab VMs 2.8, 24.11

            1 Reply Last reply Reply Quote 0
            • stephenw10S
              stephenw10 Netgate Administrator
              last edited by

              It might be marginally better, especially in in-line mode, but the performance hit by running it twice on all traffic is far more significant IMO. You don't see traffic hitting the firewall itself of course so if you have services there open to the internet you might want it on WAN. Otherwise you are just scanning all the random traffic that is dropped by default anyway.

              Steve

              P 1 Reply Last reply Reply Quote 0
              • P
                pwnell @stephenw10
                last edited by

                @stephenw10 I have some port forwards - would that be protected equally well on the LAN side?

                1 Reply Last reply Reply Quote 0
                • stephenw10S
                  stephenw10 Netgate Administrator
                  last edited by

                  Yes Suricata would see that traffic on the LAN interface and it will see the actual public source IP and the internal destination IP. It would not see anything forwarded to localhost for example.

                  Steve

                  1 Reply Last reply Reply Quote 0
                  • P
                    pwnell
                    last edited by

                    This is strange. I changed WAN to IDS and LAN to IPS, now all graphs show inbound and outbound traffic. Why was only WAN affected? It is a different NIC - WAN is em and LAN is ix - does that make a difference?

                    1 Reply Last reply Reply Quote 0
                    • stephenw10S
                      stephenw10 Netgate Administrator
                      last edited by

                      It could do. The way Suricata uses netmap with different drivers could well tie in differently. That's outside my experience to be honest. @bmeeks may have more insight there.

                      Steve

                      1 Reply Last reply Reply Quote 0
                      • bmeeksB
                        bmeeks
                        last edited by bmeeks

                        Netmap is a NIC driver dependent thing. Suricata itself does not dictate how netmap works (or does not work). Netmap is a kernel device, and all Suricata does when running with Inline IPS Mode is just open the netmap device with an API call and start routing traffic to and from it using the same API calls. The FreeBSD kernel, the netmap device and lastly the NIC driver itself determine the specific behavior. My guess (and it is just a pure guess) is that the em NIC driver is not updating some kernel parameters during netmap operation while the ix NIC driver still updates those parameters when in netmap mode. I'm further guessing these kernel parameters would be those needed by the traffic graph application.

                        Inline IPS Mode in Suricata (and Snort on pfSense-2.5) seems to get blamed for a lot of stuff that is not really the fault of Suricata. The issues are with the netmap device itself, and that is a FreeBSD kernel responsibility along with the various vendors of network interface cards (NICs) and their associated NIC drivers.

                        P 1 Reply Last reply Reply Quote 1
                        • P
                          pwnell @bmeeks
                          last edited by

                          @bmeeks Thanks for the insight.

                          1 Reply Last reply Reply Quote 0
