Unable to ping to/from netgate XG-7100 WAN interface

Scheduled Pinned Locked Moved Firewalling
7 Posts 2 Posters 789 Views
Loading More Posts
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • N
    nu2pfsense
    last edited by nu2pfsense Oct 16, 2019, 7:23 PM Oct 15, 2019, 9:30 PM

    Setting up a new netgate XG-7100, but I'm unable to ping to/from the WAN interface.

    Setup:

    • ASUS AC1300 wi-fi router using CIDR block 10.0.0.1/24
      • PC A (IP: 10.0.0.107)
      • netgate XG-7100 (WAN IP: 10.0.0.20, LAN IP: 172.16.0.1)
        • PC B (IP: 172.16.0.12)

    Pings from PC A to the XG-7100 WAN interface time out, as do pings from the XG-7100 WAN interface to PC A.
    Also, PC B is unable to access the internet, but PC A is able to.

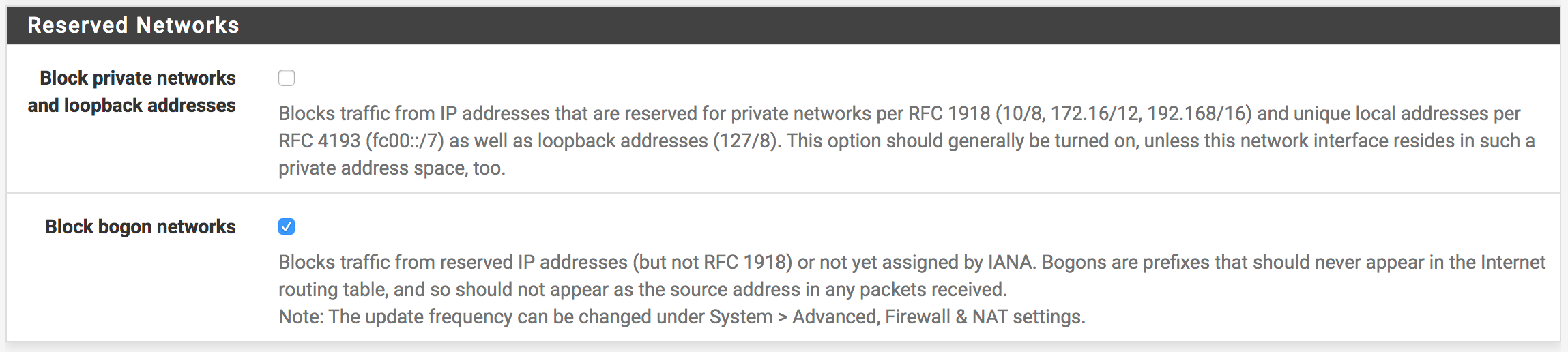

    I configured the XG-7100 to allow RFC1918 traffic and also added a ICMP rule, but this did not resolve the issue:
    Screen Shot 2019-10-15 at 5.29.59 PM.png
    Screen Shot 2019-10-15 at 5.27.40 PM.png

    What did I do wrong? How can I fix this?

    (Note: This is my first pfSense device so please be kind :))

    1 Reply Last reply Reply Quote 0
    • R
      Rico LAYER 8 Rebel Alliance
      last edited by Oct 16, 2019, 1:16 PM

      Internet access from the pfSense LAN side (your PC B) should work just out of the box.
      Post your Interface settings (WAN + LAN) and Firewall Rules (WAN + LAN) here as Screenshots.
      Why the F do you run a /8 network? You have plans to run over 16 million hosts flat there?!

      -Rico

      1 Reply Last reply Reply Quote 0
      • N
        nu2pfsense
        last edited by Oct 16, 2019, 3:12 PM

        Oops, just a typo as I was running out. The ASUS router is using 10.0.0.0/24, not 10.0.0.0/8 :) (Corrected above now.) Sorry for the confusion!

        Requested screenshots below.

        Interface Settings

        • WAN:
        • LAN:

        Firewall Rules

        • WAN:

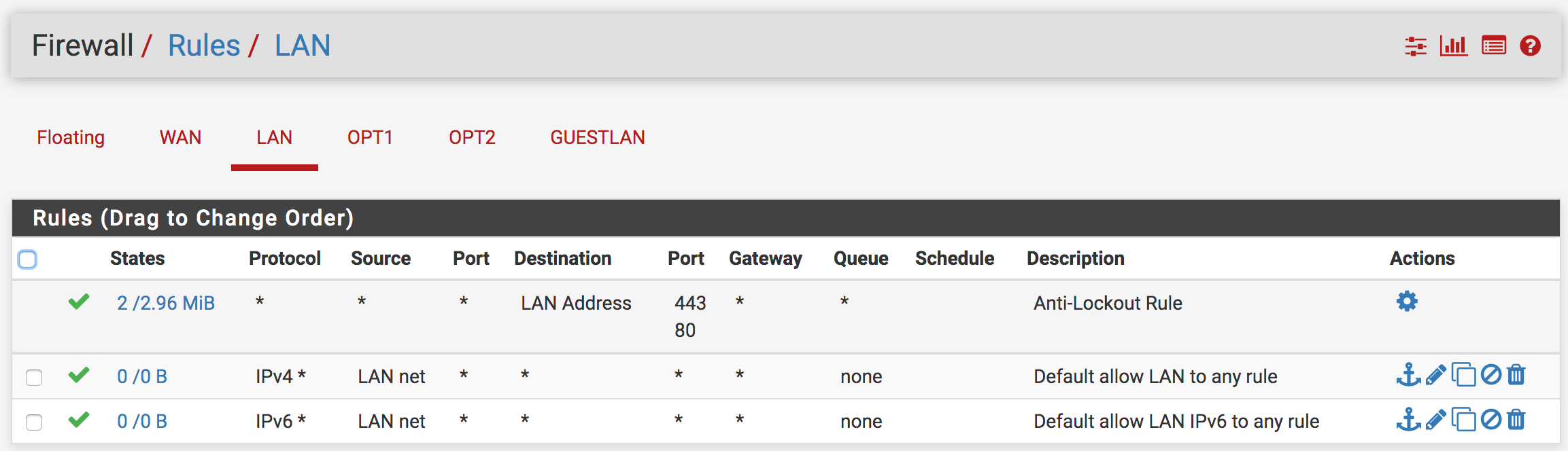

        • LAN:

        Other Notes

        • XG-7100 ETH1 port is connected to the ASUS router LAN port.
        • XG-7100 ETH2 port is connected to PC B.
        1 Reply Last reply Reply Quote 0
        • R
          Rico LAYER 8 Rebel Alliance
          last edited by Rico Oct 16, 2019, 3:18 PM Oct 16, 2019, 3:17 PM

          Your WAN subnet mask is wrong.
          Change /32 to /24
          As upstream gateway put in your ASUS AC1300 IP.

          -Rico

          N 1 Reply Last reply Oct 16, 2019, 7:22 PM Reply Quote 1
          • N
            nu2pfsense @Rico
            last edited by Oct 16, 2019, 7:22 PM

            @Rico Corrected the XG-7100 WAN subnet mask and added the upstream gateway. Now the XG-7100 WAN interface is able to ping PC A and the ASUS router, and PC A can ping the XG-7100 WAN interface, but PC B still cannot access the internet.

            Details:

            • Changed XG-7100 WAN subnet mask from /32 to /24:

            • Added ASUS AC1300 router as a XG-7100 gateway:

            • XG-7100 WAN interface can ping PC-A now:

            PING 10.0.0.107 (10.0.0.107) from 10.0.0.20: 56 data bytes
            64 bytes from 10.0.0.107: icmp_seq=0 ttl=64 time=0.783 ms
            64 bytes from 10.0.0.107: icmp_seq=1 ttl=64 time=0.458 ms
            64 bytes from 10.0.0.107: icmp_seq=2 ttl=64 time=0.414 ms

            --- 10.0.0.107 ping statistics ---
            3 packets transmitted, 3 packets received, 0.0% packet loss
            round-trip min/avg/max/stddev = 0.414/0.552/0.783/0.165 ms

            • XG-7100 WAN interface can ping the router now:
            1 Reply Last reply Reply Quote 0
            • N
              nu2pfsense
              last edited by Oct 16, 2019, 8:42 PM

              Disconnecting the reconnecting PC-B resulted in it being able to access the internet, so all is well now. Thank you for the help, @Rico!

              Also, I just found the guide Troubleshooting Network Connectivity, double-checked the settings, and confirmed the tests work.

              1 Reply Last reply Reply Quote 0
              • R
                Rico LAYER 8 Rebel Alliance
                last edited by Oct 16, 2019, 8:45 PM

                Glad you have it working now.

                -Rico

                1 Reply Last reply Reply Quote 0
