    PFSense single interface (WAN) OpenVPN TAP Bridge to internal DHCP server not getting IP

    Scheduled Pinned Locked Moved OpenVPN
    4 Posts 2 Posters 592 Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • CrimzinzaC
      Crimzinza
      last edited by

      Hi All,

      I need some help from you smart peeps.

      My current test is to do the following:

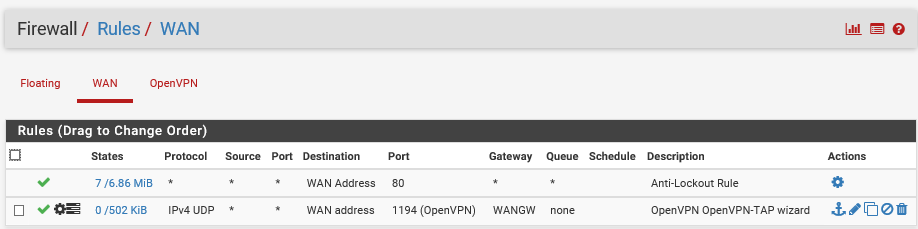

      Have a device with OpenVPN client connect to a pfsense server with 1 interface only (WAN) and get DHCP from the internal server.

      Thus far I get everything to connect ( OpenVPN ). but I still cant get a DHCP address and still get stuck with a default 169 IP and no gateway on the client.

      What can I post here for your assistance?





      /var/etc/openvpn/server1.conf

      dev ovpns1
      verb 3
      dev-type tap
      dev-node /dev/tap1
      writepid /var/run/openvpn_server1.pid
      #user nobody
      #group nobody
      script-security 3
      daemon
      keepalive 10 60
      ping-timer-rem
      persist-tun
      persist-key
      proto udp4
      cipher AES-256-CBC
      auth SHA256
      up /usr/local/sbin/ovpn-linkup
      down /usr/local/sbin/ovpn-linkdown
      local 172.16.36.66
      tls-server
      mode server
      push "route-gateway 172.16.36.66"
      tls-verify "/usr/local/sbin/ovpn_auth_verify tls 'ServCert' 1"
      lport 1194
      management /var/etc/openvpn/server1.sock unix
      push "dhcp-option DOMAIN xxxxxxxxxx.co.za"
      push "dhcp-option DNS 10.0.3.2"
      client-to-client
      duplicate-cn
      ca /var/etc/openvpn/server1.ca
      cert /var/etc/openvpn/server1.cert
      key /var/etc/openvpn/server1.key
      dh /etc/dh-parameters.2048
      tls-auth /var/etc/openvpn/server1.tls-auth 0
      ncp-disable
      persist-remote-ip
      float

      Client Config File:

      #-- Config Auto Generated By pfSense for Viscosity --#

      #viscosity startonopen false
      #viscosity dhcp true
      #viscosity dnssupport true
      #viscosity name OpenVPN-TAP

      dev tap
      persist-tun
      persist-key
      cipher AES-256-CBC
      auth SHA256
      tls-client
      client
      resolv-retry infinite
      remote xxx.xxx.xxx.xxx 1194 udp
      lport 0
      verify-x509-name "ServCert" name
      remote-cert-tls server

      ca ca.crt
      tls-auth ta.key 1
      cert cert.crt
      key key.key

      verb 3
      log openvpn.log
      log-append openvpn.log

      Wed Nov 20 10:58:07 2019 OpenVPN 2.3.6 i686-w64-mingw32 [SSL (OpenSSL)] [LZO] [PKCS11] [IPv6] built on Dec 1 2014
      Wed Nov 20 10:58:07 2019 library versions: OpenSSL 1.0.1j 15 Oct 2014, LZO 2.08
      Wed Nov 20 10:58:07 2019 MANAGEMENT: TCP Socket listening on [AF_INET]127.0.0.1:25340
      Wed Nov 20 10:58:07 2019 Need hold release from management interface, waiting...
      Wed Nov 20 10:58:08 2019 MANAGEMENT: Client connected from [AF_INET]127.0.0.1:25340
      Wed Nov 20 10:58:08 2019 MANAGEMENT: CMD 'state on'
      Wed Nov 20 10:58:08 2019 MANAGEMENT: CMD 'log all on'
      Wed Nov 20 10:58:08 2019 MANAGEMENT: CMD 'hold off'
      Wed Nov 20 10:58:08 2019 MANAGEMENT: CMD 'hold release'
      Wed Nov 20 10:58:08 2019 Control Channel Authentication: using 'ta.key' as a OpenVPN static key file
      Wed Nov 20 10:58:08 2019 Outgoing Control Channel Authentication: Using 256 bit message hash 'SHA256' for HMAC authentication
      Wed Nov 20 10:58:08 2019 Incoming Control Channel Authentication: Using 256 bit message hash 'SHA256' for HMAC authentication
      Wed Nov 20 10:58:08 2019 Socket Buffers: R=[65536->65536] S=[65536->65536]
      Wed Nov 20 10:58:08 2019 UDPv4 link local (bound): [undef]
      Wed Nov 20 10:58:08 2019 UDPv4 link remote: [AF_INET]172.16.36.66:1194
      Wed Nov 20 10:58:08 2019 MANAGEMENT: >STATE:1574240288,WAIT,,,
      Wed Nov 20 10:58:08 2019 MANAGEMENT: >STATE:1574240288,AUTH,,,
      Wed Nov 20 10:58:08 2019 TLS: Initial packet from [AF_INET]172.16.36.66:1194, sid=b14a1c9f 99833975
      Wed Nov 20 10:58:08 2019 VERIFY OK: depth=1, CN=ServCA, C=ZA, ST=WC, L=Cape Town, O=MyOrg
      Wed Nov 20 10:58:08 2019 Validating certificate key usage
      Wed Nov 20 10:58:08 2019 ++ Certificate has key usage 00a0, expects 00a0
      Wed Nov 20 10:58:08 2019 VERIFY KU OK
      Wed Nov 20 10:58:08 2019 Validating certificate extended key usage
      Wed Nov 20 10:58:08 2019 ++ Certificate has EKU (str) TLS Web Server Authentication, expects TLS Web Server Authentication
      Wed Nov 20 10:58:08 2019 VERIFY EKU OK
      Wed Nov 20 10:58:08 2019 VERIFY X509NAME OK: CN=ServCert, C=ZA, ST=WC, L=Cape Town, O=MyOrg
      Wed Nov 20 10:58:08 2019 VERIFY OK: depth=0, CN=ServCert, C=ZA, ST=WC, L=Cape Town, O=MyOrg
      Wed Nov 20 10:58:08 2019 Data Channel Encrypt: Cipher 'AES-256-CBC' initialized with 256 bit key
      Wed Nov 20 10:58:08 2019 Data Channel Encrypt: Using 256 bit message hash 'SHA256' for HMAC authentication
      Wed Nov 20 10:58:08 2019 Data Channel Decrypt: Cipher 'AES-256-CBC' initialized with 256 bit key
      Wed Nov 20 10:58:08 2019 Data Channel Decrypt: Using 256 bit message hash 'SHA256' for HMAC authentication
      Wed Nov 20 10:58:08 2019 Control Channel: TLSv1, cipher TLSv1/SSLv3 ECDHE-RSA-AES256-SHA, 2048 bit RSA
      Wed Nov 20 10:58:08 2019 [ServCert] Peer Connection Initiated with [AF_INET]172.16.36.66:1194
      Wed Nov 20 10:58:09 2019 MANAGEMENT: >STATE:1574240289,GET_CONFIG,,,
      Wed Nov 20 10:58:10 2019 SENT CONTROL [ServCert]: 'PUSH_REQUEST' (status=1)
      Wed Nov 20 10:58:10 2019 PUSH: Received control message: 'PUSH_REPLY,route-gateway 172.16.36.66,dhcp-option DOMAIN xxxxxxxxx.co.za,dhcp-option DNS 10.0.3.2,ping 10,ping-restart 60,peer-id 0'
      Wed Nov 20 10:58:10 2019 OPTIONS IMPORT: timers and/or timeouts modified
      Wed Nov 20 10:58:10 2019 OPTIONS IMPORT: route-related options modified
      Wed Nov 20 10:58:10 2019 OPTIONS IMPORT: --ip-win32 and/or --dhcp-option options modified
      Wed Nov 20 10:58:10 2019 OPTIONS IMPORT: peer-id set
      Wed Nov 20 10:58:10 2019 open_tun, tt->ipv6=0
      Wed Nov 20 10:58:10 2019 TAP-WIN32 device [Ethernet 6] opened: \.\Global{75484DF4-3D11-4FE5-B0FC-F25C7B8EB0DF}.tap
      Wed Nov 20 10:58:10 2019 TAP-Windows Driver Version 9.9
      Wed Nov 20 10:58:10 2019 Successful ARP Flush on interface [24] {75484DF4-3D11-4FE5-B0FC-F25C7B8EB0DF}
      Wed Nov 20 10:58:15 2019 TEST ROUTES: 0/0 succeeded len=0 ret=1 a=0 u/d=up
      Wed Nov 20 10:58:15 2019 Initialization Sequence Completed
      Wed Nov 20 10:58:15 2019 MANAGEMENT: >STATE:1574240295,CONNECTED,SUCCESS,,172.16.36.66


      1 Reply Last reply Reply Quote 0
      • JKnottJ
        JKnott
        last edited by

        What is actually happening? For example, if you run Packet Capture, do you see DHCP traffic from the remote device? To it? That would give some clues as to where the problem is.

        PfSense running on Qotom mini PC
        i5 CPU, 4 GB memory, 32 GB SSD & 4 Intel Gb Ethernet ports.
        UniFi AC-Lite access point

        I haven't lost my mind. It's around here...somewhere...

        1 Reply Last reply Reply Quote 0
        • CrimzinzaC
          Crimzinza
          last edited by

          I can see on wireshark my pc tries to get a DHCP address.

          But I think it is my bridge that is the problem and possibly my firewall rules.

          bare in mind I only have 1 interface.

          All I want is fo the OpenVPN to connect and the pc is on the network.

          JKnottJ 1 Reply Last reply Reply Quote 0
          • JKnottJ
            JKnott @Crimzinza
            last edited by

            @Crimzinza

            Also run Packet Capture on pfSense, to determine if it's getting that far. It's hard to solve a problem when we don't know the details.

            PfSense running on Qotom mini PC
            i5 CPU, 4 GB memory, 32 GB SSD & 4 Intel Gb Ethernet ports.
            UniFi AC-Lite access point

            I haven't lost my mind. It's around here...somewhere...

            1 Reply Last reply Reply Quote 0
