    [SOLVED] new pf version and lost openvpn connection

    Scheduled Pinned Locked Moved OpenVPN
    13 Posts 5 Posters 1.5k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • M
      mike8888
      last edited by mike8888

      Hi all, need insight or help regarding my issue here

      Yesterday I fresh install pfsense 2.4.4-p3 64bit on the same hardware (under esxi 6.0) from previous pfsense 2.3.4-p1 32bit

      reason for that: want to try telegraf package

      the new pf works fine, just not the openvpn connection to other site (server client connection). Was working good with 2.3.4, but not connected with new 2.4.4

      the other site using pf 2.3.4-p1 32bit as a server for the connection

      already match all the setting and parameters from previous 2.3.4 but still not connected.

      server setting at pf 2.3.4
      peer to peer (shared key)
      protocol UDP
      device mode TUN
      interface WAN
      local port 1198
      shared key (already copy paste between server and client)
      encryption algo: AES-256-CBC (256 / 128)
      auth digest algo: SHA1 (160bit)
      no hardware crypto
      ipv4 tunnel network: 10.0.8.0/30
      ipv4 remote network: 192.168.5.0/24

      client setting at pf 2.4.4
      same parameters as above
      already input server ip address
      untick Enable NCP
      same ipv4 tunnel network
      ipv4 remote network: 192.168.4.0/24
      gateway creation: ipv4 only

      firewall-NAT-outbound = use automatic outbound NAT

      status from server: down or reconnecting;ping-restart
      status from client: reconnectin; ping-restart with local address and remote host have (pending) below them

      are there any issues with 2.4.4 with 2.3.4? 32bit with 64bit?

      cheers,
      mike

      1 Reply Last reply Reply Quote 0
      • kiokomanK
        kiokoman LAYER 8
        last edited by

        it's possible but you are not providing enought information, you should post screenshot of your configuration to see if it's realy like you say and we need the complete log from openvpn, increase verbosity if needed
        i would upgrade the other site too, 2.3.4 is very old and unsupported now

        ̿' ̿'\̵͇̿̿\з=(◕_◕)=ε/̵͇̿̿/'̿'̿ ̿
        Please do not use chat/PM to ask for help
        we must focus on silencing this @guest character. we must make up lies and alter the copyrights !
        Don't forget to Upvote with the 👍 button for any post you find to be helpful.

        1 Reply Last reply Reply Quote 0
        • johnpozJ
          johnpoz LAYER 8 Global Moderator
          last edited by johnpoz

          Come back when both sides are currently supported versions ;) Zero motivation to help someone that can not be bothered to even keep their firewall current.

          are there any issues with 2.4.4 with 2.3.4? 32bit with 64bit?

          Lets say are just for discussion purposes... The fix for that would be to updated the outdated version to current.. So come back when that has happened and your still having issues.

          An intelligent man is sometimes forced to be drunk to spend time with his fools
          If you get confused: Listen to the Music Play
          Please don't Chat/PM me for help, unless mod related
          SG-4860 24.11 | Lab VMs 2.8, 24.11

          1 Reply Last reply Reply Quote 0
          • M
            mike8888
            last edited by

            Hi kiokoman and johnpoz,

            I plan to upgrade the other site version, but needed time to schedule a visit to the place. So for time being, i'm stuck with 2.3.4 at the other site. So my options are to drop telegraf curiosity and use previous 2.3.4 to connect, or solved this if possible.

            *sorry for the long screenshot

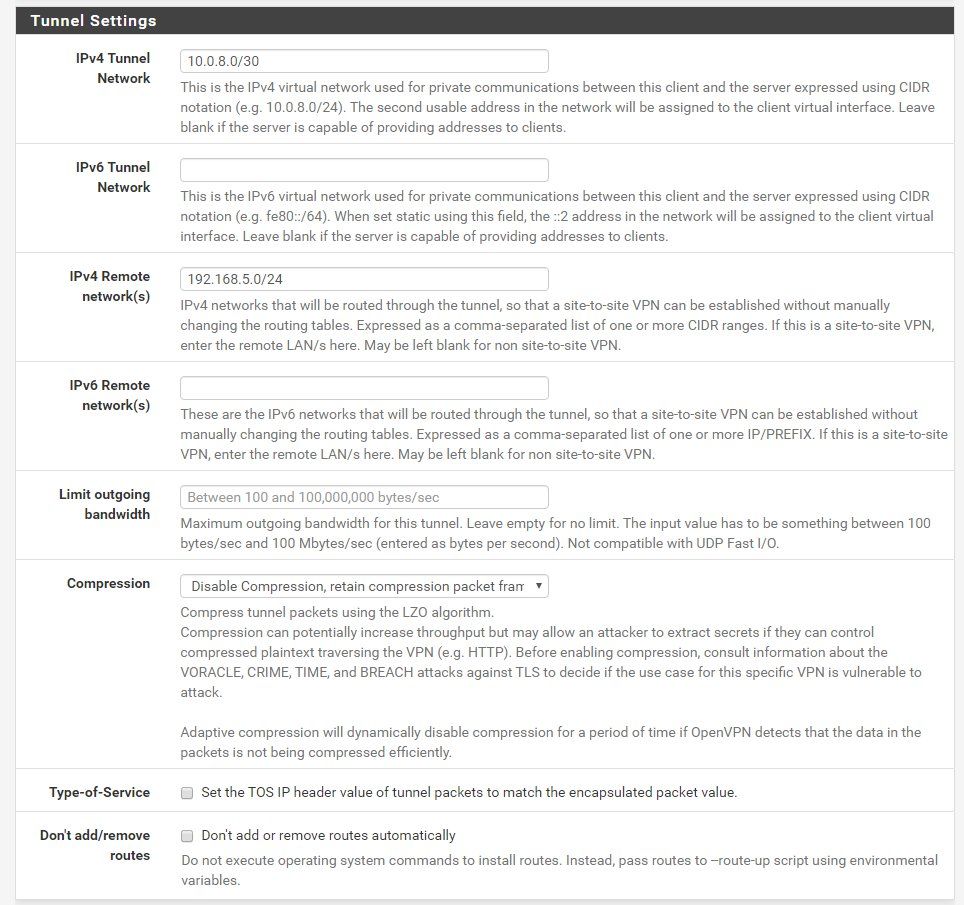

            this is screenshot for the client (2.4.4):

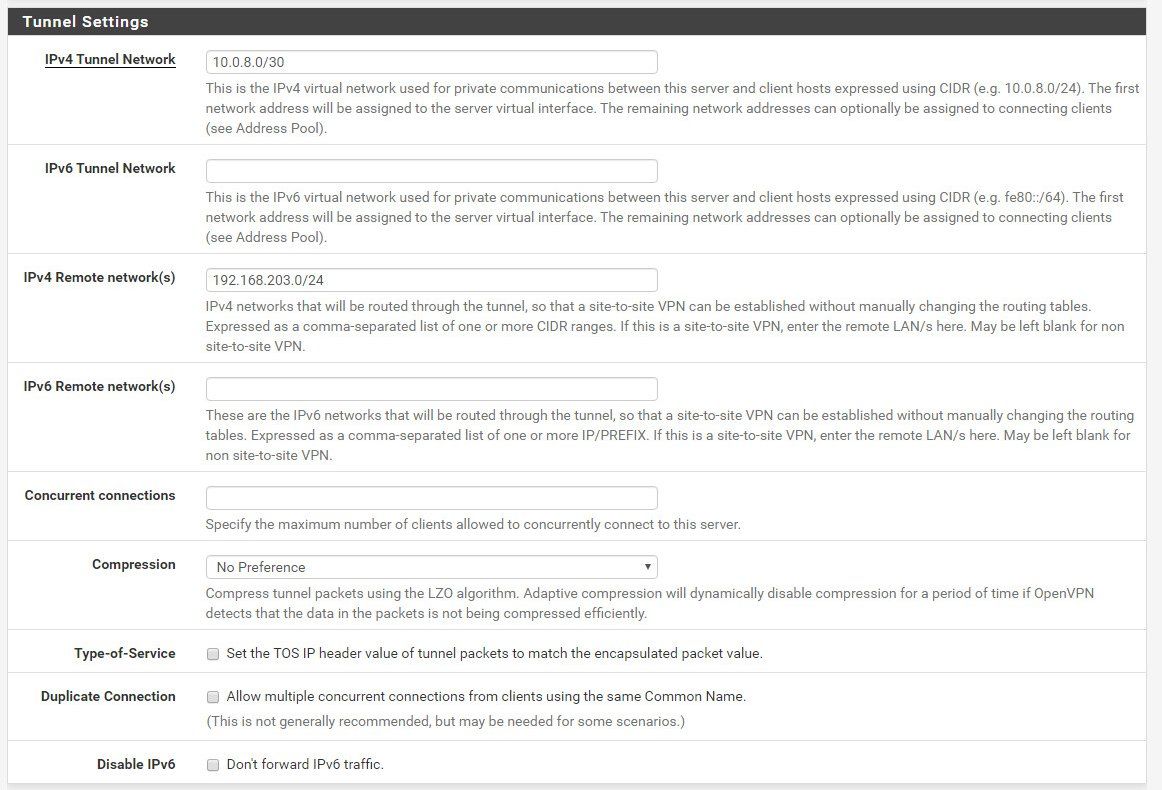

            this is for server side (2.3.4):

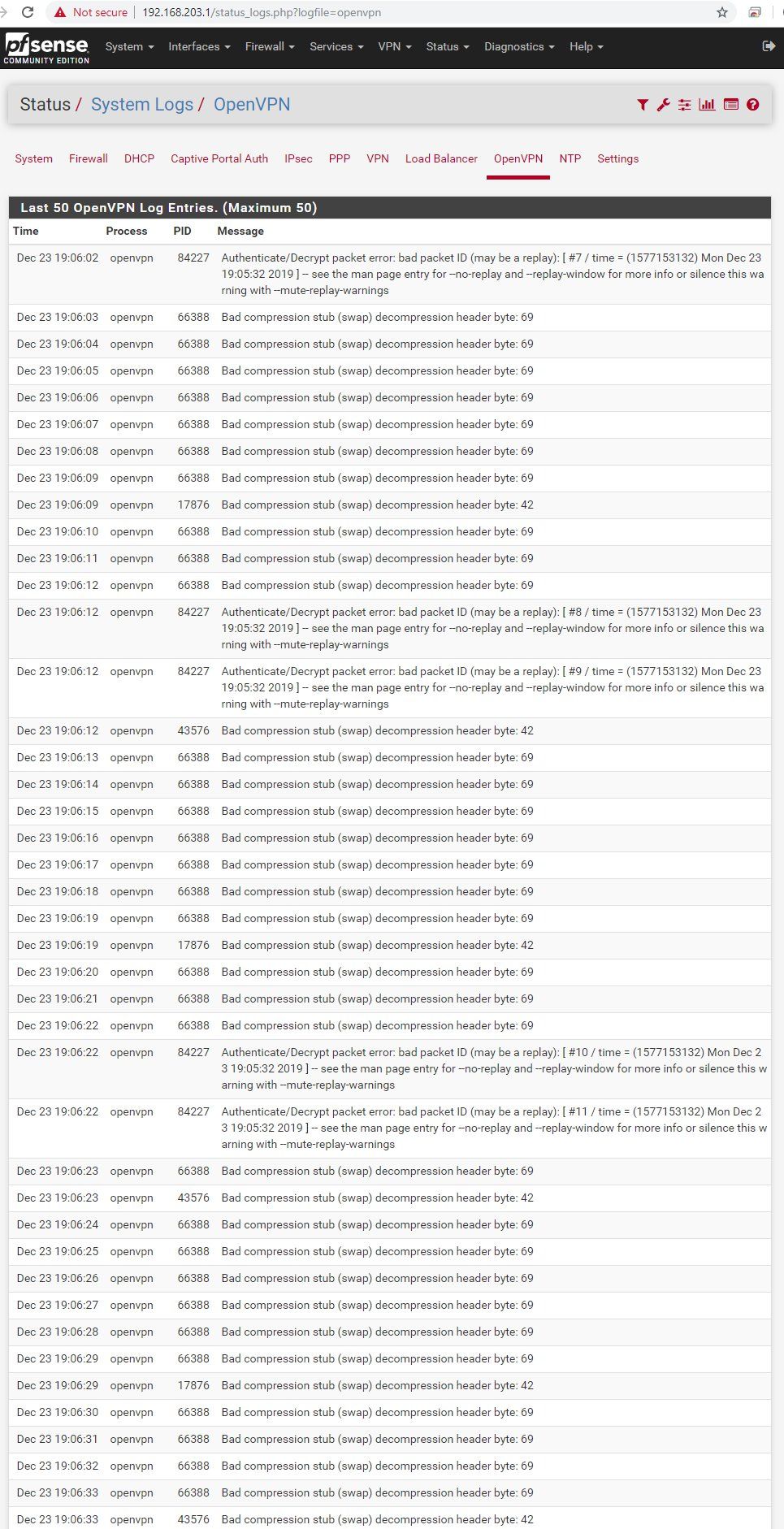

            this is log for client side:

            this is for server side:

            1 Reply Last reply Reply Quote 0
            • kiokomanK
              kiokoman LAYER 8
              last edited by kiokoman

              try to change "Compression" try to set it on, both device, instead of "No Preference" or try to set it off on both device
              idk what you have available on 2.3.4, anyway they must match

              ̿' ̿'\̵͇̿̿\з=(◕_◕)=ε/̵͇̿̿/'̿'̿ ̿
              Please do not use chat/PM to ask for help
              we must focus on silencing this @guest character. we must make up lies and alter the copyrights !
              Don't forget to Upvote with the 👍 button for any post you find to be helpful.

              A 1 Reply Last reply Reply Quote 1
              • M
                mike8888
                last edited by

                It works!! Thanks for yours eagle eye Kiokoman!!
                I missed the compression, I just missed it completely
                It's very different options in 2.4.4 compared to 2.3.x or 2.2.x
                I take it for granted that it would not change

                I tried diff compression options, and the one that works best for me is:
                at 2.4.4 use LZO Compression [Legacy style, comp-lzo yes]
                at 2.3.4 use Enable without Adaptive Compression

                thank you again

                1 Reply Last reply Reply Quote 0
                • A
                  akkiz @kiokoman
                  last edited by

                  @kiokoman hello brother i am using a open vpn client (expressvpn) in my case the vpn tunnel is up and then restarts every 30 secs i see in logs that the firewall is giving the following error , please please help
                  /rc.newwanip: pfSense package system has detected an IP change or dynamic WAN reconnection - 10.23.0.30 -> 10.107.0.10 - Restarting packages.

                  1 Reply Last reply Reply Quote 0
                  • kiokomanK
                    kiokoman LAYER 8
                    last edited by

                    open a new 3d, we need more information like what modem / connection /network you have

                    ̿' ̿'\̵͇̿̿\з=(◕_◕)=ε/̵͇̿̿/'̿'̿ ̿
                    Please do not use chat/PM to ask for help
                    we must focus on silencing this @guest character. we must make up lies and alter the copyrights !
                    Don't forget to Upvote with the 👍 button for any post you find to be helpful.

                    A 3 Replies Last reply Reply Quote 0
                    • A
                      akkiz @kiokoman
                      last edited by

                      This post is deleted!
                      1 Reply Last reply Reply Quote 0
                      • A
                        akkiz @kiokoman
                        last edited by akkiz

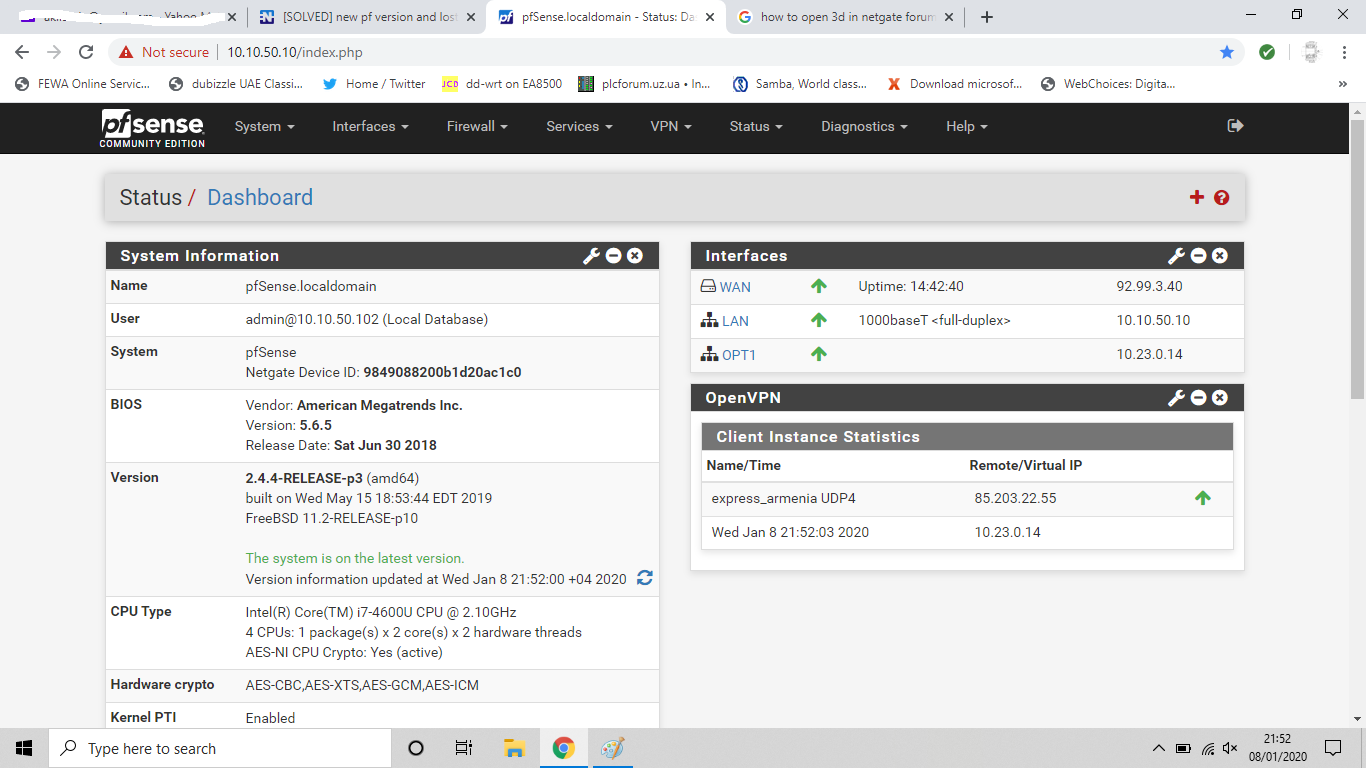

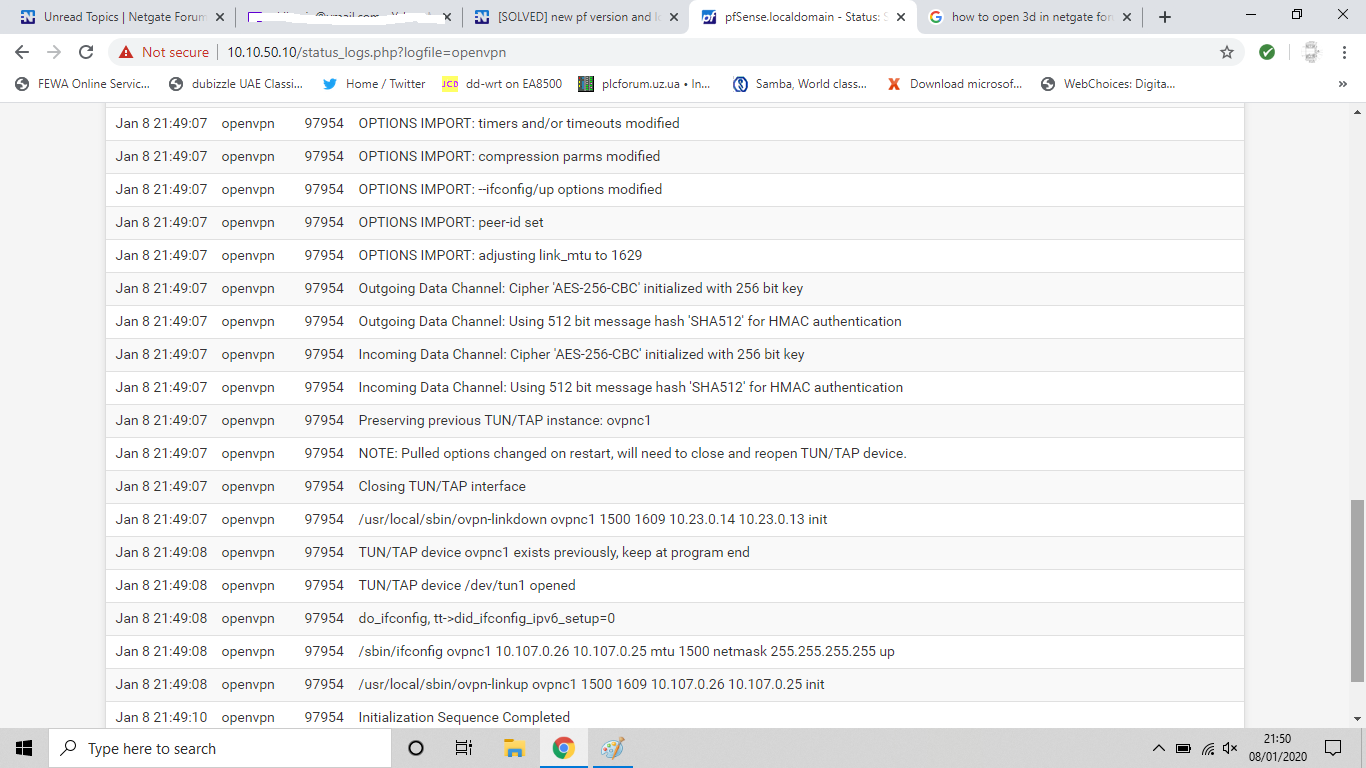

                        @kiokoman 6.png 5.png 4.png 3.png 2.png 1.png

                        1 Reply Last reply Reply Quote 0
                        • A
                          akkiz @kiokoman
                          last edited by

                          @kiokoman i have set the certificates etc as per the instructions of vpn provider the the tunnel is up for a brief moment then disconnects...

                          1 Reply Last reply Reply Quote 0
                          • JeGrJ
                            JeGr LAYER 8 Moderator
                            last edited by JeGr

                            @akkiz said in [SOLVED] new pf version and lost openvpn connection:

                            @kiokoman i have set the certificates etc as per the instructions of vpn provider the the tunnel is up for a brief moment then disconnects...

                            you do NOT have the same problem as the OP. So please don't just jump on any thread because it's OpenVPN and post your problem but open a new one, describe your problem as much as possible and we'll see if we can help you. Also with a custom option box as full as that I'd just delete the thing and start over manually instead of some shady docs from VPN services.

                            Don't forget to upvote 👍 those who kindly offered their time and brainpower to help you!

                            If you're interested, I'm available to discuss details of German-speaking paid support (for companies) if needed.

                            A 1 Reply Last reply Reply Quote 0
                            • A
                              akkiz @JeGr
                              last edited by

                              @JeGr ok noted

                              1 Reply Last reply Reply Quote 0
