    OVPN export to iOS fails

    Scheduled Pinned Locked Moved OpenVPN
    16 Posts 5 Posters 1.3k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • H
      havockk
      last edited by

      Hello, I am at wits end trying to get my openvpn client to connect to my PFSense firewall.

      I have completed the guide here: https://docs.netgate.com/pfsense/en/latest/vpn/openvpn/openvpn-remote-access-server.html

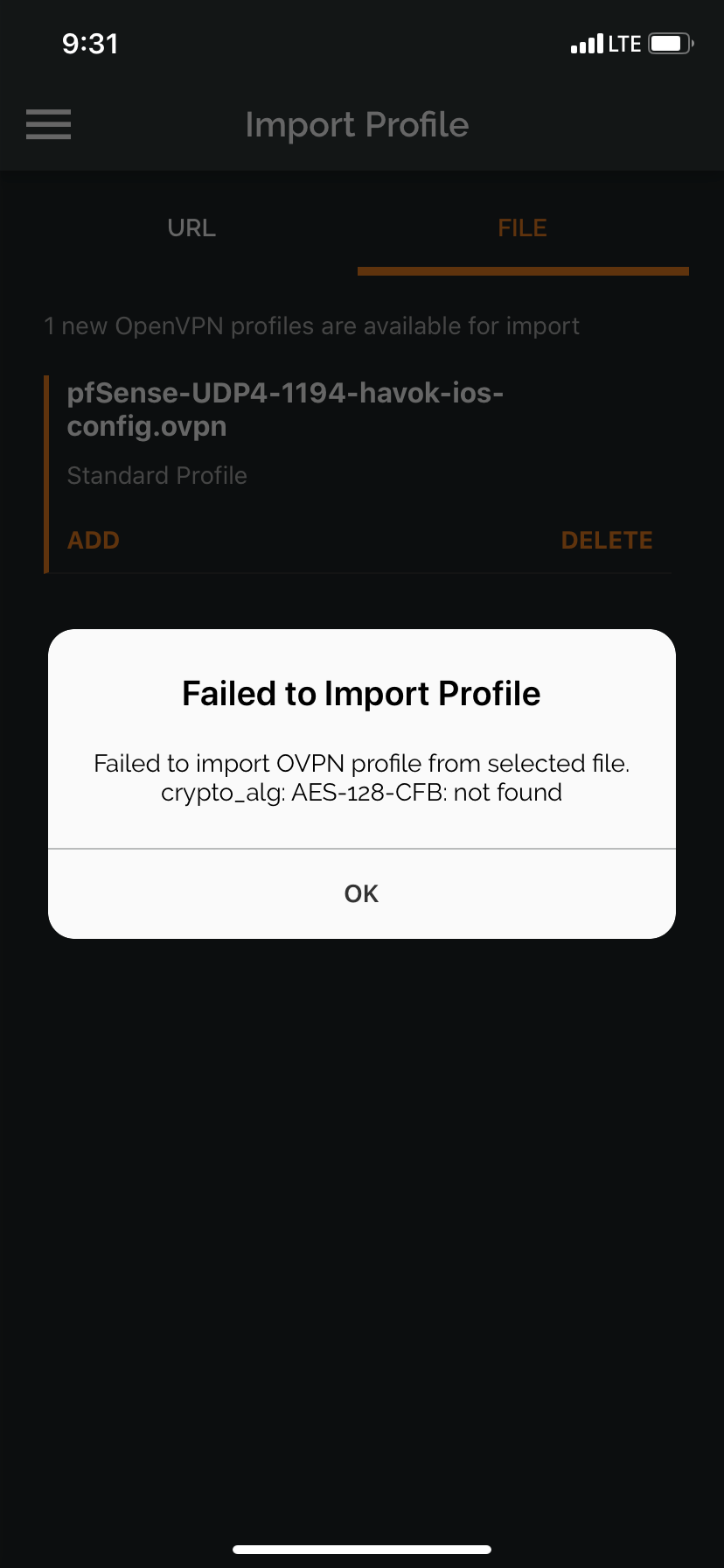

      when i attempt to import the vpn profile on my iphone, i get what is shown in the screen shot.

      I have tried several different crypto algorithms but nothing seems to work. i have verified that the openvpn service is running on PF Sense seen here:

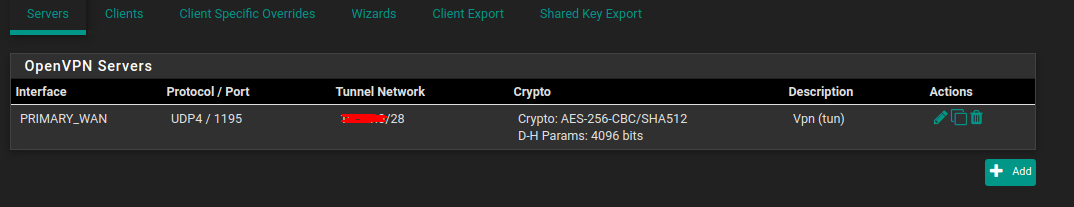

      and here is a snip of the crypto config server side.

      Can someone please help!

      1 Reply Last reply Reply Quote 0
      • viktor_gV
        viktor_g Netgate
        last edited by

        probably iOS openssl library doesn't support that cipher,
        try to use AES-128-CBC in the Encryption Algorithm field

        1 Reply Last reply Reply Quote 0
        • H
          havockk
          last edited by havockk


          ok, got that working, now it the connection is timing out.... any ideas?

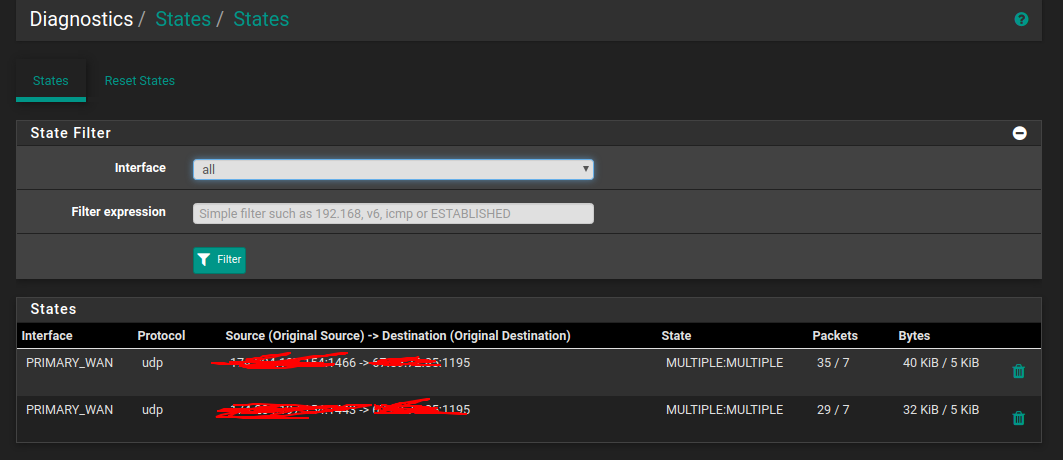

          I can see the inbound firewall rule for open vpn accepting the traffic. it just does not connect.

          viktor_gV 1 Reply Last reply Reply Quote 0
          • viktor_gV
            viktor_g Netgate @havockk
            last edited by

            @havockk This is different connection issue
            check your Firewall rules and OpenVPN settings,
            post more details - config, log, etc.

            1 Reply Last reply Reply Quote 0
            • H
              havockk
              last edited by


              packet capture from WAN interface:
              18:13:24.100702 10:e8:78:e0:21:d8 > 40:62:31:0a:71:c8, ethertype IPv4 (0x0800), length 128: (tos 0x0, ttl 53, id 28697, offset 0, flags [none], proto UDP (17), length 114)
              [client wan address].1464 > [server wan address].1195: [udp sum ok] UDP, length 86

              18:13:24.100942 40:62:31:0a:71:c8 > 00:12:1e:22:a3:f0, ethertype IPv4 (0x0800), length 140: (tos 0x0, ttl 64, id 51957, offset 0, flags [none], proto UDP (17), length 126)
              [server wan address].1195 > [client wan address].1464: [udp sum ok] UDP, length 98

              When I attempt to capture packets on the openvpn interface, no information is in the output.








              Is this enough information?

              1 Reply Last reply Reply Quote 0
              • H
                havockk
                last edited by

                Client profile export

                persist-tun
                persist-key
                cipher AES-256-CBC
                ncp-ciphers AES-128-GCM
                auth SHA512
                tls-client
                client
                remote [Server WAN address] 1195 udp4
                verify-x509-name "Home vpn" name
                auth-user-pass
                remote-cert-tls server
                compress

                1 Reply Last reply Reply Quote 0
                • H
                  havockk
                  last edited by

                  Bump

                  1 Reply Last reply Reply Quote 0
                  • RicoR
                    Rico LAYER 8 Rebel Alliance
                    last edited by

                    The difference to my working iOS config (running the latest iOS and OpenVPN app) is this:
                    dev tun
                    cipher AES-256-GCM
                    ncp-disable
                    auth SHA256
                    resolv-retry infinite
                    remote [Server WAN address] 1195 udp

                    -Rico

                    1 Reply Last reply Reply Quote 0
                    • GertjanG
                      Gertjan
                      last edited by

                      This works also just fine with all kind of "I" stuff :

                      dev tun
                      tun-ipv6
                      persist-tun
                      persist-key
                      cipher AES-128-GCM
                      ncp-ciphers AES-128-GCM
                      auth SHA256
                      tls-client
                      client
                      resolv-retry infinite
                      remote work.work-domain.tld 1194 udp4
                      .....

                      No "help me" PM's please. Use the forum, the community will thank you.
                      Edit : and where are the logs ??

                      1 Reply Last reply Reply Quote 0
                      • RicoR
                        Rico LAYER 8 Rebel Alliance
                        last edited by

                        Maybe there is a problem with auth SHA512 and iOS?

                        -Rico

                        1 Reply Last reply Reply Quote 0
                        • johnpozJ
                          johnpoz LAYER 8 Global Moderator
                          last edited by johnpoz

                          @Rico said in OVPN export to iOS fails:

                          Maybe there is a problem with auth SHA512 and iOS?

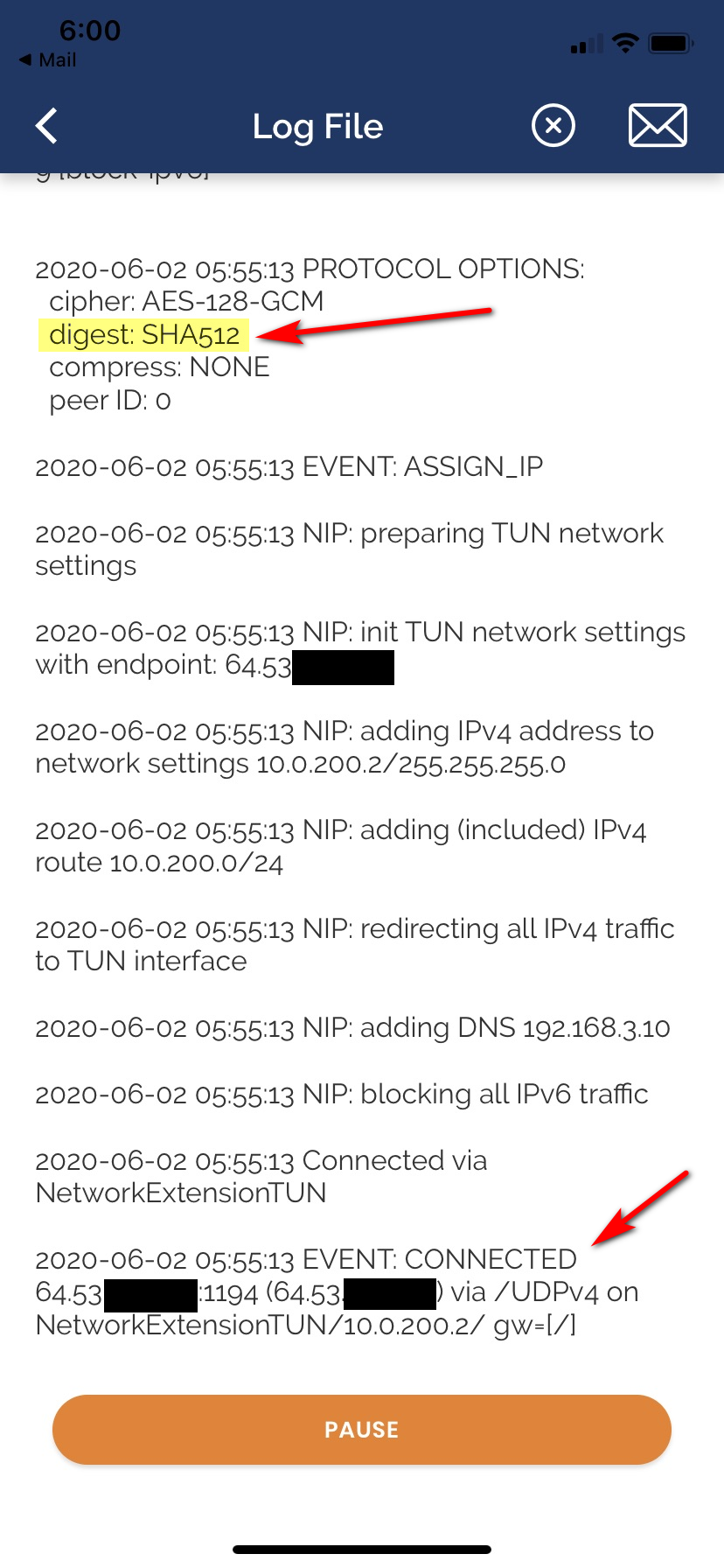

                          No since I just set it and worked just fine..

                          iphone XR running 13.5.1 with openvpn connect 3.1.2 (3096)

                          persist-tun
                          persist-key
                          cipher AES-128-CBC
                          ncp-ciphers AES-128-GCM:AES-192-GCM:AES-256-GCM:AES-128-CBC:AES-192-CBC:AES-256-CBC
                          auth SHA512
                          tls-client
                          client
                          remote 64.53.x.x 1194 udp4
                          verify-x509-name "pfsenseopenvpn" name
                          remote-cert-tls server



                          An intelligent man is sometimes forced to be drunk to spend time with his fools
                          If you get confused: Listen to the Music Play
                          Please don't Chat/PM me for help, unless mod related
                          SG-4860 24.11 | Lab VMs 2.8, 24.11

                          1 Reply Last reply Reply Quote 0
                          • RicoR
                            Rico LAYER 8 Rebel Alliance
                            last edited by

                            udp4 VS udp? :-)

                            -Rico

                            1 Reply Last reply Reply Quote 0
                            • johnpozJ
                              johnpoz LAYER 8 Global Moderator
                              last edited by johnpoz

                              Well not running it on IPv6.. So yeah its set to UDP v4 only...

                              An intelligent man is sometimes forced to be drunk to spend time with his fools
                              If you get confused: Listen to the Music Play
                              Please don't Chat/PM me for help, unless mod related
                              SG-4860 24.11 | Lab VMs 2.8, 24.11

                              1 Reply Last reply Reply Quote 0
                              • RicoR
                                Rico LAYER 8 Rebel Alliance
                                last edited by

                                Yeah NM, I see Gertjan is also using udp4 in the config like TO.

                                -Rico

                                GertjanG 1 Reply Last reply Reply Quote 0
                                • johnpozJ
                                  johnpoz LAYER 8 Global Moderator
                                  last edited by johnpoz

                                  Why would I set it for both if I only want it on v4 ;)

                                  The export wizard auto does that, since that is how the server instance is set.

                                  The wan interface doesn't have v6, so if I wanted to do vpn over ipv6 I would have to setup a different instance via the he tunnel interface. No point in that even though my phone only gets an IPv6 address, it can connect to the IPv4 address just fine.. Many a mobile carrier going that route.. T-mobile only hands out IPv6 for phones atleast here in chicagoland.

                                  The one real use of IPv6 currently - supply IPs to the BILLIONS of mobile phones ;)

                                  An intelligent man is sometimes forced to be drunk to spend time with his fools
                                  If you get confused: Listen to the Music Play
                                  Please don't Chat/PM me for help, unless mod related
                                  SG-4860 24.11 | Lab VMs 2.8, 24.11

                                  1 Reply Last reply Reply Quote 0
                                  • GertjanG
                                    Gertjan @Rico
                                    last edited by

                                    @Rico said in OVPN export to iOS fails:

                                    Yeah NM, I see Gertjan is also using udp4 in the config like TO.

                                    You bet it is !
                                    I'm actually VPN-into-work just to get my iPhone 'multistacked' ^^
                                    All this over an UDP IPV4 link of course.

                                    No "help me" PM's please. Use the forum, the community will thank you.
                                    Edit : and where are the logs ??

                                    1 Reply Last reply Reply Quote 0
