    Can't access to server (need routing?)

    Scheduled Pinned Locked Moved OpenVPN
    14 Posts 2 Posters 990 Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • ontzuevanhussenO
      ontzuevanhussen
      last edited by

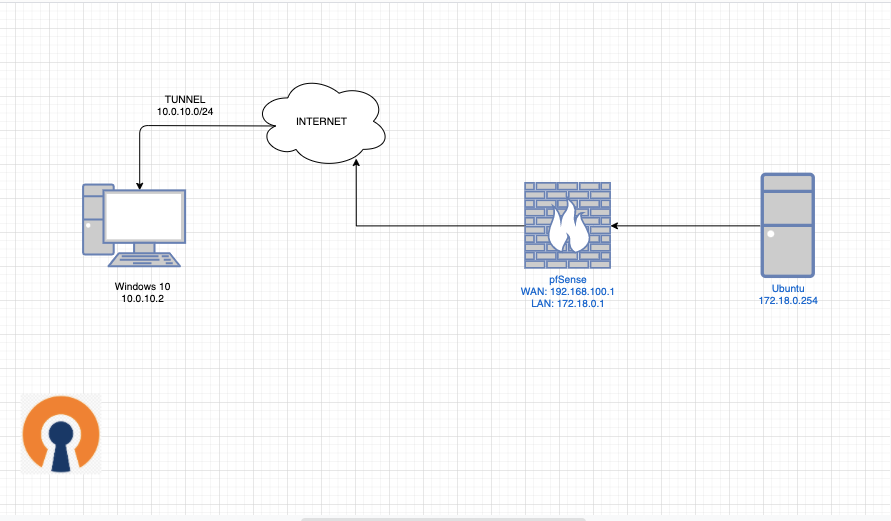

      After connect VPN, I can ping to local gateway (172.18.0.1). But, I can't ping or access my server (172.18.0.254). Why, anyone can help me???
      Screen Shot 2020-07-02 at 20.23.45.png

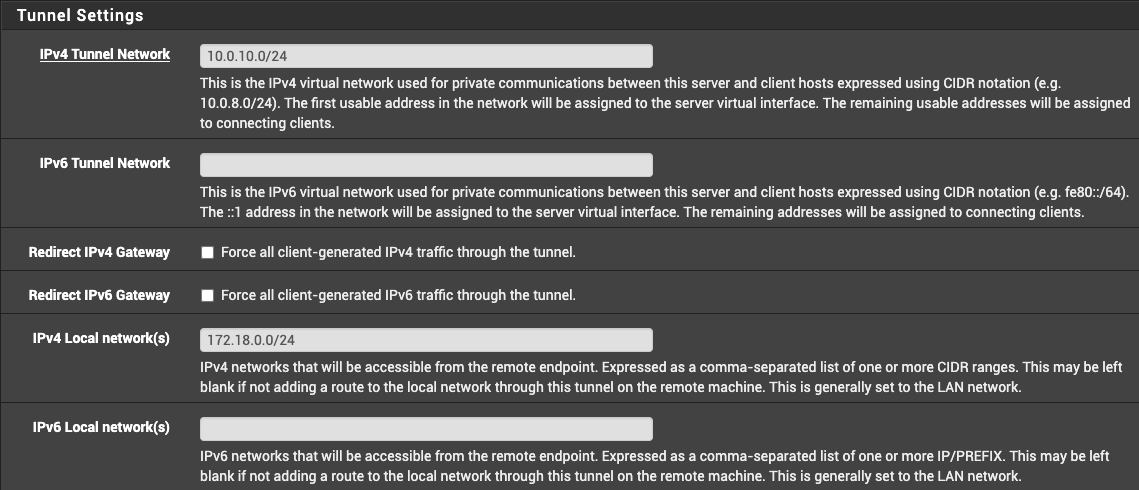

      This is my pfsense configuration:
      Screen Shot 2020-07-02 at 20.28.45.png

      Screen Shot 2020-07-02 at 20.39.46.png

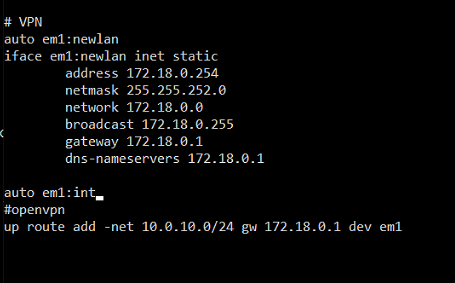

      This is my ubuntu server:
      Screen Shot 2020-07-02 at 20.38.52.png

      1 Reply Last reply Reply Quote 0
      • V
        viragomann
        last edited by

        Possibly the servers firewall blocks access from outside its subnet.

        Since you're running the OpenVPN server on the Ubuntu servers default gateway, there is no need to add a route for the VPN tunnel network.

        ontzuevanhussenO 1 Reply Last reply Reply Quote 0
        • ontzuevanhussenO
          ontzuevanhussen @viragomann
          last edited by

          @viragomann firewall WAN or LAN?

          V 2 Replies Last reply Reply Quote 0
          • V
            viragomann @ontzuevanhussen
            last edited by

            @ontzuevanhussen
            That one on the Ubuntu server.

            ontzuevanhussenO 1 Reply Last reply Reply Quote 0
            • ontzuevanhussenO
              ontzuevanhussen @viragomann
              last edited by

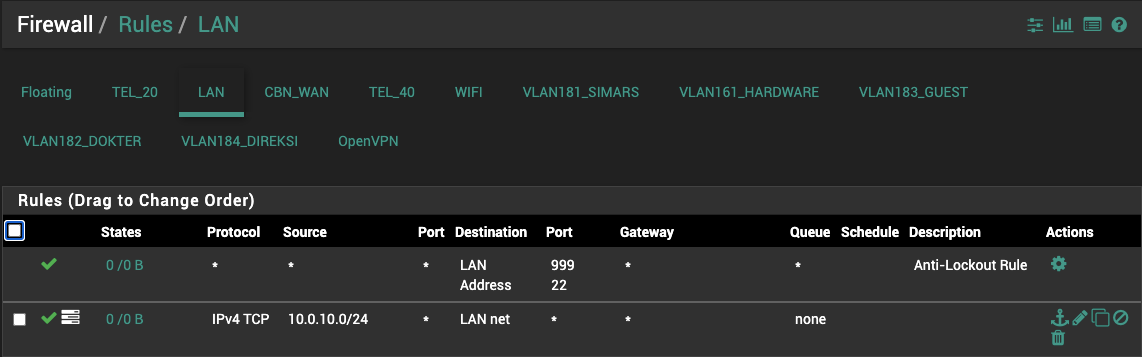

              @viragomann already add rule on my LAN network, is tha true?
              Screen Shot 2020-07-02 at 20.51.42.png

              1 Reply Last reply Reply Quote 0
              • V
                viragomann @ontzuevanhussen
                last edited by

                @ontzuevanhussen
                A simple test: on pfsense go to Diagnostic > Ping
                Try to ping the Ubuntu servers IP.
                Then change the source to something else like WAN or OpenVPN. Ping again.

                ontzuevanhussenO 1 Reply Last reply Reply Quote 0
                • ontzuevanhussenO
                  ontzuevanhussen @viragomann
                  last edited by

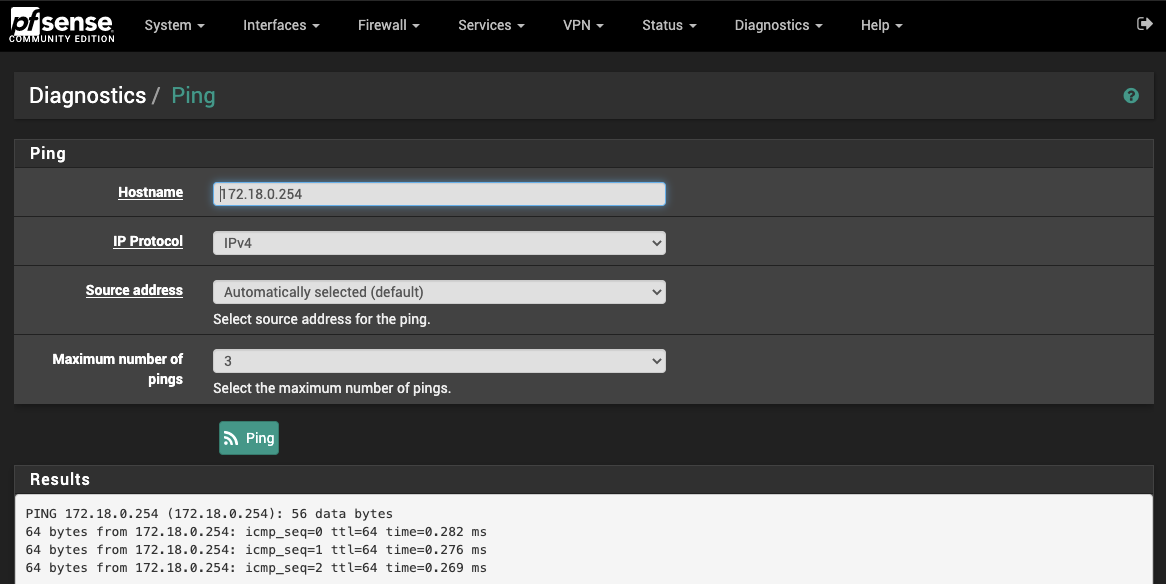

                  @viragomann Ping to my ubuntu server
                  Screen Shot 2020-07-02 at 20.53.56.png

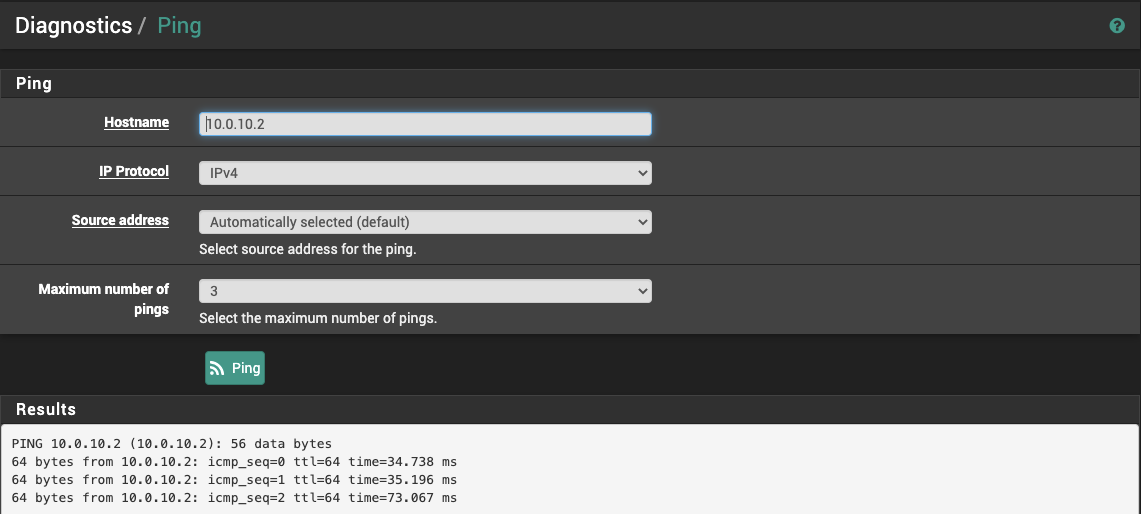

                  Ping to my client VPN:
                  Screen Shot 2020-07-02 at 20.54.52.png

                  V 1 Reply Last reply Reply Quote 0
                  • V
                    viragomann @ontzuevanhussen
                    last edited by

                    @ontzuevanhussen
                    Not ping the VPN!
                    Ping the Ubuntu and set the source to OpenVPN!

                    ontzuevanhussenO 2 Replies Last reply Reply Quote 0
                    • ontzuevanhussenO
                      ontzuevanhussen @viragomann
                      last edited by

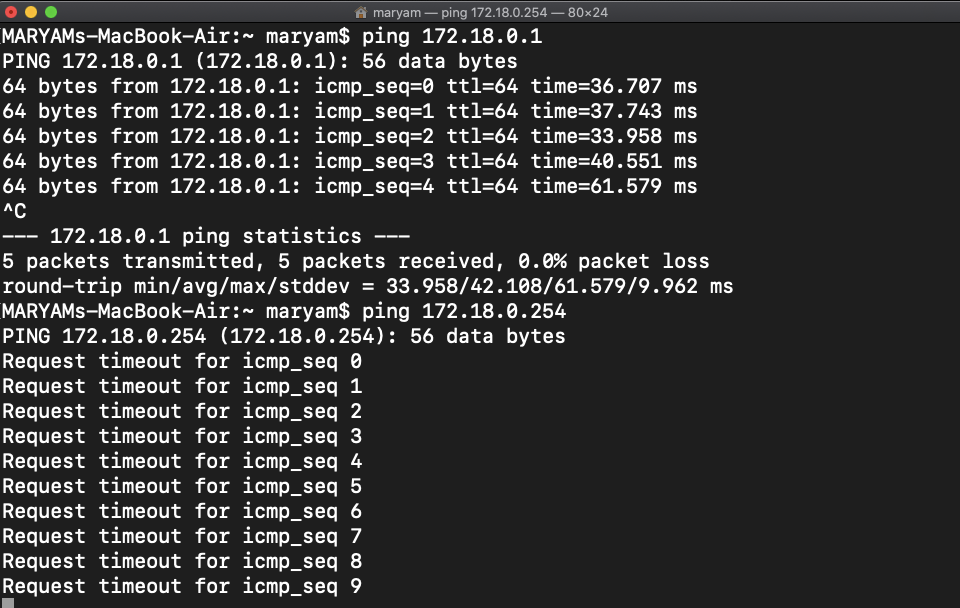

                      @viragomann Ping from my VPN client:
                      Screen Shot 2020-07-02 at 20.56.05.png

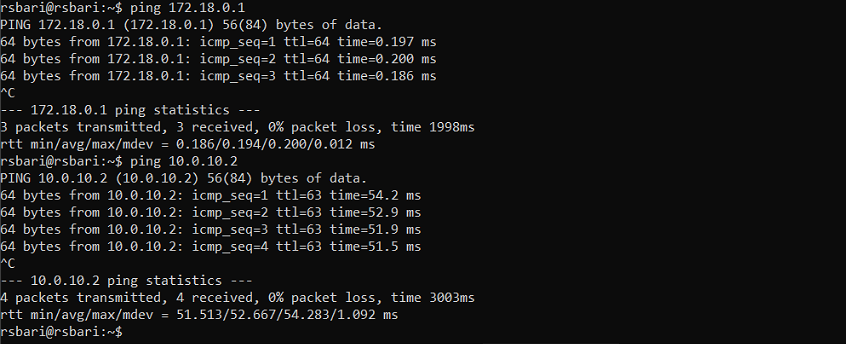

                      Ping from ubuntu server to gateway and vpn client:
                      Screen Shot 2020-07-02 at 21.00.33.png

                      V 1 Reply Last reply Reply Quote 0
                      • V
                        viragomann @ontzuevanhussen
                        last edited by

                        @ontzuevanhussen
                        Ok. I give it up.

                        ontzuevanhussenO 2 Replies Last reply Reply Quote 0
                        • ontzuevanhussenO
                          ontzuevanhussen @viragomann
                          last edited by

                          @viragomann :(

                          1 Reply Last reply Reply Quote 0
                          • ontzuevanhussenO
                            ontzuevanhussen @viragomann
                            last edited by

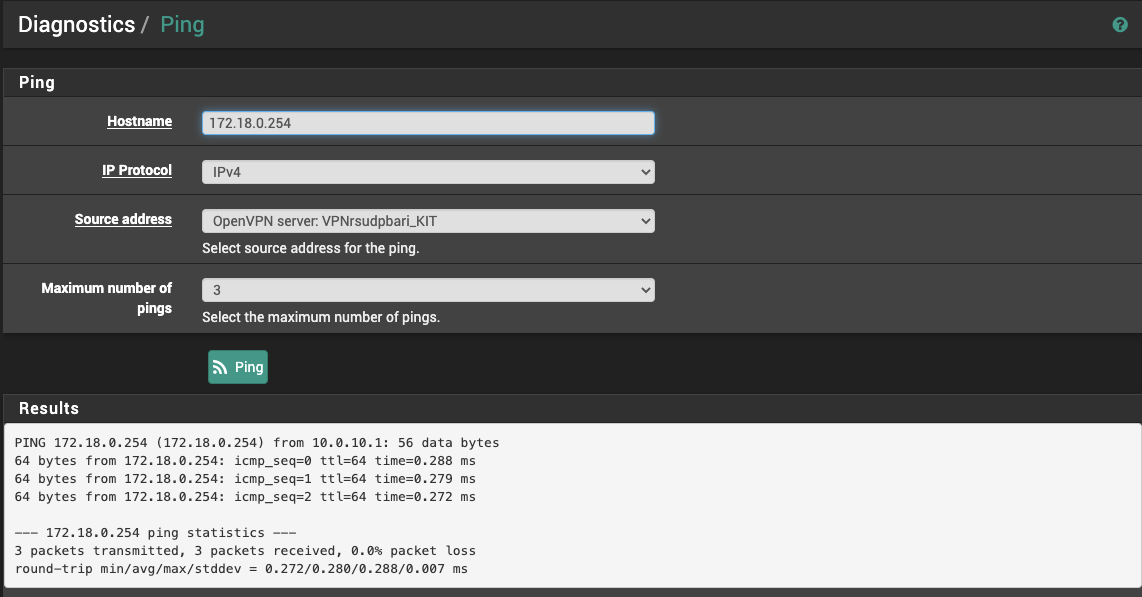

                            @viragomann Like this?
                            Screen Shot 2020-07-02 at 21.25.03.png

                            1 Reply Last reply Reply Quote 0
                            • ontzuevanhussenO
                              ontzuevanhussen
                              last edited by ontzuevanhussen

                              Request timeout for icmp_seq 266
                              76 bytes from xxx.xxx.xxx.xxx: Communication prohibited by filter
                              Vr HL TOS Len ID Flg off TTL Pro cks Src Dst
                              4 5 00 5400 7348 0 0000 40 01 464f 10.0.10.2 172.18.0.254

                              1 Reply Last reply Reply Quote 0
                              • ontzuevanhussenO
                                ontzuevanhussen @viragomann
                                last edited by ontzuevanhussen

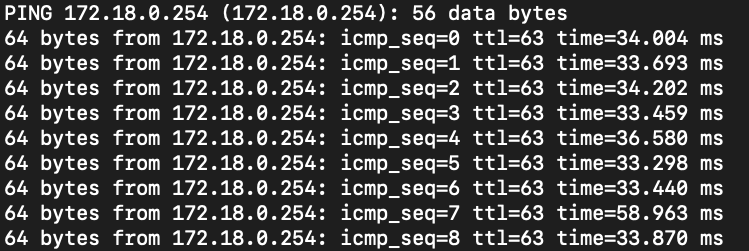

                                @viragomann Ok, done. Now everything works normally.
                                Screen Shot 2020-07-02 at 22.59.32.png

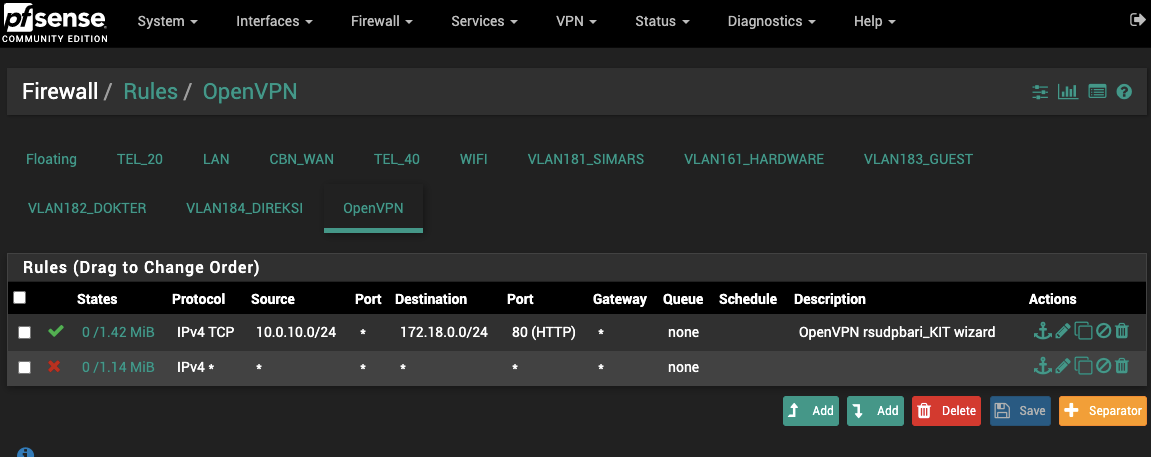

                                Because of the rules in the VPN tab:
                                Screen Shot 2020-07-02 at 23.03.19.png

                                Why did you give up? why you so easy to give up???

                                1 Reply Last reply Reply Quote 0
