    Is it possible to show traffic (byte) accouning per local source ip

    Scheduled Pinned Locked Moved General pfSense Questions
    23 Posts 3 Posters 1.8k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • bingo600B
      bingo600
      last edited by

      Is it possible to do traffic (byte) accouning per local source ip

      In the latest days i have seen several hours of 90% utilization on a 100Mbit interface.

      It's not an issue , but i would like to see what local ip(s) that are downloading that much.

      As in a per source ip - Byte count in/out , for last week or last month

      Is there any package, or trick that can make that ?

      I have NtopNG installed , and maybe i just dont know if that's the tool to use.

      Optimally i'd love to have a webpage showing that , but i'd settle for what i can get.

      TIA
      /Bingo

      If you find my answer useful - Please give the post a šŸ‘ - "thumbs up"

      pfSense+ 23.05.1 (ZFS)

      QOTOM-Q355G4 Quad Lan.
      CPUĀ  : Core i5 5250U, Ram : 8GB Kingston DDR3LV 1600
      LANĀ  : 4 x Intel 211, DiskĀ  : 240G SAMSUNG MZ7L3240HCHQ SSD

      1 Reply Last reply Reply Quote 0
      • stephenw10S
        stephenw10 Netgate Administrator
        last edited by

        Bandwidthd can show you that.
        https://docs.netgate.com/pfsense/en/latest/monitoring/monitoring-bandwidth-usage.html#bandwidthd

        Steve

        1 Reply Last reply Reply Quote 0
        • johnpozJ
          johnpoz LAYER 8 Global Moderator
          last edited by

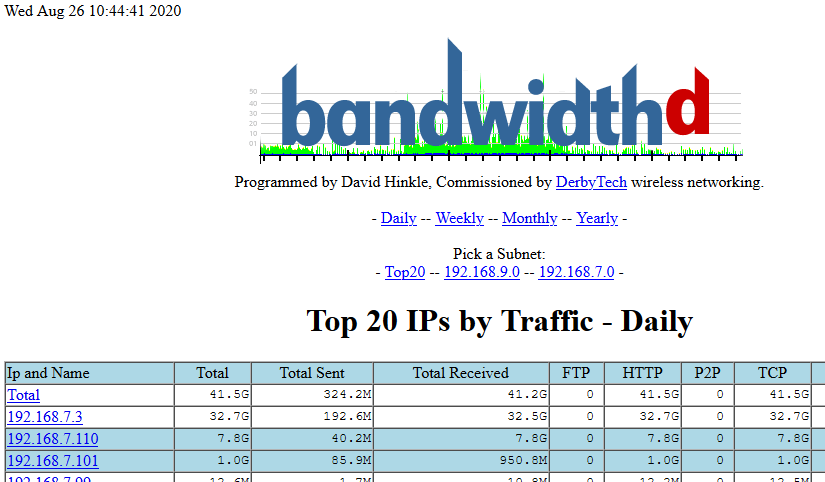

          Yeah bandwidthd will do exactly what your asking


          That top guy is my TV, so streaming stuff be it netflix, amazon prime or most of that is prob off my local plex server.

          An intelligent man is sometimes forced to be drunk to spend time with his fools
          If you get confused: Listen to the Music Play
          Please don't Chat/PM me for help, unless mod related
          SG-4860 24.11 | Lab VMs 2.8, 24.11

          1 Reply Last reply Reply Quote 0
          • bingo600B
            bingo600
            last edited by

            Thank you Gents

            Will have a look at bandwidthd

            /Bingo

            If you find my answer useful - Please give the post a šŸ‘ - "thumbs up"

            pfSense+ 23.05.1 (ZFS)

            QOTOM-Q355G4 Quad Lan.
            CPUĀ  : Core i5 5250U, Ram : 8GB Kingston DDR3LV 1600
            LANĀ  : 4 x Intel 211, DiskĀ  : 240G SAMSUNG MZ7L3240HCHQ SSD

            1 Reply Last reply Reply Quote 0
            • bingo600B
              bingo600
              last edited by

              Can bwd only listen on one interface ?

              Would one Select WAN as interface.
              And tick several Subnet(s) for Statistics Collection

              Is that a security risk (attack vector) , using wan ?

              Would that show "Local ip to Inet" accounting ?

              /Bingo

              If you find my answer useful - Please give the post a šŸ‘ - "thumbs up"

              pfSense+ 23.05.1 (ZFS)

              QOTOM-Q355G4 Quad Lan.
              CPUĀ  : Core i5 5250U, Ram : 8GB Kingston DDR3LV 1600
              LANĀ  : 4 x Intel 211, DiskĀ  : 240G SAMSUNG MZ7L3240HCHQ SSD

              1 Reply Last reply Reply Quote 0
              • stephenw10S
                stephenw10 Netgate Administrator
                last edited by

                No it can only look at one and it needs to be internal to see the source IPs.

                You need to use ntopng to log multiple interfaces. It should be able to show you that.

                https://docs.netgate.com/pfsense/en/latest/monitoring/monitoring-bandwidth-usage.html#monitoring-on-multiple-interfaces

                Steve

                1 Reply Last reply Reply Quote 0
                • johnpozJ
                  johnpoz LAYER 8 Global Moderator
                  last edited by johnpoz

                  If your looking to just troubleshoot who is using what NOW for example you could use the darkstat package as well..

                  You could leave it running, but it doesn't reset per day, etc. But very easy way to find your top talkers for sure. Or what specific IPs have moved since you fired up darkstat

                  An intelligent man is sometimes forced to be drunk to spend time with his fools
                  If you get confused: Listen to the Music Play
                  Please don't Chat/PM me for help, unless mod related
                  SG-4860 24.11 | Lab VMs 2.8, 24.11

                  1 Reply Last reply Reply Quote 0
                  • bingo600B
                    bingo600
                    last edited by

                    Thanx Steve

                    I already have NtopNG running , but the ip accounting is not as easy as with bwd.

                    I have started bwd on "Lan" but sees nothing , does promiscuious have to be enabled ?

                    I already have that enabled via NtopNG (i think).

                    I can live with just one interface on bwd, if i can get it to log/account data.

                    If you find my answer useful - Please give the post a šŸ‘ - "thumbs up"

                    pfSense+ 23.05.1 (ZFS)

                    QOTOM-Q355G4 Quad Lan.
                    CPUĀ  : Core i5 5250U, Ram : 8GB Kingston DDR3LV 1600
                    LANĀ  : 4 x Intel 211, DiskĀ  : 240G SAMSUNG MZ7L3240HCHQ SSD

                    1 Reply Last reply Reply Quote 0
                    • bingo600B
                      bingo600
                      last edited by

                      @johnpoz
                      I'll have a look at darkstat too.

                      And you are correct it is "Top talkers" i'd like to see.
                      And something like Cisco: ip accounting

                      If you find my answer useful - Please give the post a šŸ‘ - "thumbs up"

                      pfSense+ 23.05.1 (ZFS)

                      QOTOM-Q355G4 Quad Lan.
                      CPUĀ  : Core i5 5250U, Ram : 8GB Kingston DDR3LV 1600
                      LANĀ  : 4 x Intel 211, DiskĀ  : 240G SAMSUNG MZ7L3240HCHQ SSD

                      1 Reply Last reply Reply Quote 0
                      • johnpozJ
                        johnpoz LAYER 8 Global Moderator
                        last edited by

                        Another one to track down top talkers is the iftop package, command line..

                        An intelligent man is sometimes forced to be drunk to spend time with his fools
                        If you get confused: Listen to the Music Play
                        Please don't Chat/PM me for help, unless mod related
                        SG-4860 24.11 | Lab VMs 2.8, 24.11

                        1 Reply Last reply Reply Quote 0
                        • bingo600B
                          bingo600
                          last edited by

                          I get no statistics on bwd.

                          How long time before stats are generated ?
                          Do i need promiscious ?

                          /Bingo

                          If you find my answer useful - Please give the post a šŸ‘ - "thumbs up"

                          pfSense+ 23.05.1 (ZFS)

                          QOTOM-Q355G4 Quad Lan.
                          CPUĀ  : Core i5 5250U, Ram : 8GB Kingston DDR3LV 1600
                          LANĀ  : 4 x Intel 211, DiskĀ  : 240G SAMSUNG MZ7L3240HCHQ SSD

                          1 Reply Last reply Reply Quote 0
                          • johnpozJ
                            johnpoz LAYER 8 Global Moderator
                            last edited by

                            No you don't need promiscuous, but it will take a few minutes.. If your wanting to look now!! Your better off with darkstat or iftop..

                            An intelligent man is sometimes forced to be drunk to spend time with his fools
                            If you get confused: Listen to the Music Play
                            Please don't Chat/PM me for help, unless mod related
                            SG-4860 24.11 | Lab VMs 2.8, 24.11

                            1 Reply Last reply Reply Quote 0
                            • bingo600B
                              bingo600
                              last edited by

                              Dooh ....

                              I needed to remove the frame

                              If you find my answer useful - Please give the post a šŸ‘ - "thumbs up"

                              pfSense+ 23.05.1 (ZFS)

                              QOTOM-Q355G4 Quad Lan.
                              CPUĀ  : Core i5 5250U, Ram : 8GB Kingston DDR3LV 1600
                              LANĀ  : 4 x Intel 211, DiskĀ  : 240G SAMSUNG MZ7L3240HCHQ SSD

                              1 Reply Last reply Reply Quote 0
                              • johnpozJ
                                johnpoz LAYER 8 Global Moderator
                                last edited by johnpoz

                                I think it only updates like every 5 minutes or so though anyway.

                                You should see a timestamp in the top left on when it was last updated.

                                If you want pretty much realtime reporting then darkstat or iftop would be better tools. The other thing better with iftop is will show you the IP pair, ie where your client is sending or pulling data from.. Unlike bandwidthd that just reports on single IP.

                                Darkstat will give you the ports that were used, etc. But doesn't easy list the actual IP pairs that were doing the talking..

                                An intelligent man is sometimes forced to be drunk to spend time with his fools
                                If you get confused: Listen to the Music Play
                                Please don't Chat/PM me for help, unless mod related
                                SG-4860 24.11 | Lab VMs 2.8, 24.11

                                1 Reply Last reply Reply Quote 0
                                • bingo600B
                                  bingo600
                                  last edited by

                                  Just tried darkstat , nice program.
                                  But it seems to log all ip addy's , incl Inet.

                                  Do you guys limit it in #of hosts , or just enable it when needed ?

                                  /Bingo

                                  If you find my answer useful - Please give the post a šŸ‘ - "thumbs up"

                                  pfSense+ 23.05.1 (ZFS)

                                  QOTOM-Q355G4 Quad Lan.
                                  CPUĀ  : Core i5 5250U, Ram : 8GB Kingston DDR3LV 1600
                                  LANĀ  : 4 x Intel 211, DiskĀ  : 240G SAMSUNG MZ7L3240HCHQ SSD

                                  1 Reply Last reply Reply Quote 0
                                  • johnpozJ
                                    johnpoz LAYER 8 Global Moderator
                                    last edited by

                                    I only turn it on if looking for something.

                                    An intelligent man is sometimes forced to be drunk to spend time with his fools
                                    If you get confused: Listen to the Music Play
                                    Please don't Chat/PM me for help, unless mod related
                                    SG-4860 24.11 | Lab VMs 2.8, 24.11

                                    bingo600B 1 Reply Last reply Reply Quote 0
                                    • bingo600B
                                      bingo600 @johnpoz
                                      last edited by bingo600

                                      @johnpoz said in Is it possible to show traffic (byte) accouning per local source ip:

                                      I only turn it on if looking for something.

                                      Makes sense.

                                      DS has already revealed one of my ISP's cache servers (Local TV streaming channel) , i can see ~equal ATV4 in/out bytes to that ip šŸ‘

                                      Thanx for that tip

                                      If you find my answer useful - Please give the post a šŸ‘ - "thumbs up"

                                      pfSense+ 23.05.1 (ZFS)

                                      QOTOM-Q355G4 Quad Lan.
                                      CPUĀ  : Core i5 5250U, Ram : 8GB Kingston DDR3LV 1600
                                      LANĀ  : 4 x Intel 211, DiskĀ  : 240G SAMSUNG MZ7L3240HCHQ SSD

                                      1 Reply Last reply Reply Quote 0
                                      • bingo600B
                                        bingo600
                                        last edited by bingo600

                                        iftop seems nice too
                                        Realtime top talkers src/dst

                                        Thank you for guiding me here Steve/JP

                                        I'll let bwd run , and keep the other two in the "toolbox"

                                        /Bingo

                                        If you find my answer useful - Please give the post a šŸ‘ - "thumbs up"

                                        pfSense+ 23.05.1 (ZFS)

                                        QOTOM-Q355G4 Quad Lan.
                                        CPUĀ  : Core i5 5250U, Ram : 8GB Kingston DDR3LV 1600
                                        LANĀ  : 4 x Intel 211, DiskĀ  : 240G SAMSUNG MZ7L3240HCHQ SSD

                                        1 Reply Last reply Reply Quote 0
                                        • bingo600B
                                          bingo600
                                          last edited by

                                          Hmm .... Seems like bwd's byte count is reset ?

                                          My ATV4 was on 500MB , now it's on 76MB

                                          Would iftop or DS interfere with bwd , causing a bytecount reset ?

                                          If you find my answer useful - Please give the post a šŸ‘ - "thumbs up"

                                          pfSense+ 23.05.1 (ZFS)

                                          QOTOM-Q355G4 Quad Lan.
                                          CPUĀ  : Core i5 5250U, Ram : 8GB Kingston DDR3LV 1600
                                          LANĀ  : 4 x Intel 211, DiskĀ  : 240G SAMSUNG MZ7L3240HCHQ SSD

                                          1 Reply Last reply Reply Quote 0
                                          • johnpozJ
                                            johnpoz LAYER 8 Global Moderator
                                            last edited by

                                            I wouldn't think so.. What timezone are you in - is it just past midnight there, maybe you cycled days on bwd.

                                            An intelligent man is sometimes forced to be drunk to spend time with his fools
                                            If you get confused: Listen to the Music Play
                                            Please don't Chat/PM me for help, unless mod related
                                            SG-4860 24.11 | Lab VMs 2.8, 24.11

                                            bingo600B 1 Reply Last reply Reply Quote 0
