    Need to use OPT 1 as another LAN interface

    Scheduled Pinned Locked Moved General pfSense Questions
    21 Posts 5 Posters 2.2k Views 5 Watching
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • K Offline
      keeshpat
      last edited by

      Hi There, I am having issue.
      OPT 1 can not communicate or not getting any logs from that interface.

      Setuo :
      LAN - 172.17.8.1 works fine
      OPT1 - 172.17.9.1 does not work

      Outbound NAT setup to Automatic
      Allowed firewall rules.
      still no luck.
      Please help me.

      Thanks,
      K

      1 Reply Last reply Reply Quote 0
      • johnpozJ Online
        johnpoz LAYER 8 Global Moderator
        last edited by johnpoz

        Well can your devices on this 172.17.9 network ping pfsense IP 172.17.9.1? Did you enable dhcp on it? What rules did you create on it? etc..

        An intelligent man is sometimes forced to be drunk to spend time with his fools
        If you get confused: Listen to the Music Play
        Please don't Chat/PM me for help, unless mod related
        SG-4860 24.11 | Lab VMs 2.8, 24.11

        1 Reply Last reply Reply Quote 0
        • M Offline
          marvosa
          last edited by marvosa

          Until we get more info about your network, all we can do is take potshots at the usual suspects...
          i.e... there are too many unknown variables to offer any targeted troubleshooting. What does your network look like? Post a simple network map. Is PFsense physical or virtual? Post the rules on your OPT1 interface. Are you using the resolver with ACL's? If so, have you allowed 172.17.9.0/24 in the resolver?

          1 Reply Last reply Reply Quote 0
          • K Offline
            keeshpat
            last edited by

            @johnpoz @marvosa
            please see details below :
            its a virtual environment

            • basically i am trying to hide some computes behind pfsense
            • Lan works fine no issue
            • OPT1 devices can not get connect to any where
            • Can not ping pfsense gateway
            • There is no DHCP range - its all static IPs
            • Can not see any logs from OPT1 interface
            • i have setup any any rule just to test- still no luck.
              Please findconfig-MARSpentestPfsense.chip.ca-20201119122649.xml attached config back up file.
            1 Reply Last reply Reply Quote 0
            • johnpozJ Online
              johnpoz LAYER 8 Global Moderator
              last edited by johnpoz

              Dude if the device can not ping pfsense IP, and you set it static - then you set it wrong or there is not connectivity between them.

              When you try and ping pfsense IP, look in the client do you see a mac for pfsense interface in the clients arp table?

              I am not going dig through a config file for this info - can you not post a simple screenshot?

              An intelligent man is sometimes forced to be drunk to spend time with his fools
              If you get confused: Listen to the Music Play
              Please don't Chat/PM me for help, unless mod related
              SG-4860 24.11 | Lab VMs 2.8, 24.11

              K 1 Reply Last reply Reply Quote 0
              • GertjanG Offline
                Gertjan
                last edited by

                The OPT1 interface : put a pass rule on it on the first position. Exactly like the one you found on LAN when you installed pfSense.
                You could event test with a default client device (one with a DHCP client activated) and you'll see it works right away : drill down from there.

                No "help me" PM's please. Use the forum, the community will thank you.
                Edit : and where are the logs ??

                K 1 Reply Last reply Reply Quote 0
                • K Offline
                  keeshpat @Gertjan
                  last edited by

                  @Gertjan did not work,
                  Not getting DHCP IP.
                  Setup any any allow rule but still no luck.
                  Any other thoughts ?

                  GertjanG 1 Reply Last reply Reply Quote 0
                  • johnpozJ Online
                    johnpoz LAYER 8 Global Moderator
                    last edited by

                    @keeshpat said in Need to use OPT 1 as another LAN interface:

                    Any other thoughts ?

                    As already stated you can not talk to another device on your network if you can not see its mac address.. Look in the clients arp table - do you see the mac address for pfsense IP?

                    If not then you have a connectivity issue, or you have your network address space setup wrong..

                    example..

                    $ arp -a

                    Interface: 192.168.9.100 --- 0xf
                      Internet Address      Physical Address      Type
                      192.168.9.8           00-1f-29-54-17-14     dynamic
                      192.168.9.9           00-1f-29-54-17-15     dynamic
                      192.168.9.10          00-11-32-7b-29-7d     dynamic
                      192.168.9.11          00-11-32-7b-29-7e     dynamic
                      192.168.9.75          18-db-f2-3e-44-ce     dynamic
                      192.168.9.99          70-6e-6d-f3-11-93     dynamic
                      192.168.9.253         00-08-a2-0c-e6-24     dynamic
                      192.168.9.255         ff-ff-ff-ff-ff-ff     static
                      224.0.0.22            01-00-5e-00-00-16     static
                      224.0.0.251           01-00-5e-00-00-fb     static
                      239.255.255.250       01-00-5e-7f-ff-fa     static

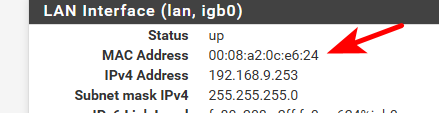

                    See 192.168.9.253 that is mac address of pfsense interface on this network..


                    You can see all your interfaces and their mac status, interfaces.. See how that matches up 00-08-a2-0c-e6-24

                    An intelligent man is sometimes forced to be drunk to spend time with his fools
                    If you get confused: Listen to the Music Play
                    Please don't Chat/PM me for help, unless mod related
                    SG-4860 24.11 | Lab VMs 2.8, 24.11

                    1 Reply Last reply Reply Quote 0
                    • K Offline
                      keeshpat @johnpoz
                      last edited by

                      @johnpoz
                      There is no connectivity,
                      Confirming the IP is in right subnet.
                      But I dont see pfsense MAc address when i ping.
                      Any other thoughts.
                      Create new NIC interface on VMware just to measure the NIC is not broken

                      1 Reply Last reply Reply Quote 0
                      • johnpozJ Online
                        johnpoz LAYER 8 Global Moderator
                        last edited by

                        If you can not see mac - then fix vmware.. How do you have this setup - are they both VMs do you have it going to physical?

                        Nobody can help you figure out what you did wrong without info..

                        How is opt1 connected different than lan?

                        An intelligent man is sometimes forced to be drunk to spend time with his fools
                        If you get confused: Listen to the Music Play
                        Please don't Chat/PM me for help, unless mod related
                        SG-4860 24.11 | Lab VMs 2.8, 24.11

                        K 1 Reply Last reply Reply Quote 0
                        • K Offline
                          keeshpat @johnpoz
                          last edited by

                          @johnpoz Confirming LAn and OPt1 has been configures same on vmware as well as on pfsense.
                          Both pfsense and virtual machine are connected to virtual switch.
                          Let me recreate the virtual switch.-- may be that help ?

                          basically its all virtual connection

                          1 Reply Last reply Reply Quote 0
                          • johnpozJ Online
                            johnpoz LAYER 8 Global Moderator
                            last edited by

                            So on this virtual switch did you create a different port group? This is different network you wouldn't put it in the same port group.. How is that connected to physical.. Are you trying to ping from another VM on the same vswitch and port group..

                            If this connected to physical. Did you create a different vlan tag on this port group, on your physical network, etc. etc.. etc..

                            An intelligent man is sometimes forced to be drunk to spend time with his fools
                            If you get confused: Listen to the Music Play
                            Please don't Chat/PM me for help, unless mod related
                            SG-4860 24.11 | Lab VMs 2.8, 24.11

                            K 1 Reply Last reply Reply Quote 0
                            • GertjanG Offline
                              Gertjan @keeshpat
                              last edited by

                              @keeshpat said in Need to use OPT 1 as another LAN interface:

                              @Gertjan did not work,
                              Not getting DHCP IP.

                              DHCP server on OPT1 is set up ok ?
                              (same settings as the default LAN DHCP server, exception : the network)

                              This is also shown very often :

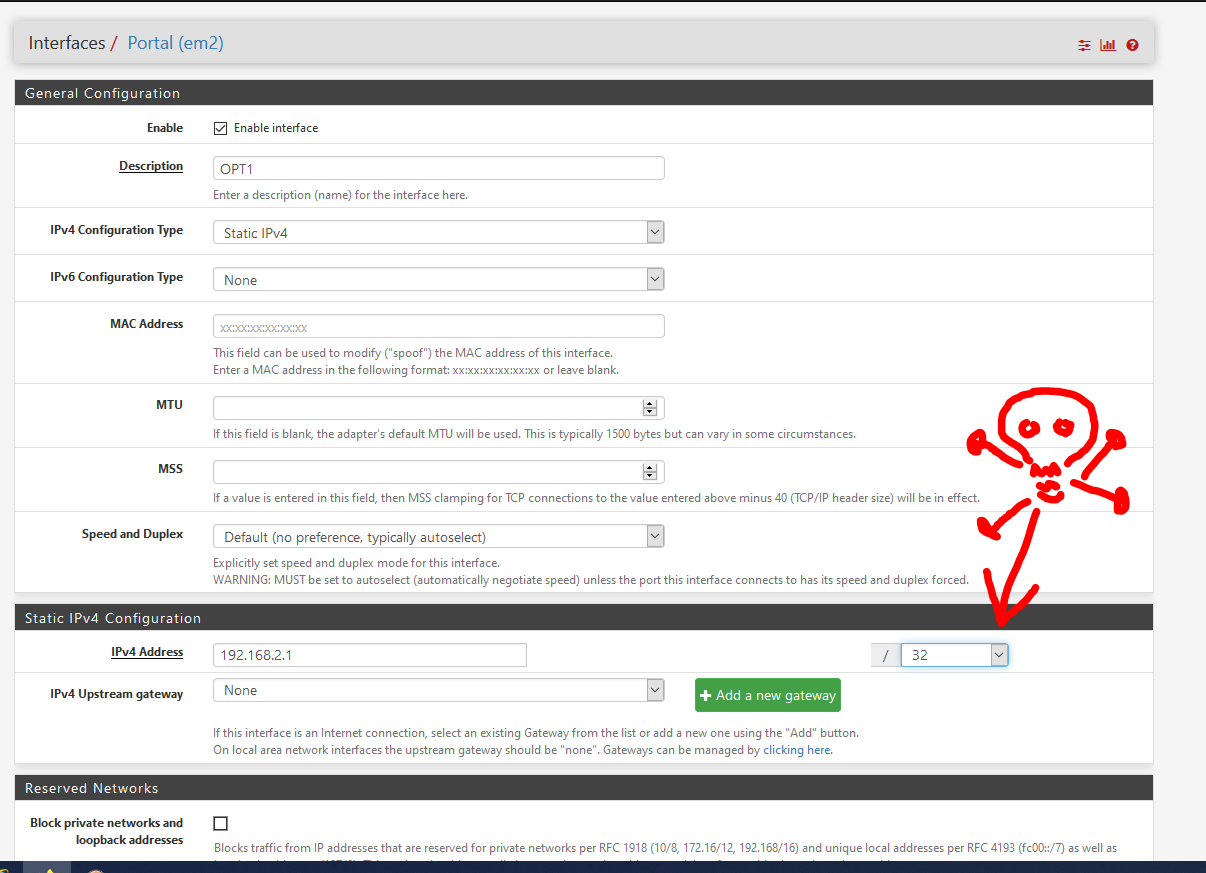

                              this special case - no joke - doesn't even allow you to set up a DHCP server on the OPT1 interface (spoiler : because the max pool size would be zero ...; )

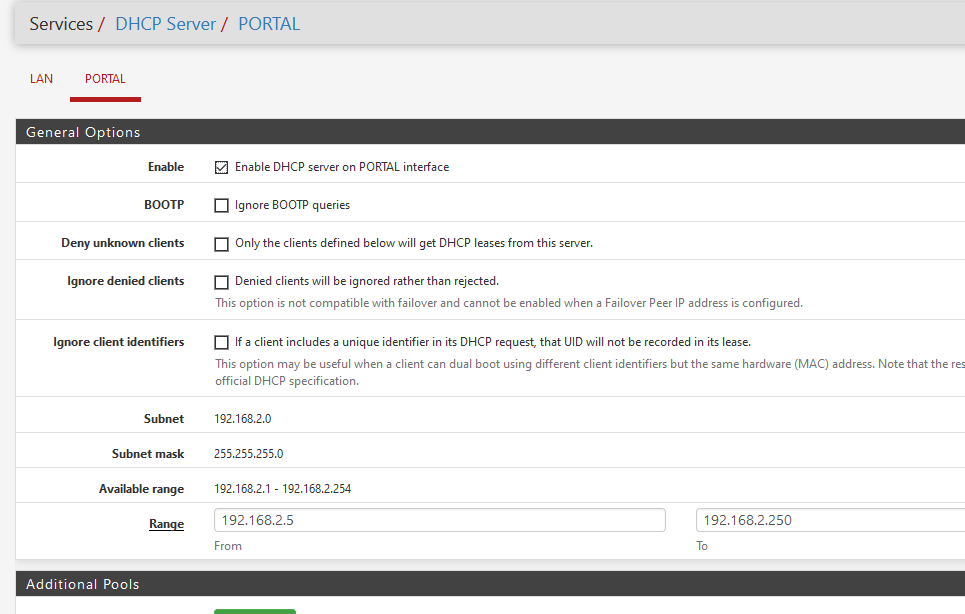

                              if all is well, you should have this :

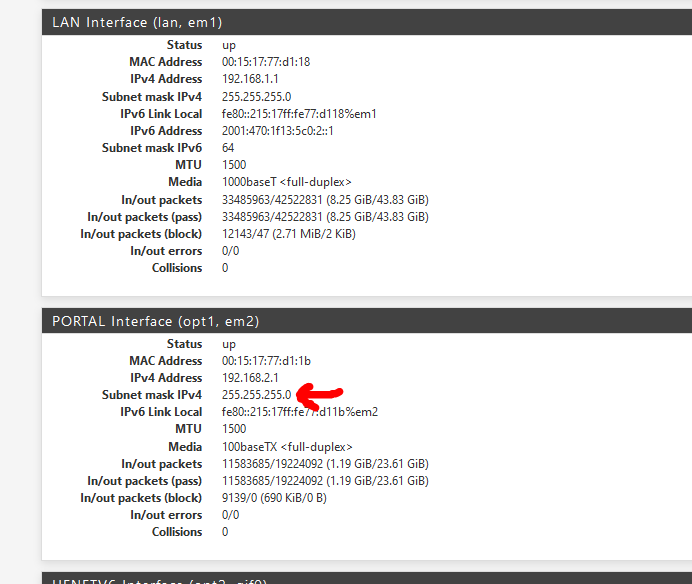

                              and this :

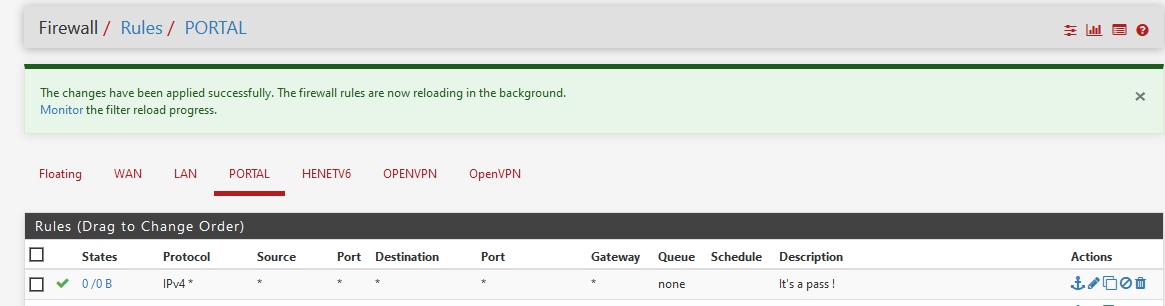

                              The firewall rule for OPT1 (mine is called PORTAL ) :


                              With all these settings, which are pure clones of the default LAN interface settings, all will be ok.

                              If it doesn't work, change hardware, cable, switches.
                              Or redo whatever you use as a VM.

                              No "help me" PM's please. Use the forum, the community will thank you.
                              Edit : and where are the logs ??

                              K 1 Reply Last reply Reply Quote 0
                              • K Offline
                                keeshpat @johnpoz
                                last edited by

                                @johnpoz
                                Physical switch :has different vlan 8 and vlan 9
                                Virtual switch has 2 port group : one of them is Web (vlan 8 - connected to Lan interface on pfsense ) , 2nd is DB (vlan 9 - connected to OPT1 on pfsense)
                                I have vm connected to LAN interface works fine. no issues there.
                                Vm connected to OPt1 can not even reach to pfsense.

                                Just delete the port group and recreate it -- still same issue .

                                1 Reply Last reply Reply Quote 0
                                • GertjanG Offline
                                  Gertjan
                                  last edited by

                                  It's getting bigger all the time :
                                  .....
                                  .....
                                  VM !
                                  ......
                                  VLAN's !
                                  ......

                                  Take your time, a pencil and paper, and make some pictures / screen copies / whatever. Include everything. And most important : all the things we don't know ;)

                                  No "help me" PM's please. Use the forum, the community will thank you.
                                  Edit : and where are the logs ??

                                  1 Reply Last reply Reply Quote 0
                                  • K Offline
                                    keeshpat @Gertjan
                                    last edited by

                                    @Gertjan
                                    Thank you, confirming it is set exactly the same.
                                    Still no luck.
                                    Thank you

                                    1 Reply Last reply Reply Quote 0
                                    • johnpozJ Online
                                      johnpoz LAYER 8 Global Moderator
                                      last edited by

                                      @keeshpat said in Need to use OPT 1 as another LAN interface:

                                      e ) , 2nd is DB (vlan 9 - connected to OPT1 on pfsense)

                                      So you set vlan ID in pfsense? Or its native on pfsense? esxi will pull tags off unless you set vlan ID 4095 on the port group..

                                      An intelligent man is sometimes forced to be drunk to spend time with his fools
                                      If you get confused: Listen to the Music Play
                                      Please don't Chat/PM me for help, unless mod related
                                      SG-4860 24.11 | Lab VMs 2.8, 24.11

                                      K 1 Reply Last reply Reply Quote 0
                                      • stephenw10S Offline
                                        stephenw10 Netgate Administrator
                                        last edited by

                                        Look at Status > Interfaces for OPT1. Do you see any incoming packets at all?

                                        This looks like some virtual network config issue, I agree.

                                        Steve

                                        K 1 Reply Last reply Reply Quote 0
                                        • K Offline
                                          keeshpat @johnpoz
                                          last edited by

                                          @johnpoz I tag vlan ID on virtual port group on vmware.
                                          No tags on pfsense.

                                          1 Reply Last reply Reply Quote 0
                                          • K Offline
                                            keeshpat @stephenw10
                                            last edited by

                                            @stephenw10 no traffic on opt1 interface

                                            1 Reply Last reply Reply Quote 0
