    2 interfaces bridged, 2 machines set to a specific gateway can't RDP to other machines

    Scheduled Pinned Locked Moved Firewalling
    2 Posts 1 Posters 358 Views 1 Watching
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • X Offline
      x_xavier_x
      last edited by

      So I have 2 interfaces bridged. EVERYTHINGELSE is my primary, DHCP server, etc.


      EVERYTHINGELSE FIREWALL RULES

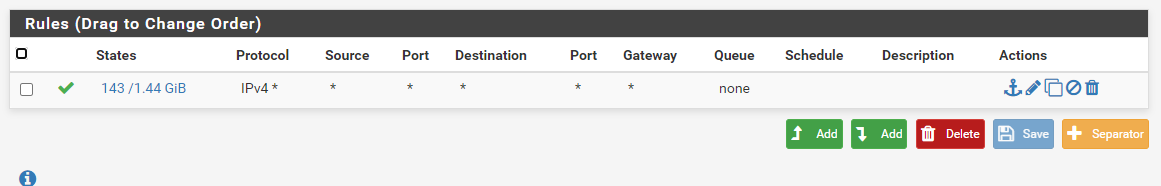

      OFFICES FIREWALL RULES


      The 2 machines (ATT_SERVERS) that are going over the ATT gateway cannot RDP to machines on the OFFICES interface. I do get a successful PING though to machines on the OFFICES interface.

      I can RDP from machines on the OFFICES interface into the ATT_SERVERS, just not vice versa.

      If I flip the 2 rules, circled, then RDP works both ways but the gateway for ATT_SERVERS is not ATT.

      What do I have wrong here?

      X 1 Reply Last reply Reply Quote 0
      • X Offline
        x_xavier_x @x_xavier_x
        last edited by

        @x_xavier_x Looks like I fixed my own issue. Added a rule so that anything going to the private network gets routed to default gateway, after that everything else is routed to the ATT gateway.


        1 Reply Last reply Reply Quote 0
