how / where config 2nd Gateway for OpenVPN Client

Mainzelman

Hello, i have a routing problem with OpenVPN-2 Clients.

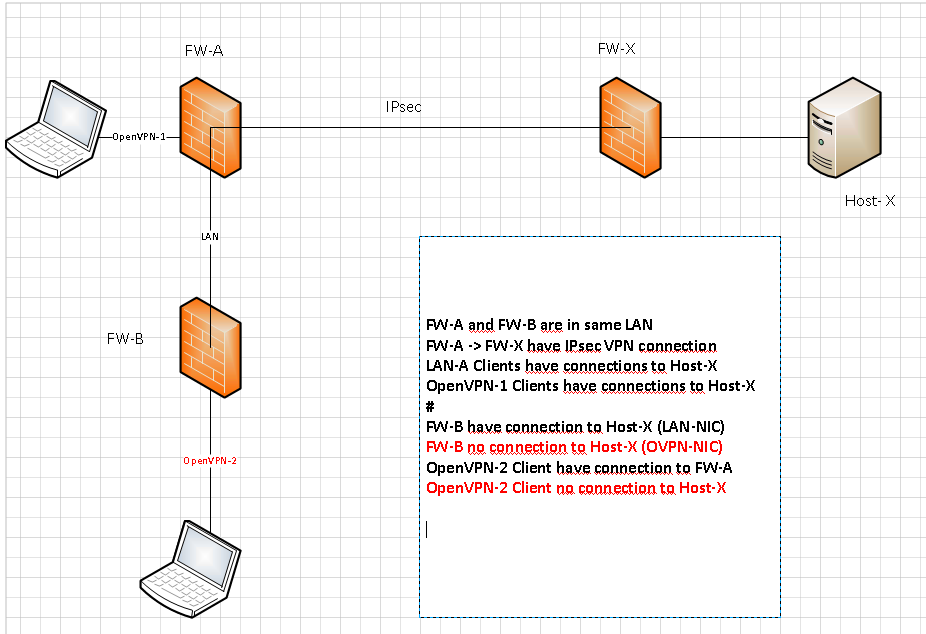

(Please look at the picture) FW-A/B = pfsense v2.4.5-p1

With tracert i can only get to the OVPN Server IP.
Where can i enter the 2nd Gateway for OpenVPN ?
I just can't get through the OVPN Server.
(FW-rules are correct - no blocking)
Thank you for a hint.

viragomann

@mainzelman
You have to add a phase 2 to the IPSec to connect LAN X und the OVPN2 tunnel network.

And in the OVPN2 settings you have to add LAN X network to the "Local Networks".

Mainzelman

@viragomann many thanks for the answer.
Phase 2 ist set for OVPN2. LAN X ist set to Local Networks.

For whatever reason OVPN2client only comes up to OVPN2Server NIC.

Mainzelman

@mainzelman
it works !
I have created on FW-B rule: LAN -> OVPN2 for it.
Whatever before there was nothing to be seen in the FW logs.
<don't always believe what you see ;-))>
