    pfsense traceroute loop when only WAN is up (LAN down)

    Scheduled Pinned Locked Moved Firewalling
    1 Posts 1 Posters 155 Views 1 Watching
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • E Offline
      elecen
      last edited by elecen

      Hi guys, I am facing the following which is driving me crazy atm.

      When I plug the LAN cable to the laptop ethernet (pfsense LAN link UP) pfsense is perfectly reachable.
      When I unplug the LAN cable from the laptop (pfsense LAN link DOWN) pfsense is unreachable and according to traceroute appears to enter an endless loop

      Traceroute indicates an infinite loop

      # Traceroot from Win10 machine
      Tracing route to 192.168.108.1 over a maximum of 30 hops

        1    <1 ms    <1 ms    <1 ms  fritz.box [192.168.1.1]
        2     1 ms    <1 ms    <1 ms  pnet.fritz.box [192.168.1.4]
        3     2 ms     1 ms     *     fritz.box [192.168.1.1]
        4     1 ms    <1 ms    <1 ms  pnet.fritz.box [192.168.1.4]
        5     *        *        *     Request timed out.
        6     *        *        *     Request timed out.
        7     *        *       <1 ms  192.168.108.1 ^C

      # Traceroute from linux machine
      traceroute to 192.168.108.1 (192.168.108.1), 30 hops max, 60 byte packets
       1  fritz.box (192.168.1.1)  1.147 ms  1.417 ms  1.712 ms
       2  pnet.fritz.box (192.168.1.4)  2.525 ms  2.515 ms  2.809 ms
       3  fritz.box (192.168.1.1)  8.567 ms  8.906 ms  9.233 ms
       4  pnet.fritz.box (192.168.1.4)  9.595 ms  9.928 ms  10.133 ms
       5  * * *
       6  pnet.fritz.box (192.168.1.4)  15.337 ms  4.725 ms  7.844 ms
       7  * * *
       8  pnet.fritz.box (192.168.1.4)  9.447 ms  9.913 ms  10.900 ms
       9  * * *
      10  pnet.fritz.box (192.168.1.4)  12.723 ms  12.959 ms  13.368 ms
      11  * * *
      12  pnet.fritz.box (192.168.1.4)  9.185 ms  7.724 ms  7.988 ms
      13  * * *
      14  pnet.fritz.box (192.168.1.4)  3.911 ms  1.662 ms  1.471 ms
      15  * * *
      16  pnet.fritz.box (192.168.1.4)  6.107 ms  6.505 ms  6.921 ms
      17  * * *
      18  pnet.fritz.box (192.168.1.4)  8.331 ms  8.731 ms  9.185 ms
      19  * * *
      20  pnet.fritz.box (192.168.1.4)  11.620 ms  12.066 ms  12.479 ms
      21  * * *
      22  pnet.fritz.box (192.168.1.4)  11.204 ms  11.323 ms  9.651 ms
      23  * * *
      24  pnet.fritz.box (192.168.1.4)  12.192 ms  16.575 ms  14.170 ms
      25  * * *
      26  pnet.fritz.box (192.168.1.4)  3.468 ms  1.833 ms  1.834 ms
      27  * * *
      28  pnet.fritz.box (192.168.1.4)  3.497 ms  1.902 ms  2.321 ms
      29  * * *
      30  pnet.fritz.box (192.168.1.4)  5.711 ms  6.727 ms  7.181 ms

      # no ctrl+c here, linux is fast :D


      Here's what my simple home network looks like

      192.168.1.1 fritzbox (internet gateway, connected to ISP)
      pfsense (WAN 192.168.1.4; LAN 192.168.108.1)
      network switch (pfsense, fritzbox and pretty much everything is connected to it)
      laptop (wifi connected to fritzbox)
      desktop (192.168.1.44)
      laptop (192.168.1.45)

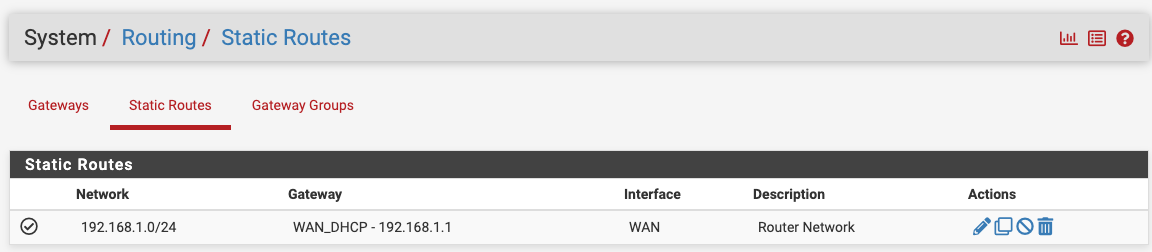

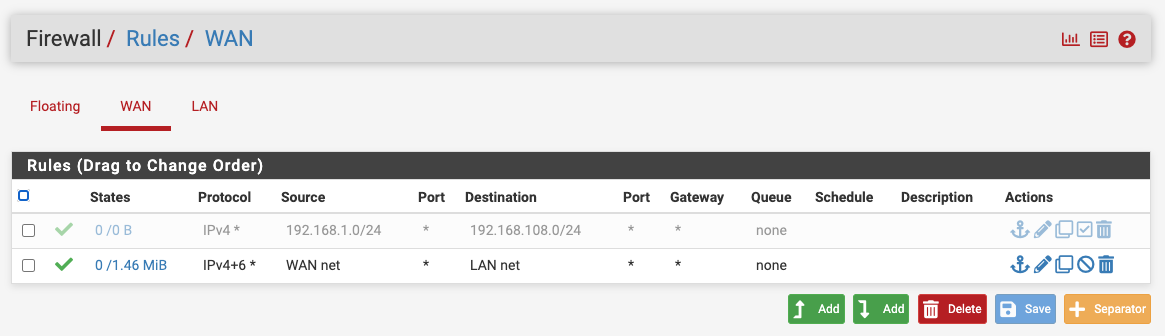

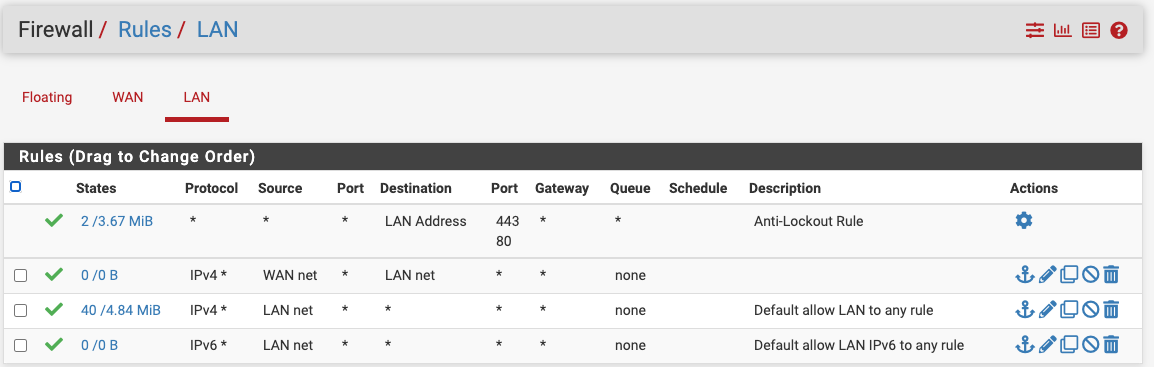

      My pfsense configuration looks like this

      Sidenote: I have tried OPNSense with virtually identical configuration with no trouble. Also have OpenWRT in similar setup for different subnet also working with no trouble

      Any ideas?
