Is this an Asymmetric Routing routing issue?

Helmut101

This is my Proxmox network config as text:

auto lo
iface lo inet loopback

iface eno1 inet manual

iface eno2 inet manual

auto vmbr0
iface vmbr0 inet static
        address 192.168.10.42/24
        gateway 192.168.10.254
        bridge-ports eno1
        bridge-stp off
        bridge-fd 0
#Management Network

auto vmbr1
iface vmbr1 inet static
        address 192.168.40.0/24
        bridge-ports eno2
        bridge-stp off
        bridge-fd 0
        bridge-vlan-aware yes
        bridge-vids 2-4094
#Service Network

It is mainly following the docs, but I will need to investigate further.

Well, after doing:

/etc/init.d/networking restart

in Proxmox, I lost connection to the other 2 Services in VLAn 40, too. This setup was working for over a year now.. what is going on..

Helmut101

Oh my god.. solved! A simple restart of the Hypervisor!

These proxmox networking issues made me suspicious. I did a complete reboot of the Server and all my services are reachable & working now.

I can only speculate that there was some Package Update in Proxmox
that confused things on the networking/firewall/routing side.

I hope this was a rare individual case. Actually, it is the first time I had problems with this setup for since running it for over a year.

Nevertheless, learned a lot about debugging network issues on various areas. Many thanks for your help!

Helmut101

Back to Zero: Service 192.168.40.9 stopped being reachable after about 1 hour. The other services still work.

Btw.: It is a miracle to me why everything still works through OpenVPN, but not the VLAN.

viragomann

@helmut101 said in Is this an Asymmetric Routing routing issue?:

I was thinking the same route and I checked the Switch Manual - while it can forward VLANs, there is no mention that it can route VLAN traffic. I also verified in the settings, there is no option to set inter-VLAN routing on the switch.

If I look into the manual I see chapter 4 describe how to configure VLANs on each port, either tagged or untagged.
That should be sufficient to separate the VLANs correctly. There is no need for routing traffic on the switch, this can be done by pfSense.

So configure the switch port which the wifi is connected to as untagged for VLAN30 and PVID for 30, so that incoming packets get tagged.

The port which is pfSense connected to has to be added to all VLANs as tagged.
On the ports facing to Proxmox the packets can be tagged so that you don't need to change the Proxmox configuration.

johnpoz

setup for since running it for over a year.

You sure you just don't have duplicate IP then? If your saying this worked for a year without issue, then I don't see how its any sort of networking issue.. But something wrong with whatever that IP is, or something stepping on that IP?

viragomann

@johnpoz said in Is this an Asymmetric Routing routing issue?:

You sure you just don't have duplicate IP then? If your saying this worked for a year without issue, then I don't see how its any sort of networking issue.

That could be a reason for the strange behavior of course.

Helmut101

First, thanks a lot to all of you for responding here. I have the feeling this is Proxmox specific, and since this is a forum for pfsense, I cannot expect such help. Anyway, since the discussion is already going and I haven't found a solution yet.. I appreciate any hints.

@viragomann said in Is this an Asymmetric Routing routing issue?:

If I look into the manual I see chapter 4 describe how to configure VLANs on each port, either tagged or untagged.
That should be sufficient to separate the VLANs correctly. There is no need for routing traffic on the switch, this can be done by pfSense.
So configure the switch port which the wifi is connected to as untagged for VLAN30 and PVID for 30, so that incoming packets get tagged.
The port which is pfSense connected to has to be added to all VLANs as tagged.
On the ports facing to Proxmox the packets can be tagged so that you don't need to change the Proxmox configuration.

Yes, that is basically how it is set. I have two Trunk Ports on the Switch, one for Switch <> pfsense and one for Switch <> Proxmox.

Only these two ports support tagged traffic. All other ports are marked as untagged, and the switch itself assigns tags (e.g. for the WLAN). This has worked, so I am not expecting any problem here.

I tested whether my Proxmox VLAN Settings may be the problem: I am back to the original configuration after 4 hours of testing various combinatins. I am basically following the officially, recommended default setting for VLAN/Proxmox:

VLAN awareness on the Linux bridge: In this case, each guest’s virtual network card is assigned to a VLAN tag, which is transparently supported by the Linux bridge.

With this configuration, Two Services on 192.168.40.0 VLAN (.7 and .8 work), but not .9.

I am able to connect/ping 192.168.40.9 from pfsense itself, or when I connect via OpenVPN, but not from 192.168.30.0 subnet.

If I do packet capture on SSH connect 192.168.30.0->192.168.40.9`

I see (Interface VLAN30 and VLAN40 the same):

14:06:08.549507 IP 192.168.30.99.52908 > 192.168.40.9.22: tcp 0
14:06:09.549269 IP 192.168.30.99.52908 > 192.168.40.9.22: tcp 0
14:06:11.557236 IP 192.168.30.99.52908 > 192.168.40.9.22: tcp 0

I have also checked several times that 192.168.40.9 is not assigned anywhere else.

Next thing to check is whether this works if I change the IP to something else. However, this will require changing several settings of interconnections between services (IOT, Docker etc.).

johnpoz

Sniff on the pfsense vlan40 interface.. Do you see the traffic go out?

If so then its not pfsense. You can also validate that sending to the correct mac for the .9 address. And that its tagged..

But if your saying you can talk to other 40.X stuff from your 30 network.. Its really unlikely its anything to do with pfsense. But doesn't hurt to check that you actually see the traffic go out to the correct mac, and its tagged correctly.

You don't have some rules on the 30 vlan or floating that could be doing anything weird with that IP? Say policy routing?

To view tags in sniffing traffic on pfsense you would need to use cmdline on pfsense with tcpdump -e

one sec and put up an example... sniffing on one of my interfaces with vlans on it.. BRB

Helmut101

@johnpoz

Yes, I can see that the traffic is going out on pfsense, but not coming back to the client:

14:19:58.625064 IP 192.168.30.99.53151 > 192.168.40.17.22: tcp 0
14:19:59.624594 IP 192.168.30.99.53151 > 192.168.40.17.22: tcp 0
14:20:01.624796 IP 192.168.30.99.53151 > 192.168.40.17.22: tcp 0

Note: Above I have changed the LXC Container's IP to 17 (instead of 9). This also has no effect.

This is how it looks like for the other service on .8, successfully connecting ssh:

14:28:40.372431 IP 192.168.40.8.22 > 192.168.30.99.53285: tcp 0
14:28:40.375857 IP 192.168.40.8.22 > 192.168.30.99.53285: tcp 452
14:28:40.383526 IP 192.168.30.99.53285 > 192.168.40.8.22: tcp 0
14:28:40.383573 IP 192.168.30.99.53285 > 192.168.40.8.22: tcp 16

You don't have some rules on the 30 vlan or floating that could be doing anything weird with that IP? Say policy routing?

To view tags in sniffing traffic on pfsense you would need to use cmdline on pfsense with tcpdump -e

one sec and put up an example... sniffing on one of my interfaces with vlans on it.. BRB

I have checked rules for the VLAN 30 (and 40) over and over - but no, I do not see anything interfering here.

I'll check with tcpdump -e! Thank you.

My time is running out today.. will report tomorrow if I got further.

johnpoz

Ok you don't actually have to do it via cmd line... If you enable promiscuous mode, and sniff on the parent interface.. You can do it easier just from the gui, and then for easy reading just download and open with wireshark.

example

And here in wireshark

You can see traffic on the 192.168.4 network is tagged with vlan id 4, and traffic on the 192.168.2 is native an untagged.. Both of these networks are on my igb2 interface.

But if you are seeing traffic going out of pfsense and tagged correctly, then no it has nothing to do with pfsense.

edit: hiding that 73.x address - that is my son's connection. His unifi stuff talks to controller on my network.

you will want to make sure you look at outbound traffic from pfsense for your vlan tag, and that sending to whatever mac this .9 is actually at.. That is inbound traffic into mine.. But just an example of seeing the tags. You can see if you are seeing an answer, but maybe the answer is not tagged? Or tagged wrong, etc.

Helmut101

@johnpoz
Nice, thanks! I did not know that I can do all of this. And I am really feeling I need to read into packet captures, sniffing etc.. But the cap collected in pfsense with promiscous looks different in wireshark:

johnpoz

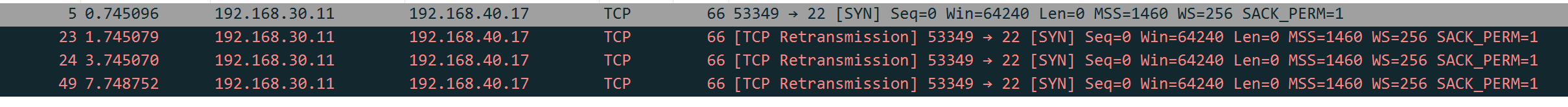

Yeah if there is no answer you will see retrans.. Thought your problem child was .9?

But if click into a specific packet you should see the tag, like my example.

edit: Maybe you have to enable to show 802.1q in the dissector.. Let me check my wireshark settings. I use wireshark a lot, so might have turned it on long time ago..

Helmut101

@johnpoz
Yes, half an hour ago I changed the LXC Container's IP to 17, to see if it has any effect: No, it doesn't. Same problem. Can reach .8, but cannot reach .17 (both on the same vmbridge in Proxmox). I can even reach a third container, with a different subnet VLAN (60 instead of 40)..

johnpoz

Well if your seeing the traffic go out, and its tagged correctly and to the right mac.. It has zero to do with pfsense..

You don't have any static mac setup in pfsense do you.. Maybe you setup static arp for that mac, and its changed?

Helmut101

@johnpoz said in Is this an Asymmetric Routing routing issue?:

Maybe you setup static arp for that mac, and its changed?

I do have static ARP/MAC - the container gets its IP using DHCP and this is assigned based on MAC. However, checked and MAC is Ok (and I can also reach the container from pfsense/OpenVPN, or from the Management LAN 10, just not from the vlan 30).

I am out now today. Many thanks so far, this is really helpful and, while I am not yet further with my problem, I am learning a lot!

johnpoz

@helmut101 said in Is this an Asymmetric Routing routing issue?:

just not from the vlan 30).

That sure doesn't make any sense.. You sure you don't have a firewall this thing your trying to reach, or odd routing for 30 network on your dest device? So nothing in 30 can talk to it, but 30 can talk to other devices in the 40 vlan..

Can you sniff on 40.17 and validate it actually sees the traffic?

Helmut101

@johnpoz said in Is this an Asymmetric Routing routing issue?:

ewall this thing your trying t

Yes, tomorrow I have a bit more time. I will look into this carefully and test more siffing at different points, including the VM itself. Will report back.

If it wasn't that strange I would have not written here.. I was working on this issue for 4 days so far.

Helmut101

Alright, so this will get long.

TL;DR

I currently do not know why, but on the specific Host, there was/is a bridge ethernet link / virtual nic configured that forwarded outgoing routes to the wrong subnet (192.168.16.0) - I have never heard of this subnet and I don't know why this ip/bridge/link ended up there.

I solved the issue (for the moment) with:

ifconfig br-985a84259068 down

But: Once the VM is restarted, the bridge appears again. I am still working on this.

Sleuthing (long)

This was a long walk down the rabbit hole. But I'll write here, perhaps someone else will find any of the commands useful for similar catch the rabbit tasks.

Here's setup for testing:

60 is my IOT subnet
40 is my Sevrice subnet
30 is my Consumer subnet
Client 30.11, where 30 is the subnet/vlan and 11 the IP
Host 40.17, issue getting reached from subnet 30 clients
Host 40.8 no issue getting reached, can reach 40.17
Host 60.10 no issue getting reached, can reach 40.17

This already is really strange. In addition, I could reach 40.17 just
fine from pfsense (ping) and when connected through OpenVPN.

1. Check Routing

On VM 40.17

ip route

default via 192.168.40.1 dev eth0
172.17.0.0/16 dev docker0 proto kernel scope link src 172.17.0.1
172.23.0.0/16 dev br-5acdb2ca8271 proto kernel scope link src 172.23.0.1 linkdown
172.28.0.0/16 dev br-2d547cdc7389 proto kernel scope link src 172.28.0.1
192.168.16.0/20 dev br-985a84259068 proto kernel scope link src 192.168.16.1
192.168.40.0/24 dev eth0 proto kernel scope link src 192.168.40.17

The default route looks fine, but why are there other routes?

Compare output to other Host 40.8 without issues:

default via 192.168.40.1 dev eth0
192.168.40.0/24 dev eth0 proto kernel scope link src 192.168.40.8

The 172 routes may be explained with Docker running on 40.17,
but 192.168.16.0/20 looks strange.

2. Checks Packets (tcpdump)

Now, as suggested, check whether packets really arrive at the host.

40.17:

tcpdump 'host 192.168.30.11 and port not 22'

30.11:

ping 192.168.40.17

Output (tcpdump):

01:50:58.811226 IP 192.168.30.11 > 192.168.40.17: ICMP echo request, id 1221, seq 1, length 64
01:50:59.816840 IP 192.168.30.11 > 192.168.40.17: ICMP echo request, id 1221, seq 2, length 64
01:51:00.820305 IP 192.168.30.11 > 192.168.40.17: ICMP echo request, id 1221, seq 3, length 64
01:51:01.823602 IP 192.168.30.11 > 192.168.40.17: ICMP echo request, id 1221, seq 4, length 64
01:51:02.827368 IP 192.168.30.11 > 192.168.40.17: ICMP echo request, id 1221, seq 5, length 64
01:51:03.831271 IP 192.168.30.11 > 192.168.40.17: ICMP echo request, id 1221, seq 6, length 64

They arrive, but: nothing is returned.

Verify/compare to output of the same commands on working host 40.8:

01:49:39.460155 IP 192.168.30.11 > 192.168.40.8: ICMP echo request, id 1217, seq 1, length 64
01:49:39.460184 IP 192.168.40.8 > 192.168.30.11: ICMP echo reply, id 1217, seq 1, length 64
01:49:40.461106 IP 192.168.30.11 > 192.168.40.8: ICMP echo request, id 1217, seq 2, length 64
01:49:40.461133 IP 192.168.40.8 > 192.168.30.11: ICMP echo reply, id 1217, seq 2, length 64
01:49:41.461886 IP 192.168.30.11 > 192.168.40.8: ICMP echo request, id 1217, seq 3, length 64
01:49:41.461918 IP 192.168.40.8 > 192.168.30.11: ICMP echo reply, id 1217, seq 3, length 64

3. Check routing

At this moment, I was pretty sure to have the issue isolated to the Host 40.17 itself.
Something is going on with the routing.

on host 40.17:

ip route get 192.168.30.11

192.168.30.11 dev br-985a84259068 src 192.168.16.1 uid 0
cache

uh?

compare on working host 40.8:

ip route get 192.168.30.11

192.168.30.11 via 192.168.40.1 dev eth0 src 192.168.40.8 uid 0
cache

Why is outgoing traffic routed through a bridge called br-985a84259068 to subnet 192.168.16.1?

on 40.17:
Check:

cat /etc/network/interfaces

auto lo
iface lo inet loopback

auto eth0
iface eth0 inet dhcp

ok.. further check routes

apt install net-tools
route -n

Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
0.0.0.0 192.168.40.1 0.0.0.0 UG 0 0 0 eth0
172.17.0.0 0.0.0.0 255.255.0.0 U 0 0 0 docker0
172.23.0.0 0.0.0.0 255.255.0.0 U 0 0 0 br-5acdb2ca8271
172.28.0.0 0.0.0.0 255.255.0.0 U 0 0 0 br-2d547cdc7389
192.168.16.0 0.0.0.0 255.255.240.0 U 0 0 0 br-985a84259068 <--- What is this??
192.168.40.0 0.0.0.0 255.255.255.0 U 0 0 0 eth0

Study what are network bridges:
https://wiki.archlinux.org/index.php/Network_bridge
https://tldp.org/HOWTO/BRIDGE-STP-HOWTO/set-up-the-bridge.html

bridge link

8: vetha2e5a47@if7: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 master br-2d547cdc7389 state forwarding priority 32 cost 2
10: vethcd0643c@if9: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 master br-985a84259068 state forwarding priority 32 cost 2 <-- Here it is
14: veth992d5b3@if13: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 master br-2d547cdc7389 state forwarding priority 32 cost 2
16: vethb6721a9@if15: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 master br-2d547cdc7389 state forwarding priority 32 cost 2
18: veth7dfb21f@if17: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 master br-2d547cdc7389 state forwarding priority 32 cost 2
20: vethc3562b4@if19: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 master br-2d547cdc7389 state forwarding priority 32 cost 2
22: veth9017e4e@if21: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 master br-2d547cdc7389 state forwarding priority 32 cost 2

apt install bridge-utils
brctl show br-985a84259068

bridge name bridge id STP enabled interfaces
br-985a84259068 8000.02428b97932d no vethcd0643c <-- Here, too

ifconfig

vethcd0643c: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet6 fe80::dc58:85ff:fef0:eef1 prefixlen 64 scopeid 0x20<link>
ether de:58:85:f0:ee:f1 txqueuelen 0 (Ethernet)
RX packets 8644 bytes 680480 (664.5 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 7417 bytes 1041527 (1017.1 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

ifconfig vethcd0643c down

Test route again:

ip route get 192.168.30.11
192.168.30.11 dev br-985a84259068 src 192.168.16.1 uid 0
    cache

Also down with the bridge:

ifconfig br-985a84259068 down

192.168.30.11 via 192.168.40.1 dev eth0 src 192.168.40.17 uid 0
cache

Yay!

That is it for the moment. If I restart the LXC container, the bridge is
added again with the same name. Who does this? I do not know yet.

Helmut101

What a nightmare.. that is finally solved. Ended up in the a complete different hole. It wasn't the rabbit, it was the docker.

TL;DR

On 40.17 LXC, I had docker running with sevral configs.
Docker apparently decides for a default subnet based on a list of ips from:
172.17.0.0/16", 172.18.0.0/16", "172.19.0.0/16",
"172.20.0.0/14", "172.24.0.0/14" "172.28.0.0/14", "192.168.0.0/16"

It verifies whether that IP range is in use. In my case, it somehow missed that 192.168.0.0/16 is near my VLAN config.

Adding

{
    "bip": "193.168.1.5/24",
	"default-address-pools":
	[
		{"base":"172.17.0.0/16","size":24}
	]
}

to /etc/docker/daemon.json solved the problem. But I had to identify first which container used the default network, stop it, reload docker, and start it, to refresh the network.

docker network list

> NETWORK ID     NAME                DRIVER    SCOPE
> 4d17f9cc818b   bridge              bridge    local
> 985a84259068   docker_default      bridge    local<-- this
> 2d547cdc7389   funkwhale_default   bridge    local
> abddd765db3e   host                host      local
> 5acdb2ca8271   iris_default        bridge    local
> be879c14dc73   none                null      local

docker network inspect 985a84259068

>         "Containers": {
>             "24f38ca4c3e1080f050b868f4b980f3616b8047be45809276e74e217bf2f7f57": {
>                 "Name": "Solaranzeige", <--- this
>                 "EndpointID": "8274319e9ec797c19bcd46d2aadf9277d249135a3fbf326abc14b4893f994081",
>                 "MacAddress": "02:42:c0:a8:10:02",
>                 "IPv4Address": "192.168.16.2/20",  <--- this
>                 "IPv6Address": ""
>             }
>         },

docker stop Solaranzeige
systemctl daemon-reload
systemctl restart docker

Verify:

ip addr | grep 192
    inet 192.168.40.17/24 brd 192.168.40.255 scope global eth0

Only the native VLAN!

Helmut101

Thanks so much to everybody involved here. I was entirely wrong in my initial suspicion, but the analysis helped me better understand how networks work, so I do not consider this as lost time.

Some revelations:

for incoming traffic, wireshark, tcpdump and packet capture (pfsense) are king
for outgoing traffic, ip route get [host ip] helps to see in which direction traffic leaves (or doesn't leave) the host
