Filtering ICMPv6 Messages (RFC 4890)

metebalci

I wonder if this RFC is also practically used to configure IPv6. So basically it lists traffic that must not be dropped for transit traffic and for local traffic. In short it says for transit traffic:

Destination Unreachable (Type 1) - All codes
Packet Too Big (Type 2)
Time Exceeded (Type 3) - Code 0 only
Parameter Problem (Type 4) - Codes 1 and 2 only
Echo Request (Type 128)
Echo Response (Type 129)

must not be dropped. In addition to these, for local traffic, there is another (a bit longer) list related to being a router e.g. router and neighbor solicitation and advertisement.

Related question: is it possible to specific the code of an ICMPv6 type in a rule ?

johnpoz

@metebalci said in Filtering ICMPv6 Messages (RFC 4890):

is it possible to specific the code of an ICMPv6 type in a rule ?

Yes

you can always look to the full rules to see what is allowed/blocked etc.. that might not be shown in the gui

https://docs.netgate.com/pfsense/en/latest/firewall/pf-ruleset.html

metebalci

@johnpoz said in Filtering ICMPv6 Messages (RFC 4890):

@metebalci said in Filtering ICMPv6 Messages (RFC 4890):

is it possible to specific the code of an ICMPv6 type in a rule ?

Yes

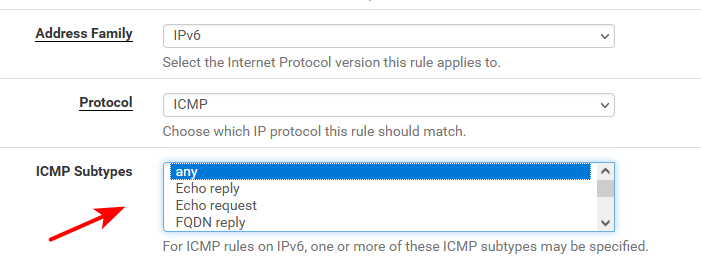

This is type and it is how I do it, I wonder if it is possible to filter by code also.

@johnpoz said in Filtering ICMPv6 Messages (RFC 4890):

you can always look to the full rules to see what is allowed/blocked etc.. that might not be shown in the gui

https://docs.netgate.com/pfsense/en/latest/firewall/pf-ruleset.html

Thanks, I didnt know this, I will check.
