Can't access devices in other VPNS
-
Hi guys!
I have a pfsense firewall and i created many ipsec tunnels with other offices. These connections are work ok. And i created a openvpn server to allow me to access all this equipment from anywhere. Example:
I give the openvpn address 10.20.50.0/24. When i connect my notebook in network i can ping only devices in 192.168.1.0/24. How i access other devices?
Thanks a lot!
-
@felipefonsecabh Have you added firewall rules allowing the traffic? By default LAN has an "allow LAN to any" rule and other interfaces don't have rules (except the default block).
-
@steveits so i'm new to pfsense, what rules should i add to the firewall?

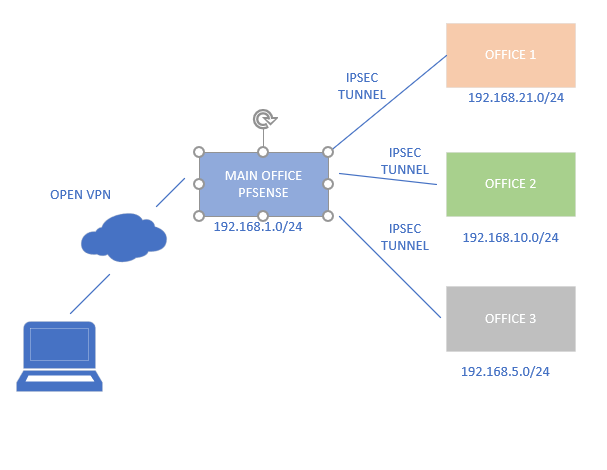

By the model of the network shown in the image, could you give me an example of a rule that I should add?
Sorry for the basic question and thanks a lot!
-
@felipefonsecabh i try to follow this tutorial Bridging OpenVPN Connections to Local Networks, but when i connect my client, the log shows:
"NOTE: unable to redirect IPv4 default gateway -- VPN gateway parameter (--route-gateway or --ifconfig) is missing"
I can't find any solution.
-

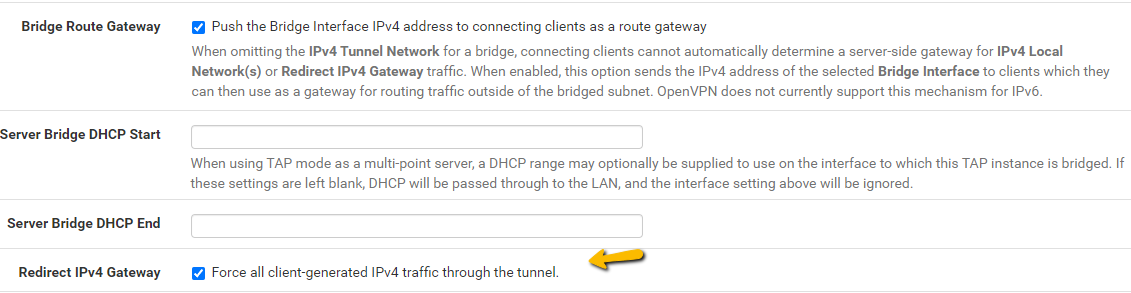

@felipefonsecabh the bridge between OpenVPN and Local Network works after i enabled these options:
I try to keep the "Redirect IPv4 Gateway" disabled (the address configured as 192.168.1.0/24), but doesn't work.It's possible to make it works without pass all traffic throught the tunnel?
Thanks a lot!
