No outbound connection from 2nd WAN subnet

BlueSun

Our Datacenter has assigned 2 IP subnets for our servers. PFSense is setup in Bridge mode (i.e. LAN + WAN is tied to bridge0)

SubnetA = x.y.z.120/29

SubnetA = x.y.z.208/28

Pfsense is setup on x.y.z.122

All servers on SubnetA can access anything on the internet, and internet clients can access the servers, i.e. browse to http://x.y.z.125, etc.

A new server is setup on x.y.z.211, and I can SSH to / ping x.y.z.211 from the internet. But, x.y.z.211, and 3 other servers with different OS's (as a test) cannot ping 8.8.8.8, the gateway x.y.z.209 or even SSH to an IP on the internet.

What I am missing?

viragomann

@bluesun

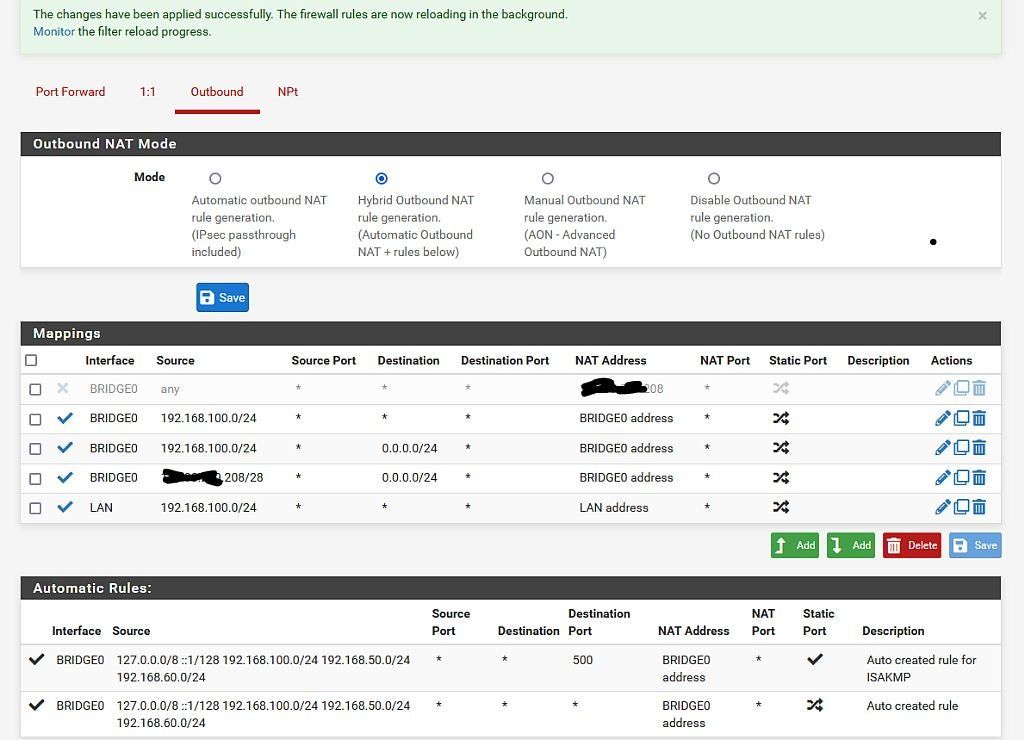

The destination 0.0.0.0/24 in the outbound NAT rule does not include 8.8.8.8, so no translation for this IP.
Set it to any, or 0.0.0.0/0 if you like numbers.

BlueSun

@viragomann Thank you. I have change the subnet to /0 but that doesn't seem to help either.

Something interesting I picked up:

when pinging the IP from a random internet host, the ping looks normal:

root@mercury:[~]$ ping x.y.z.211
PING x.y.z.212 (x.y.z..211) 56(84) bytes of data.
64 bytes from x.y.z.211 icmp_seq=1 ttl=59 time=1.81 ms
64 bytes from x.y.z.211: icmp_seq=2 ttl=59 time=1.85 ms
64 bytes from x.y.z.211: icmp_seq=3 ttl=59 time=1.77 ms

But, pinging the IP address from PFsense, I get the following:

[2.5.2-RELEASE][XXX@PFS.LOCAL]/: ping x.y.z.211
PING x.y.z.211 (x.y.z.211): 56 data bytes
36 bytes from x.y.z..121: Time to live exceeded
Vr HL TOS  Len   ID Flg  off TTL Pro  cks      Src      Dst
 4  5  00 0054 a9a3   0 0000  01  01 e469 x.y.z.122  x.y.z.211

36 bytes from x.y.z.211: Time to live exceeded
Vr HL TOS  Len   ID Flg  off TTL Pro  cks      Src      Dst
 4  5  00 0054 a9a3   0 0000  01  01 e469 x.y.z.122 x.y.z.211

36 bytes from x.y.z.211: Time to live exceeded
Vr HL TOS  Len   ID Flg  off TTL Pro  cks      Src      Dst
 4  5  00 0054 a39e   0 0000  01  01 ea6e x.y.z.122  x.y.z.211

^C
--- x.y.z.211 ping statistics ---
6 packets transmitted, 0 packets received, 100.0% packet loss

Pinging another host in SubnetA, from PFsense, looks like this:

[2.5.2-RELEASE][XXX@PFS.LOCAL]/: ping x.y.z.211 x.y.z.123
PING x.y.z.1233 (x.y.z.123): 56 data bytes
64 bytes from x.y.z.123: icmp_seq=0 ttl=64 time=0.601 ms
64 bytes from x.y.z.123: icmp_seq=1 ttl=64 time=0.382 ms
64 bytes from x.y.z.123: icmp_seq=2 ttl=64 time=0.467 ms
^C
--- x.y.z.123 ping statistics ---
3 packets transmitted, 3 packets received, 0.0% packet loss
round-trip min/avg/max/stddev = 0.382/0.483/0.601/0.090 ms

I setup another VM, x.y.z.212 and both x.y.z.211 and x.y.z.212 can ping each other. I can ping both x.y.z.211 and x.y.z.212 from the internet.

BlueSun

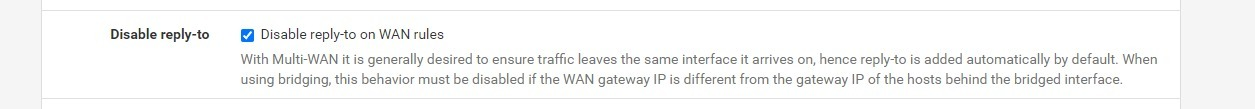

I found the problem.

The virtual machine can now access the internet.
