6100 Poor Performance With Openvpn

Scheduled Pinned Locked Moved OpenVPN
8 Posts 4 Posters 1.2k Views
Loading More Posts
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • K
    khodorb
    last edited by Sep 20, 2022, 4:56 AM

    Hi,

    i had an SG-4860 and had to upgrade it to 6100-MAX, i migrated the configuration,
    my SG-4860 was working greate with openvpn setup for 50 user and it had a acceptable performance while using MS teams over VPN,

    i was able to migrate the configuration and had only to adjust the intefaces,

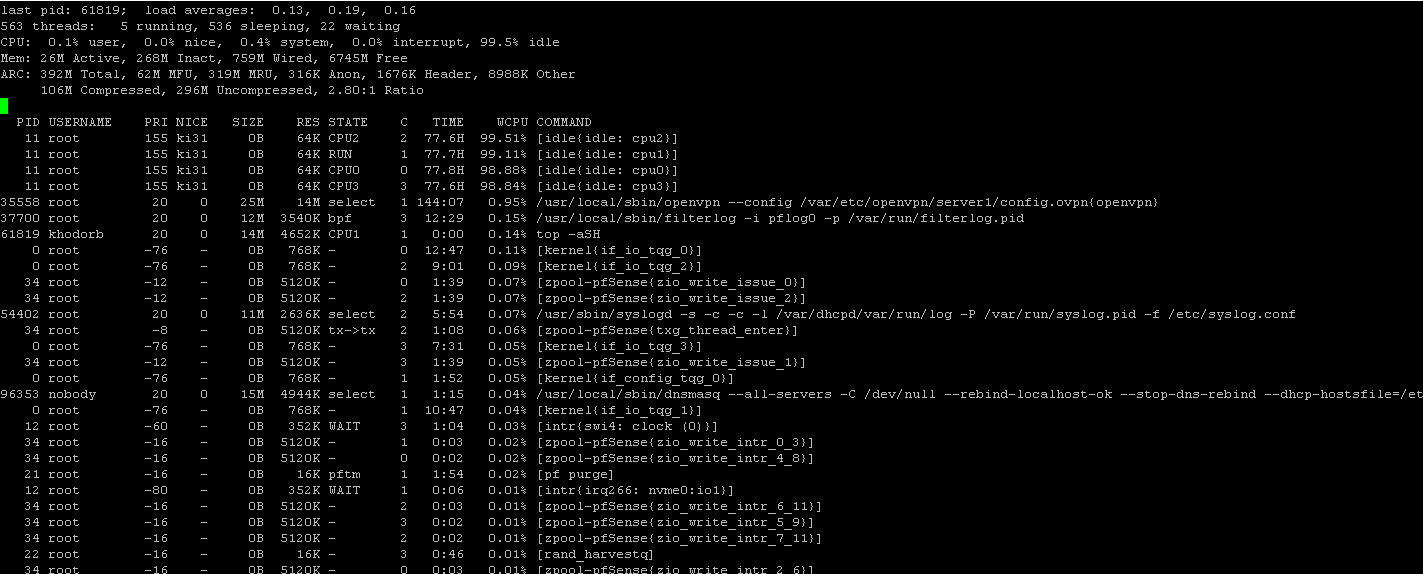

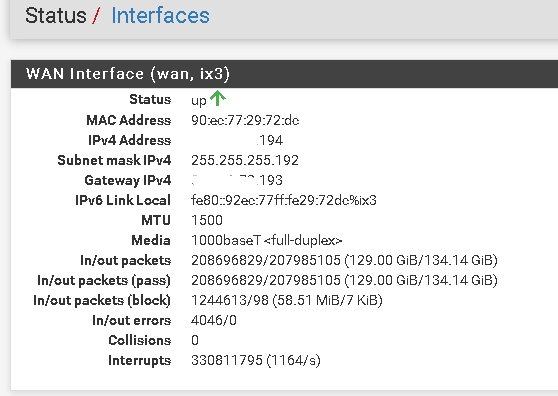

    initially i am facing a problem with in/out errors increasing on WAN interface , in addition to the disruption, lagging and voice cutting on ms teams calls.

    i have tried the following :
    enabled AES-NI encryption
    set firewall to conservative mode.

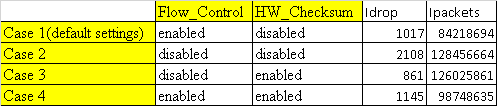

    tested the following combination for flow control and hardware checksum offloading

    Flow_Control HW_Checksum Idrop Ipackets
    Case 1(default settings) enabled disabled 1017 84218694
    Case 2 disabled disabled 2108 128456664
    Case 3 disabled enabled 861 126025861
    Case 4 enabled enabled 1145 98748635


    i am on version 22.05 with latest firmware ,

    [22.05-RELEASE][pfsense]/root: ifconfig -vvm ix3
    ix3: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500
    description: WAN
    options=8138b8<VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,WOL_UCAST,WOL_MCAST,WOL_MAGIC,VLAN_HWFILTER>
    capabilities=f53fbb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,TSO4,TSO6,LRO,WOL_UCAST,WOL_MCAST,WOL_MAGIC,VLAN_HWFILTER,VLAN_HWTSO,NETMAP,RXCSUM_IPV6,TXCSUM_IPV6>
    ether 90:ec:77:29:72:dc
    inet6 fe80::92ec:77ff:fe29:72dc%ix3 prefixlen 64 scopeid 0x8
    inet 38.X.X.X netmask 0xffffffc0 broadcast X.X.X.255
    inet X.X.X.220 netmask 0xffffffc0 broadcast X.X.X.255 vhid 12
    inet X.X.X.221 netmask 0xffffffc0 broadcast X.X.X.255 vhid 13
    inet X.X.X.230 netmask 0xffffffff broadcast X.X.X.230 vhid 15
    inet X.X.X.252 netmask 0xffffffff broadcast X.X.X.252 vhid 16
    inet X.X.X.247 netmask 0xffffffff broadcast X.X.X.247
    carp: MASTER vhid 12 advbase 1 advskew 0
    carp: MASTER vhid 13 advbase 1 advskew 0
    carp: MASTER vhid 15 advbase 1 advskew 0
    carp: MASTER vhid 16 advbase 1 advskew 0
    media: Ethernet autoselect (1000baseT <full-duplex>)
    status: active
    supported media:
    media autoselect
    media 10baseT/UTP
    media 100baseTX
    media 1000baseT
    nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
    [22.05-RELEASE][pfsense]/root: netstat -nI ix3
    Name Mtu Network Address Ipkts Ierrs Idrop Opkts Oerrs Coll
    ix3 1500 <Link#8> 90:ec:77:29:72:dc 212495372 4046 0 208132359 0 0
    ix3 - fe80::%ix3/64 fe80::92ec:77ff:f 0 - - 0 - -
    ix3 - X.X.X.192 38.X.X.X 89092625 - - 1677680 - -
    ix3 - X.X.X.192 X.X.X.220 0 - - 0 - -
    ix3 - X.X.X.192 X.X.X.221 0 - - 0 - -
    ix3 - X.X.X.230 X.X.X.230 0 - - 0 - -
    ix3 - X.X.X.252 X.X.X.252 0 - - 0 - -
    ix3 - X.X.X.247 X.X.X.247 0 - - 0 - -
    [22.05-RELEASE][pfsense]/root: sysctl dev.ix.3 | grep err
    dev.ix.3.mac_stats.checksum_errs: 4046
    dev.ix.3.mac_stats.rec_len_errs: 0
    dev.ix.3.mac_stats.byte_errs: 0
    dev.ix.3.mac_stats.ill_errs: 0
    dev.ix.3.mac_stats.crc_errs: 0
    dev.ix.3.mac_stats.rx_errs: 4046
    dev.ix.3.queue3.interrupt_rate: 31250
    dev.ix.3.queue2.interrupt_rate: 31250
    dev.ix.3.queue1.interrupt_rate: 31250
    dev.ix.3.queue0.interrupt_rate: 31250
    dev.ix.3.iflib.override_nrxds: 0
    dev.ix.3.iflib.override_ntxds: 0
    dev.ix.3.iflib.override_qs_enable: 0
    dev.ix.3.iflib.override_nrxqs: 0
    dev.ix.3.iflib.override_ntxqs: 0
    [22.05-RELEASE][pfsense]/root: sysctl dev.ix.3 | grep fc
    dev.ix.3.fc: 0
    [22.05-RELEASE][pfsense]/root: sysctl hw.ix
    hw.ix.enable_rss: 1
    hw.ix.enable_fdir: 0
    hw.ix.unsupported_sfp: 0
    hw.ix.enable_msix: 1
    hw.ix.advertise_speed: 0
    hw.ix.flow_control: 0
    hw.ix.max_interrupt_rate: 31250
    [22.05-RELEASE][pfsense]/root:


    [22.05-RELEASE][pfsense: /usr/bin/openssl engine -t -c
    (devcrypto) /dev/crypto engine
    [ available ]
    (rdrand) Intel RDRAND engine
    [RAND]
    [ available ]
    (dynamic) Dynamic engine loading support
    [ unavailable ]

    [22.05-RELEASE]pfsense: kldstat
    Id Refs Address Size Name
    1 30 0xffffffff80200000 3b03640 kernel
    2 2 0xffffffff83d04000 9870 opensolaris.ko
    3 1 0xffffffff83d0e000 39bde0 zfs.ko
    4 3 0xffffffff84321000 50e0 gpiobus.ko
    5 1 0xffffffff84327000 4a0 gpioled.ko
    6 1 0xffffffff84328000 12c0 cordbuc.ko
    7 1 0xffffffff8432a000 1010 cpuctl.ko
    8 1 0xffffffff8432c000 87a0 aesni.ko
    9 1 0xffffffff84335000 38a8 cryptodev.ko
    10 1 0xffffffff84339000 bf8 coretemp.ko

    this is my current openvpn settings that was migrated from SG-4860

    dev ovpns1
    disable-dco
    verb 3
    dev-type tun
    dev-node /dev/tun1
    writepid /var/run/openvpn_server1.pid
    #user nobody
    #group nobody
    script-security 3
    daemon
    keepalive 10 60
    ping-timer-rem
    persist-tun
    persist-key
    proto udp4
    auth SHA256
    up /usr/local/sbin/ovpn-linkup
    down /usr/local/sbin/ovpn-linkdown
    client-connect /usr/local/sbin/openvpn.attributes.sh
    client-disconnect /usr/local/sbin/openvpn.attributes.sh
    local X.X.X.194
    tls-server
    server 192.168.72.0 255.255.255.0
    client-config-dir /var/etc/openvpn/server1/csc
    username-as-common-name
    plugin /usr/local/lib/openvpn/plugins/openvpn-plugin-auth-script.so /usr/local/sbin/ovpn_auth_verify_async user TG9jYWwgRGF0YWJhc2U= true server1 1194
    tls-verify "/usr/local/sbin/ovpn_auth_verify tls 'X.X.X.194' 1"
    lport 1194
    management /var/etc/openvpn/server1/sock unix
    max-clients 100
    push "dhcp-option DOMAIN portfolioaid.local"
    push "dhcp-option DNS 192.168.69.5"
    push "dhcp-option DNS 192.168.69.8"
    push "dhcp-option DNS 172.20.20.1"
    push "dhcp-option DNS 185.228.168.112"
    push "block-outside-dns"
    push "register-dns"
    push "redirect-gateway def1"
    client-to-client
    capath /var/etc/openvpn/server1/ca
    cert /var/etc/openvpn/server1/cert
    key /var/etc/openvpn/server1/key
    dh /etc/dh-parameters.2048
    tls-auth /var/etc/openvpn/server1/tls-auth 0
    data-ciphers AES-256-CBC:AES-128-GCM
    data-ciphers-fallback AES-256-CBC
    allow-compression asym
    persist-remote-ip
    float
    topology subnet
    inactive 60
    reneg-sec 0

    on SG-4860 i was running on pfsense 2.4.5-p1 and it was great

    i do have 1Gbps symetric on my wan interface, even for speed test when connected to vpn i can almost reach 120/40 Mbps

    on the client side i tested 2 openvpn versions , 2.4.9 and 2.5.2 and same result.

    this is my client config
    dev tun
    persist-tun
    persist-key
    data-ciphers AES-256-CBC:AES-128-GCM
    data-ciphers-fallback AES-256-CBC
    auth SHA256
    tls-client
    client
    resolv-retry infinite
    remote X.X.X.194 1194 udp4
    nobind
    verify-x509-name "X.X.X.194" name
    auth-user-pass
    pkcs12 pfsense-UDP4-1194-khodorb.p12
    tls-auth pfsense-UDP4-1194-khodorb-tls.key 1
    remote-cert-tls server
    explicit-exit-notify
    verb 4

    i was checking states while connected to VPN and it shows established , i also checked the firewall for blocked traffic couldn't find any traffic being blocked for VPN, i don't know where to look, does anyone having problem with pfsense+ v 22.05 , do you guys recommand any stable version, any help would be highly appreciated .

    GertjanG 1 Reply Last reply Sep 20, 2022, 5:57 AM Reply Quote 1
    • GertjanG
      Gertjan @khodorb
      last edited by Sep 20, 2022, 5:57 AM

      @khodorb

      These bit errors are invalid checksums, and they are incoming.
      These means that between the upstream, sending device, and the receiving end, ix3, pfSense, something went electrically wrong.
      Check fist : the upstream device.
      The cable between the two devices.
      The plugs on both sides.
      You tried the ix2 ? I've one on my 4100, try that one.

      No "help me" PM's please. Use the forum, the community will thank you.
      Edit : and where are the logs ??

      K 1 Reply Last reply Sep 20, 2022, 1:36 PM Reply Quote 0
      • K
        khodorb @Gertjan
        last edited by Sep 20, 2022, 1:36 PM

        HI @gertjan
        Actually i have 2 6100 devices, so i tested the second device on ix3 and got the same in/out errors in wan,

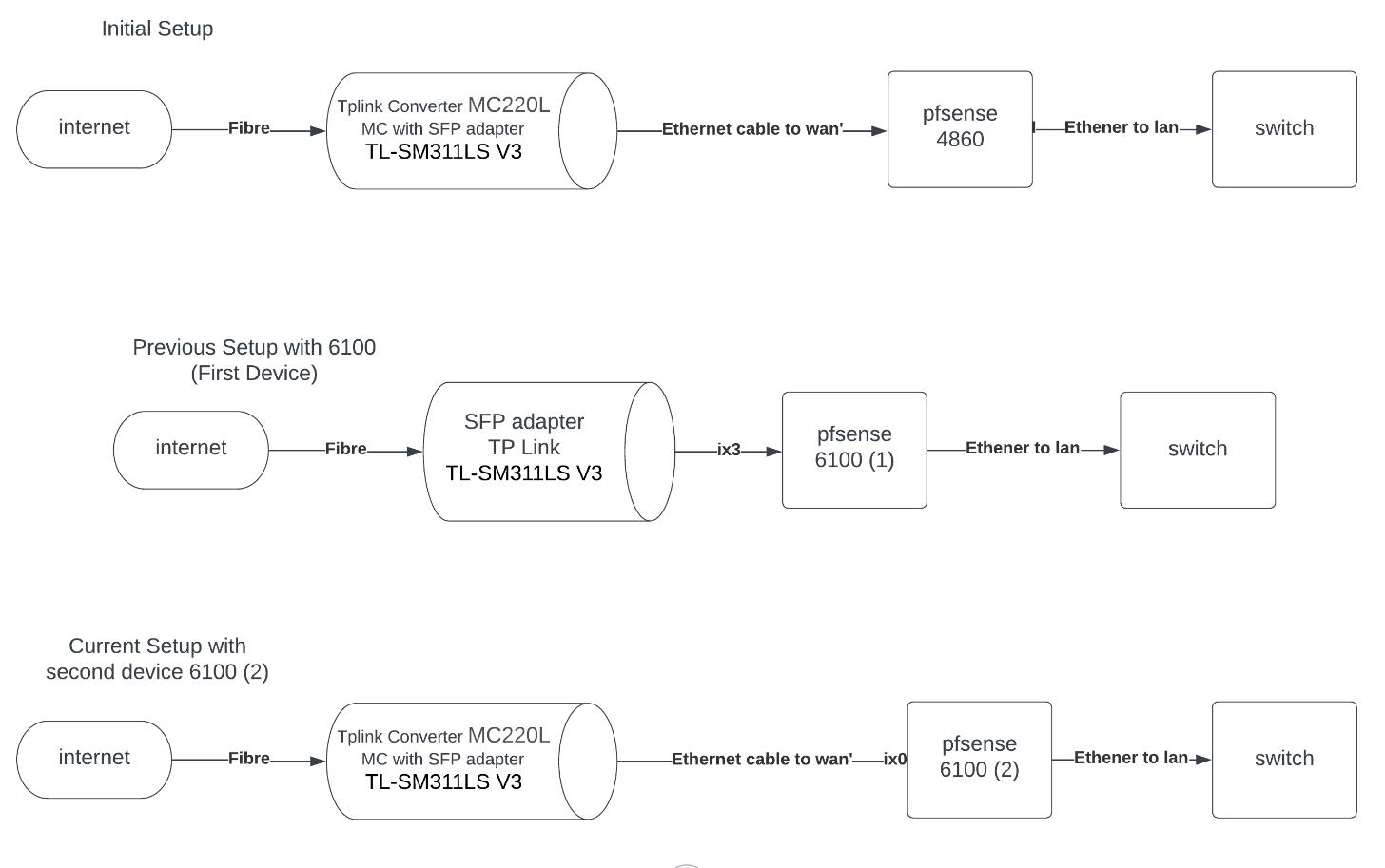

        this was my setup


        from my ISP i do have a fibre connection so when i was using the SG-4860 i was using a media converter and SFP adapter:

        -TP Link fibre to Ethernet converter: MC220L-Gigabit Ethernet Media Converter
        -TP Link SFP Module:TL-SM311LS(UN) VER3

        so i tried using the same converter and connect that via ethenet on ix3 i also got the errors also i connecte the SFP directly to ix3 i am still having errors ,

        I also asked my ISP for his configuration

        and he provided this :

        RP/0/RSP0/CPU0:nr11.b011027-3.yyz02#sh controllers Gi0/0/0/6 phy | i "x Power|Prod|Vend|avelength:"
        Wed Aug 31 02:17:09.487 UTC
        Vendor Name: OEM
        Vendor OUI: 00.00.00
        Vendor Part Number: SFP-GE-L-OEM (rev.: A )
        Laser wavelength: 1310 nm (fraction: 0.00 nm)
        Vendor Serial Number: FNS115001596
        Tx Power: 0.27820 mW (-5.55643 dBm)
        Rx Power: 0.17800 mW (-7.49580 dBm)
        Product Id: SFP-GE-L
        RP/0/RSP0/CPU0:nr11.b011027-3.yyz02#

        MTU 1514 bytes, BW 1000000 Kbit (Max: 1000000 Kbit)
        reliability 255/255, txload 1/255, rxload 0/255
        Encapsulation ARPA,
        Full-duplex, 1000Mb/s, LXFDX, link type is force-up
        output flow control is off, input flow control is off
        Carrier delay (up) is 10 msec
        loopback not set,
        Last link flapped 3d09h
        ARP type ARPA, ARP timeout 04:00:00
        Last input 00:00:00, output 00:00:00
        Last clearing of "show interface" counters never
        5 minute input rate 3101000 bits/sec, 639 packets/sec
        5 minute output rate 7139000 bits/sec, 966 packets/sec
        7415383853 packets input, 5216629641057 bytes, 20 total input drops
        0 drops for unrecognized upper-level protocol
        Received 3827 broadcast packets, 28629876 multicast packets
        0 runts, 0 giants, 0 throttles, 0 parity
        0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
        7585701185 packets output, 5082547726685 bytes, 25384 total output drops
        Output 67152672 broadcast packets, 46210 multicast packets
        0 output errors, 0 underruns, 0 applique, 0 resets
        0 output buffer failures, 0 output buffers swapped out
        15 carrier transitions

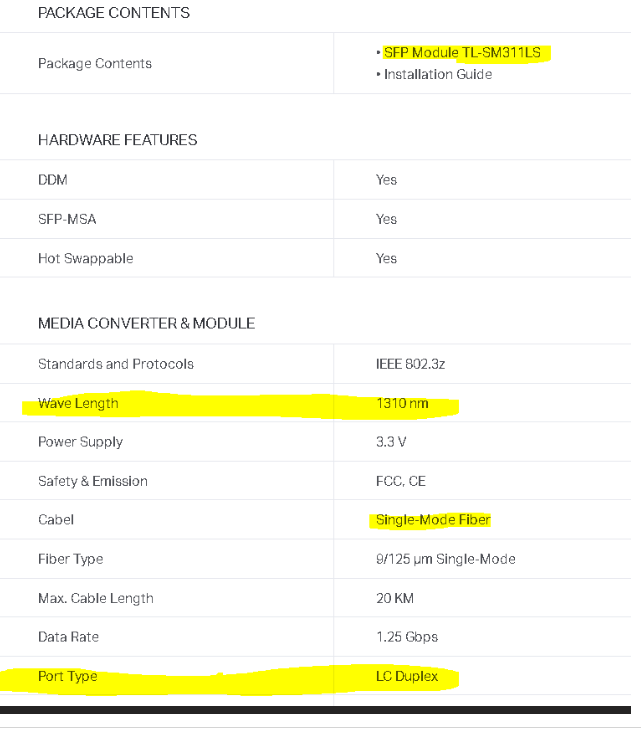

        when i looked online for the TP link SFP , i found this


        i am not too sure what is wrong here.

        K 1 Reply Last reply Sep 20, 2022, 2:04 PM Reply Quote 0
        • K
          khodorb @khodorb
          last edited by Sep 20, 2022, 2:04 PM

          Hi Guys, Any thougts here

          @stephenw10 , @jimp , @johnpoz

          M 1 Reply Last reply Sep 21, 2022, 1:24 PM Reply Quote 0
          • M
            marvosa @khodorb
            last edited by Sep 21, 2022, 1:24 PM

            @khodorb Admittedly, this is biased based on reputation, but the first thing I would do is replace anything with the TP-Link name on it.

            1 Reply Last reply Reply Quote 2
            • Alejo 0A
              Alejo 0
              last edited by Sep 21, 2022, 2:01 PM

              I have a similar setup with 2 x pfsense6100 using IPsec VPN but no TP Link and I have the same IN errors ("mac_stats.checksum_errs" output from sysctl dev.ix.3) on my ix3 interface. I wonder if this is related to a driver, cable or somewhere on the upstream area...

              Sorry I had no answers for you :(

              I will keep researching and will keep you posted if I find any solutions

              The darker the night, the brighter the stars.

              K 1 Reply Last reply Sep 21, 2022, 2:05 PM Reply Quote 1
              • K
                khodorb @Alejo 0
                last edited by Sep 21, 2022, 2:05 PM

                @alejo-0

                found thid article

                https://github.com/pfsense/FreeBSD-src/commit/5574b12aac2bdfe66ec1d9564f932eeec9ac213c

                it is a drive that reports more errors , but unfortunately i am not able to know where to look in my setup

                Alejo 0A 1 Reply Last reply Sep 21, 2022, 2:28 PM Reply Quote 2
                • Alejo 0A
                  Alejo 0 @khodorb
                  last edited by Alejo 0 Sep 22, 2022, 1:44 PM Sep 21, 2022, 2:28 PM

                  @khodorb

                  That's a Github commit on the source code. From what I can tell, they added a piece of code to show these errors(the ones we are seeing now on our setups).

                  Since this piece of code wasn't there before, the errors weren't visible but now they are. In other words, we should have seen this errors before version 21.02 but we are only seeing them now.

                  I found the same link on the pfsense's redmine dating from 7 months ago, where Jim Pingle states the same.

                  The darker the night, the brighter the stars.

                  1 Reply Last reply Reply Quote 1
