    gif0 does not come up after reboot

    Scheduled Pinned Locked Moved General pfSense Questions
    24 Posts 3 Posters 1.7k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • V
      vex
      last edited by vex

      Hi everyone!

      I switched from having my OpenWRT router setting up the PPPoE connection to my internet provider to having a pfSense virtual machine doing so.

      As my provider is using Dual-Stack Lite I need to set up a tunnel interface gif0 that tunnels all IPv4 packets through the IPv6 connection. The gif0 tunnel I am using for this is linked to interface 4IN6.

      The tunnel is working fine if I manually open the 4IN6 interface in the GUI, change nothing and click "Save" and "Apply changes". But it is not working after a reboot of the VM.

      This looks like some interface dependency to me. Does anybody know how I can get this issue solved?

      I am using pfSense 2.6.0-RELEASE (amd64).

      Regards

      1 Reply Last reply Reply Quote 0
      • stephenw10S
        stephenw10 Netgate Administrator
        last edited by

        Can we see how it's configured?

        Do you see anything the logs at boot showing it fail to connect? Any other errors?

        Steve

        V 1 Reply Last reply Reply Quote 0
        • V
          vex @stephenw10
          last edited by vex

          Hi!

          I've looked into the logs and this is what comes up during boot:

          Oct 19 07:48:27 	php 	458 	rc.bootup: The command '/sbin/ifconfig 'gif0' description '4IN6'' returned exit code '1', the output was 'ifconfig: interface gif0 does not exist'

          When I go into the interface after the boot process and save and apply changes, the interface comes up:

          Oct 19 07:53:10 	kernel 		gif0: link state changed to UP

          This is the current configuration I have on that interface:

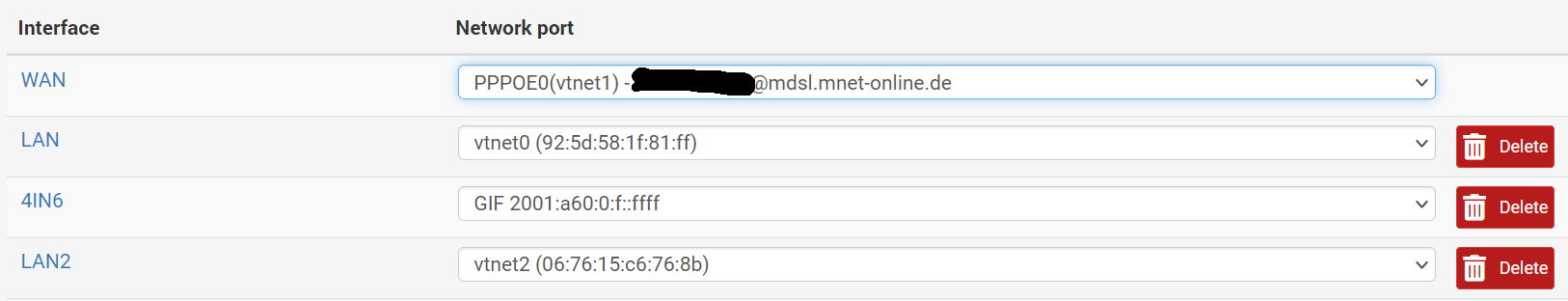

          If config 001.png

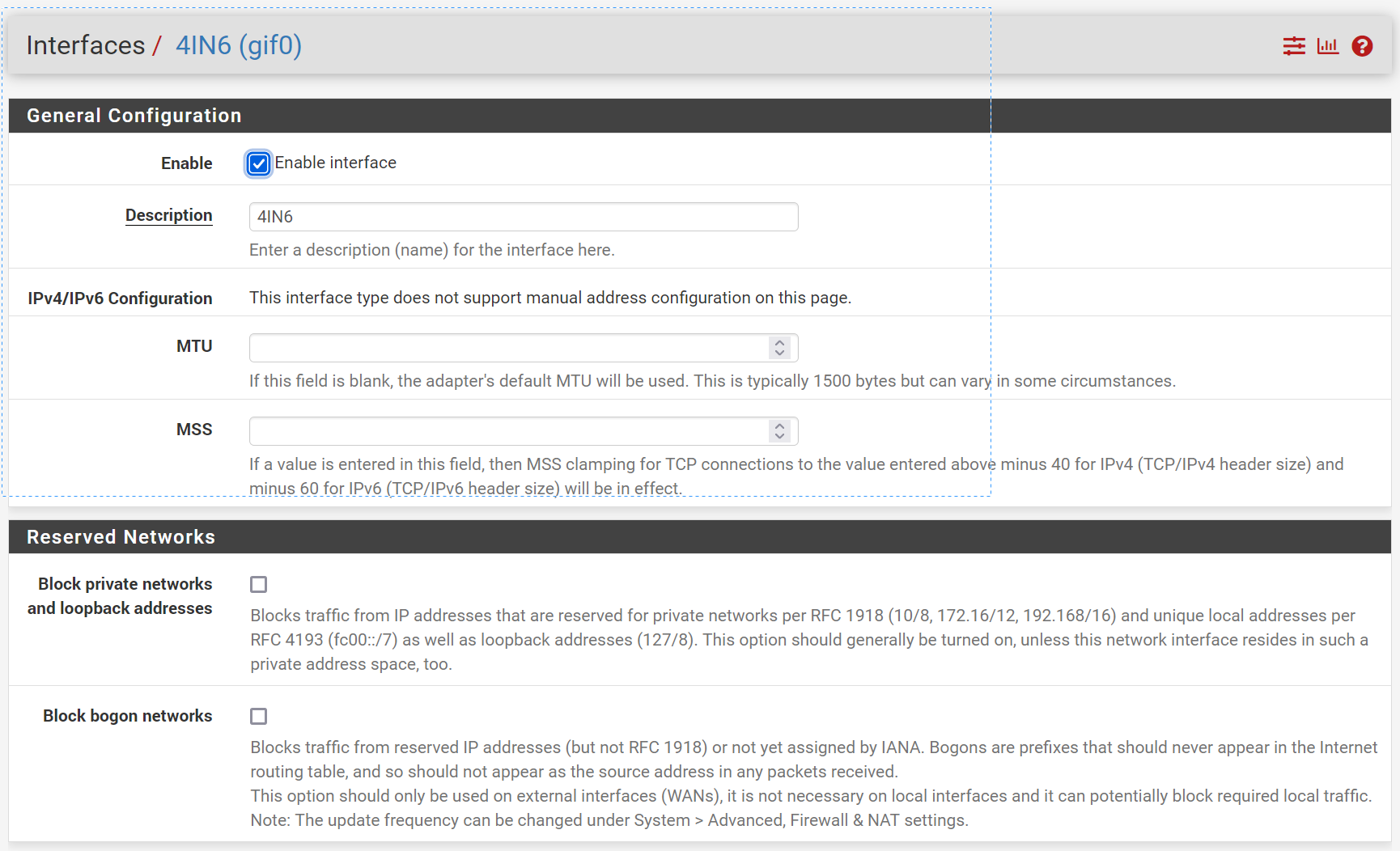

          If config 002.png

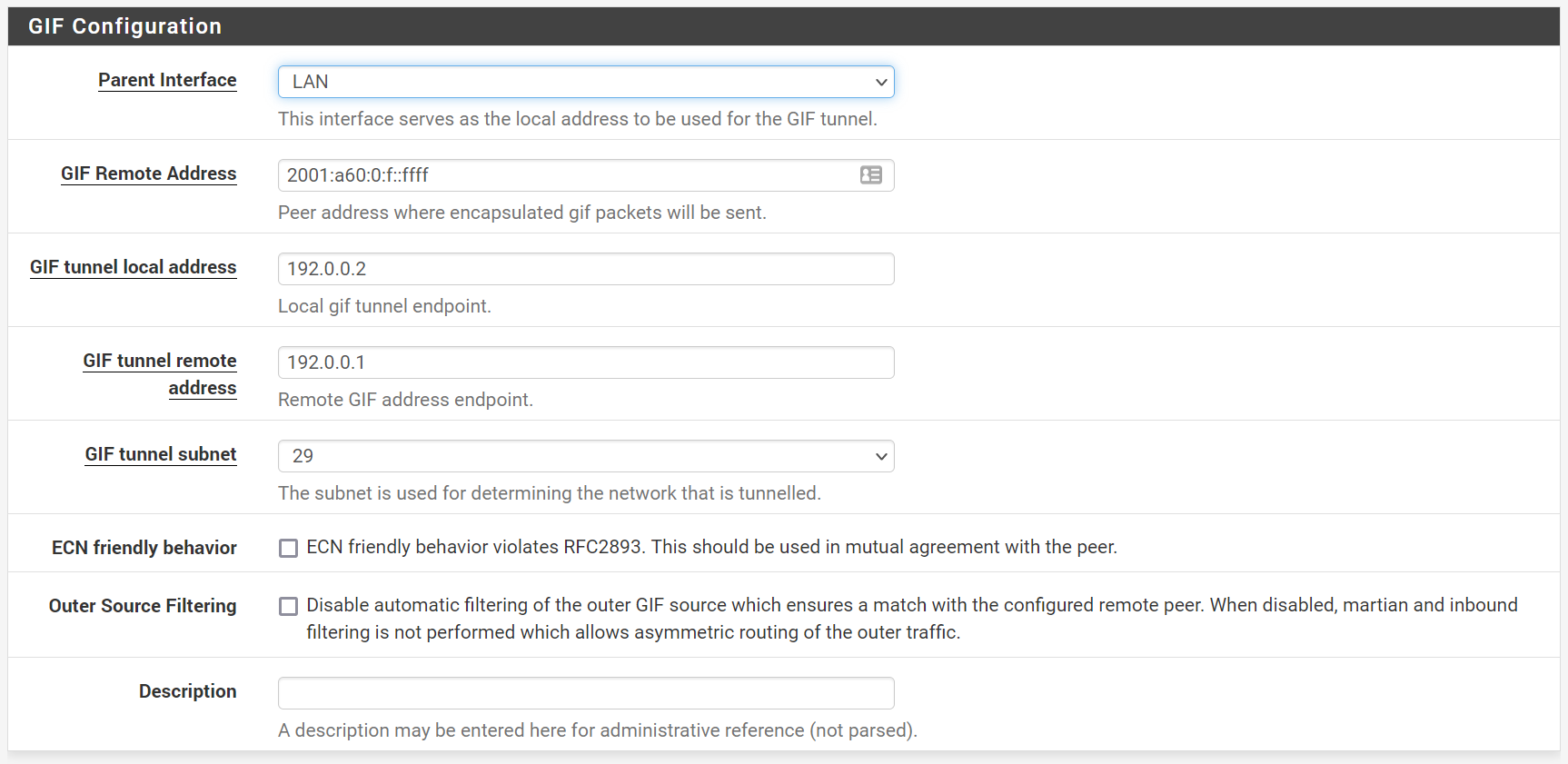

          If config 003.png

          Kind regards

          GertjanG 1 Reply Last reply Reply Quote 0
          • GertjanG
            Gertjan @vex
            last edited by

            @vex

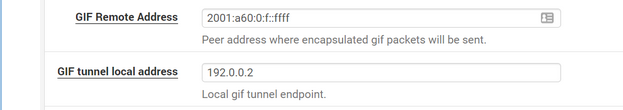

            This looks strange (to me) :


            and


            A GIF tunnels IPv6 over a IPv4 link.
            The GIF Remote address should be IPv4 - not IPv6.
            A tunnel can't have a IPv4 on one side, and a IPv6 on the other ....

            Or are you tunnelling IPv4 over a IPv6 ?

            No "help me" PM's please. Use the forum, the community will thank you.
            Edit : and where are the logs ??

            V 1 Reply Last reply Reply Quote 0
            • V
              vex @Gertjan
              last edited by

              @gertjan Yes, I am tunneling IPv4 over the IPv6 link. If I don‘t use the gif0 tunnel, the IPv4 internet is non-existent for me, but IPv6 works fine.

              GertjanG 1 Reply Last reply Reply Quote 0
              • GertjanG
                Gertjan @vex
                last edited by Gertjan

                @vex

                Then check the subnet, you've set "29"
                Or, if you use an IPv4 as tunnel local and remote address being IPv4, the "25" is strange.
                It could be 24 at max.

                Something like 192.0.0.1/29 is weird.

                edit : more weird, but something of the future ; you have an IPv6, and need to use GIF to get : an IPv4 .... so, right now, if that doesn't work, you only have IPv6 an no IPv4 : isn't 75 % of "all internet" now inaccessible to you ? More ? Less ?

                No "help me" PM's please. Use the forum, the community will thank you.
                Edit : and where are the logs ??

                V 1 Reply Last reply Reply Quote 0
                • V
                  vex @Gertjan
                  last edited by

                  @gertjan What I do seems to be standard for Dual-Stack-Lite setups RFC8585. This tunnels IPv4 packets in an IPv6 connection to an CG-NAT or AFTR element, which in turn unpacks the precious IPv4 contents.

                  The tunneling addresses and netmasks are defined in RFC6333.

                  My AFTR address is equal to the GIF Remote Address.

                  As I've mentioned earlier in my post: everything is working perfectly after I a click into the gif0 Interface, click "Save" and "Apply changes" (although I haven't changed anything in the interface). My only problem is that the connection does not come up automatically after a reboot of pfSense.

                  GertjanG 1 Reply Last reply Reply Quote 0
                  • GertjanG
                    Gertjan @vex
                    last edited by

                    @vex said in gif0 does not come up after reboot:

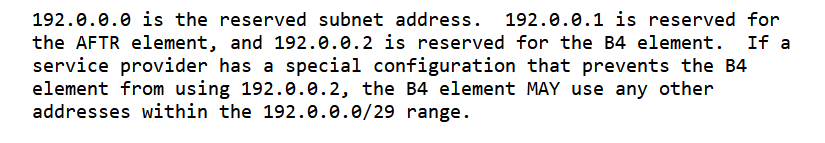

                    The tunneling addresses and netmasks are defined in RFC6333.

                    Saw that :


                    I guess I'm learning something new here.

                    @vex said in gif0 does not come up after reboot:

                    working perfectly after

                    Like : I'm thinking out loud :
                    The GIF tunnel is started before the pppoe connections comes up.
                    So it fails.
                    When you re apply the GIF, it works, as your pppoe connection is up now.

                    Did you look at the logs - the main system log but also the others, where the pppoe connections creation is logged ? And if there are traces of the GIF being created and fails ?
                    And when is what created ? The chronology of the events.
                    And where it manages to connect ?

                    No "help me" PM's please. Use the forum, the community will thank you.
                    Edit : and where are the logs ??

                    1 Reply Last reply Reply Quote 0
                    • stephenw10S
                      stephenw10 Netgate Administrator
                      last edited by

                      Is your LAN set to track WAN for it's IPv6 prefix?

                      If so that might explain it. The PPPoE link will not come up immediately.

                      Why are you using LAN there and not WAN as the parent interface?

                      Steve

                      1 Reply Last reply Reply Quote 0
                      • V
                        vex
                        last edited by vex

                        I wanted and I tried to set WAN as parent because it’s only logical, but that‘s barking at me with an error (creating interface). I can only set a LAN as parent during creation. But yeah, that‘s explaining the issue. Changing the parent after creating the gif is also not possible.

                        1 Reply Last reply Reply Quote 0
                        • stephenw10S
                          stephenw10 Netgate Administrator
                          last edited by

                          Mmm, appears to be the rather unhelpful:

                          The following input errors were detected:

    Error occurred creating interface, please retry.

                          Let me test....

                          V 1 Reply Last reply Reply Quote 0
                          • V
                            vex @stephenw10
                            last edited by

                            @stephenw10 Exactly this error.. :)

                            1 Reply Last reply Reply Quote 0
                            • stephenw10S
                              stephenw10 Netgate Administrator
                              last edited by

                              Ok, that error is shown if the PPPoE interface is not up at the time. It wasn't on my test box. But I can create a GIF tunnel on a PPPoE interface as long as it's connected and has an IP at that time. And it does then re-establish at boot.
                              However I tested here with IPv4, it's possible it will refuse to allow a tunnel with a remote IPv6 address even if the PPPoE interface has one. I assume that's the situation you're in?
                              It's possible your ISP only provides a prefix and the WAN doesn't get a routable v6 IP.

                              Also I'm testing between local machines which mean the PPP connection estblishes almost instantly at boot so it's possible there is a timing issue. I don't think that is the case though because the GIF tunnel doesn't attempt to establish until the PPPoE is up because it's parent interface is down. The way you have it setup LAN appears to be up to it tries and fails.

                              What does appear to be a possible bug is that the LAN interface gets a new IP address when the PPPoE comes up and it can track the prefix. But that doesn't trigger the GIF tunnel to restart.
                              However there are a number of features missing from dynamic IPv6. This is probably one of them.

                              Anyway I would retry to create the GIF on WAN directly. At least that might give us a different error. I can't easily test an IPv6 PPPoE connection here.

                              Steve

                              V 2 Replies Last reply Reply Quote 0
                              • V
                                vex @stephenw10
                                last edited by

                                @stephenw10 Hi Stephen, you're right. The PPPoE interface does not get a routeable address. ifconfig shows:

                                [2.6.0-RELEASE][admin@pfSense.lan]/root: ifconfig
vtnet0: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
        description: LAN
        options=800b8<VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,LINKSTATE>
        ether 92:5d:58:1f:81:ff
        inet6 fe80::905d:58ff:fe1f:81ff%vtnet0 prefixlen 64 scopeid 0x1
        inet6 fe80::1:1%vtnet0 prefixlen 64 duplicated scopeid 0x1
        inet6 2001:a62:5a5:5400:905d:58ff:fe1f:81ff prefixlen 64
        inet 10.100.198.2 netmask 0xffffff00 broadcast 10.100.198.255
        media: Ethernet 10Gbase-T <full-duplex>
        status: active
        nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
vtnet1: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
        options=800b8<VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,LINKSTATE>
        ether 46:24:0c:f0:9e:d1
        inet6 fe80::4424:cff:fef0:9ed1%vtnet1 prefixlen 64 scopeid 0x2
        media: Ethernet 10Gbase-T <full-duplex>
        status: active
        nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
vtnet2: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
        description: LAN2
        options=800b8<VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,LINKSTATE>
        ether 06:76:15:c6:76:8b
        inet6 fe80::476:15ff:fec6:768b%vtnet2 prefixlen 64 scopeid 0x3
        inet6 fe80::1:1%vtnet2 prefixlen 64 scopeid 0x3
        inet6 2001:a62:5a5:5401:476:15ff:fec6:768b prefixlen 64
        inet 10.100.100.1 netmask 0xffffff00 broadcast 10.100.100.255
        media: Ethernet 10Gbase-T <full-duplex>
        status: active
        nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
enc0: flags=0<> metric 0 mtu 1536
        groups: enc
        nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> metric 0 mtu 16384
        options=680003<RXCSUM,TXCSUM,LINKSTATE,RXCSUM_IPV6,TXCSUM_IPV6>
        inet6 ::1 prefixlen 128
        inet6 fe80::1%lo0 prefixlen 64 scopeid 0x5
        inet 127.0.0.1 netmask 0xff000000
        groups: lo
        nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
pflog0: flags=100<PROMISC> metric 0 mtu 33160
        groups: pflog
pfsync0: flags=0<> metric 0 mtu 1500
        groups: pfsync
pppoe0: flags=88d1<UP,POINTOPOINT,RUNNING,NOARP,SIMPLEX,MULTICAST> metric 0 mtu 1492
        description: WAN
        inet6 fe80::905d:58ff:fe1f:81ff%pppoe0 prefixlen 64 scopeid 0x8
        nd6 options=23<PERFORMNUD,ACCEPT_RTADV,AUTO_LINKLOCAL>
gif0: flags=8051<UP,POINTOPOINT,RUNNING,MULTICAST> metric 0 mtu 1280
        description: 4IN6
        options=80000<LINKSTATE>
        tunnel inet6 2001:a62:5a5:5400:905d:58ff:fe1f:81ff --> 2001:a60:0:1::ffff
        inet 192.0.0.2 --> 192.0.0.1 netmask 0xfffffff8
        inet6 fe80::8c91:4795:5f5f:cd3e%gif0 prefixlen 64 scopeid 0x9
        groups: gif
        nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>

                                I did try to set up new gif interfaces to no avail. Getting the same error as you all over again. Thank you for diving into this and helping me. This is very much appreciated.

                                Regards
                                Alex

                                1 Reply Last reply Reply Quote 0
                                • V
                                  vex @stephenw10
                                  last edited by vex

                                  @stephenw10 I managed to create a second gif while the first one was still down. Setting the parent interface to WAN worked this way.

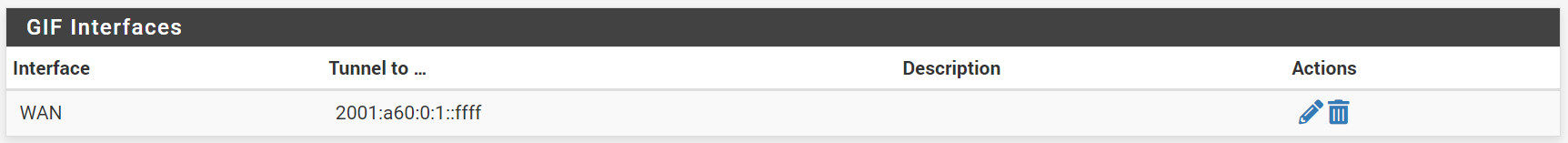

                                  2022-10-21 17 38 18.png
                                  Unfortunately, the interface still doesn't come up during boot and even more unfortunate is that the IPv4 routing does not work if I use WAN as parent interface. It shows as up, but the tunnel does not work.

                                  dmesg shows

                                  lo0: link state changed to UP
vtnet0: link state changed to UP
vtnet2: link state changed to UP
vtnet1: link state changed to UP
ng0: changing name to 'pppoe0'
vtnet0: DAD detected duplicate IPv6 address fe80:1::1:1: NS in/out/loopback=1/1/0, NA in=0
vtnet0: DAD complete for fe80:1::1:1 - duplicate found
vtnet0: manual intervention required
ng_pppoe[12]: no matching session
pflog0: promiscuous mode enabled

                                  and ifconfig

                                  [2.6.0-RELEASE][admin@pfSense.lan]/root: ifconfig
vtnet0: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
        description: LAN
        options=800b8<VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,LINKSTATE>
        ether 92:5d:58:1f:81:ff
        inet6 fe80::905d:58ff:fe1f:81ff%vtnet0 prefixlen 64 scopeid 0x1
        inet6 fe80::1:1%vtnet0 prefixlen 64 duplicated scopeid 0x1
        inet6 2001:a62:5a5:a400:905d:58ff:fe1f:81ff prefixlen 64
        inet 10.100.198.2 netmask 0xffffff00 broadcast 10.100.198.255
        media: Ethernet 10Gbase-T <full-duplex>
        status: active
        nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
vtnet1: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
        options=800b8<VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,LINKSTATE>
        ether 46:24:0c:f0:9e:d1
        inet6 fe80::4424:cff:fef0:9ed1%vtnet1 prefixlen 64 scopeid 0x2
        media: Ethernet 10Gbase-T <full-duplex>
        status: active
        nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
vtnet2: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
        description: LAN2
        options=800b8<VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,LINKSTATE>
        ether 06:76:15:c6:76:8b
        inet6 fe80::476:15ff:fec6:768b%vtnet2 prefixlen 64 scopeid 0x3
        inet6 fe80::1:1%vtnet2 prefixlen 64 scopeid 0x3
        inet6 2001:a62:5a5:a401:476:15ff:fec6:768b prefixlen 64
        inet 10.100.100.1 netmask 0xffffff00 broadcast 10.100.100.255
        media: Ethernet 10Gbase-T <full-duplex>
        status: active
        nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
enc0: flags=0<> metric 0 mtu 1536
        groups: enc
        nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> metric 0 mtu 16384
        options=680003<RXCSUM,TXCSUM,LINKSTATE,RXCSUM_IPV6,TXCSUM_IPV6>
        inet6 ::1 prefixlen 128
        inet6 fe80::1%lo0 prefixlen 64 scopeid 0x5
        inet 127.0.0.1 netmask 0xff000000
        groups: lo
        nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
pflog0: flags=100<PROMISC> metric 0 mtu 33160
        groups: pflog
pfsync0: flags=0<> metric 0 mtu 1500
        groups: pfsync
pppoe0: flags=88d1<UP,POINTOPOINT,RUNNING,NOARP,SIMPLEX,MULTICAST> metric 0 mtu 1492
        description: WAN
        inet6 fe80::905d:58ff:fe1f:81ff%pppoe0 prefixlen 64 scopeid 0x8
        nd6 options=23<PERFORMNUD,ACCEPT_RTADV,AUTO_LINKLOCAL>

                                  Don't know where to find logs of gif creation at boot time.

                                  1 Reply Last reply Reply Quote 0
                                  • stephenw10S
                                    stephenw10 Netgate Administrator
                                    last edited by

                                    If you have just rebooted it should be in the main system log when it tries to bring up the tunnel.

                                    Does that new tunnel come up if you restart after booting? Despite having no routable IPv6 address on WAN?

                                    Do the PPP logs look like it's trying to pass a v6 IP to the WAN as well as a prefix?

                                    Steve

                                    V 1 Reply Last reply Reply Quote 0
                                    • V
                                      vex @stephenw10
                                      last edited by vex

                                      Hi Stephen,

                                      the following is a log excerpt that I am getting after a reboot:

                                      Oct 22 20:20:19 	check_reload_status 	442 	Syncing firewall
Oct 22 20:20:19 	php-fpm 	414 	/interfaces.php: Configuration Change: admin@2001:a62:5ae:de00:cddc:d09:b164:5252 (Local Database): Interfaces settings changed
Oct 22 20:20:15 	php-fpm 	414 	/index.php: Successful login for user 'admin' from: 2001:a62:5ae:de00:cddc:d09:b164:5252 (Local Database)
Oct 22 20:19:59 	sshguard 	9283 	Now monitoring attacks.
Oct 22 20:19:59 	login 	7620 	login on ttyv0 as root
Oct 22 20:19:57 	root 	76381 	Bootup complete
Oct 22 20:19:57 	php-fpm 	414 	/rc.start_packages: Restarting/Starting all packages.
Oct 22 20:19:57 	kernel 		done.
Oct 22 20:19:57 	syslogd 		kernel boot file is /boot/kernel/kernel
Oct 22 20:19:56 	syslogd 		exiting on signal 15
Oct 22 20:19:56 	kernel 		done.
Oct 22 20:19:56 	php 	458 	rc.bootup: Creating rrd update script
Oct 22 20:19:52 	kernel 		.....done.
Oct 22 20:19:52 	php 	458 	rc.bootup: The command '/usr/local/sbin/strongswanrc stop' returned exit code '1', the output was 'strongswan not running? (check /var/run/daemon-charon.pid).'
Oct 22 20:19:52 	check_reload_status 	442 	Updating all dyndns
Oct 22 20:19:52 	kernel 		done.
Oct 22 20:19:52 	kernel 		done.
Oct 22 20:19:51 	kernel 		done.
Oct 22 20:19:51 	kernel 		done.
Oct 22 20:19:50 	php 	458 	rc.bootup: NTPD is starting up.
Oct 22 20:19:50 	kernel 		done.
Oct 22 20:19:50 	php 	458 	rc.bootup: The command '/usr/bin/timeout -k 45 30 /usr/local/sbin/ntpd -g -q -c /dev/null 216.239.35.0 216.239.35.4 216.239.35.8 216.239.35.12' returned exit code '124', the output was '22 Oct 20:19:20 ntpd[96989]: ntpd 4.2.8p15@1.3728-o Wed Jan 12 15:39:52 UTC 2022 (1): Starting 22 Oct 20:19:20 ntpd[96989]: Command line: /usr/local/sbin/ntpd -g -q -c /dev/null 216.239.35.0 216.239.35.4 216.239.35.8 216.239.35.12 22 Oct 20:19:20 ntpd[96989]: ---------------------------------------------------- 22 Oct 20:19:20 ntpd[96989]: ntp-4 is maintained by Network Time Foundation, 22 Oct 20:19:20 ntpd[96989]: Inc. (NTF), a non-profit 501(c)(3) public-benefit 22 Oct 20:19:20 ntpd[96989]: corporation. Support and training for ntp-4 are 22 Oct 20:19:20 ntpd[96989]: available at https://www.nwtime.org/support 22 Oct 20:19:20 ntpd[96989]: ---------------------------------------------------- 22 Oct 20:19:20 ntpd[96989]: proto: precision = 0.121 usec (-23) 22 Oct 20:19:20 ntpd[96989]: line 0 column 0 syntax error, unexpected $end 22 Oct 20:19:20 ntpd[96989]: basedate set to 2021-12-31 22 Oct 20:19:20 ntpd[96989]: gps base set to 2022-01-02 (week 2191) 22 Oct 20:19:20 ntpd[96989]: Listen and drop on 0 v6wildcard [::]:123 22 Oct 20:19:20 ntpd[96989]: Listen and drop on 1 v4wildcard 0.0.0.0:123 22 Oct 20:19:20 ntpd[96989]: Listen normally on 2 vtnet0 [fe80::905d:58ff:fe1f:81ff%1]:123 22 Oct 20:19:20 ntpd[96989]: Listen normally on 3 vtnet0 10.100.198.2:123 22 Oct 20:19:20 ntpd[96989]: Listen normally on 4 vtnet0 [fe80::1:1%1]:123 22 Oct 20:19:20 ntpd[96989]: Listen normally on 5 vtnet0 [2001:a62:5ae:de00:905d:58ff:fe1f:81ff]:123 22 Oct 20:19:20 ntpd[96989]: Listen normally on 6 vtnet1 [fe80::4424:cff:fef0:9ed1%2]:123 22 Oct 20:19:20 ntpd[96989]: Listen normally on 7 vtnet2 [fe80::476:15ff:fec6:768b%3]:123 22 Oct 20:19:20 ntpd[96989]: Listen normally on 8 lo0 [::1]:123 22 Oct 20:19:20 ntpd[96989]: Listen normally on 9 lo0 [fe80::1%5]:123 22 Oct 20:19:20 ntpd[96989]: Listen
Oct 22 20:19:20 	kernel 		done.
Oct 22 20:19:20 	kernel 		done.
Oct 22 20:19:20 	php 	458 	rc.bootup: sync unbound done.
Oct 22 20:19:19 	php-fpm 	413 	/rc.newwanipv6: Gateway, NONE AVAILABLE
Oct 22 20:19:18 	php 	458 	rc.bootup: dhcp6 init complete. Continuing
Oct 22 20:19:18 	php-fpm 	414 	/rc.newwanipv6: Gateway, NONE AVAILABLE
Oct 22 20:19:18 	php-fpm 	414 	/rc.newwanipv6: dpinger: status socket /var/run/dpinger_WAN_DHCP6~fe80::905d:58ff:fe1f:81ff%pppoe0~fe80::2cc:34ff:fe44:b067%pppoe0.sock not found
Oct 22 20:19:18 	php-fpm 	413 	/rc.newwanipv6: rc.newwanipv6: on (IP address: fe80::905d:58ff:fe1f:81ff%pppoe0) (interface: wan) (real interface: pppoe0).
Oct 22 20:19:18 	php-fpm 	413 	/rc.newwanipv6: rc.newwanipv6: Info: starting on pppoe0.
Oct 22 20:19:18 	php-fpm 	414 	/rc.newwanipv6: rc.newwanipv6: on (IP address: fe80::905d:58ff:fe1f:81ff%pppoe0) (interface: wan) (real interface: pppoe0).
Oct 22 20:19:18 	php-fpm 	414 	/rc.newwanipv6: rc.newwanipv6: Info: starting on pppoe0.
Oct 22 20:19:17 	kernel 		done.
Oct 22 20:19:17 	php 	458 	rc.bootup: Unbound start waiting on dhcp6c.
Oct 22 20:19:17 	php 	458 	rc.bootup: Gateway, NONE AVAILABLE
Oct 22 20:19:17 	ppp 	10808 	[wan] IFACE: Add description "WAN"
Oct 22 20:19:17 	ppp 	10808 	[wan] IFACE: Rename interface ng0 to pppoe0
Oct 22 20:19:17 	ppp 	10808 	[wan] IFACE: Up event
Oct 22 20:19:17 	check_reload_status 	442 	rc.newwanipv6 starting pppoe0
Oct 22 20:19:16 	kernel 		pflog0: promiscuous mode enabled
Oct 22 20:19:16 	kernel 		done.
Oct 22 20:19:16 	php 	458 	rc.bootup: Resyncing OpenVPN instances.
Oct 22 20:19:16 	php 	458 	rc.bootup: calling interface_dhcpv6_configure.
Oct 22 20:19:16 	rtsold 	17891 	Starting dhcp6 client for interface wan(pppoe0)
Oct 22 20:19:16 	rtsold 	17366 	Received RA specifying route fe80::2cc:34ff:fe44:b067 for interface wan(pppoe0)
Oct 22 20:19:16 	check_reload_status 	442 	Rewriting resolv.conf
Oct 22 20:19:16 	kernel 		ng_pppoe[12]: no matching session
Oct 22 20:19:14 	sshguard 	13592 	Now monitoring attacks.
Oct 22 20:19:14 	sshd 	12982 	Server listening on 0.0.0.0 port 22.
Oct 22 20:19:14 	sshd 	12982 	Server listening on :: port 22.
Oct 22 20:19:14 	php 	11645 	/usr/local/sbin/ppp-ipv6: Starting rtsold process
Oct 22 20:19:14 	php 	11645 	/usr/local/sbin/ppp-ipv6: Accept router advertisements on interface pppoe0
Oct 22 20:19:14 	ppp 	10808 	[wan] 905d:58ff:fe1f:81ff -> 02cc:34ff:fe44:b067
Oct 22 20:19:14 	ppp 	10808 	[wan] IPV6CP: LayerUp
Oct 22 20:19:14 	ppp 	10808 	[wan] IPV6CP: state change Ack-Sent --> Opened
Oct 22 20:19:14 	ppp 	10808 	[wan] IPV6CP: rec'd Configure Ack #1 (Ack-Sent)
Oct 22 20:19:14 	ppp 	10808 	[wan] IPV6CP: state change Req-Sent --> Ack-Sent
Oct 22 20:19:14 	ppp 	10808 	[wan] IPV6CP: SendConfigAck #218
Oct 22 20:19:14 	ppp 	10808 	[wan] IPV6CP: rec'd Configure Request #218 (Req-Sent)
Oct 22 20:19:14 	ppp 	10808 	[wan] IPCP: LayerFinish
Oct 22 20:19:14 	ppp 	10808 	[wan] IPCP: state change Req-Sent --> Stopped
Oct 22 20:19:14 	ppp 	10808 	[wan] IPCP: protocol was rejected by peer
Oct 22 20:19:14 	ppp 	10808 	[wan_link0] LCP: protocol IPCP was rejected
Oct 22 20:19:14 	ppp 	10808 	[wan_link0] LCP: rec'd Protocol Reject #12 (Opened)
Oct 22 20:19:14 	ppp 	10808 	[wan] IPV6CP: SendConfigReq #1
Oct 22 20:19:14 	ppp 	10808 	[wan] IPV6CP: state change Starting --> Req-Sent
Oct 22 20:19:14 	ppp 	10808 	[wan] IPV6CP: Up event
Oct 22 20:19:14 	ppp 	10808 	[wan] SECDNS 0.0.0.0
Oct 22 20:19:14 	ppp 	10808 	[wan] PRIDNS 0.0.0.0
Oct 22 20:19:14 	ppp 	10808 	[wan] COMPPROTO VJCOMP, 16 comp. channels, no comp-cid
Oct 22 20:19:14 	ppp 	10808 	[wan] IPADDR 0.0.0.0
Oct 22 20:19:14 	ppp 	10808 	[wan] IPCP: SendConfigReq #1
Oct 22 20:19:14 	ppp 	10808 	[wan] IPCP: state change Starting --> Req-Sent
Oct 22 20:19:14 	ppp 	10808 	[wan] IPCP: Up event
Oct 22 20:19:14 	ppp 	10808 	[wan] IPV6CP: LayerStart
Oct 22 20:19:14 	ppp 	10808 	[wan] IPV6CP: state change Initial --> Starting
Oct 22 20:19:14 	ppp 	10808 	[wan] IPV6CP: Open event
Oct 22 20:19:14 	ppp 	10808 	[wan] IPCP: LayerStart
Oct 22 20:19:14 	ppp 	10808 	[wan] IPCP: state change Initial --> Starting
Oct 22 20:19:14 	ppp 	10808 	[wan] IPCP: Open event
Oct 22 20:19:14 	ppp 	10808 	[wan] Bundle: Status update: up 1 link, total bandwidth 64000 bps
Oct 22 20:19:14 	ppp 	10808 	[wan_link0] Link: Join bundle "wan"
Oct 22 20:19:14 	ppp 	10808 	[wan_link0] Link: Matched action 'bundle "wan" ""'
Oct 22 20:19:14 	ppp 	10808 	[wan_link0] LCP: authorization successful
Oct 22 20:19:14 	ppp 	10808 	[wan_link0] CHAP: rec'd SUCCESS #114 len: 4
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] CHAP: sending RESPONSE #114 len: 51
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] CHAP: Using authname "XXXXXXXXXXXX@mdsl.mnet-online.de"
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] Name: "ac3.nue2"
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] CHAP: rec'd CHALLENGE #114 len: 36
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] LCP: LayerUp
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] LCP: auth: peer wants CHAP, I want nothing
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] LCP: state change Ack-Sent --> Opened
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] MAGICNUM 0xd716b7a0
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] MRU 1492
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] PROTOCOMP
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] LCP: rec'd Configure Ack #1 (Ack-Sent)
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] LCP: state change Req-Sent --> Ack-Sent
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] MAGICNUM 0x7162e1bf
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] AUTHPROTO CHAP MD5
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] MRU 1492
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] LCP: SendConfigAck #11
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] MAGICNUM 0x7162e1bf
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] AUTHPROTO CHAP MD5
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] MRU 1492
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] LCP: rec'd Configure Request #11 (Req-Sent)
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] MAGICNUM 0xd716b7a0
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] MRU 1492
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] PROTOCOMP
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] LCP: SendConfigReq #1
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] LCP: state change Starting --> Req-Sent
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] LCP: Up event
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] Link: UP event
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] PPPoE: connection successful
Oct 22 20:19:13 	ppp 	10808 	PPPoE: rec'd ACNAME "ac3.nue2"
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] PPPoE: Connecting to ''
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] LCP: LayerStart
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] LCP: state change Initial --> Starting
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] LCP: Open event
Oct 22 20:19:13 	kernel 		ng0: changing name to 'pppoe0'
Oct 22 20:19:13 	ppp 	10808 	[wan_link0] Link: OPEN event
Oct 22 20:19:13 	ppp 	10808 	[wan] Bundle: Interface ng0 created
Oct 22 20:19:13 	ppp 	10808 	web: web is not running
Oct 22 20:19:13 	ppp 	10808 	process 10808 started, version 5.9
Oct 22 20:19:13 	ppp 	10808 	Multi-link PPP daemon for FreeBSD
Oct 22 20:19:13 	kernel 		vtnet2: link state changed to UP
Oct 22 20:19:13 	check_reload_status 	442 	Linkup starting vtnet2
Oct 22 20:19:13 	kernel 		vtnet1: link state changed to UP
Oct 22 20:19:13 	kernel 		done.
Oct 22 20:19:13 	check_reload_status 	442 	Linkup starting vtnet1
Oct 22 20:19:13 	php 	458 	rc.bootup: The command '/sbin/ifconfig 'gif0' description '4IN6'' returned exit code '1', the output was 'ifconfig: interface gif0 does not exist'
Oct 22 20:19:13 	kernel 		vtnet0: link state changed to UP
Oct 22 20:19:13 	check_reload_status 	442 	Linkup starting vtnet0
Oct 22 20:19:13 	kernel 		lo0: link state changed to UP

                                      4IN6 (gif0) tunnel does not come up with the reboot. If I now manually do the "Save"/"Apply changes"-Wizardry, the gif0 comes up and the logs show:

                                      Oct 22 20:26:43 	check_reload_status 	442 	Reloading filter
Oct 22 20:26:43 	check_reload_status 	442 	Restarting OpenVPN tunnels/interfaces
Oct 22 20:26:43 	check_reload_status 	442 	Restarting IPsec tunnels
Oct 22 20:26:43 	check_reload_status 	442 	updating dyndns 4IN6_TUNNELV4
Oct 22 20:26:43 	rc.gateway_alarm 	78678 	>>> Gateway alarm: 4IN6_TUNNELV4 (Addr:192.0.0.1 Alarm:1 RTT:0.000ms RTTsd:0.000ms Loss:100%)
Oct 22 20:26:41 	php-fpm 	414 	/interfaces.php: Creating rrd update script
Oct 22 20:26:41 	check_reload_status 	442 	Reloading filter
Oct 22 20:26:39 	check_reload_status 	442 	updating dyndns opt1
Oct 22 20:26:36 	dhcpleases 	64283 	Could not deliver signal HUP to process 90863: No such process.
Oct 22 20:26:35 	check_reload_status 	442 	Restarting IPsec tunnels
Oct 22 20:26:35 	kernel 		gif0: link state changed to UP
Oct 22 20:26:35 	php-fpm 	414 	/interfaces.php: Default gateway setting Interface 4IN6_TUNNELV4 Gateway as default.

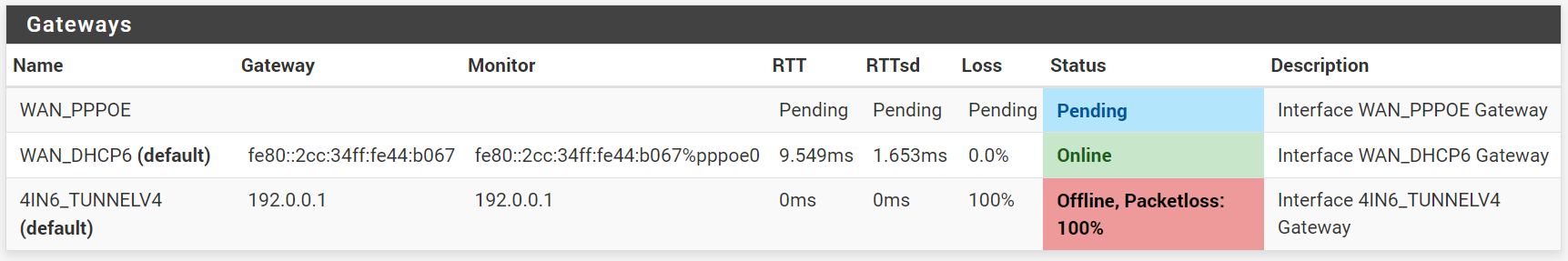

                                      What I find slightly interesting, is that the IPv4 tunnel gateway has 100% packet loss in the gateway monitor, although it works flawlessly.


                                      Kind regards
                                      Alex

                                      1 Reply Last reply Reply Quote 0
                                      • stephenw10S
                                        stephenw10 Netgate Administrator
                                        last edited by

                                        @vex said in gif0 does not come up after reboot:

                                        Oct 22 20:19:13 php 458 rc.bootup: The command '/sbin/ifconfig 'gif0' description '4IN6'' returned exit code '1', the output was 'ifconfig: interface gif0 does not exist'
                                        Oct 22 20:19:13 kernel vtnet0: link state changed to UP

                                        That's with the gif tunnel using WAN as the parent? Or LAN still?

                                        Is the PPPoE interface first in the list?

                                        I note that you appear to have WAN set to dhcpv6 but the PPPoE is passing an IPv6 address via IPV6CP directly.

                                        The IPv4 gateway may simply not respond to ping. Try setting a monitoring IP somewhere further upstream like 8.8.8.8.

                                        Steve

                                        V 1 Reply Last reply Reply Quote 0
                                        • V
                                          vex @stephenw10
                                          last edited by vex

                                          That's with the gif0 using LAN as parent. PPPoE is first in list, yes.

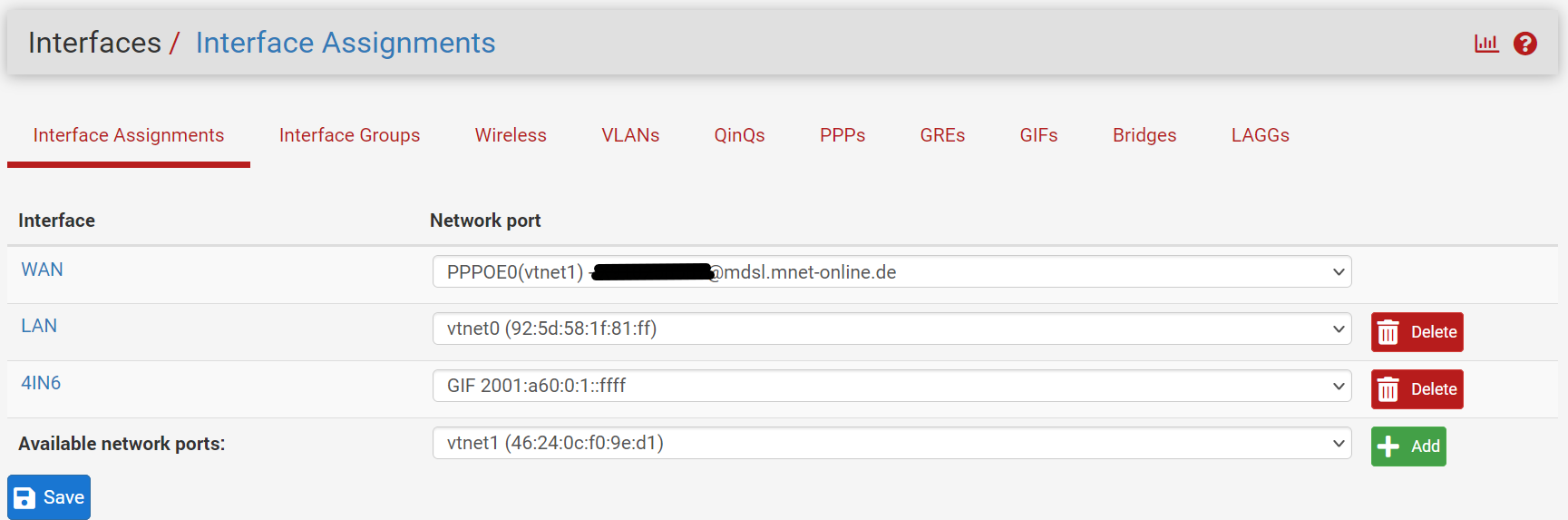

                                          2022-10-26 21 19 06.png

                                          So instead of using DHCPv6 as configuration type, should I use something else there?

                                          Yeah, I switched to monitoring the IPv6 CG-NAT/AFTR address.

                                          This is the complete log of booting with gif0 and WAN as parent:

                                          Oct 26 21:45:42 	php-fpm 	366 	/index.php: Successful login for user 'admin' from: 10.100.198.249 (Local Database)
Oct 26 21:45:37 	sshguard 	61915 	Now monitoring attacks.
Oct 26 21:45:37 	login 	59892 	login on ttyv0 as root
Oct 26 21:45:36 	root 	51758 	Bootup complete
Oct 26 21:45:35 	php-fpm 	366 	/rc.start_packages: Restarting/Starting all packages.
Oct 26 21:45:35 	kernel 		done.
Oct 26 21:45:35 	syslogd 		kernel boot file is /boot/kernel/kernel
Oct 26 21:45:35 	syslogd 		exiting on signal 15
Oct 26 21:45:35 	php 	411 	rc.bootup: Creating rrd update script
Oct 26 21:45:31 	kernel 		.....done.
Oct 26 21:45:31 	php 	411 	rc.bootup: The command '/usr/local/sbin/strongswanrc stop' returned exit code '1', the output was 'strongswan not running? (check /var/run/daemon-charon.pid).'
Oct 26 21:45:30 	check_reload_status 	395 	Updating all dyndns
Oct 26 21:45:30 	kernel 		done.
Oct 26 21:45:30 	kernel 		done.
Oct 26 21:45:30 	kernel 		done.
Oct 26 21:45:29 	kernel 		done.
Oct 26 21:45:29 	php 	411 	rc.bootup: NTPD is starting up.
Oct 26 21:45:29 	kernel 		done.
Oct 26 21:45:29 	php 	411 	rc.bootup: The command '/usr/bin/timeout -k 45 30 /usr/local/sbin/ntpd -g -q -c /dev/null 216.239.35.0 216.239.35.4 216.239.35.8 216.239.35.12' returned exit code '124', the output was '26 Oct 21:44:59 ntpd[75103]: ntpd 4.2.8p15@1.3728-o Wed Jan 12 15:39:52 UTC 2022 (1): Starting 26 Oct 21:44:59 ntpd[75103]: Command line: /usr/local/sbin/ntpd -g -q -c /dev/null 216.239.35.0 216.239.35.4 216.239.35.8 216.239.35.12 26 Oct 21:44:59 ntpd[75103]: ---------------------------------------------------- 26 Oct 21:44:59 ntpd[75103]: ntp-4 is maintained by Network Time Foundation, 26 Oct 21:44:59 ntpd[75103]: Inc. (NTF), a non-profit 501(c)(3) public-benefit 26 Oct 21:44:59 ntpd[75103]: corporation. Support and training for ntp-4 are 26 Oct 21:44:59 ntpd[75103]: available at https://www.nwtime.org/support 26 Oct 21:44:59 ntpd[75103]: ---------------------------------------------------- 26 Oct 21:44:59 ntpd[75103]: proto: precision = 0.123 usec (-23) 26 Oct 21:44:59 ntpd[75103]: line 0 column 0 syntax error, unexpected $end 26 Oct 21:44:59 ntpd[75103]: basedate set to 2021-12-31 26 Oct 21:44:59 ntpd[75103]: gps base set to 2022-01-02 (week 2191) 26 Oct 21:44:59 ntpd[75103]: Listen and drop on 0 v6wildcard [::]:123 26 Oct 21:44:59 ntpd[75103]: Listen and drop on 1 v4wildcard 0.0.0.0:123 26 Oct 21:44:59 ntpd[75103]: Listen normally on 2 vtnet0 [fe80::905d:58ff:fe1f:81ff%1]:123 26 Oct 21:44:59 ntpd[75103]: Listen normally on 3 vtnet0 10.100.198.2:123 26 Oct 21:44:59 ntpd[75103]: Listen normally on 4 vtnet0 [fe80::1:1%1]:123 26 Oct 21:44:59 ntpd[75103]: Listen normally on 5 vtnet0 [2001:a62:5d1:aa00:905d:58ff:fe1f:81ff]:123 26 Oct 21:44:59 ntpd[75103]: Listen normally on 6 vtnet1 [fe80::4424:cff:fef0:9ed1%2]:123 26 Oct 21:44:59 ntpd[75103]: Listen normally on 7 lo0 [::1]:123 26 Oct 21:44:59 ntpd[75103]: Listen normally on 8 lo0 [fe80::1%5]:123 26 Oct 21:44:59 ntpd[75103]: Listen normally on 9 lo0 127.0.0.1:123 26 Oct 21:44:59 ntpd[75103]: Listen normally on 10 pppoe0
Oct 26 21:44:59 	kernel 		done.
Oct 26 21:44:59 	php 	411 	rc.bootup: sync unbound done.
Oct 26 21:44:59 	kernel 		done.
Oct 26 21:44:57 	php-fpm 	367 	/rc.newwanipv6: Gateway, NONE AVAILABLE
Oct 26 21:44:57 	php-fpm 	367 	/rc.newwanipv6: rc.newwanipv6: on (IP address: fe80::905d:58ff:fe1f:81ff%pppoe0) (interface: wan) (real interface: pppoe0).
Oct 26 21:44:57 	php-fpm 	367 	/rc.newwanipv6: rc.newwanipv6: Info: starting on pppoe0.
Oct 26 21:44:57 	php 	411 	rc.bootup: dhcp6 init complete. Continuing
Oct 26 21:44:56 	php-fpm 	366 	/rc.newwanipv6: Gateway, NONE AVAILABLE
Oct 26 21:44:56 	php-fpm 	366 	/rc.newwanipv6: rc.newwanipv6: on (IP address: fe80::905d:58ff:fe1f:81ff%pppoe0) (interface: wan) (real interface: pppoe0).
Oct 26 21:44:56 	php-fpm 	366 	/rc.newwanipv6: rc.newwanipv6: Info: starting on pppoe0.
Oct 26 21:44:56 	php 	411 	rc.bootup: Unbound start waiting on dhcp6c.
Oct 26 21:44:55 	ppp 	9410 	[wan] IFACE: Add description "WAN"
Oct 26 21:44:55 	ppp 	9410 	[wan] IFACE: Rename interface ng0 to pppoe0
Oct 26 21:44:55 	ppp 	9410 	[wan] IFACE: Up event
Oct 26 21:44:55 	check_reload_status 	395 	rc.newwanipv6 starting pppoe0
Oct 26 21:44:55 	rtsold 	41957 	Starting dhcp6 client for interface wan(pppoe0)
Oct 26 21:44:55 	rtsold 	41008 	Received RA specifying route fe80::2cc:34ff:fe44:b067 for interface wan(pppoe0)
Oct 26 21:44:55 	php 	411 	rc.bootup: Unbound start waiting on dhcp6c.
Oct 26 21:44:55 	kernel 		done.
Oct 26 21:44:55 	kernel 		pflog0: promiscuous mode enabled
Oct 26 21:44:55 	kernel 		done.
Oct 26 21:44:55 	php 	411 	rc.bootup: Gateway, NONE AVAILABLE
Oct 26 21:44:55 	php 	411 	rc.bootup: Resyncing OpenVPN instances.
Oct 26 21:44:55 	php 	411 	rc.bootup: calling interface_dhcpv6_configure.
Oct 26 21:44:54 	check_reload_status 	395 	Rewriting resolv.conf
Oct 26 21:44:54 	kernel 		ng_pppoe[12]: no matching session
Oct 26 21:44:53 	sshguard 	12833 	Now monitoring attacks.
Oct 26 21:44:53 	sshd 	12231 	Server listening on 0.0.0.0 port 22.
Oct 26 21:44:53 	sshd 	12231 	Server listening on :: port 22.
Oct 26 21:44:52 	php 	10463 	/usr/local/sbin/ppp-ipv6: Starting rtsold process
Oct 26 21:44:52 	php 	10463 	/usr/local/sbin/ppp-ipv6: Accept router advertisements on interface pppoe0
Oct 26 21:44:52 	ppp 	9410 	[wan] 905d:58ff:fe1f:81ff -> 02cc:34ff:fe44:b067
Oct 26 21:44:52 	ppp 	9410 	[wan] IPV6CP: LayerUp
Oct 26 21:44:52 	ppp 	9410 	[wan] IPV6CP: state change Ack-Sent --> Opened
Oct 26 21:44:52 	ppp 	9410 	[wan] IPV6CP: rec'd Configure Ack #1 (Ack-Sent)
Oct 26 21:44:52 	ppp 	9410 	[wan] IPV6CP: state change Req-Sent --> Ack-Sent
Oct 26 21:44:52 	ppp 	9410 	[wan] IPV6CP: SendConfigAck #120
Oct 26 21:44:52 	ppp 	9410 	[wan] IPV6CP: rec'd Configure Request #120 (Req-Sent)
Oct 26 21:44:52 	ppp 	9410 	[wan] IPCP: LayerFinish
Oct 26 21:44:52 	ppp 	9410 	[wan] IPCP: state change Req-Sent --> Stopped
Oct 26 21:44:52 	ppp 	9410 	[wan] IPCP: protocol was rejected by peer
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] LCP: protocol IPCP was rejected
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] LCP: rec'd Protocol Reject #106 (Opened)
Oct 26 21:44:52 	ppp 	9410 	[wan] IPV6CP: SendConfigReq #1
Oct 26 21:44:52 	ppp 	9410 	[wan] IPV6CP: state change Starting --> Req-Sent
Oct 26 21:44:52 	ppp 	9410 	[wan] IPV6CP: Up event
Oct 26 21:44:52 	ppp 	9410 	[wan] SECDNS 0.0.0.0
Oct 26 21:44:52 	ppp 	9410 	[wan] PRIDNS 0.0.0.0
Oct 26 21:44:52 	ppp 	9410 	[wan] COMPPROTO VJCOMP, 16 comp. channels, no comp-cid
Oct 26 21:44:52 	ppp 	9410 	[wan] IPADDR 0.0.0.0
Oct 26 21:44:52 	ppp 	9410 	[wan] IPCP: SendConfigReq #1
Oct 26 21:44:52 	ppp 	9410 	[wan] IPCP: state change Starting --> Req-Sent
Oct 26 21:44:52 	ppp 	9410 	[wan] IPCP: Up event
Oct 26 21:44:52 	ppp 	9410 	[wan] IPV6CP: LayerStart
Oct 26 21:44:52 	ppp 	9410 	[wan] IPV6CP: state change Initial --> Starting
Oct 26 21:44:52 	ppp 	9410 	[wan] IPV6CP: Open event
Oct 26 21:44:52 	ppp 	9410 	[wan] IPCP: LayerStart
Oct 26 21:44:52 	ppp 	9410 	[wan] IPCP: state change Initial --> Starting
Oct 26 21:44:52 	ppp 	9410 	[wan] IPCP: Open event
Oct 26 21:44:52 	ppp 	9410 	[wan] Bundle: Status update: up 1 link, total bandwidth 64000 bps
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] Link: Join bundle "wan"
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] Link: Matched action 'bundle "wan" ""'
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] LCP: authorization successful
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] CHAP: rec'd SUCCESS #191 len: 4
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] CHAP: sending RESPONSE #191 len: 51
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] CHAP: Using authname "XXXXXXXXXX@mdsl.mnet-online.de"
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] Name: "ac3.nue2"
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] CHAP: rec'd CHALLENGE #191 len: 31
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] LCP: LayerUp
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] LCP: auth: peer wants CHAP, I want nothing
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] LCP: state change Ack-Sent --> Opened
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] MAGICNUM 0xe30caada
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] MRU 1492
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] PROTOCOMP
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] LCP: rec'd Configure Ack #1 (Ack-Sent)
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] LCP: state change Req-Sent --> Ack-Sent
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] MAGICNUM 0x0397bc67
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] AUTHPROTO CHAP MD5
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] MRU 1492
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] LCP: SendConfigAck #105
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] MAGICNUM 0x0397bc67
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] AUTHPROTO CHAP MD5
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] MRU 1492
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] LCP: rec'd Configure Request #105 (Req-Sent)
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] MAGICNUM 0xe30caada
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] MRU 1492
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] PROTOCOMP
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] LCP: SendConfigReq #1
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] LCP: state change Starting --> Req-Sent
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] LCP: Up event
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] Link: UP event
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] PPPoE: connection successful
Oct 26 21:44:52 	ppp 	9410 	PPPoE: rec'd ACNAME "ac3.nue2"
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] PPPoE: Connecting to ''
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] LCP: LayerStart
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] LCP: state change Initial --> Starting
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] LCP: Open event
Oct 26 21:44:52 	kernel 		ng0: changing name to 'pppoe0'
Oct 26 21:44:52 	ppp 	9410 	[wan_link0] Link: OPEN event
Oct 26 21:44:52 	ppp 	9410 	[wan] Bundle: Interface ng0 created
Oct 26 21:44:52 	ppp 	9410 	web: web is not running
Oct 26 21:44:52 	ppp 	9410 	process 9410 started, version 5.9
Oct 26 21:44:52 	ppp 	9410 	Multi-link PPP daemon for FreeBSD
Oct 26 21:44:52 	kernel 		vtnet1: link state changed to UP
Oct 26 21:44:52 	kernel 		done.
Oct 26 21:44:52 	check_reload_status 	395 	Linkup starting vtnet1
Oct 26 21:44:52 	php 	411 	rc.bootup: The command '/sbin/ifconfig 'gif0' description '4IN6'' returned exit code '1', the output was 'ifconfig: interface gif0 does not exist'
Oct 26 21:44:52 	check_reload_status 	395 	Linkup starting vtnet0
Oct 26 21:44:52 	kernel 		vtnet0: link state changed to UP

                                          As I already mentioned: With this configuration the 4IN6 tunnel does not work.

                                          Thanks again for having a look into this.

                                          1 Reply Last reply Reply Quote 0
                                          • stephenw10S
                                            stephenw10 Netgate Administrator
                                            last edited by

                                            Hmm. Even with that don't see it trying to restart the gif tunnel (even if it would fail) after the WAN connects and gets a new IPv6 address and I would expect it to trigger that.
                                            It could be because it's link-local only and that is not seen as a valid address. Though it is valid for a transport link and that's common on WAN. Or potentially it comes up at boot and somethings are suppressed during boot to prevent flapping.

                                            However what you're seeing is exactly this: https://redmine.pfsense.org/issues/8273

                                            Which should be fixed by this: https://redmine.pfsense.org/issues/6507
                                            But that is in 2.6.

                                            Does manually running /etc/rc.newwanipv6 lan after boot bring the gif tunnel up? What is logged when you do that?

                                            Steve

                                            V 1 Reply Last reply Reply Quote 1
                                            • First post
                                              Last post
                                            Copyright 2025 Rubicon Communications LLC (Netgate). All rights reserved.
