DHCP server of the wrong interface serves up IPs

Scheduled Pinned Locked Moved DHCP and DNS
25 Posts 3 Posters 1.6k Views
Loading More Posts
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • D
    DominikHoffmann
    last edited by Dec 8, 2022, 8:32 PM

    I did a network reconfiguration for a client and set up a network with several subnets. One interface is for wired hosts and a second is for WiFi hosts. Each have their own DHCP servers running.

    What I have noticed is that clients who connected to WiFi before the WiFi interface was defined will repeatedly obtain their old 192.168.14.0/24 IP address, even though they are physically and logically connected to an interface with a 192.168.15.0/24 subnet.

    I don’t see, how I can prevent DHCP clients from getting those old IP addresses back.

    What is going on? Is this normal or a bug?

    J 1 Reply Last reply Dec 23, 2022, 2:26 AM Reply Quote 0
    • D
      DominikHoffmann
      last edited by DominikHoffmann Dec 23, 2022, 12:18 AM Dec 23, 2022, 12:16 AM

      I do think that this is not the right way to go about it, but I put two sets of firewall rules in place to prevent this from happening, even though my problem shouldn’t happen in the first place:

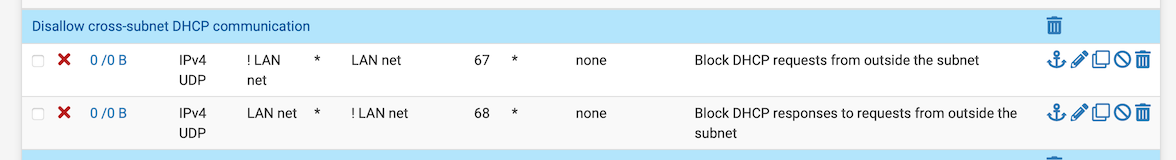

      LAN is the interface with a DHCP server providing addresses for the 192.168.14.0/24 subnet:

      Screenshot 2022-12-22 at 7.12.52 PM.png

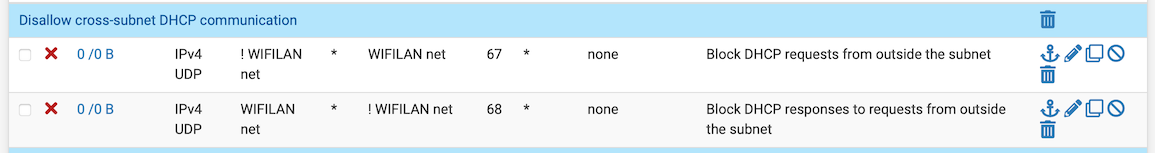

      WIFILAN is the interface with a DHCP server providing addresses for the 192.168.15.0/24 subnet:

      Screenshot 2022-12-22 at 7.13.02 PM.png

      Only time will tell, whether this will prevent any leakage of requests from one subnet made to the DHCP server of the other. If it doesn’t, we’ll certainly have a piece of evidence leading to the solution.

      J J 3 Replies Last reply Dec 23, 2022, 1:16 AM Reply Quote 0
      • J
        johnpoz LAYER 8 Global Moderator @DominikHoffmann
        last edited by Dec 23, 2022, 1:16 AM

        @dominikhoffmann There is no possible way for that to happen if your networks were actually isolated at layer 2 - which clearly they must not be.

        An intelligent man is sometimes forced to be drunk to spend time with his fools
        If you get confused: Listen to the Music Play
        Please don't Chat/PM me for help, unless mod related
        SG-4860 24.11 | Lab VMs 2.8, 24.11

        D 2 Replies Last reply Dec 23, 2022, 1:44 AM Reply Quote 1
        • J
          Jarhead @DominikHoffmann
          last edited by Dec 23, 2022, 1:20 AM

          Yup, agreed. Check your switch. Plugged into the wrong port or vlan set incorrectly.

          1 Reply Last reply Reply Quote 1
          • J
            johnpoz LAYER 8 Global Moderator @DominikHoffmann
            last edited by johnpoz Dec 23, 2022, 1:30 AM Dec 23, 2022, 1:27 AM

            @dominikhoffmann also those rules wouldn't do anything, because there are hidden rules that allow for dhcp that are evaluated before any rules on the specific interface.

            Notice they have zero hits - the 0/0 B

            example couple of my interfaces.

            [22.05-RELEASE][admin@sg4860.local.lan]/root: cat /tmp/rules.debug | grep DHCP

            # allow access to DHCP server on LAN
            pass in  quick on $LAN proto udp from any port = 68 to 255.255.255.255 port = 67 ridentifier 1000002541 label "allow access to DHCP server"
            pass in  quick on $LAN proto udp from any port = 68 to 192.168.9.253 port = 67 ridentifier 1000002542 label "allow access to DHCP server"
            pass out  quick on $LAN proto udp from 192.168.9.253 port = 67 to any port = 68 ridentifier 1000002543 label "allow access to DHCP server"
            # allow access to DHCP server on WLAN
            pass in  quick on $WLAN proto udp from any port = 68 to 255.255.255.255 port = 67 ridentifier 1000003591 label "allow access to DHCP server"
            pass in  quick on $WLAN proto udp from any port = 68 to 192.168.2.253 port = 67 ridentifier 1000003592 label "allow access to DHCP server"
            pass out  quick on $WLAN proto udp from 192.168.2.253 port = 67 to any port = 68 ridentifier 1000003593 label "allow access to DHCP server"


            How would they even get the same IP? Since the mac of the wired interface of device is not going to be the same as the mac of the wireless interface.

            An intelligent man is sometimes forced to be drunk to spend time with his fools
            If you get confused: Listen to the Music Play
            Please don't Chat/PM me for help, unless mod related
            SG-4860 24.11 | Lab VMs 2.8, 24.11

            D 1 Reply Last reply Dec 23, 2022, 1:57 AM Reply Quote 0
            • D
              DominikHoffmann @johnpoz
              last edited by Dec 23, 2022, 1:44 AM

              @johnpoz: That’s what I thought, too. So, now I am wondering, how they are not isolated at Layer 2. While we are on that, at what layer does the firewall operate?

              J 1 Reply Last reply Dec 23, 2022, 1:51 AM Reply Quote 0
              • J
                Jarhead @DominikHoffmann
                last edited by Dec 23, 2022, 1:51 AM

                @dominikhoffmann It's a router.... so Layer 3.

                D 1 Reply Last reply Dec 23, 2022, 1:58 AM Reply Quote 1
                • D
                  DominikHoffmann @johnpoz
                  last edited by Dec 23, 2022, 1:57 AM

                  @johnpoz said in DHCP server of the wrong interface serves up IPs:

                  How would they even get the same IP? Since the mac of the wired interface of device is not going to be the same as the mac of the wireless interface.

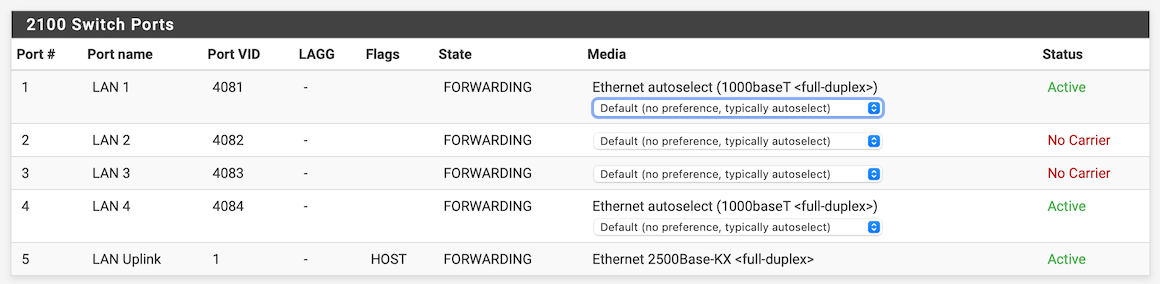

                  If, as you are concluding, there is no complete isolation of the two interfaces and subnets, a wireless client can pick up an IP address from the DHCP server meant to provide them for the subnet reserved for wired clients. In my case, both subnets are served by two different physical ports of the SG-2100 I am using:

                  Screenshot 2022-12-22 at 8.52.04 PM.png

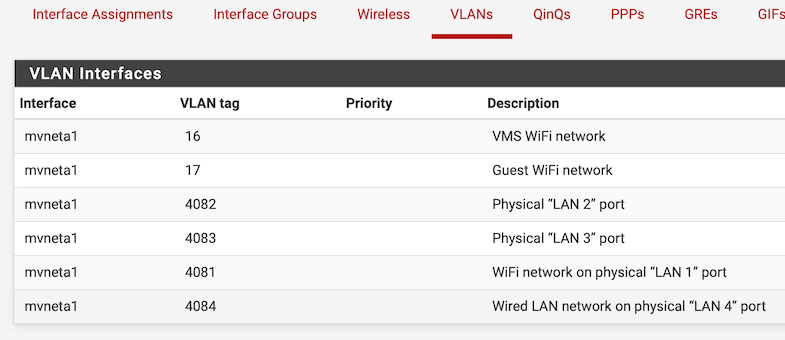

                  The physical ports relate to the VLAN tags like this:

                  Screenshot 2022-12-22 at 8.51.45 PM.png

                  My interfaces LAN and WIFILAN are assigned to the ports like this:

                  Screenshot 2022-12-22 at 8.49.44 PM.png

                  And the VLAN switching is like this:

                  Screenshot 2022-12-22 at 8.52.15 PM.png

                  It’s the last one I feel might be the culprit. I have never been really clear, what needs to happen here. I am eager to learn!

                  J 1 Reply Last reply Dec 23, 2022, 2:22 AM Reply Quote 0
                  • D
                    DominikHoffmann @Jarhead
                    last edited by Dec 23, 2022, 1:58 AM

                    @jarhead said in DHCP server of the wrong interface serves up IPs:

                    It's a router.... so Layer 3.

                    It’s clear, I need to bone up on the OSI model.

                    J 1 Reply Last reply Dec 23, 2022, 2:08 AM Reply Quote 0
                    • J
                      Jarhead @DominikHoffmann
                      last edited by Jarhead Dec 23, 2022, 2:09 AM Dec 23, 2022, 2:08 AM

                      @dominikhoffmann
                      You have 3 networks on port 1, but you said you are using separate physical interfaces.
                      You also have then tagged, if they really are separate, they should be untagged.
                      And your WIFI LAN is the untagged on that port so that probably explains why you're still getting the old IP's, you're still connected to the old network.

                      D 1 Reply Last reply Dec 23, 2022, 3:19 AM Reply Quote 0
                      • J
                        johnpoz LAYER 8 Global Moderator @DominikHoffmann
                        last edited by Dec 23, 2022, 2:22 AM

                        @dominikhoffmann said in DHCP server of the wrong interface serves up IPs:

                        a wireless client can pick up an IP address from the DHCP server meant to provide them for the subnet reserved for wired clients

                        Agreed - but they wouldn't get the same IP, their macs are different.. I guess its possible if the lease was actually released the dhcp on that network could hand out the same IP again to a different mac..

                        But if you were actually isolated there is no way what is happening could happening - the only thing that would allow client to get an IP from wrong dhcp is they are actually on the same L2 - or the dhcp server could never see that traffic.

                        An intelligent man is sometimes forced to be drunk to spend time with his fools
                        If you get confused: Listen to the Music Play
                        Please don't Chat/PM me for help, unless mod related
                        SG-4860 24.11 | Lab VMs 2.8, 24.11

                        J 1 Reply Last reply Dec 23, 2022, 2:25 AM Reply Quote 0
                        • J
                          Jarhead @johnpoz
                          last edited by Dec 23, 2022, 2:25 AM

                          @johnpoz said in DHCP server of the wrong interface serves up IPs:

                          @dominikhoffmann said in DHCP server of the wrong interface serves up IPs:

                          a wireless client can pick up an IP address from the DHCP server meant to provide them for the subnet reserved for wired clients

                          Agreed - but they wouldn't get the same IP

                          I don't think he ever said they get the 'same' IP, just on the same subnet.

                          1 Reply Last reply Reply Quote 0
                          • J
                            johnpoz LAYER 8 Global Moderator @DominikHoffmann
                            last edited by johnpoz Dec 23, 2022, 2:27 AM Dec 23, 2022, 2:26 AM

                            @dominikhoffmann said in DHCP server of the wrong interface serves up IPs:

                            will repeatedly obtain their old 192.168.14.0/24 IP address

                            That is how I read that - but maybe he meant to say an IP in that range and not their "old" one..

                            Yeah "an" IP would make sense if in the wrong L2 or joined L2s - but not the same one ;)

                            An intelligent man is sometimes forced to be drunk to spend time with his fools
                            If you get confused: Listen to the Music Play
                            Please don't Chat/PM me for help, unless mod related
                            SG-4860 24.11 | Lab VMs 2.8, 24.11

                            D 1 Reply Last reply Dec 23, 2022, 3:09 AM Reply Quote 0
                            • D
                              DominikHoffmann @johnpoz
                              last edited by Dec 23, 2022, 3:09 AM

                              @johnpoz said in DHCP server of the wrong interface serves up IPs:

                              @dominikhoffmann said in DHCP server of the wrong interface serves up IPs:

                              will repeatedly obtain their old 192.168.14.0/24 IP address

                              I apologize for my lack of clarity!

                              What I had meant by that was that a host that had been on the 192.168.14.0/24 subnet, before somewhat later I set up the physically separate 192.168.15.0/24 subnet, which I reserve for hosts connecting via WiFi, picked up the same IP address, even after being on the physically separated network. I was referring to my access points, which, though connected through an Ethernet backhaul, are assigned 192.168.15.0/24 addresses.

                              Have I cleared it up or further muddled the waters?

                              1 Reply Last reply Reply Quote 0
                              • D
                                DominikHoffmann @Jarhead
                                last edited by Dec 23, 2022, 3:19 AM

                                @jarhead said in DHCP server of the wrong interface serves up IPs:

                                You have 3 networks on port 1

                                Which are you referring to? Port 1 in the listing of 2100 Switch Ports?

                                That physical port is connected to a managed PoE switch, which powers the access points. Its members are:

                                • the untagged traffic on that network segment,
                                • the tagged traffic of hosts on (1) a guest SSID and (2) a “VMS” SSID.

                                The way I understand it, the setup VLAN group 1’s and 2’s members ensures that the tagged traffic is forwarded to the router, where they are identified with the two corresponding interfaces based on the VLAN tag. The fact that VLAN group 5 also has a “5t” in it, I don’t fully understand. It’s duplicated from a setup I am using on an SG-1100:

                                Screenshot 2022-12-22 at 10.17.31 PM.png

                                In other words, why would VLAN group 5 and 6 (back to the SG-2100 now) not have the members set up as “1,5” and “4,5,” respectively?

                                If either of you could elucidate that, I would be very grateful.

                                J 1 Reply Last reply Dec 23, 2022, 4:19 AM Reply Quote 0
                                • D
                                  DominikHoffmann @johnpoz
                                  last edited by Dec 23, 2022, 3:22 AM

                                  @johnpoz said in DHCP server of the wrong interface serves up IPs:

                                  There is no possible way for that to happen if your networks were actually isolated at layer 2 - which clearly they must not be.

                                  Back to your statement from way up top, now that you see the salient elements of my configuration? Do you see a flaw and therefore, what I need to change and how so?

                                  1 Reply Last reply Reply Quote 0
                                  • J
                                    Jarhead @DominikHoffmann
                                    last edited by Jarhead Dec 23, 2022, 4:26 AM Dec 23, 2022, 4:19 AM

                                    @dominikhoffmann
                                    They should be 1,5t and 4,5t, but you don't have them like that.
                                    You have them both on 1.

                                    Again, you said they have separate interfaces now, is that true?
                                    If so, they should not be tagged, no need to as they are the only network on each interface.
                                    I'll throw this out first, I never used a Netgate appliance with a built-in switch but as I understand it, the members are the switchports.
                                    So for vlan 16, the members should be 1,5t (or 4,5t if that's the way you connected them) with 1 being the untagged switchport and 5t being the WAN.
                                    Vlan 17 should be 4,5t (or 1,5t).
                                    You have them both tagged on port 1 which would be fine if you're breaking them out in your managed switch.
                                    You said separate interfaces, so then separate them.

                                    EDIT:
                                    Just noticed you said groups 5 and 6... I think I mistook the vlan 16 and 17 as the networks you have changed.
                                    Am I right with that?

                                    D 1 Reply Last reply Dec 24, 2022, 3:32 PM Reply Quote 0
                                    • D
                                      DominikHoffmann @Jarhead
                                      last edited by Dec 24, 2022, 3:32 PM

                                      @jarhead: The numbering of the ports is different between the SG-1100 and the SG-2100. This is what the SG-1100 has:

                                      SG-1100 Switch Port Assignments.png

                                      Showing again the SG-2100’s:

                                      Screenshot 2022-12-22 at 8.52.04 PM.png

                                      In other words, what’s a “0” on the SG-1100 has to be a “5” on the SG-2100.

                                      Yes, on the SG-2100 the LAN and WIFILAN interfaces are on separate physical ports. On the SG-2100 I just duplicated, what was the default on the SG-1100: “0t,1” and “0t,2.” Those became “1,5t” and “4,5t.”

                                      J 1 Reply Last reply Dec 24, 2022, 4:46 PM Reply Quote 0
                                      • J
                                        Jarhead @DominikHoffmann
                                        last edited by Jarhead Dec 24, 2022, 4:46 PM Dec 24, 2022, 4:46 PM

                                        @dominikhoffmann
                                        Yes, 5 is the uplink to the wan just as 0 is the same on the 1100.

                                        Double check the wifilan interface, if that is set to the 15.0/24 network, then it looks like your problem is gonna be in the managed switch.
                                        From what I see, the 'new' wifi is the untagged on port 1.
                                        The new wired is port 4.
                                        For some reason I was thinking vlans 16 and 17 were the new network, my mistake.
                                        Are the AP(s) vlan capable?
                                        Are you sending the correct vlans?

                                        D 1 Reply Last reply Dec 24, 2022, 5:20 PM Reply Quote 0
                                        • D
                                          DominikHoffmann @Jarhead
                                          last edited by Dec 24, 2022, 5:20 PM

                                          @jarhead said in DHCP server of the wrong interface serves up IPs:

                                          From what I see, the 'new' wifi is the untagged on port 1.
                                          The new wired is port 4.

                                          Correct! That’s how it is. Both are on physically separate switches, though, which is why this is all the more confounding.

                                          Are the AP(s) vlan capable?

                                          They are Ubiqiti U6-Pros and U6-Lites, and yes they are. Those VLANs are associated with specific SSIDs, one is for guests. I have the corresponding interfaces firewalled from the rest of the internal network, and I have verified that that works.

                                          Are you sending the correct vlans?

                                          Can you tell me, what makes you ask that? I have no reason to doubt it, because, apart from the DHCP quirks, everything works as expected.

                                          J 1 Reply Last reply Dec 24, 2022, 5:50 PM Reply Quote 0
