Static NAT Port Forward Range

Scheduled Pinned Locked Moved TNSR
4 Posts 2 Posters 729 Views 2 Watching
Loading More Posts
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • S Offline
    swinn
    last edited by Mar 29, 2023, 4:17 PM

    Is there a way with TNSR to forward a range of ports, or do you have to create an individual entry for each port?

    J 1 Reply Last reply Mar 29, 2023, 8:59 PM Reply Quote 0
    • J Offline
      JonathanLee @swinn
      last edited by Mar 29, 2023, 8:59 PM

      @swinn You can use firewall/aliases/ports to create an aliases have you tried this yet? After just use the aliases in the rule.

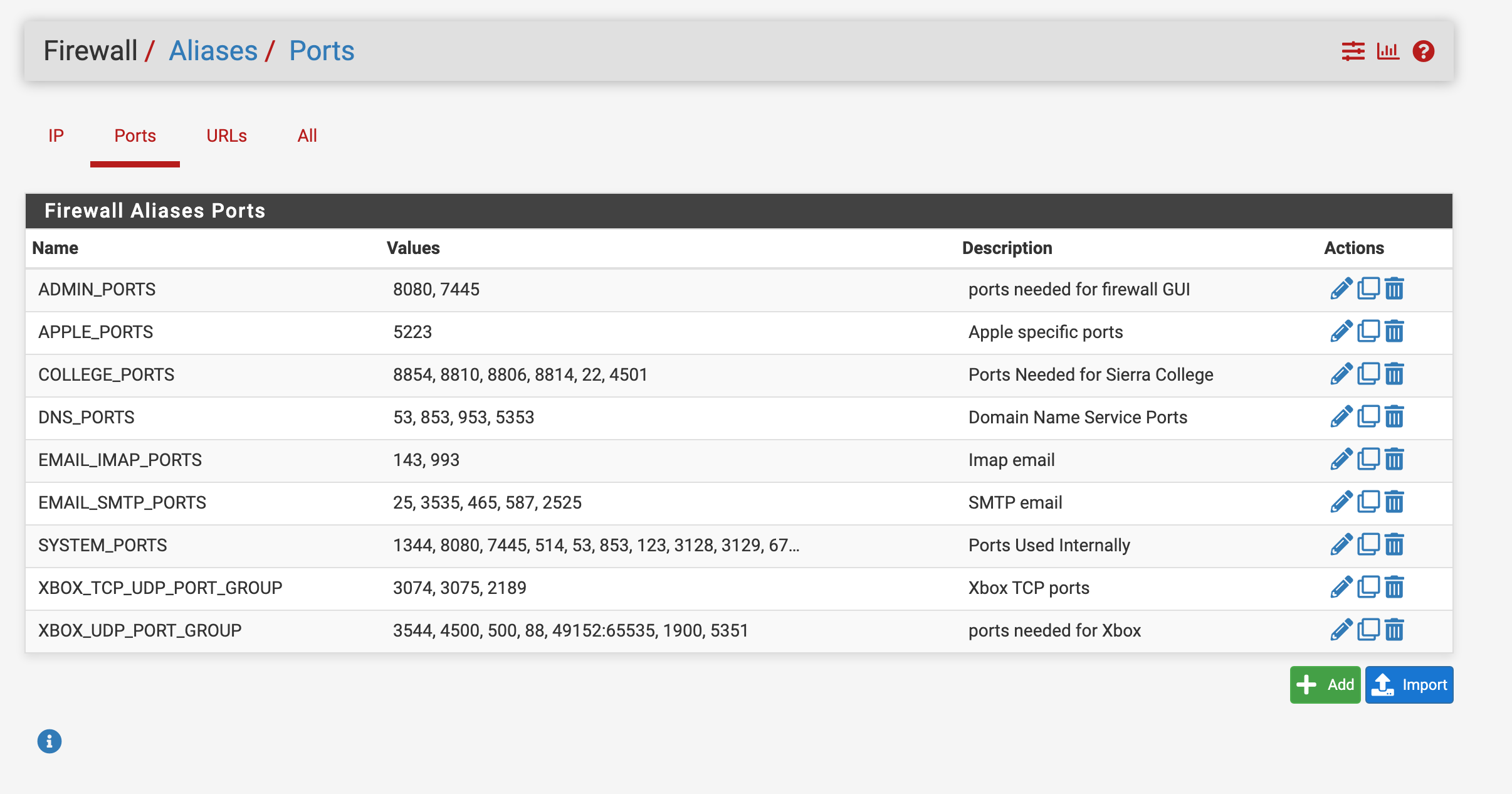

      Screenshot 2023-03-29 at 1.58.52 PM.png

      Make sure to upvote

      1 Reply Last reply Reply Quote 0
      • S Offline
        swinn
        last edited by Mar 30, 2023, 2:40 AM

        I'm referring to TNSR's configuration for static NAT. An example would be:

        nat static mapping tcp local 10.1.2.10 8080 external wan 8080
        nat static mapping tcp local 10.1.2.10 8081 external wan 8081

        J 1 Reply Last reply Mar 30, 2023, 3:31 AM Reply Quote 0
        • J Offline
          JonathanLee @swinn
          last edited by Mar 30, 2023, 3:31 AM

          @swinn

          Sorry about that, I do network address translation with aliases in pfSense plus for lan traffic right now

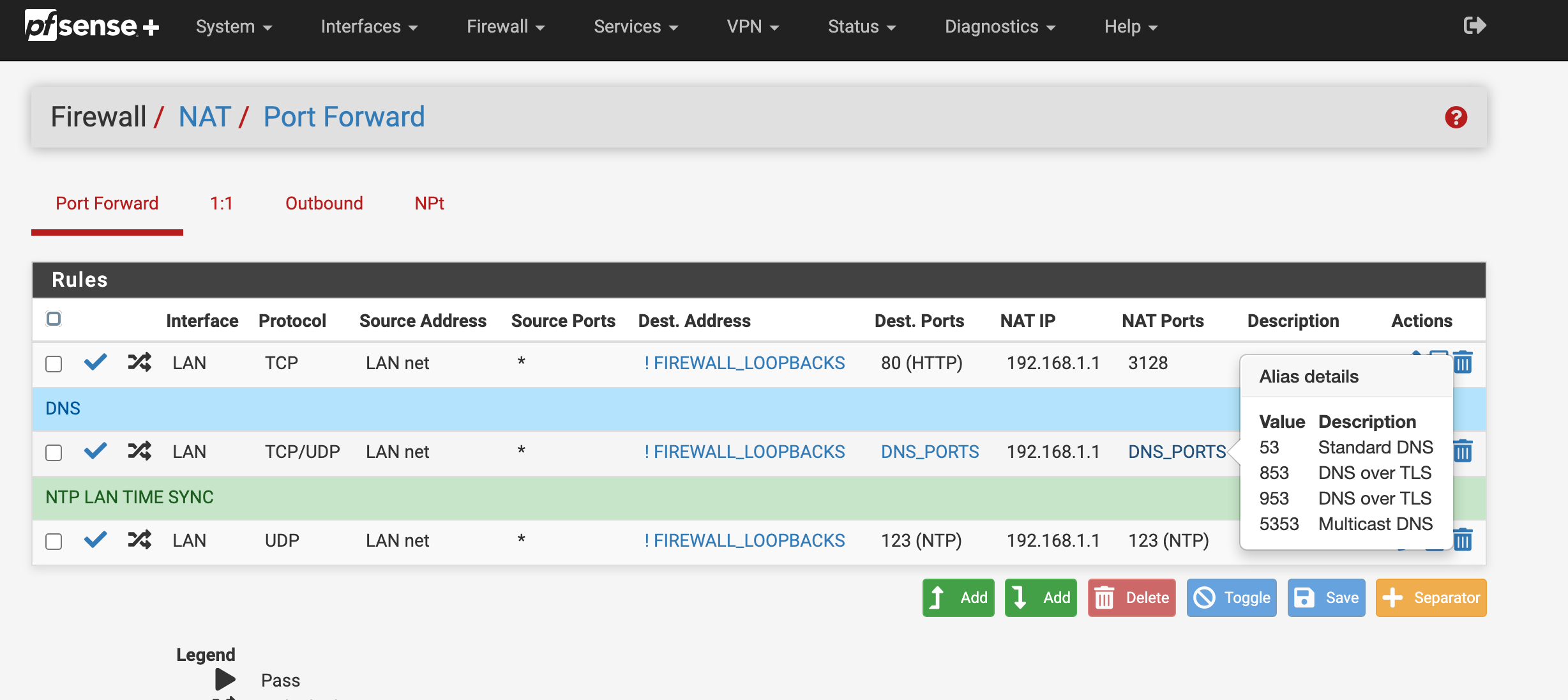

          Screenshot 2023-03-29 at 8.26.06 PM.png

          Again Static nat for WAN connection can also be done with port ranges 8080:8081 or 8080-8081

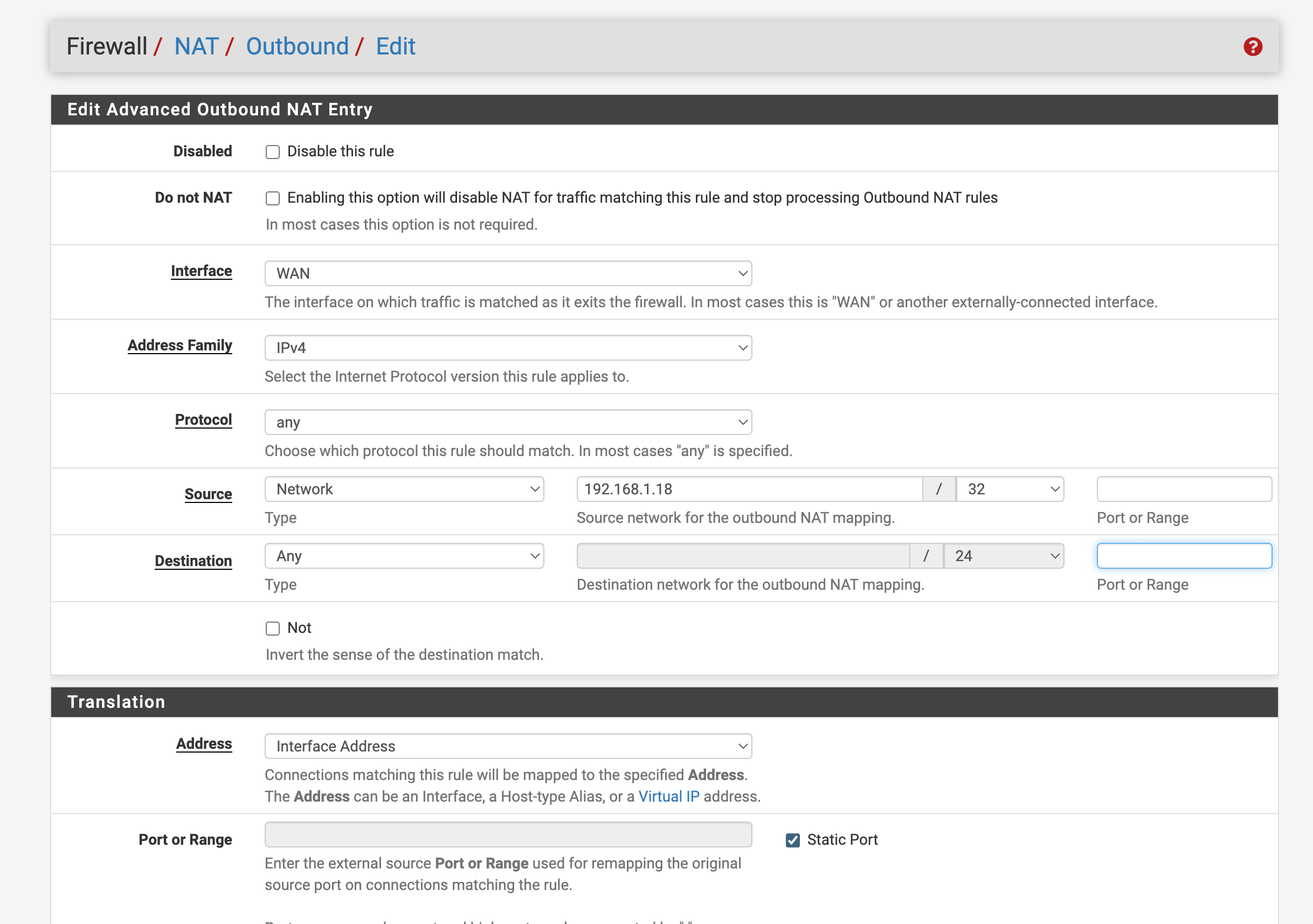

          Screenshot 2023-03-29 at 8.27.29 PM.png

          https://docs.netgate.com/pfsense/en/latest/nat/outbound.html

          Does that help?

          Make sure to upvote

          1 Reply Last reply Reply Quote 0
