    OpenVPN Firewall Rules problem

    Scheduled Pinned Locked Moved OpenVPN
    9 Posts 2 Posters 899 Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • M
      mathais
      last edited by

      Hi,
      I have configured OpenVPN with NordVPN on my pfsense 23.05.1

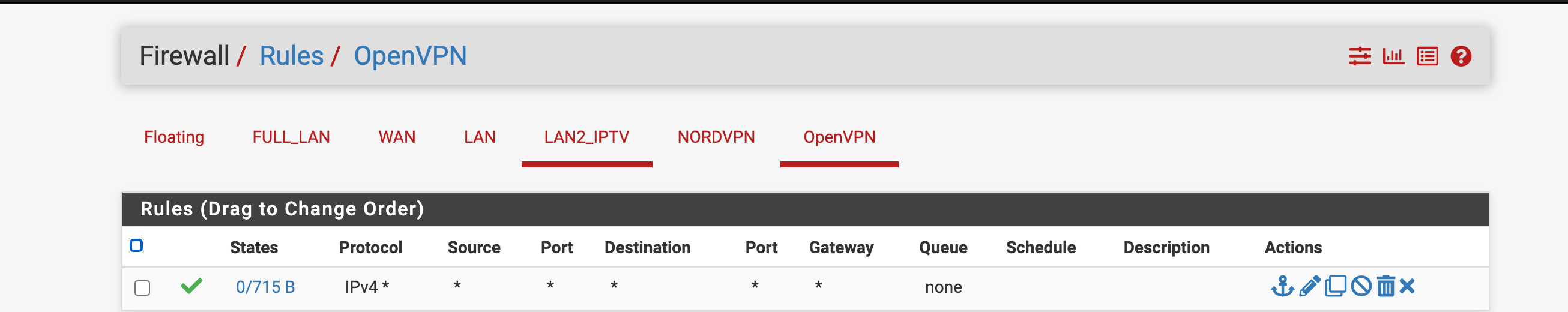

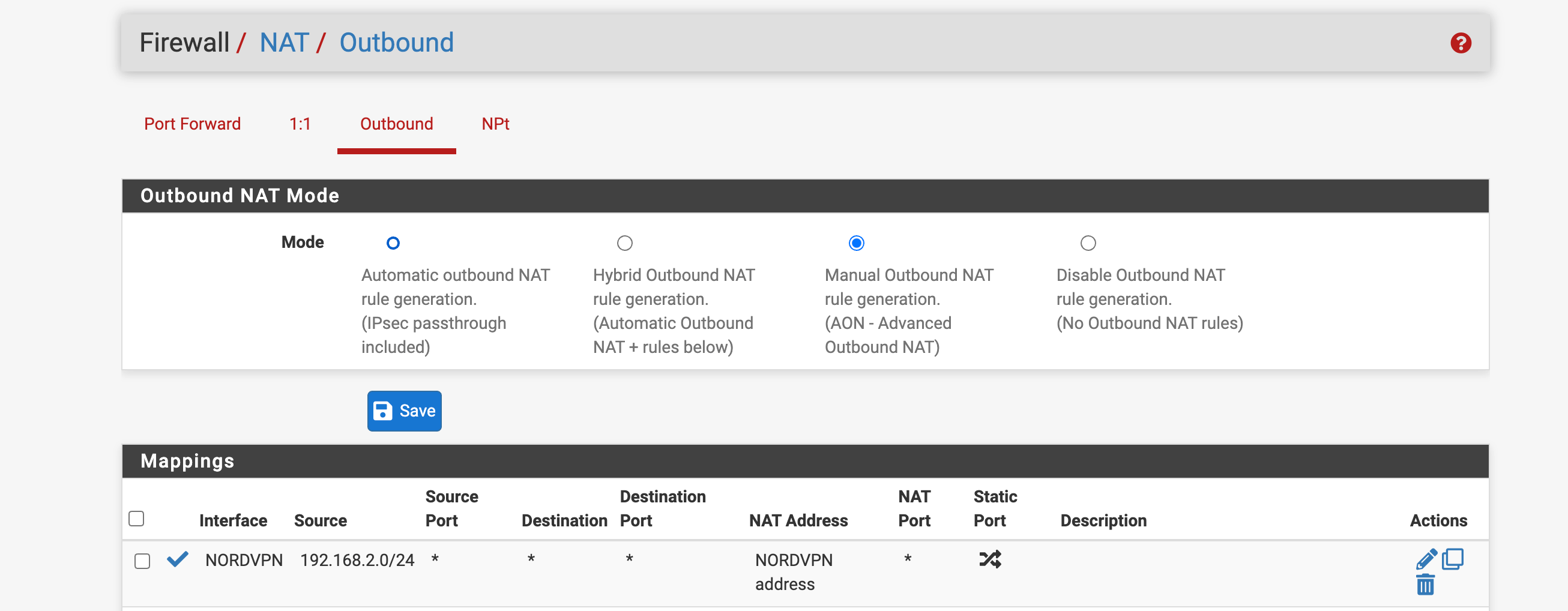

      I added one Rule to NAT and another to Rules :


      Now, all my LAN traffics pass through the VPN.
      But I have a problem with my IPTV Smarters application. When I use then VPN, the apps doens't works.
      I need to allow port 80 and 8080. I tried to add theses 2 rules on LAN, NORDVPN and OpenVPN, but nothing works...
      I alos tried to open and allow ALL ports, but it doesn't works...
      How can I open theses ports through my VPN ?
      Thank you very much.




      V 1 Reply Last reply Reply Quote 0
      • V
        viragomann @mathais
        last edited by

        @mathais
        Edit both rules and add your IPTV subnet as destination.
        Then move both up above the NORDVPN policy routing rule.

        M 1 Reply Last reply Reply Quote 0
        • M
          mathais @viragomann
          last edited by

          @viragomann said in OpenVPN Firewall Rules problem:

          @mathais
          Edit both rules and add your IPTV subnet as destination.
          Then move both up above the NORDVPN policy routing rule.

          thx, you're talking about the 8080 an 80 ports rules?

          V 1 Reply Last reply Reply Quote 0
          • V
            viragomann @mathais
            last edited by

            @mathais
            Yes.

            M 1 Reply Last reply Reply Quote 0
            • M
              mathais @viragomann
              last edited by

              @viragomann said in OpenVPN Firewall Rules problem:

              @mathais
              Yes.

              I tried it but it doesn't works.
              I don't understand...
              Without VPN, I use this rule and my IPTV works well :

              But if I switch the gateway to NORDVPN_Gateway, my IPTV stop working... This is the same on my computer.


              V 1 Reply Last reply Reply Quote 0
              • V
                viragomann @mathais
                last edited by

                @mathais
                From where do you need to access to where here?
                I assumed, that you access from LAN to the LAN_IPTV network.

                M 1 Reply Last reply Reply Quote 0
                • M
                  mathais @viragomann
                  last edited by

                  @viragomann said in OpenVPN Firewall Rules problem:

                  @mathais
                  From where do you need to access to where here?
                  I assumed, that you access from LAN to the LAN_IPTV network.

                  Ok, don't look about LAN2_IPTV on my pfsense. This interface is dedicated to my Formuler Z11 IPTV (192.168.3.0/24) and it works well with VPN through pfsense. I connect to an IPTV server on the WEB.

                  My problem is when I want to connect to the same IPTV server with "IPTV Smarters pro" application on my computer.
                  My computer is on the LAN network (192.168.2.0/24)
                  Without the VPN, I can connect to the server from my computer to the IPTV server.
                  But when I configure the VPN on pfsense with OpenVPN, the connexion from my computer to the IPTV server doesn't works.

                  IPTV Smarters pro works when I use the NordVPN client directly on my computer.

                  That's weird...

                  I can't explain why.

                  V 1 Reply Last reply Reply Quote 0
                  • V
                    viragomann @mathais
                    last edited by

                    @mathais
                    So the destination server is in the web. Then I guess, it blocks VPN providers like some others too.

                    So you have to send request to it to the WAN gateway instead of the VPN.

                    To do so add a rule to the top of the LAN rule set and put the server into the destination, not dest ports. In the advanced options state the WAN gateway.

                    If you only have one or multiple hostnames, create an host alias and add all host names to it. Then use this alias as destination.

                    M 1 Reply Last reply Reply Quote 0
                    • M
                      mathais @viragomann
                      last edited by

                      @viragomann said in OpenVPN Firewall Rules problem:

                      o do so add a rule to the top of the LAN rule set and put the server into the destination, not dest ports. In the advanced options state the WAN gateway.

                      Yes, the destination server is in the web. But this web server doesn't block VPN connection because :

                      1. With my Formuler Z11, I can access to the web server IPTV (MyTVOnline 3) through the VPN installed in pfsense.
                      2. With my computer, I can access to the web server IPTV through NordVPN client directly installed on my computer.

                      The problem is when I want to connect to the web server from my computer through the VPN installed on pfsense. Maybe the problem is IPTV Smarter Pro application ?

                      1 Reply Last reply Reply Quote 0
