8200/6100 Intel x553 NIC and certain SFP+ modules

[stephenw10]

Ok huge number of input errors on ix0. That's what you'd expect for bad downloads.

You have an XPON module in there I assume? Can you access that to get stats?

You can check the sysctl output for ix0 to see what type of errors those are: sysctl dev.ix.0

[lio1503]

@stephenw10

Yes I use this module on ix0 https://www.amazon.ca/dp/B06XG9DPJ7?th=1
and this cable to unifi switch for Lan on ix1 https://www.amazon.ca/dp/B01M09C9NZ?th=1

Result of sysctl dev.ix.0

dev.ix.0.wake: 0
dev.ix.0.dmac: 0
dev.ix.0.tso_tcp_flags_mask_last_segment: 3967
dev.ix.0.tso_tcp_flags_mask_middle_segment: 4086
dev.ix.0.tso_tcp_flags_mask_first_segment: 4086
dev.ix.0.fw_version: nvm 0.58.0 eTrack 0x8000084b
dev.ix.0.enable_aim: 0
dev.ix.0.advertise_speed: 0
dev.ix.0.fc: 3
dev.ix.0.mac_stats.tx_frames_1024_1522: 2688329
dev.ix.0.mac_stats.tx_frames_512_1023: 9258
dev.ix.0.mac_stats.tx_frames_256_511: 7406
dev.ix.0.mac_stats.tx_frames_128_255: 51767
dev.ix.0.mac_stats.tx_frames_65_127: 1044399
dev.ix.0.mac_stats.tx_frames_64: 2651
dev.ix.0.mac_stats.management_pkts_txd: 0
dev.ix.0.mac_stats.mcast_pkts_txd: 5
dev.ix.0.mac_stats.bcast_pkts_txd: 1
dev.ix.0.mac_stats.good_pkts_txd: 3803810
dev.ix.0.mac_stats.total_pkts_txd: 3803810
dev.ix.0.mac_stats.good_octets_txd: 4177580394
dev.ix.0.mac_stats.checksum_errs: 0
dev.ix.0.mac_stats.management_pkts_drpd: 0
dev.ix.0.mac_stats.management_pkts_rcvd: 0
dev.ix.0.mac_stats.recv_jabberd: 1228
dev.ix.0.mac_stats.recv_oversized: 0
dev.ix.0.mac_stats.recv_fragmented: 0
dev.ix.0.mac_stats.recv_undersized: 0
dev.ix.0.mac_stats.rx_frames_1024_1522: 2492339
dev.ix.0.mac_stats.rx_frames_512_1023: 8772
dev.ix.0.mac_stats.rx_frames_256_511: 8173
dev.ix.0.mac_stats.rx_frames_128_255: 30310
dev.ix.0.mac_stats.rx_frames_65_127: 620807
dev.ix.0.mac_stats.rx_frames_64: 2487
dev.ix.0.mac_stats.bcast_pkts_rcvd: 247
dev.ix.0.mac_stats.mcast_pkts_rcvd: 10
dev.ix.0.mac_stats.good_pkts_rcvd: 3162888
dev.ix.0.mac_stats.total_pkts_rcvd: 3260844
dev.ix.0.mac_stats.good_octets_rcvd: 3788604566
dev.ix.0.mac_stats.total_octets_rcvd: 3930535548
dev.ix.0.mac_stats.xoff_recvd: 0
dev.ix.0.mac_stats.xoff_txd: 0
dev.ix.0.mac_stats.xon_recvd: 0
dev.ix.0.mac_stats.xon_txd: 0
dev.ix.0.mac_stats.rx_missed_packets: 0
dev.ix.0.mac_stats.rec_len_errs: 0
dev.ix.0.mac_stats.remote_faults: 0
dev.ix.0.mac_stats.local_faults: 1
dev.ix.0.mac_stats.short_discards: 7
dev.ix.0.mac_stats.byte_errs: 9220
dev.ix.0.mac_stats.ill_errs: 1617
dev.ix.0.mac_stats.crc_errs: 87158
dev.ix.0.mac_stats.rx_errs: 90003
dev.ix.0.queue3.rx_discarded: 0
dev.ix.0.queue3.rx_copies: 0
dev.ix.0.queue3.rx_bytes: 25480
dev.ix.0.queue3.rx_packets: 245
dev.ix.0.queue3.rxd_tail: 244
dev.ix.0.queue3.rxd_head: 245
dev.ix.0.queue3.irqs: 482085
dev.ix.0.queue3.interrupt_rate: 31250
dev.ix.0.queue3.tx_packets: 1027008
dev.ix.0.queue3.tso_tx: 0
dev.ix.0.queue3.txd_tail: 1859
dev.ix.0.queue3.txd_head: 1859
dev.ix.0.queue2.rx_discarded: 0
dev.ix.0.queue2.rx_copies: 0
dev.ix.0.queue2.rx_bytes: 0
dev.ix.0.queue2.rx_packets: 0
dev.ix.0.queue2.rxd_tail: 128
dev.ix.0.queue2.rxd_head: 0
dev.ix.0.queue2.irqs: 594318
dev.ix.0.queue2.interrupt_rate: 31250
dev.ix.0.queue2.tx_packets: 1189658
dev.ix.0.queue2.tso_tx: 0
dev.ix.0.queue2.txd_tail: 1831
dev.ix.0.queue2.txd_head: 1831
dev.ix.0.queue1.rx_discarded: 0
dev.ix.0.queue1.rx_copies: 0
dev.ix.0.queue1.rx_bytes: 0
dev.ix.0.queue1.rx_packets: 0
dev.ix.0.queue1.rxd_tail: 128
dev.ix.0.queue1.rxd_head: 0
dev.ix.0.queue1.irqs: 414076
dev.ix.0.queue1.interrupt_rate: 31250
dev.ix.0.queue1.tx_packets: 685675
dev.ix.0.queue1.tso_tx: 0
dev.ix.0.queue1.txd_tail: 1525
dev.ix.0.queue1.txd_head: 1525
dev.ix.0.queue0.rx_discarded: 0
dev.ix.0.queue0.rx_copies: 0
dev.ix.0.queue0.rx_bytes: 3775931277
dev.ix.0.queue0.rx_packets: 3162670
dev.ix.0.queue0.rxd_tail: 557
dev.ix.0.queue0.rxd_head: 558
dev.ix.0.queue0.irqs: 1053920
dev.ix.0.queue0.interrupt_rate: 31250
dev.ix.0.queue0.tx_packets: 901500
dev.ix.0.queue0.tso_tx: 0
dev.ix.0.queue0.txd_tail: 946
dev.ix.0.queue0.txd_head: 946
dev.ix.0.link_irq: 3
dev.ix.0.watchdog_events: 0
dev.ix.0.dropped: 0
dev.ix.0.iflib.rxq3.rxq_fl0.buf_size: 2048
dev.ix.0.iflib.rxq3.rxq_fl0.credits: 2047
dev.ix.0.iflib.rxq3.rxq_fl0.cidx: 245
dev.ix.0.iflib.rxq3.rxq_fl0.pidx: 244
dev.ix.0.iflib.rxq3.cpu: 3
dev.ix.0.iflib.rxq2.rxq_fl0.buf_size: 2048
dev.ix.0.iflib.rxq2.rxq_fl0.credits: 128
dev.ix.0.iflib.rxq2.rxq_fl0.cidx: 0
dev.ix.0.iflib.rxq2.rxq_fl0.pidx: 128
dev.ix.0.iflib.rxq2.cpu: 2
dev.ix.0.iflib.rxq1.rxq_fl0.buf_size: 2048
dev.ix.0.iflib.rxq1.rxq_fl0.credits: 128
dev.ix.0.iflib.rxq1.rxq_fl0.cidx: 0
dev.ix.0.iflib.rxq1.rxq_fl0.pidx: 128
dev.ix.0.iflib.rxq1.cpu: 1
dev.ix.0.iflib.rxq0.rxq_fl0.buf_size: 2048
dev.ix.0.iflib.rxq0.rxq_fl0.credits: 2047
dev.ix.0.iflib.rxq0.rxq_fl0.cidx: 558
dev.ix.0.iflib.rxq0.rxq_fl0.pidx: 557
dev.ix.0.iflib.rxq0.cpu: 0
dev.ix.0.iflib.txq3.r_abdications: 0
dev.ix.0.iflib.txq3.r_restarts: 0
dev.ix.0.iflib.txq3.r_stalls: 0
dev.ix.0.iflib.txq3.r_starts: 1027076
dev.ix.0.iflib.txq3.r_drops: 0
dev.ix.0.iflib.txq3.r_enqueues: 1027315
dev.ix.0.iflib.txq3.ring_state: pidx_head: 1267 pidx_tail: 1267 cidx: 1267 state: IDLE
dev.ix.0.iflib.txq3.txq_cleaned: 2211617
dev.ix.0.iflib.txq3.txq_processed: 2211649
dev.ix.0.iflib.txq3.txq_in_use: 34
dev.ix.0.iflib.txq3.txq_cidx_processed: 1857
dev.ix.0.iflib.txq3.txq_cidx: 1825
dev.ix.0.iflib.txq3.txq_pidx: 1859
dev.ix.0.iflib.txq3.no_tx_dma_setup: 0
dev.ix.0.iflib.txq3.txd_encap_efbig: 0
dev.ix.0.iflib.txq3.tx_map_failed: 0
dev.ix.0.iflib.txq3.no_desc_avail: 0
dev.ix.0.iflib.txq3.mbuf_defrag_failed: 0
dev.ix.0.iflib.txq3.m_pullups: 0
dev.ix.0.iflib.txq3.mbuf_defrag: 0
dev.ix.0.iflib.txq3.cpu: 3
dev.ix.0.iflib.txq2.r_abdications: 0
dev.ix.0.iflib.txq2.r_restarts: 0
dev.ix.0.iflib.txq2.r_stalls: 0
dev.ix.0.iflib.txq2.r_starts: 1189683
dev.ix.0.iflib.txq2.r_drops: 0
dev.ix.0.iflib.txq2.r_enqueues: 1190417
dev.ix.0.iflib.txq2.ring_state: pidx_head: 0529 pidx_tail: 0529 cidx: 0529 state: IDLE
dev.ix.0.iflib.txq2.txq_cleaned: 2858757
dev.ix.0.iflib.txq2.txq_processed: 2858789
dev.ix.0.iflib.txq2.txq_in_use: 34
dev.ix.0.iflib.txq2.txq_cidx_processed: 1829
dev.ix.0.iflib.txq2.txq_cidx: 1797
dev.ix.0.iflib.txq2.txq_pidx: 1831
dev.ix.0.iflib.txq2.no_tx_dma_setup: 0
dev.ix.0.iflib.txq2.txd_encap_efbig: 0
dev.ix.0.iflib.txq2.tx_map_failed: 0
dev.ix.0.iflib.txq2.no_desc_avail: 0
dev.ix.0.iflib.txq2.mbuf_defrag_failed: 0
dev.ix.0.iflib.txq2.m_pullups: 0
dev.ix.0.iflib.txq2.mbuf_defrag: 0
dev.ix.0.iflib.txq2.cpu: 2
dev.ix.0.iflib.txq1.r_abdications: 0
dev.ix.0.iflib.txq1.r_restarts: 0
dev.ix.0.iflib.txq1.r_stalls: 0
dev.ix.0.iflib.txq1.r_starts: 685820
dev.ix.0.iflib.txq1.r_drops: 0
dev.ix.0.iflib.txq1.r_enqueues: 686291
dev.ix.0.iflib.txq1.ring_state: pidx_head: 0211 pidx_tail: 0211 cidx: 0211 state: IDLE
dev.ix.0.iflib.txq1.txq_cleaned: 1818067
dev.ix.0.iflib.txq1.txq_processed: 1818099
dev.ix.0.iflib.txq1.txq_in_use: 34
dev.ix.0.iflib.txq1.txq_cidx_processed: 1523
dev.ix.0.iflib.txq1.txq_cidx: 1491
dev.ix.0.iflib.txq1.txq_pidx: 1525
dev.ix.0.iflib.txq1.no_tx_dma_setup: 0
dev.ix.0.iflib.txq1.txd_encap_efbig: 0
dev.ix.0.iflib.txq1.tx_map_failed: 0
dev.ix.0.iflib.txq1.no_desc_avail: 0
dev.ix.0.iflib.txq1.mbuf_defrag_failed: 0
dev.ix.0.iflib.txq1.m_pullups: 0
dev.ix.0.iflib.txq1.mbuf_defrag: 0
dev.ix.0.iflib.txq1.cpu: 1
dev.ix.0.iflib.txq0.r_abdications: 0
dev.ix.0.iflib.txq0.r_restarts: 0
dev.ix.0.iflib.txq0.r_stalls: 0
dev.ix.0.iflib.txq0.r_starts: 900768
dev.ix.0.iflib.txq0.r_drops: 0
dev.ix.0.iflib.txq0.r_enqueues: 901527
dev.ix.0.iflib.txq0.ring_state: pidx_head: 0407 pidx_tail: 0407 cidx: 0407 state: IDLE
dev.ix.0.iflib.txq0.txq_cleaned: 2419599
dev.ix.0.iflib.txq0.txq_processed: 2419631
dev.ix.0.iflib.txq0.txq_in_use: 35
dev.ix.0.iflib.txq0.txq_cidx_processed: 943
dev.ix.0.iflib.txq0.txq_cidx: 911
dev.ix.0.iflib.txq0.txq_pidx: 946
dev.ix.0.iflib.txq0.no_tx_dma_setup: 0
dev.ix.0.iflib.txq0.txd_encap_efbig: 0
dev.ix.0.iflib.txq0.tx_map_failed: 0
dev.ix.0.iflib.txq0.no_desc_avail: 0
dev.ix.0.iflib.txq0.mbuf_defrag_failed: 0
dev.ix.0.iflib.txq0.m_pullups: 0
dev.ix.0.iflib.txq0.mbuf_defrag: 0
dev.ix.0.iflib.txq0.cpu: 0
dev.ix.0.iflib.override_nrxds: 0
dev.ix.0.iflib.override_ntxds: 0
dev.ix.0.iflib.allocated_msix_vectors: 5
dev.ix.0.iflib.use_extra_msix_vectors: 0
dev.ix.0.iflib.use_logical_cores: 0
dev.ix.0.iflib.separate_txrx: 0
dev.ix.0.iflib.core_offset: 0
dev.ix.0.iflib.tx_abdicate: 0
dev.ix.0.iflib.rx_budget: 0
dev.ix.0.iflib.disable_msix: 0
dev.ix.0.iflib.override_qs_enable: 0
dev.ix.0.iflib.override_nrxqs: 0
dev.ix.0.iflib.override_ntxqs: 0
dev.ix.0.iflib.driver_version: 4.0.1-k
dev.ix.0.%iommu: rid=0x300
dev.ix.0.%parent: pci9
dev.ix.0.%pnpinfo: vendor=0x8086 device=0x15c4 subvendor=0x8086 subdevice=0x0000 class=0x020000
dev.ix.0.%location: slot=0 function=0 dbsf=pci0:3:0:0 handle=\_SB_.PCI0.VRP0.LAN0
dev.ix.0.%driver: ix
dev.ix.0.%desc: Intel(R) X553 N (SFP+)

[stephenw10]

OK similar to the other user, no one error type:

dev.ix.0.mac_stats.rx_missed_packets: 0
dev.ix.0.mac_stats.rec_len_errs: 0
dev.ix.0.mac_stats.remote_faults: 0
dev.ix.0.mac_stats.local_faults: 1
dev.ix.0.mac_stats.short_discards: 7
dev.ix.0.mac_stats.byte_errs: 9220
dev.ix.0.mac_stats.ill_errs: 1617
dev.ix.0.mac_stats.crc_errs: 87158
dev.ix.0.mac_stats.rx_errs: 90003
dev.ix.0.watchdog_events: 0
dev.ix.0.dropped: 0

However what's different is that that isn't an XPON module it's just an 10GbaseT module.

Technically neither type is supported by the X553 NICs because they don't have the data lines to detect the link type.

What exactly is that connected to? At what speed?

[lio1503]

@stephenw10

It's connected to my ISP router on 10G Ethernet port.

[stephenw10]

Is the ISP router actually routing? Is it actually linked at 10G?

One option here would be to just use one of the IGC ports. But that would be limited to 2.5Gbps of course.

[lio1503]

@stephenw10

No I just use ISP router for the PPPOE. Yes its linked to 10G.
Finally I order a XSPON module to completely bypass the ISP router, while waiting for the module to arrive I use the IGC port and it's works good.
Thanks you very much for your help.

[stephenw10]

Yup those RJ-45 SFP+ modules are not supported and actual function can be very variable. Some users have reported success with some modules but there's no real way to know any many don't work as expected.

[lio1503]

@stephenw10
OK.Thanks

[luckman212]

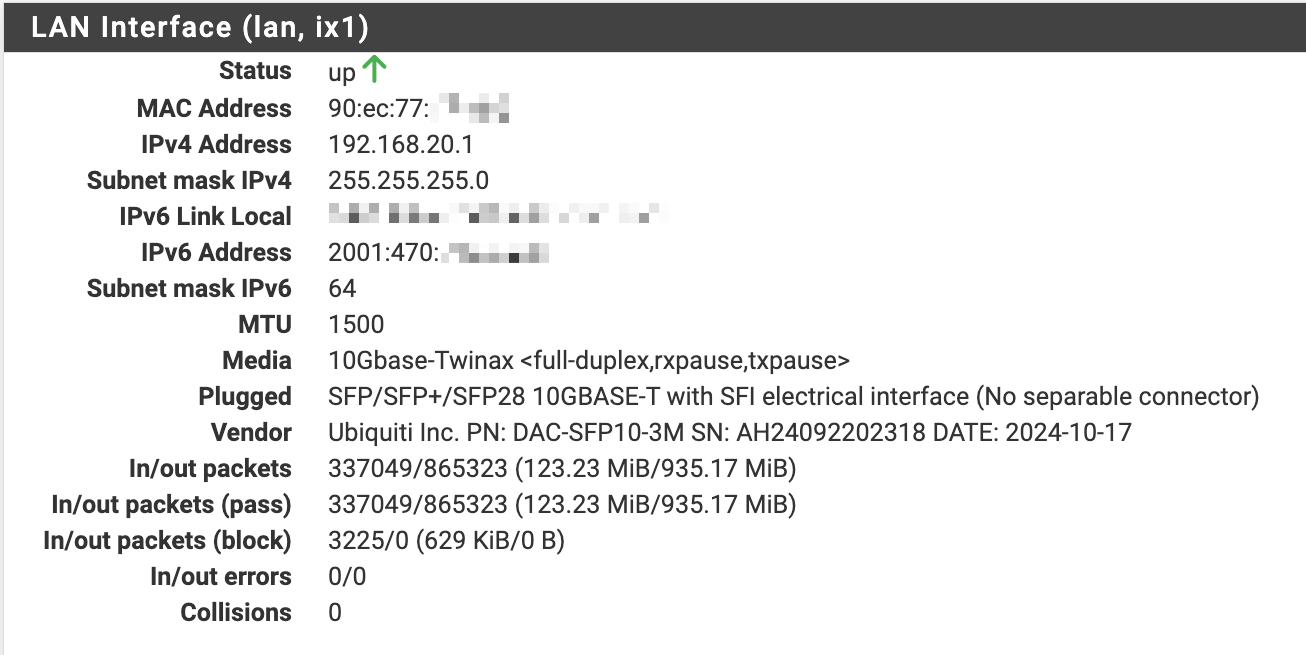

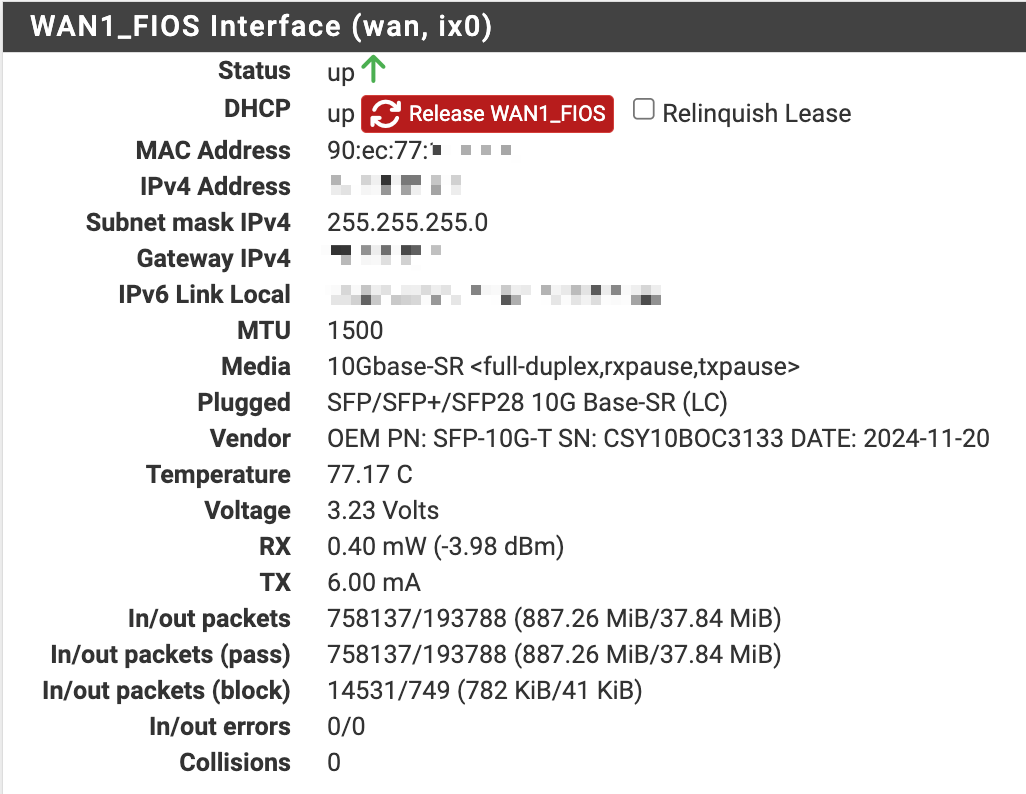

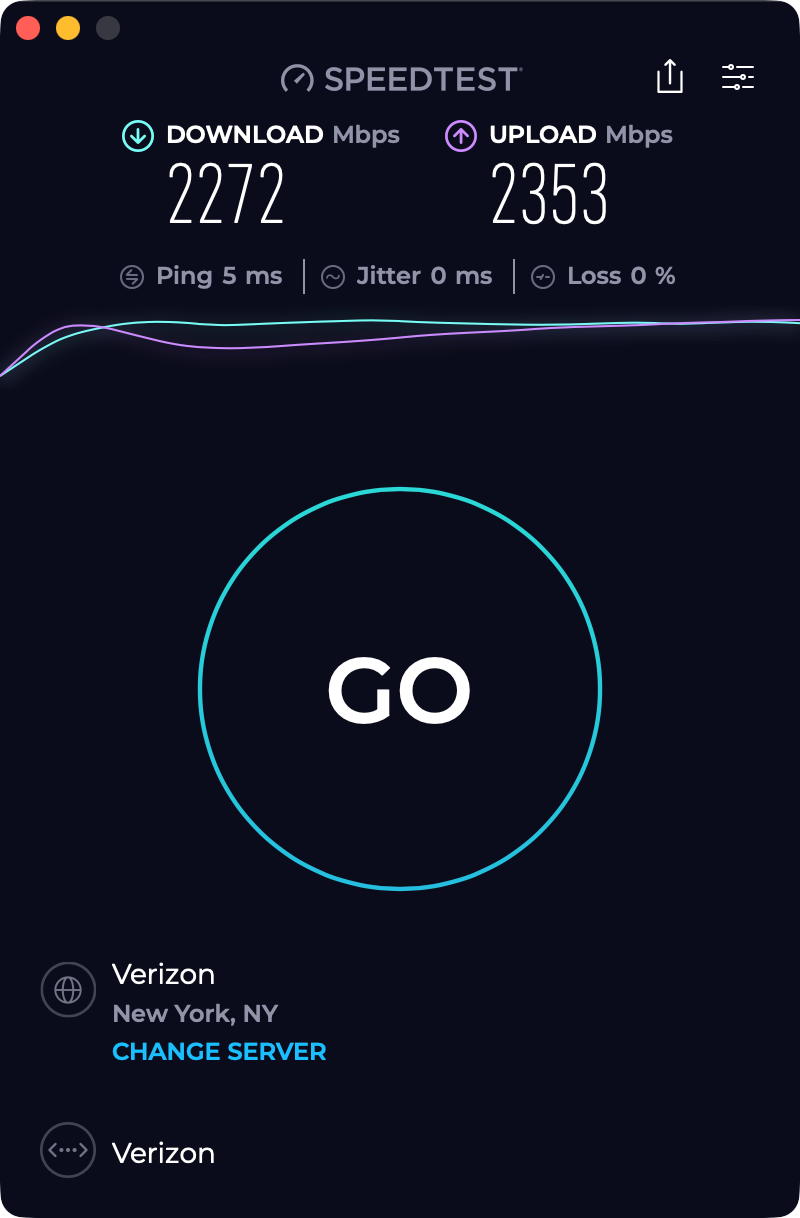

@lio1503 FWIW I've been using an RJ45 to SFP+ module in my 6100 for a few months with 2GBit/s FIOS WAN (ONT provides an RJ45 only), and a Twinax DAC cable on the LAN side to my Unifi switch. The module is also a 10GTek cheap-o, this one I think. Seems like it might be the same as yours?

Other than the scorching hot temps (literally cannot touch the module without burning my finger) I haven't had issues and don't see any interface errors. Download and upload speeds are good.

WAN

LAN

[lio1503]

Hi @luckman212

Yes this is the same setup that I made and same module and I have issue.
Finaly I plug Fiber in sfp+ on my unifi switch and use vlan to separate LAN network and WAN network .

Thanks
