    Bridge LAN 2 nic, non comunicano

    Scheduled Pinned Locked Moved L2/Switching/VLANs
    5 Posts 3 Posters 76 Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • A
      Antonio1971
      last edited by Antonio1971

      Buonasera, sono nuovo di pfsense avrei bisogno di un aiuto, ho un PC con pfsense 2.7.2, questo PC è un i5 6 generazione con 8Gb RAM, ha una gbe implementata (WAN) e 2 gbe aggiuntive su PCI-E (LAN1 e LAN2) entrambe in bridge, verso e da internet tutto ok ma non so come fare per far comunicare un PC su LAN1 con un PC su LAN2, DHCP abilitato e funzionante su BRIDGE-LAN.

      Spero che sia risolvibile ma per ora grazie per le future risposte.

      Good evening, I'm new to pfsense and I need some help, I have a PC with pfsense 2.7. 2, this PC is a 6th generation i5 with 8GB RAM, it has a gbe implemented (WAN) and 2 additional gbe on PCI-E (LAN1 and LAN2) both in bridge, to and from the internet everything is ok but I don't know how to make a PC on LAN1 communicate with a PC on LAN2, DHCP enabled and working on BRIDGE-LAN.

      I hope it can be solved but for now thanks for future answers.

      patient0P 1 Reply Last reply Reply Quote 0
      • patient0P
        patient0 @Antonio1971
        last edited by

        @Antonio1971 said in Bridge LAN 2 nic, non comunicano:

        2 additional gbe on PCI-E (LAN1 and LAN2) both in bridge, to and from the internet everything is ok but I don't know how to make a PC on LAN1 communicate with a PC on LAN2, DHCP enabled and working on BRIDGE-LAN.

        You have ports LAN1 and LAN2 added to bridge BRIDGE-LAN? I assume you have the IP and DHCP server configured on the BRIDGE-LAN interface and not configured anything on LAN1 and LAN2?

        Have you created a firewall rule for the BRIDGE-LAN interface? A default firewall rule is only created for the standard LAN interface you chose when installing it.

        Can you show (screenshots) of the bridge, the interface configuration and the firewall rules for the bridge?

        1 Reply Last reply Reply Quote 0
        • A
          Antonio1971
          last edited by

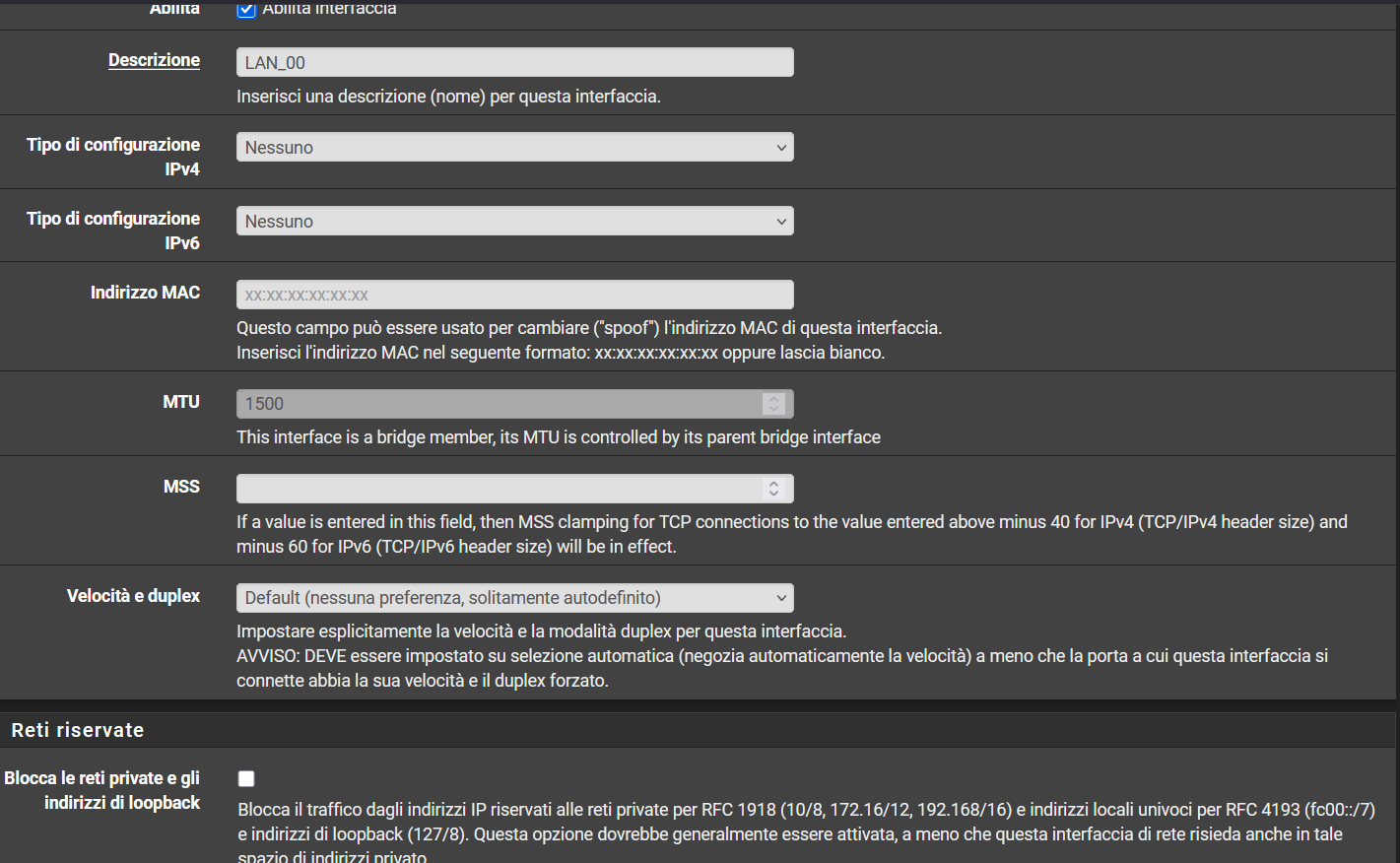

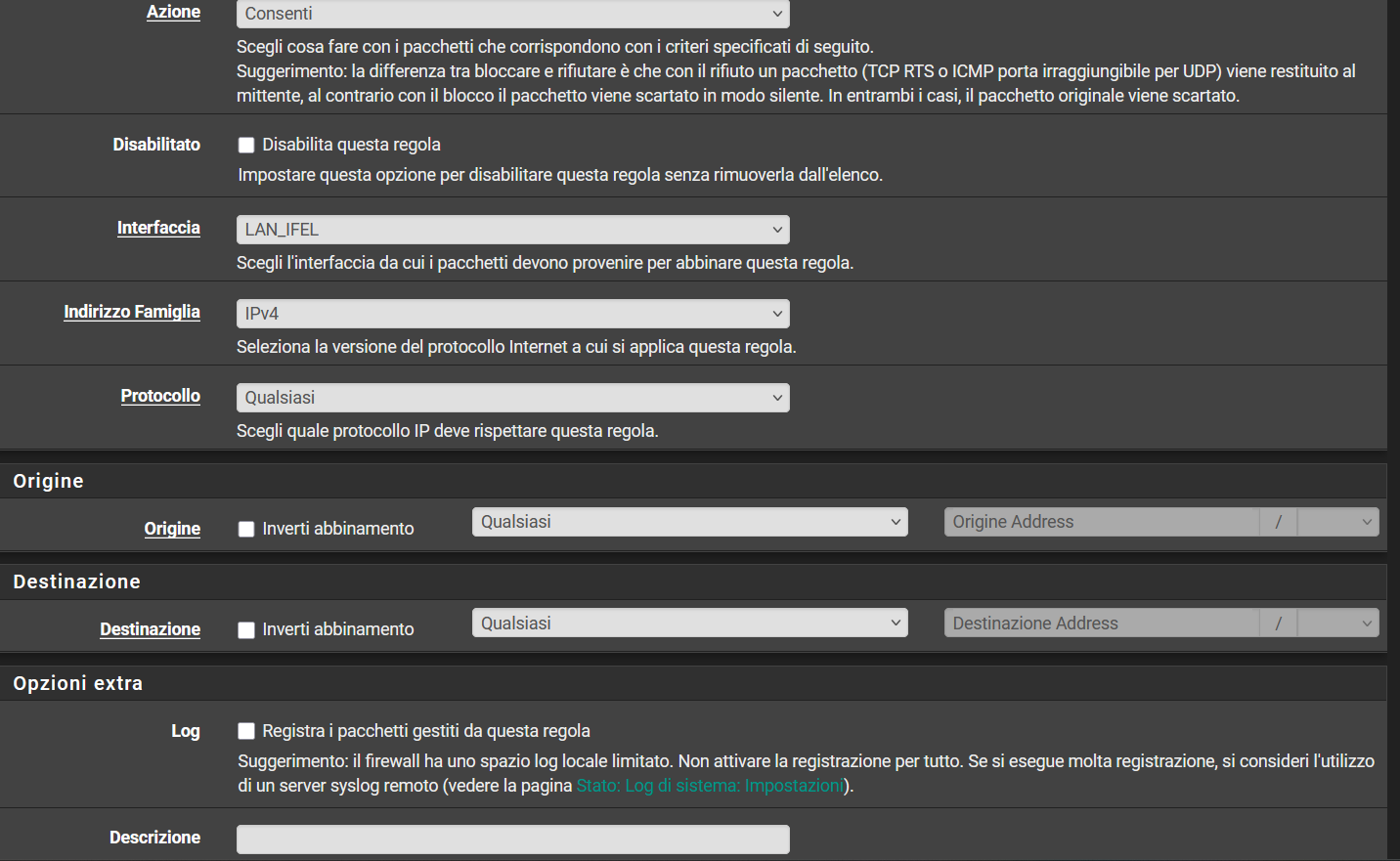

          Hi patient0, sorry if I'm only answering you now but I've been busy with work, I'm attaching some screen shots and I haven't configured anything in the bridge.

          1 Reply Last reply Reply Quote 0
          • A
            Antonio1971
            last edited by

            527eae22-8ca8-4cfc-a5d8-ccf57b46de4f-Schema a blocchi.jpg

            The problem is this

            johnpozJ 1 Reply Last reply Reply Quote 0
            • johnpozJ
              johnpoz LAYER 8 Global Moderator @Antonio1971
              last edited by

              @Antonio1971 you say bridge or switch in your drawing.

              If your using a switch, then pc1 talking to pc2 that are on the same network - the traffic never goes to pfsense.

              Most likely issue if your on the same network via a switch is you have host firewalls on pc1 and 2 that don't allow for your ping.

              An intelligent man is sometimes forced to be drunk to spend time with his fools
              If you get confused: Listen to the Music Play
              Please don't Chat/PM me for help, unless mod related
              SG-4860 24.11 | Lab VMs 2.7.2, 24.11

              1 Reply Last reply Reply Quote 0
