    Problems after enabling if_pppoe

    Plus 25.03 Develoment Snapshots
    5
    15
    189
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • B
      bigsy
      last edited by

      Hi

      Netgate 5100 (8GB RAM, 120GB m.2SATA)
      Additional packages: pfB NG, WireGuard, Tailscale, ACME

      WAN is on a 900/100 PPPoE connection (Zen UK)
      IPv4 (/29) and IPv6 enabled and working

      Upgraded successfully from pfSense+ 24.11 to 25.03 beta (Tue Apr 29 14:29:00 BST 2025)
      I noticed that the new if_pppoe was not enabled by default.

      As I wanted to try this out, I enabled this option and rebooted the appliance.

      After reboot completed I was no longer able to access the pfSense webgui - the login page gives a 50x Error and the message "The webserver encountered an error processing this request. Check the Crash Reporter for details"

      The link to the Crash Reporter does not work.

      The system.log is filled with the message

      check_reload_status[685]: Could not connect to /var/run/php-fpm.socket

      I successfully reverted to Plus 24.11 via BE.

      I'm not sure where to look to troubleshoot this further. I have all the logs from this upgrade if that helps.

      Thanks

      patient0P 1 Reply Last reply Reply Quote 0
      • patient0P
        patient0 @bigsy
        last edited by

        @bigsy if_pppoe shouldn't have any impact on the WebGUI access.

        If you upgrade to 25.03-BETA and not enable if_pppoe, does all work as before?

        B 1 Reply Last reply Reply Quote 0
        • B
          bigsy @patient0
          last edited by

          @patient0 Yes.

          patient0P 1 Reply Last reply Reply Quote 0
          • patient0P
            patient0 @bigsy
            last edited by

            @bigsy that's a new one then.

            Can you still access pfSense using SSH/console and restart the WebGui (menu entry 11) and or restart php-fm (menu entry 16)?

            B 1 Reply Last reply Reply Quote 2
            • B
              bigsy @patient0
              last edited by

              @patient0 Thanks for the replies. I've been switching between boot environments to test things.

              I have both console and SSH access. Menu options 11/16 didn't help.

              I then realised that there was no DNS resolution at the CLI, so I manually restarted unbound and then menu option 16 brought the webgui back up.

              It appears to be working now. I'll keep it running to see if there are any more problems.

              GertjanG 1 Reply Last reply Reply Quote 0
              • GertjanG
                Gertjan @bigsy
                last edited by

                @bigsy said in Problems after enabling if_pppoe:

                I then realised that there was no DNS resolution at the CLI,

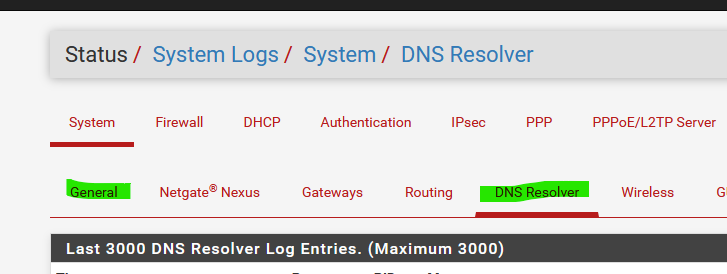

                Check the resolver log ( and system log ) if you can find a reason why the resolver didn't start.
                /var/log/resolver.log and /var/log/system.log.


                No "help me" PM's please. Use the forum, the community will thank you.
                Edit : and where are the logs ??

                B 1 Reply Last reply Reply Quote 1
                • B
                  bigsy @Gertjan
                  last edited by

                  @Gertjan system.log during boot up has a lot of messages along the lines of:

                  May  6 14:27:56 bru php-fpm[16386]: /rc.newwanip: Unbound start waiting on dhcp6c.

                  and

                  May  6 14:27:57 bru php-fpm[8553]: /rc.newwanip: Netgate pfSense Plus package system has detected an IP change or dynamic WAN reconnection - 82.x.y.z ->  82.x.y.z - Restarting packages.
May  6 14:27:57 bru check_reload_status[685]: Starting packages
May  6 14:27:57 bru php[53534]: /usr/local/sbin/ppp-ipv6: Accept router advertisements on interface pppoe0
May  6 14:27:57 bru php[53534]: /usr/local/sbin/ppp-ipv6: Starting rtsold process on wan(pppoe0)
May  6 14:27:57 bru php-fpm[8553]: /rc.newwanip: rc.newwanip: Info: starting on pppoe0.
May  6 14:27:57 bru php-fpm[8553]: /rc.newwanip: rc.newwanip: on (IP address: 82.x.y.z) (interface: WAN[wan]) (real interface: pppoe0).
May  6 14:27:57 bru check_reload_status[685]: rc.newwanip starting pppoe0
May  6 14:27:57 bru php-fpm[91042]: /rc.newwanip: The command '/usr/local/sbin/unbound -c /var/unbound/unbound.conf' returned exit code '1', the output was '[1746538077] unbound[68242:0] error: bind: address already in use [1746538077] unbound[68242:0] fatal error: could not open ports'
May  6 14:27:57 bru php-fpm[30102]: /rc.newwanip: Forcefully reloading IPsec
May  6 14:27:57 bru php[82727]: /usr/local/sbin/ppp-ipv6: Starting rtsold process on wan(pppoe0)
May  6 14:27:57 bru php[73254]: /usr/local/sbin/ppp-ipv6: Accept router advertisements on interface pppoe0
May  6 14:27:57 bru php[73254]: /usr/local/sbin/ppp-ipv6: Starting rtsold process on wan(pppoe0)
May  6 14:27:57 bru php-fpm[16386]: /rc.newwanip: The command '/usr/local/sbin/unbound -c /var/unbound/unbound.conf' returned exit code '1', the output was '[1746538077] unbound[88722:0] error: bind: address already in use [1746538077] unbound[88722:0] fatal error: could not open ports'
May  6 14:27:57 bru php-fpm[30102]: /rc.newwanip: Resyncing OpenVPN instances for interface WAN.
May  6 14:27:57 bru php-fpm[30102]: OpenVPN terminate old pid: 37576
May  6 14:27:58 bru kernel: ovpns1: link state changed to DOWN
May  6 14:27:58 bru check_reload_status[685]: rc.newwanip starting pppoe0

                  (WAN IP address masked)

                  1 Reply Last reply Reply Quote 0
                  • patient0P patient0 referenced this topic
                  • stephenw10S
                    stephenw10 Netgate Administrator
                    last edited by

                    Looks like it's looping. Do you have Do not wait for a RA set in the dhcpv6 settings?

                    Try unchecking that. If that allows it to connect normally that's a known issue that should be fixed in the next public build.

                    B 1 Reply Last reply Reply Quote 0
                    • B
                      bigsy @stephenw10
                      last edited by

                      @stephenw10 Thanks. 'Do not wait for a RA' is NOT checked in the DHCP6 client configuration.

                      1 Reply Last reply Reply Quote 0
                      • stephenw10S
                        stephenw10 Netgate Administrator
                        last edited by

                        Hmm, interesting. Do you see the connection logs repeating? Like it's continually re-connecting?

                        B 1 Reply Last reply Reply Quote 0
                        • B
                          bigsy @stephenw10
                          last edited by

                          @stephenw10 said in Problems after enabling if_pppoe:

                          Hmm, interesting. Do you see the connection logs repeating? Like it's continually re-connecting?

                          No, the connection seems to establish and stay up.

                          1 Reply Last reply Reply Quote 0
                          • stephenw10S
                            stephenw10 Netgate Administrator
                            last edited by

                            Hmm, but the logs are still filling continually?

                            w0wW B 2 Replies Last reply Reply Quote 0
                            • w0wW
                              w0w @stephenw10
                              last edited by

                              @stephenw10
                              Sorry, but I'd like to correct you that "Do not wait for RA" should be checked to bypass this issue.

                              1 Reply Last reply Reply Quote 0
                              • stephenw10S
                                stephenw10 Netgate Administrator
                                last edited by

                                It depends which issue. If your ISP sends a lot of RAs you probably want it checked. If not then leaving it unchecked can avoid a race condition.

                                Both should be fixed in the next build.

                                1 Reply Last reply Reply Quote 1
                                • B
                                  bigsy @stephenw10
                                  last edited by

                                  @stephenw10 said in Problems after enabling if_pppoe:

                                  Hmm, but the logs are still filling continually?

                                  No. The logs fill with those messages on rebooting after enabling if_pppoe and also on each subsequent reboot.

                                  This stops once I restart unbound via the cli and then use menu options 11/16 in order to be able to access the webgui. Once that is done the continuous log messages stop.

                                  1 Reply Last reply Reply Quote 0
