    PIMD loosing multicast sources

    Scheduled Pinned Locked Moved General pfSense Questions
    pimdmulticast
    30 Posts 3 Posters 1.1k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • M
      maximushugus
      last edited by maximushugus

      Hello,
      I'm using PIMD package to route multicast traffic.
      When starting PIMD, after a few seconds it works as it should, seeing multicast sources and routing it if needed.
      But after about 3 minutes, PIMD is "loosing" multicast sources even if pfSense still receive this multicast traffic (packet capures, and network traffic). PIMD does not "receive" multicast source anymore. Restarting PIMD makes it see again multicast sources until it looses it again after about 3 minutes.

      I opened a github issue on PIMD project but I am not sure if this is a pfsense/FreeBSD problem or a problem with this PIMD program.

      I'm running pfSense CE 2.8.0.
      Here is my pimd.conf generated file :

      ##################### DO NOT EDIT THIS FILE! ######################
      ###################################################################
      # This file was created by an automatic configuration generator.  #
      # The contents of this file will be overwritten without warning!  #
      ###################################################################
      phyint lagg0.3 enable igmpv2
      phyint lagg0.99 enable igmpv2
      phyint lagg0.50 enable igmpv2
      phyint tun_wg1 enable
      phyint tun_wg2 disable
      bsr-candidate lagg0.3
      rp-candidate lagg0.3
              group-prefix 239.1.1.0/24
              group-prefix 224.2.127.254/32


      What I tried :

      • running official PIMD package (with PIMD software v2.3.2)
      • compiling and runing PIMD 3.0beta1 (from github sources) because official PIMD 2.3.2 is very old (2016) : I have the same problem
      • running a fresh new VM on another port on my switch, installing pfSense CE 2.8.0 and running official package PIMD (2.3.2) or compiled 3.0 : the same problem

      I also noticed running netstat -gs while PIMD is running I have a lot of "multicast forwarding cache misses" and "datagrams with no route for origin" and "upcall queue overflows"

      netstat -gs
      IPv4 multicast forwarding:
              2277892556 multicast forwarding cache lookups
              2254777122 multicast forwarding cache misses
              265402 upcalls to multicast routing daemon
              2253971473 upcall queue overflows
              0 upcalls dropped due to full socket buffer
              262429 cache cleanups
              2254777122 datagrams with no route for origin
              0 datagrams arrived with bad tunneling
              0 datagrams could not be tunneled
              132033 datagrams arrived on wrong interface
              0 datagrams selectively dropped
              0 datagrams dropped due to queue overflow
              0 datagrams dropped for being too large
      IPv6 multicast forwarding:
              0 multicast forwarding cache lookups
              0 multicast forwarding cache misses
              0 upcalls to multicast routing daemon
              0 upcall queue overflows
              0 upcalls dropped due to full socket buffer
              0 cache cleanups
              0 datagrams with no route for origin
              0 datagrams arrived with bad tunneling
              0 datagrams could not be tunneled
              0 datagrams arrived on wrong interface
              0 datagrams selectively dropped
              0 datagrams dropped due to queue overflow
              0 datagrams dropped for being too large


      What does this means ?

      Does someone manage to make PIMD work on pfSense ?

      Is there a pfSense / FreeBSD configuration to make it work ?

      Thanks a lot

      1 Reply Last reply Reply Quote 1
      • stephenw10S
        stephenw10 Netgate Administrator
        last edited by

        Is it always about 3mins? Excatly?

        That sounds like something expiring and not being renewed.

        What exactly are you using it for?

        It's always worked fine for me when I've tested it but I don't think I've ever tried to use it with wireguard.

        M 2 Replies Last reply Reply Quote 0
        • M
          maximushugus @stephenw10
          last edited by

          @stephenw10

          The problem is weird : after launching PIMD, it starts seeing multicast source groups after about 1 minutes.
          At this moment PIMD sees 30 groups (stream I have on my LAN, on the same subnet as my LAN on pfsense LAGG0.3).

          After 3min and 20 sec, PIMD "looses" some multicast groups, only seeing 8 groups. Those 8 groups are always the same : 239.1.1.11 // 239.1.1.12 // 239.1.1.14 // 239.1.1.15 // 239.1.1.16 // 239.1.1.30 // 239.1.1.78 and 2 other one.
          After some time it looses every groups.

          I'm also thinking something is expiring but I don't understand what. Pfsense is still receiving the multicast traffic when the problem happen : I can see it with packet captures and with netstat -g :

          netstat -g

          IPv4 Virtual Interface Table
           Vif   Thresh   Local-Address   Remote-Address    Pkts-In   Pkts-Out
            0         1   192.168.3.1                             0          0
            1         1   192.168.3.1                             0          0
            2         1   192.168.50.1                            0          0
            3         1   192.168.99.1                            0          0
            4         1   192.168.27.1                            0          0

          IPv4 Multicast Forwarding Table
           Origin          Group             Packets In-Vif  Out-Vifs:Ttls
           192.168.3.152   239.1.1.16              0  65535
           192.168.3.152   239.1.1.17              0  65535
           192.168.3.152   239.1.1.1               0  65535
           192.168.3.31    224.2.127.254           0  65535
           192.168.3.152   239.1.1.2               0  65535
           192.168.3.152   239.1.1.18              0  65535
           192.168.3.152   239.1.1.19              0  65535
           192.168.3.152   239.1.1.3               0  65535
           192.168.3.152   239.1.1.4               0  65535
           192.168.3.152   239.1.1.20              0  65535
           192.168.3.152   239.1.1.5               0  65535
           192.168.3.152   239.1.1.21              0  65535
           192.168.3.152   239.1.1.22              0  65535
           192.168.3.152   239.1.1.6               0  65535
           192.168.3.152   239.1.1.7               0  65535
           192.168.3.152   239.1.1.23              0  65535
           192.168.3.152   239.1.1.8               0  65535
           192.168.3.152   239.1.1.24              0  65535
           192.168.3.152   239.1.1.9               0  65535
           192.168.3.152   239.1.1.25              0  65535
           192.168.3.152   239.1.1.26              0  65535
           192.168.3.152   239.1.1.10              0  65535
           192.168.3.152   239.1.1.11              0  65535
           192.168.3.152   239.1.1.12              0  65535
           192.168.3.152   239.1.1.77              0  65535
           192.168.3.152   239.1.1.13              0  65535
           192.168.3.152   239.1.1.78              0  65535
           192.168.3.152   239.1.1.14              0  65535
           192.168.3.152   239.1.1.30              0  65535
           192.168.3.152   239.1.1.15              0  65535


          IPv6 Multicast Interface Table is empty

          IPv6 Multicast Forwarding Table is empty


          1 Reply Last reply Reply Quote 0
          • M
            maximushugus @stephenw10
            last edited by

            @stephenw10 said in PIMD loosing multicast sources:

            What exactly are you using it for?

            I'm streaming video multicast traffic from my network to other networks.
            I have to say during the time PIMD "sees" sources, it works and I can join multicast groups on other networks, effectively routing this multicast group between router.
            But when PIMD "looses" sources, it doesn't work anymore until I restart PIMD

            1 Reply Last reply Reply Quote 0
            • stephenw10S
              stephenw10 Netgate Administrator
              last edited by

              Nothing logged?

              Are you actually using the wireguard interfaces?

              M 1 Reply Last reply Reply Quote 0
              • M
                maximushugus @stephenw10
                last edited by

                @stephenw10
                With official PIMD v2.3.2 and with manually build 3.0beta (from sources) with the config I showed above, in the logs I don't have a lot of info :

                pimd version 3.0-beta1 starting. and  exitning


                and

                 Timeout waiting for reply from routing socket for 169.254.0.1


                I tried manually running PIMD from the CLI, with run in foreground and every debug options, and I see a lot of multicast forwarding cache misses, as expected with the results of netstats -gs above. But I don't really understand if this is normal

                If you are running PIMD without problem, do you have the same results as me in netstats -gs ?

                @stephenw10 said in PIMD loosing multicast sources:

                Are you actually using the wireguard interfaces?

                Yes I'm using it, without any problem, with OSPF on FRR on it.

                1 Reply Last reply Reply Quote 0
                • stephenw10S
                  stephenw10 Netgate Administrator
                  last edited by stephenw10

                  So you see that timeout for the APIPA address at the 3min mark when it stops forwarding?

                  Can you test it without the WG interfaces in play?

                  I don't actually have PIMD running on anything currently. It just always has worked when I've tested it. I'll try to get something setup again.

                  M 2 Replies Last reply Reply Quote 0
                  • M
                    maximushugus @stephenw10
                    last edited by

                    @stephenw10 said in PIMD loosing multicast sources:

                    So you see that timeout for the APIPA address at the 3min mark when it stops forwarding?

                    No I get the "Timeout waiting for reply from routing socket for 169.254.0.1" at the same time the PIMD program is lauching.
                    When PIMD looses multicast groups, there is nothing on the logs.

                    1 Reply Last reply Reply Quote 1
                    • M
                      maximushugus @stephenw10
                      last edited by

                      @stephenw10 said in PIMD loosing multicast sources:

                      Can you test it without the WG interfaces in play?

                      I tried removing WG interfaces from PIMD interfaces : I only have 3 VLANs interfaces on PIMD, with the same results

                      1 Reply Last reply Reply Quote 1
                      • M
                        maximushugus
                        last edited by

                        Here are the logs of manually running PIMD in foreground in CLI with this command : log.txt

                        The problem happen at 13:34:47.
                        I do not see any errors at this moment, but you can see before 13:34:47 there are reports of all multicast groups and after, only 8 of them.
                        I can see a lot of "cache miss" entries, but I don't know if this is normal

                        if someone can help, I tried a lot of things but have no idea why I have this problem. Thanks

                        1 Reply Last reply Reply Quote 0
                        • stephenw10S
                          stephenw10 Netgate Administrator
                          last edited by

                          I don't think the cache misses are a problem. Certainly shouldn't prevent connectivity.

                          Did you have this working in 2.7.2?

                          M 1 Reply Last reply Reply Quote 0
                          • M
                            maximushugus @stephenw10
                            last edited by

                            @stephenw10 said in PIMD loosing multicast sources:

                            Did you have this working in 2.7.2?

                            Unfortunately I have an intel X710 NIC which had a bug in pfSense 2.7.2 which prevented it from using multicast

                            I'm going to reinstall a VM with pfsense 2.7.2 on another server (without intel X710) to see if the problem still occurs

                            1 Reply Last reply Reply Quote 1
                            • M
                              maximushugus
                              last edited by maximushugus

                              @stephenw10
                              Ok. I just reinstalled pfSense 2.7.2 on a proxmox VM, giving access to my LAN.
                              I installed official package PIMD 2.3.2 on it.
                              I disabled pf (with pfctl disable).

                              I have the exact same behavior !

                              Could it be a problem on my network ? On my switch ?
                              But if so, I would not receive multicast packet on tcpdump on pfSense (for groups PIMD is not seeing anymore after 3min20 sec, but still receiving with packet captures).

                              I have a Ubiquiti EdgeSwitch 16XG. IGMP snooping is enabled on interfaces, and enable on corresponding VLANs.
                              Also I can see through CLI on this switch that when starting PIMD, pfSens's port is enable as a multicast router port, and I can see every multicast groups forwarded to this port.
                              I can also see on my switch when starting PIMD that pfSense is the multicast querier.

                              Weird

                              L 1 Reply Last reply Reply Quote 0
                              • M
                                maximushugus
                                last edited by

                                I built PIMD from sources (to have the latest version) on a Debian VM : it looks like the problem is not present on Debian. So it looks like it is a pfSense / FreeBSD specific problem

                                1 Reply Last reply Reply Quote 0
                                • stephenw10S
                                  stephenw10 Netgate Administrator
                                  last edited by

                                  Do you see any blocked traffic when this happens? The timing involved could be a state timeout. And I imagine you didn't have a firewall running in Debian.

                                  M 1 Reply Last reply Reply Quote 0
                                  • M
                                    maximushugus @stephenw10
                                    last edited by

                                    @stephenw10 No I do not see any traffic blocked.
                                    I don't have a firewall on this test Debian VM but, I also tried disabling pf on pfSense with pfctl -d while runing PIMD, without any change in this problem.
                                    Also my multicast sources are on my LAN, with "Allow all" rule.

                                    1 Reply Last reply Reply Quote 0
                                    • M
                                      maximushugus
                                      last edited by

                                      Just to add information while I have the bug with PIMD not seeing sources, pfSense seem to still see it : in the state summary those IP are still here.

                                      1 Reply Last reply Reply Quote 0
                                      • M
                                        maximushugus
                                        last edited by

                                        I built PIMD from sources on a FreeBSD 15 VM, and following this guide I launched PIMD :
                                        On FreeBSD I have the exact same problem so it must be either a FreeBSD kernel bug or a bug with the way PIMD works on FreeBSD.

                                        If someone can confirm he has a working PIMD config (receiving sources during more than a few minutes) on pfSense 2.7.2 or 2.8.0 it would help me (I don't see a lot of people using PIMD on pfSense here). Thanks.

                                        L 1 Reply Last reply Reply Quote 0
                                        • L
                                          louis2 @maximushugus
                                          last edited by

                                          @maximushugus

                                          I am normally using PIMD to access my media server from multiple vlan's.

                                          To that I am using a long ago compiled version of the beta just like you. However at this moment it is not working.

                                          For unkown reasons, but recently I changed very much related to my pfSense system, To note a few:

                                          • significant hardware changes
                                          • running the pfSense plus beta now, having of course a much newer version of FreebSD
                                          • largely changes to my firewall rules

                                          However I surely like to see it running again. I need it to access my media server!

                                          However .... I am busy at the moment and I have guests. So bad moment to recompile the beta (I never do that, so have to find out a lot again) and to do testing.

                                          However keep me/us updated !!

                                          L 1 Reply Last reply Reply Quote 0
                                          • L
                                            louis2 @louis2
                                            last edited by

                                            @louis2

                                            Some more info.

                                            I still had pimd installed however dispite started it was not running. So I wondered what whould happen if I installed the packages as compiled long ago again.

                                            So:

                                            • I accessed pf sense via SSH and copied pimd-3.0.b1.txz and pfSense-pkg-pimd-3.0.1.txz to the root its home directory
                                            • removed the old / same packages
                                              pkg remove pfSense-pkg-pimd-3.0.1
                                              pkg remove pimd-3.0.b1
                                            • installed them again from the roots home
                                              pkg install pfSense-pkg-pimd-3.0.1
                                              pkg install pimd-3.0.b1
                                            • installed pimd from the pfsense package manager
                                              I did not remove my pimd config so that config is still there
                                            • start pimd from the pimd service menu now present option pimd

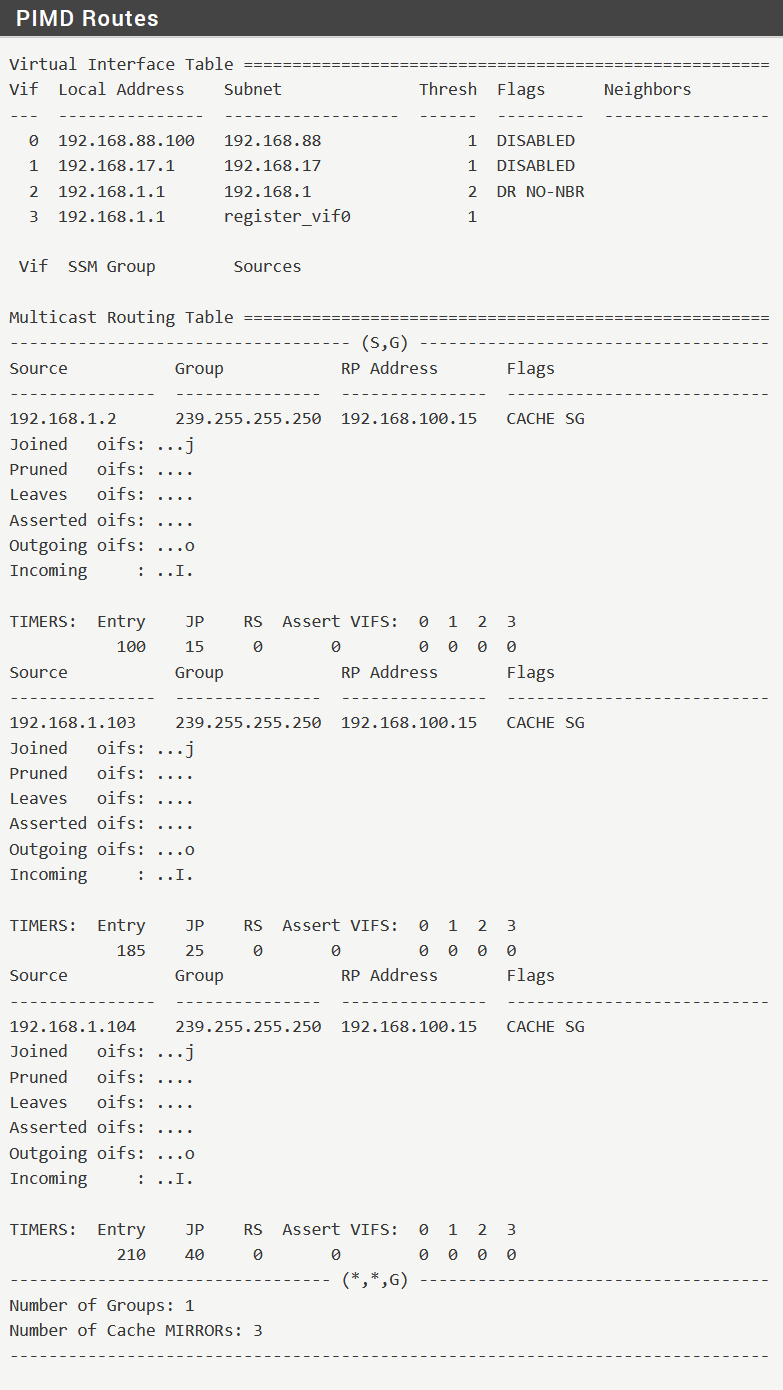

                                            • pimd starts and status shows info but the output is not showing pimd clients as expected. (see picture below)
                                            • looking in the system logs System LogsSystemGeneral
                                              I see that pimd has problems with the config
                                              Jun 13 08:01:49 pfSense pimd[3561]: /var/etc/pimd/pimd.conf:14 - Invalid phyint address 'mlxen0.26'
                                              Jun 13 08:01:49 pfSense pimd[3561]: /var/etc/pimd/pimd.conf:13 - Invalid phyint address 'lagg0.130'
                                              Jun 13 08:01:49 pfSense pimd[3561]: /var/etc/pimd/pimd.conf:12 - Invalid phyint address 'bridge0'
                                              Jun 13 08:01:49 pfSense pimd[3561]: Recommended querier timeout = Robustness x query-interval + response-time / 2 = 3 x 12 + 10 / 2 = 41
                                              Jun 13 08:01:45 pfSense check_reload_status[678]: Syncing firewall
                                              Jun 13 08:01:44 pfSense php-fpm[68271]: /pkg_edit.php: Configuration Change:
                                              Jun 13 08:01:37 pfSense pimd[90461]: /var/etc/pimd/pimd.conf:14 - Invalid phyint address 'mlxen0.26'
                                              Jun 13 08:01:37 pfSense pimd[90461]: /var/etc/pimd/pimd.conf:13 - Invalid phyint address 'lagg0.130'
                                              Jun 13 08:01:37 pfSense pimd[90461]: /var/etc/pimd/pimd.conf:12 - Invalid phyint address 'bridge0'
                                              Jun 13 08:01:37 pfSense pimd[90461]: Recommended querier timeout = Robustness x query-interval + response-time / 2 = 3 x 12 + 10 / 2 = 41

                                            So on my machine PIMD (as said the version as compiled long ago) is running but not the way it should. I still have to find out why.


                                            1 Reply Last reply Reply Quote 0
                                            • First post
                                              Last post
                                            Copyright 2025 Rubicon Communications LLC (Netgate). All rights reserved.
