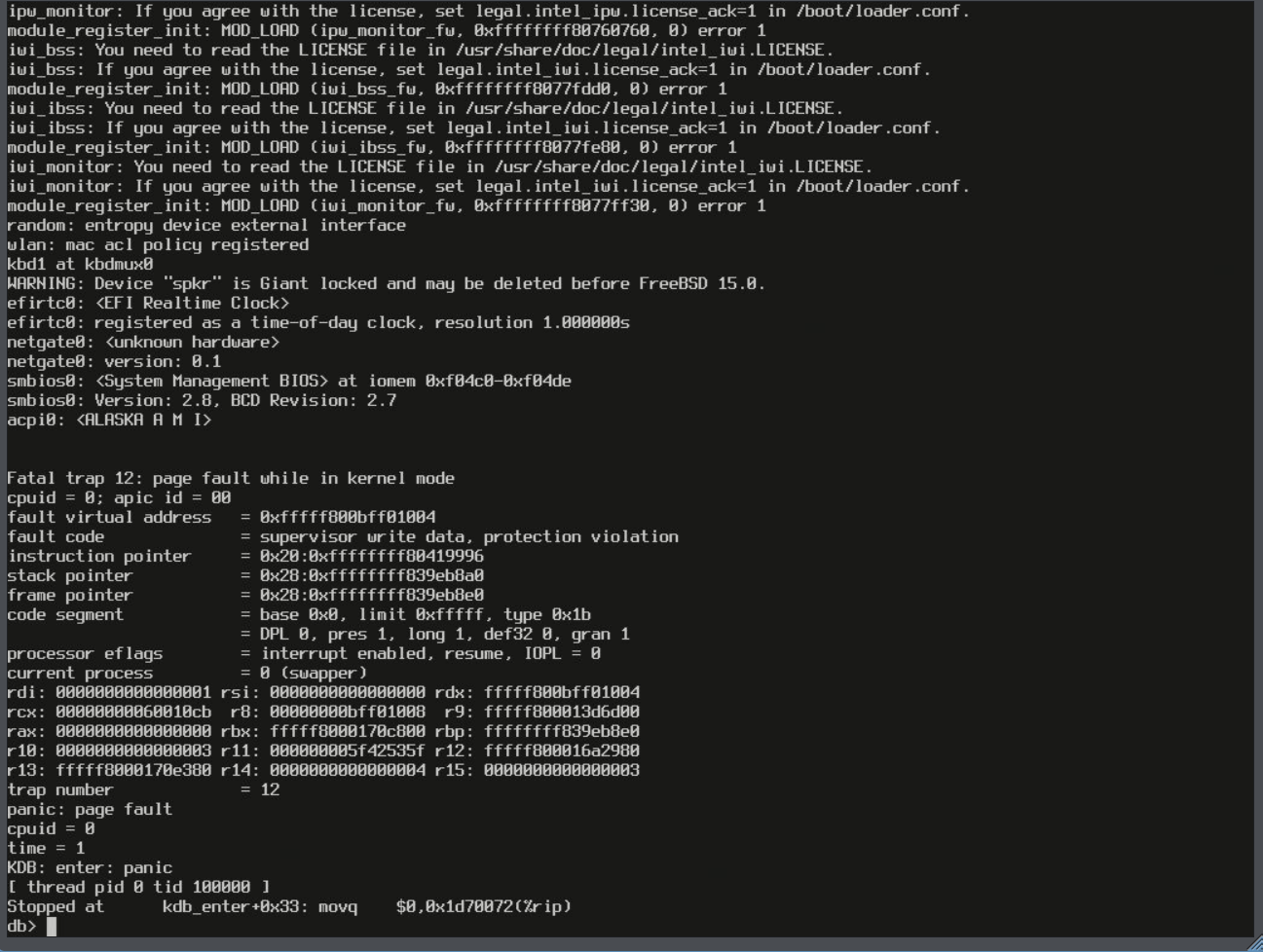

    Upgrading from 25.07 to 25.07.1 causes a fatal trap 12 on boot.

    Scheduled Pinned Locked Moved Problems Installing or Upgrading pfSense Software
    18 Posts 3 Posters 517 Views 3 Watching
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • w0wW Away
      w0w
      last edited by w0w


      EDIT:

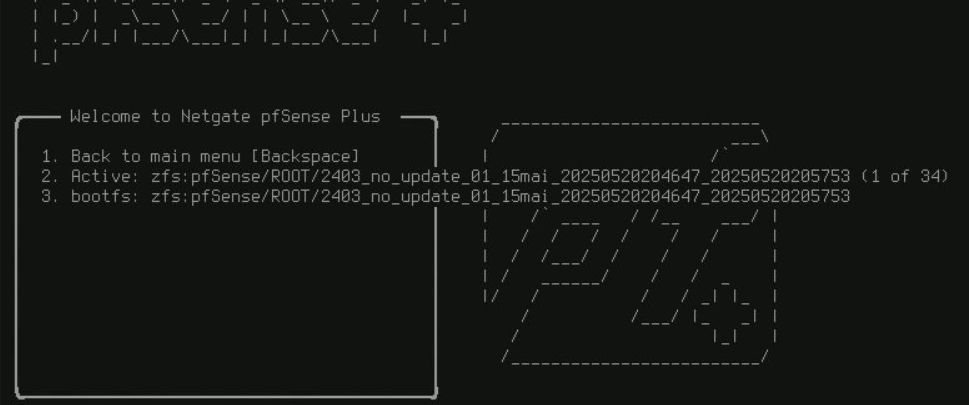

      I can boot in legacy mode
      Hardware is an ASRock Rack E3C226D2I board. I can boot in legacy mode, but not in UEFI, no matter what I do. Boot Environment selection works, but the bootfs option (3) remains the same, it never changes from 25.07.1, and it fails to boot every time.


      1 Reply Last reply Reply Quote 0
      • w0wW Away
        w0w
        last edited by w0w

        I wanted to suppress the Intel driver spam, but this ended up making it impossible to do so. Every time I add options to loader.conf.local, they get cleaned on reboot (another bug?), so I used /boot/loader.conf instead. However, the spam is still there, which indicates some other problem.

        This is what I see for comparision in legacy mode:

        ipw_bss: You need to read the LICENSE file in /usr/share/doc/legal/intel_ipw.LICENSE.
        ipw_bss: If you agree with the license, set legal.intel_ipw.license_ack=1 in /boot/loader.conf.
        module_register_init: MOD_LOAD (ipw_bss_fw, 0xffffffff80760600, 0) error 1
        ipw_ibss: You need to read the LICENSE file in /usr/share/doc/legal/intel_ipw.LICENSE.
        ipw_ibss: If you agree with the license, set legal.intel_ipw.license_ack=1 in /boot/loader.conf.
        module_register_init: MOD_LOAD (ipw_ibss_fw, 0xffffffff807606b0, 0) error 1
        ipw_monitor: You need to read the LICENSE file in /usr/share/doc/legal/intel_ipw.LICENSE.
        ipw_monitor: If you agree with the license, set legal.intel_ipw.license_ack=1 in /boot/loader.conf.
        module_register_init: MOD_LOAD (ipw_monitor_fw, 0xffffffff80760760, 0) error 1
        iwi_bss: You need to read the LICENSE file in /usr/share/doc/legal/intel_iwi.LICENSE.
        iwi_bss: If you agree with the license, set legal.intel_iwi.license_ack=1 in /boot/loader.conf.
        module_register_init: MOD_LOAD (iwi_bss_fw, 0xffffffff8077fdd0, 0) error 1
        iwi_ibss: You need to read the LICENSE file in /usr/share/doc/legal/intel_iwi.LICENSE.
        iwi_ibss: If you agree with the license, set legal.intel_iwi.license_ack=1 in /boot/loader.conf.
        module_register_init: MOD_LOAD (iwi_ibss_fw, 0xffffffff8077fe80, 0) error 1
        iwi_monitor: You need to read the LICENSE file in /usr/share/doc/legal/intel_iwi.LICENSE.
        iwi_monitor: If you agree with the license, set legal.intel_iwi.license_ack=1 in /boot/loader.conf.
        module_register_init: MOD_LOAD (iwi_monitor_fw, 0xffffffff8077ff30, 0) error 1
        random: entropy device external interface
        wlan: mac acl policy registered
        kbd1 at kbdmux0
        WARNING: Device "spkr" is Giant locked and may be deleted before FreeBSD 15.0.
        netgate0: <unknown hardware>
        netgate0: version: 0.1
        vtvga0: <VT VGA driver>
        smbios0: <System Management BIOS> at iomem 0xf04c0-0xf04de
        smbios0: Version: 2.8, BCD Revision: 2.7
        acpi0: <ALASKA A M I>
        acpi0: Power Button (fixed)
        cpu0: <ACPI CPU> on acpi0
        hpet0: <High Precision Event Timer> iomem 0xfed00000-0xfed003ff on acpi0
        Timecounter "HPET" frequency 14318180 Hz quality 950
        Event timer "HPET" frequency 14318180 Hz quality 550
        atrtc0: <AT realtime clock> port 0x70-0x77 irq 8 on acpi0
        atrtc0: registered as a time-of-day clock, resolution 1.000000s
        Event timer "RTC" frequency 32768 Hz quality 0
        attimer0: <AT timer> port 0x40-0x43,0x50-0x53 irq 0 on acpi0
        Timecounter "i8254" frequency 1193182 Hz quality 0
        Event timer "i8254" frequency 1193182 Hz quality 100
        Timecounter "ACPI-fast" frequency 3579545 Hz quality 900
        acpi_timer0: <24-bit timer at 3.579545MHz> port 0x1808-0x180b on acpi0
        pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0
        pci0: <ACPI PCI bus> on pcib0
        pcib1: <ACPI PCI-PCI bridge> irq 16 at device 1.0 on pci0
        pci1: <ACPI PCI bus> on pcib1
        ixl0: <Intel(R) Ethernet Controller X710 for 10GBASE-T - 2.3.3-k> mem 0xfbe000000-0xfbeffffff,0xfbf018000-0xfbf01ffff irq 16 at device 0.0 on pci1
        ixl0: fw 9.820.73026 api 1.15 nvm 9.20 etid 8000d966 oem 22.5632.9
        ixl0: PF-ID[0]: VFs 32, MSI-X 129, VF MSI-X 5, QPs 384, MDIO shared

        1 Reply Last reply Reply Quote 0
        • stephenw10S Online
          stephenw10 Netgate Administrator
          last edited by

          Hmm, those should not be removed from loader.conf.local.

          Are you able to get the full output from a UEFI boot leading up to the failure?

          w0wW 1 Reply Last reply Reply Quote 0
          • stephenw10S Online
            stephenw10 Netgate Administrator
            last edited by

            Are you able to try upgrading from 24.11 to 25.07.1 directly?

            1 Reply Last reply Reply Quote 0
            • stephenw10S Online
              stephenw10 Netgate Administrator
              last edited by

              If you can replicate that try running bt at the db> prompt after it crashes to get the backtrace.

              Also try interrupting the loader to reach the OK> prompt and run: memmap
              That will show if there's something hardware specific happening.

              w0wW 2 Replies Last reply Reply Quote 1
              • w0wW Away
                w0w @stephenw10
                last edited by

                @stephenw10
                Thank you for the hints. I’ll test what I can do and report back as soon as possible.

                1 Reply Last reply Reply Quote 0
                • w0wW Away
                  w0w @stephenw10
                  last edited by

                  @stephenw10 said in Upgrading from 25.07 to 25.07.1 causes a fatal trap 12 on boot.:

                  If you can replicate that try running bt at the db> prompt after it crashes to get the backtrace.

                  It just hangs there, no input possible.

                  @stephenw10 said in Upgrading from 25.07 to 25.07.1 causes a fatal trap 12 on boot.:

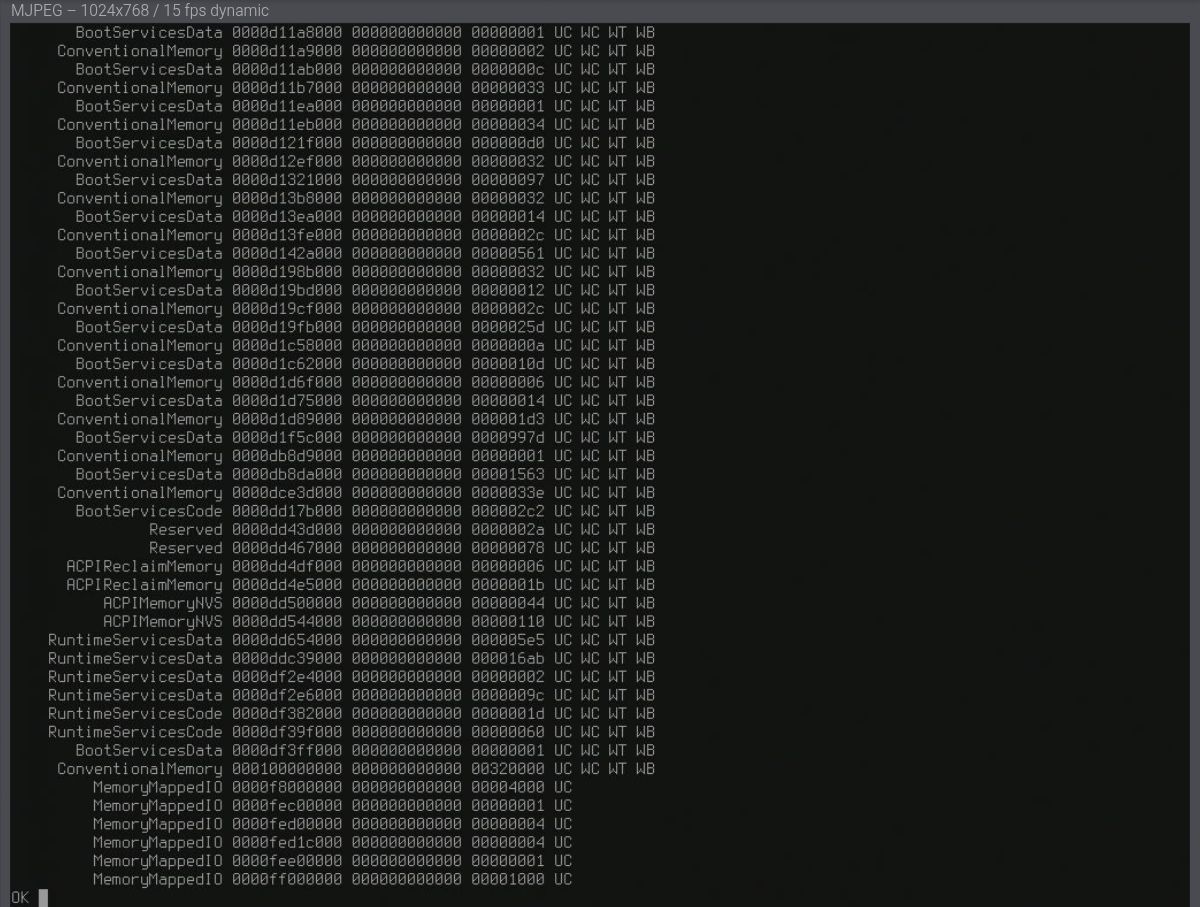

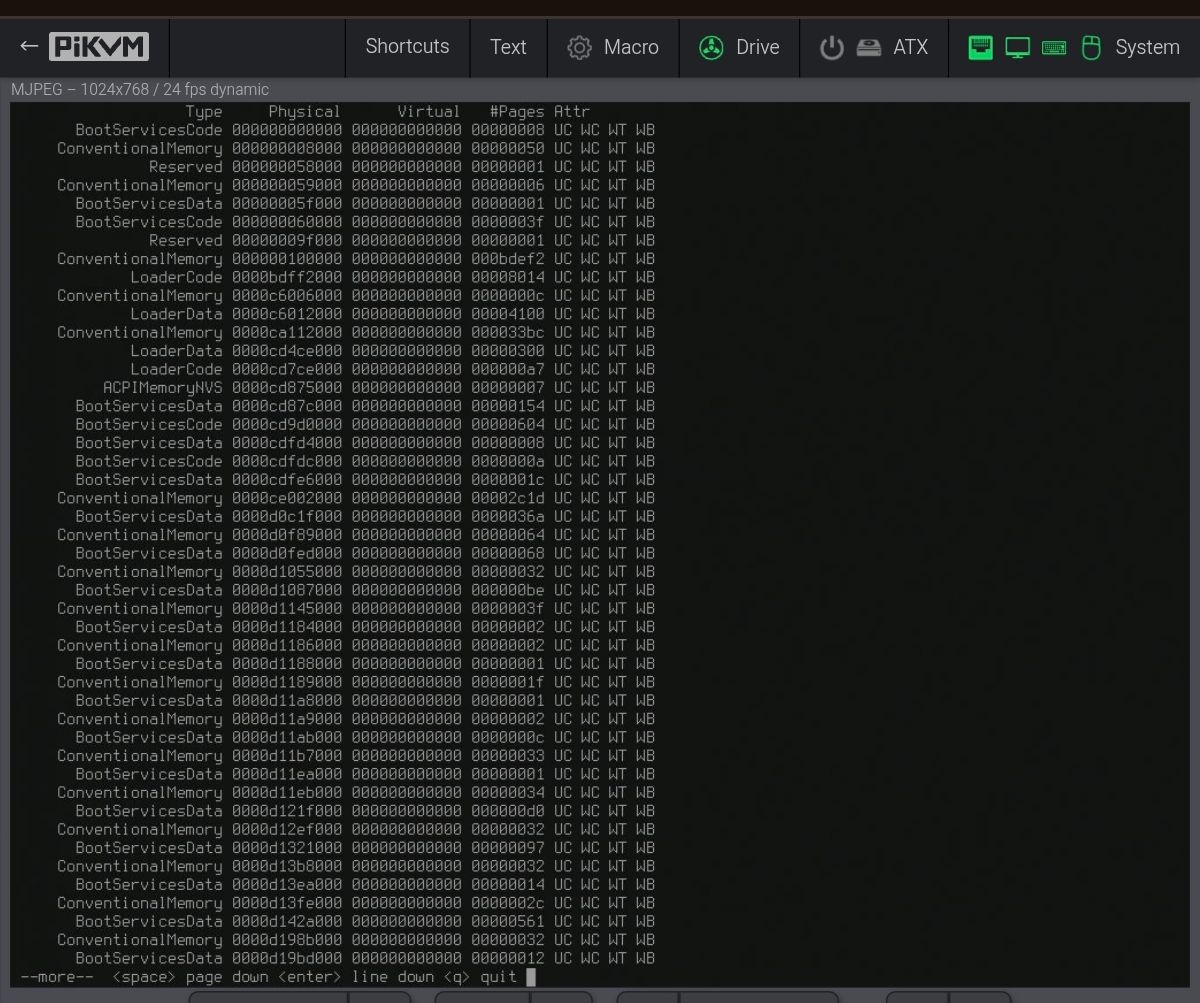

                  and run: memmap


                  1 Reply Last reply Reply Quote 0
                  • w0wW Away
                    w0w @stephenw10
                    last edited by

                    @stephenw10 said in Upgrading from 25.07 to 25.07.1 causes a fatal trap 12 on boot.:

                    Are you able to get the full output from a UEFI boot leading up to the failure?

                    Not yet. I think capturing is possible, but didn't have tried yet.

                    @stephenw10 said in Upgrading from 25.07 to 25.07.1 causes a fatal trap 12 on boot.:

                    Are you able to try upgrading from 24.11 to 25.07.1 directly?

                    I’m not sure here, maybe I still have an old boot environment left, then theoretically it’s possible, but it would require my presence, so it can only be done later after work.

                    1 Reply Last reply Reply Quote 0
                    • stephenw10S Online
                      stephenw10 Netgate Administrator
                      last edited by

                      Ok thanks. I'll relay that to the devs, make sure it looks rational.

                      1 Reply Last reply Reply Quote 0
                      • stephenw10S Online
                        stephenw10 Netgate Administrator
                        last edited by

                        If you're able to get the full boot output try doing so whilst booting verbose. So boot -v at the loader prompt. That should give us more.

                        w0wW 1 Reply Last reply Reply Quote 0
                        • w0wW Away
                          w0w @stephenw10
                          last edited by

                          @stephenw10 said in Upgrading from 25.07 to 25.07.1 causes a fatal trap 12 on boot.:

                          stephenw10
                          Netgate
                          Administrator
                          about 5 hours ago

                          If you're able to get the full boot output try doing so whilst booting verbose. So boot -v at the loader prompt. That should give us more.

                          pfsense_capture.zip Not very good, but I don't think I can do better.
                          Will see if I can find 24.11...

                          1 Reply Last reply Reply Quote 0
                          • w0wW Away
                            w0w
                            last edited by

                            No luck, after upgrading on 24.11 the symptoms remain the same.

                            1 Reply Last reply Reply Quote 0
                            • stephenw10S Online
                              stephenw10 Netgate Administrator
                              last edited by

                              I think we should be able to see something there. Let's see....

                              1 Reply Last reply Reply Quote 0
                              • stephenw10S Online
                                stephenw10 Netgate Administrator
                                last edited by

                                Hmm unfortunately it's obscuring some of the most useful output.

                                Are you able to boot with acpi disabled entirely?

                                set hint.acpi.0.disabled=1 at the loader prompt.

                                w0wW 1 Reply Last reply Reply Quote 0
                                • w0wW Away
                                  w0w @stephenw10
                                  last edited by w0w

                                  @stephenw10 said in Upgrading from 25.07 to 25.07.1 causes a fatal trap 12 on boot.:

                                  set hint.acpi.0.disabled=1

                                  Is it the same as the 'ACPI off' option in the loader prompt under boot options?

                                  I think I can provide the full UEFI boot output using the Netgate installer boot or even the console output — I’ll try something over the weekend.

                                  On the other side, what changes were made in the bootloader between 25.07 and 25.07.1?

                                  L 1 Reply Last reply Reply Quote 0
                                  • L Offline
                                    ldangpfng @w0w
                                    last edited by

                                    @w0w "ACPI off" is probably the same.

                                    The difference between the 25.07 and 25.07.1 loader is the expansion of the memory area used to load the kernel and modules; the kernel has grown and some systems (such as those with many devices) rely on more memory to be reserved by the loader to be able to boot the kernel. We can't revert this expansion because it actually affects a substantial number of systems.

                                    My guess with what's happening on your system is a BIOS firmware bug where the faulting address is not reported to be reserved for ACPI system use, and it coincidentally is where the kernel got loaded into. Because it's kernel code memory, the pages are marked as read-only, so a page-fault occurred when the ACPI driver tried to write to it.

                                    If disabling ACPI doesn't work, then another thing to try is telling the loader to add slop space, which is a memory range to add on top of the expanded space. Go into the loader prompt and issue the command below to tell it to increase it further to 256MB, so that the kernel code doesn't overlap with what ACPI is trying to access:

                                    staging_slop 268435456
                                    boot -v


                                    Unfortunately, staging_slop is a command, so it can't be added to loader.conf.

                                    Once the pfSense is booted (even if in 24.11), can you collect the ACPI tables to help us see what resources the BIOS is access or owns?

                                    acpidump -dt | gzip -c > acpi.asl.gz

                                    w0wW 1 Reply Last reply Reply Quote 2
                                    • w0wW Away
                                      w0w @ldangpfng
                                      last edited by w0w

                                      @ldangpfng
                                      Thank you for support!
                                      8c2764e4-d3ec-4872-b293-5d8d26535d1a-acpi.asl.gz
                                      I hope this helps. This is from a 25.07.1 system booted with the recommended slop.

                                      L 1 Reply Last reply Reply Quote 0
                                      • L Offline
                                        ldangpfng @w0w
                                        last edited by

                                        There it is, a memory mapped PCI config space but the firmware has not marked the memory as reserved. Instead it's still in the Conventional Memory block, which means a loader or kernel could incorrectly allocate memory into that space.

                                            Scope (_SB.PCI0.HEC2)
                                            {
                                                Name (H2BR, 0xBFF01000)       <---
                                                Name (H2ST, 0x0B)
                                                OperationRegion (NMFS, PCI_Config, 0x40, 0x04)
                                                Field (NMFS, DWordAcc, NoLock, Preserve)
                                                {
                                                        ,   30,
                                                    DMEN,   1,
                                                    NMEN,   1
                                                }


                                        This is a firmware bug; it should be reported to the vendor to do the right thing with memory map. Maybe they have a BIOS update available.

                                        1 Reply Last reply Reply Quote 2
