High CPU usage from egrep in pfSense+ v25.07.1
-
Hmm, interesting. So still only one or two updaterrd processes?
-
@stephenw10 It's still showing a few simuleanteously, but every minute or so, not every other second like it was before.
-
Dear Stephen10,
I'm now at 16 days of uptime and the problem has returned. The firewall is practically idle with only 1-2Mb/s of data moving in/out through one of my two WAN's and the CPU usage is between 50% and 70% constantly.
This is what I get from top -aSH -sl
PID USERNAME PRI NICE SIZE RES STATE C TIME WCPU COMMAND 14729 root 114 20 14M 2744K CPU15 15 0:02 83.25% egrep -v \\(([0-9a-f:.]|\\[|\\])+\\) (\\->|<\\-) 11 root 187 ki31 0B 256K RUN 0 300.8H 53.18% [idle{idle: cpu0}] 3366 root 112 20 14M 2636K CPU14 14 0:01 51.27% egrep -v \\(([0-9a-f:.]|\\[|\\])+\\) (\\->|<\\-) 13332 root 112 20 14M 2644K CPU5 5 0:01 50.23% egrep -v \\(([0-9a-f:.]|\\[|\\])+\\) (\\->|<\\-) 21415 root 112 20 14M 2636K CPU11 11 0:01 49.49% egrep -v \\(([0-9a-f:.]|\\[|\\])+\\) (\\->|<\\-) 23033 root 112 20 14M 2640K CPU13 13 0:01 49.47% egrep -v \\(([0-9a-f:.]|\\[|\\])+\\) (\\->|<\\-) 11 root 187 ki31 0B 256K CPU8 8 297.9H 47.07% [idle{idle: cpu8}] 11 root 187 ki31 0B 256K CPU10 10 304.3H 46.48% [idle{idle: cpu10}] 11 root 187 ki31 0B 256K RUN 7 295.3H 44.32% [idle{idle: cpu7}] 11 root 187 ki31 0B 256K CPU4 4 299.0H 43.75% [idle{idle: cpu4}] 11 root 187 ki31 0B 256K RUN 14 293.7H 42.83% [idle{idle: cpu14}] 11 root 187 ki31 0B 256K RUN 2 294.9H 41.53% [idle{idle: cpu2}] 11 root 187 ki31 0B 256K CPU12 12 294.9H 41.19% [idle{idle: cpu12}] 11 root 187 ki31 0B 256K RUN 6 296.4H 40.91% [idle{idle: cpu6}] 11 root 187 ki31 0B 256K RUN 13 290.5H 39.37% [idle{idle: cpu13}] 11 root 187 ki31 0B 256K CPU3 3 283.4H 38.60% [idle{idle: cpu3}] 11 root 187 ki31 0B 256K RUN 15 280.2H 35.89% [idle{idle: cpu15}] 11 root 187 ki31 0B 256K RUN 9 286.2H 34.99% [idle{idle: cpu9}] 11 root 187 ki31 0B 256K RUN 11 279.3H 34.25% [idle{idle: cpu11}] 11 root 187 ki31 0B 256K RUN 1 279.1H 32.74% [idle{idle: cpu1}] 11 root 187 ki31 0B 256K RUN 5 276.3H 31.31% [idle{idle: cpu5}]Here is what I get from ps -auxwwd | grep updaterrd
root 6115 1.0 0.0 14648 3332 - SN 6Sep25 38:40.08 |-- /bin/sh /var/db/rrd/updaterrd.sh root 22 0.0 0.0 14648 3332 - SN Wed18 7:42.23 |-- /bin/sh /var/db/rrd/updaterrd.sh root 306 0.0 0.0 14648 3324 - IN 10Sep25 25:56.82 |-- /bin/sh /var/db/rrd/updaterrd.sh root 1786 0.0 0.0 14648 3332 - IN Wed19 7:34.60 |-- /bin/sh /var/db/rrd/updaterrd.sh root 2356 0.0 0.0 14648 3332 - SN 10Sep25 26:09.77 |-- /bin/sh /var/db/rrd/updaterrd.sh root 3786 0.0 0.0 14648 3332 - IN 10Sep25 26:23.12 |-- /bin/sh /var/db/rrd/updaterrd.sh root 5951 0.0 0.0 14648 3328 - IN 6Sep25 38:23.48 |-- /bin/sh /var/db/rrd/updaterrd.sh root 12340 0.0 0.0 14648 3328 - IN 10Sep25 26:10.11 |-- /bin/sh /var/db/rrd/updaterrd.sh root 19569 0.0 0.0 14648 3324 - SN 10Sep25 25:59.66 |-- /bin/sh /var/db/rrd/updaterrd.sh root 19687 0.0 0.0 14648 3332 - IN 10Sep25 25:54.78 |-- /bin/sh /var/db/rrd/updaterrd.sh root 20942 0.0 0.0 14648 3324 - IN 10Sep25 26:13.54 |-- /bin/sh /var/db/rrd/updaterrd.sh root 22805 0.0 0.0 14648 3328 - SN 10Sep25 26:11.92 |-- /bin/sh /var/db/rrd/updaterrd.sh root 23043 0.0 0.0 14648 3324 - IN 3Sep25 44:48.32 |-- /bin/sh /var/db/rrd/updaterrd.sh root 23470 0.0 0.0 14648 3328 - IN Wed18 7:35.29 |-- /bin/sh /var/db/rrd/updaterrd.sh root 23659 0.0 0.0 14648 3328 - IN 10Sep25 26:11.67 |-- /bin/sh /var/db/rrd/updaterrd.sh root 23945 0.0 0.0 14648 3328 - SN 10Sep25 26:06.20 |-- /bin/sh /var/db/rrd/updaterrd.sh root 8008 0.0 0.0 14648 3312 - SN 10:24 0:00.00 | `-- /bin/sh /var/db/rrd/updaterrd.sh root 26022 0.0 0.0 14648 3324 - SN 10Sep25 25:58.46 |-- /bin/sh /var/db/rrd/updaterrd.sh root 26042 0.0 0.0 14648 3332 - IN 10Sep25 26:23.49 |-- /bin/sh /var/db/rrd/updaterrd.sh root 28632 0.0 0.0 14648 3340 - IN Wed19 7:36.19 |-- /bin/sh /var/db/rrd/updaterrd.sh root 28730 0.0 0.0 14648 3332 - SN Wed19 7:48.57 |-- /bin/sh /var/db/rrd/updaterrd.sh root 29315 0.0 0.0 14648 3328 - IN 10Sep25 26:02.06 |-- /bin/sh /var/db/rrd/updaterrd.sh root 29326 0.0 0.0 14648 3340 - IN Wed19 7:35.01 |-- /bin/sh /var/db/rrd/updaterrd.sh root 29945 0.0 0.0 14648 3332 - IN 10Sep25 26:10.44 |-- /bin/sh /var/db/rrd/updaterrd.sh root 30177 0.0 0.0 14648 3332 - IN Wed19 7:44.25 |-- /bin/sh /var/db/rrd/updaterrd.sh root 30685 0.0 0.0 14648 3332 - IN Wed19 7:42.13 |-- /bin/sh /var/db/rrd/updaterrd.sh root 31073 0.0 0.0 14648 3328 - SN Wed18 7:37.28 |-- /bin/sh /var/db/rrd/updaterrd.sh root 33594 0.0 0.0 14648 3328 - IN 10Sep25 26:04.82 |-- /bin/sh /var/db/rrd/updaterrd.sh root 67790 0.0 0.0 14080 2712 0 S+ 10:24 0:00.00 | `-- grep updaterrd root 50702 0.0 0.0 14648 3328 - IN Wed19 7:40.90 |-- /bin/sh /var/db/rrd/updaterrd.sh root 55864 0.0 0.0 14648 3336 - SN Wed19 7:45.30 |-- /bin/sh /var/db/rrd/updaterrd.sh root 4979 0.0 0.0 14648 3320 - SN 10:24 0:00.00 | `-- /bin/sh /var/db/rrd/updaterrd.sh root 56232 0.0 0.0 14648 3332 - IN Wed18 7:43.99 |-- /bin/sh /var/db/rrd/updaterrd.sh root 63618 0.0 0.0 14648 3328 - SN Wed19 7:42.86 |-- /bin/sh /var/db/rrd/updaterrd.sh root 64770 0.0 0.0 14648 3332 - IN Wed19 7:37.65 |-- /bin/sh /var/db/rrd/updaterrd.sh root 65043 0.0 0.0 14648 3328 - IN Wed19 7:42.31 |-- /bin/sh /var/db/rrd/updaterrd.sh root 69742 0.0 0.0 14648 3336 - SN 10Sep25 26:08.58 |-- /bin/sh /var/db/rrd/updaterrd.sh root 69902 0.0 0.0 14648 3344 - IN 10Sep25 26:09.77 |-- /bin/sh /var/db/rrd/updaterrd.sh root 73676 0.0 0.0 14648 3336 - SN Wed18 7:43.24 |-- /bin/sh /var/db/rrd/updaterrd.sh root 64192 0.0 0.0 14648 3324 - SN 10:24 0:00.00 | `-- /bin/sh /var/db/rrd/updaterrd.sh root 75268 0.0 0.0 14648 3320 - IN Wed18 7:32.65 |-- /bin/sh /var/db/rrd/updaterrd.sh root 75652 0.0 0.0 14648 3332 - IN 10Sep25 26:16.90 |-- /bin/sh /var/db/rrd/updaterrd.sh root 76273 0.0 0.0 14648 3324 - IN 10Sep25 25:59.07 |-- /bin/sh /var/db/rrd/updaterrd.sh root 76796 0.0 0.0 14648 3328 - SN Wed18 7:36.50 |-- /bin/sh /var/db/rrd/updaterrd.sh root 81361 0.0 0.0 14648 3328 - SN 10Sep25 25:58.86 |-- /bin/sh /var/db/rrd/updaterrd.sh root 66931 0.0 0.0 14648 3312 - SN 10:24 0:00.00 | `-- /bin/sh /var/db/rrd/updaterrd.sh root 81782 0.0 0.0 14648 3332 - IN 10Sep25 26:25.67 |-- /bin/sh /var/db/rrd/updaterrd.sh root 82851 0.0 0.0 14648 3332 - IN Wed18 7:45.65 |-- /bin/sh /var/db/rrd/updaterrd.sh root 82948 0.0 0.0 14648 3328 - IN 10Sep25 26:10.74 |-- /bin/sh /var/db/rrd/updaterrd.sh root 83037 0.0 0.0 14648 3332 - IN 10Sep25 26:07.16 |-- /bin/sh /var/db/rrd/updaterrd.sh root 83534 0.0 0.0 14648 3332 - SN 10Sep25 26:07.22 |-- /bin/sh /var/db/rrd/updaterrd.sh root 83659 0.0 0.0 14648 3332 - IN 10Sep25 25:48.59 |-- /bin/sh /var/db/rrd/updaterrd.sh root 85084 0.0 0.0 14648 3336 - SN 10Sep25 26:04.50 |-- /bin/sh /var/db/rrd/updaterrd.sh root 90220 0.0 0.0 14648 3328 - SN Wed18 7:44.84 |-- /bin/sh /var/db/rrd/updaterrd.sh root 90451 0.0 0.0 14648 3316 - IN Wed18 7:36.11 |-- /bin/sh /var/db/rrd/updaterrd.sh root 92223 0.0 0.0 14648 3328 - SN 10Sep25 26:08.71 |-- /bin/sh /var/db/rrd/updaterrd.sh root 93506 0.0 0.0 14648 3336 - SN Wed18 7:35.40 |-- /bin/sh /var/db/rrd/updaterrd.sh root 3202 0.0 0.0 14648 3324 - SN 10:24 0:00.01 | `-- /bin/sh /var/db/rrd/updaterrd.sh root 95534 0.0 0.0 14648 3328 - IN Wed18 7:34.67 |-- /bin/sh /var/db/rrd/updaterrd.sh root 97556 0.0 0.0 14648 3332 - SN Wed18 7:46.68 |-- /bin/sh /var/db/rrd/updaterrd.sh root 98233 0.0 0.0 14648 3332 - IN 10Sep25 25:45.26 |-- /bin/sh /var/db/rrd/updaterrd.sh root 98766 0.0 0.0 14648 3324 - IN Wed18 7:40.54 |-- /bin/sh /var/db/rrd/updaterrd.sh root 98810 0.0 0.0 14648 3332 - IN 10Sep25 25:46.52 |-- /bin/sh /var/db/rrd/updaterrd.sh root 99299 0.0 0.0 14648 3328 - SN 10Sep25 25:53.29 |-- /bin/sh /var/db/rrd/updaterrd.sh root 99316 0.0 0.0 14648 3328 - IN 10Sep25 26:01.37 |-- /bin/sh /var/db/rrd/updaterrd.sh root 99505 0.0 0.0 14648 3324 - SN 10Sep25 26:34.16 |-- /bin/sh /var/db/rrd/updaterrd.sh root 99552 0.0 0.0 14648 3332 - IN 10Sep25 26:15.17 |-- /bin/sh /var/db/rrd/updaterrd.shSeems like it takes a while to start malfunctioning, I think I've seen this behaviour three times now after a while over uptime. No changes to my config have been made over the past 1.5 months, reboots resolve it then it comes back eventually.
-
I noticed but didnt get time to debug yet an increase in CPU load that was around the time of the last update.
I'll take a look today and see if its similar to your report here.
UPDATE:
[25.07.1-RELEASE][root@pfsense.local.lan]/root: ps -auxwwd | grep updaterrd root 10344 0.0 0.0 14644 3284 - IN 19Aug25 27:40.03 |-- /bin/sh /var/db/rrd/updaterrd.sh root 96162 0.0 0.0 14076 2700 0 S+ 11:31 0:00.00 | `-- grep updaterrd root 36409 0.0 0.0 14644 3284 - SN 19Aug25 27:38.58 |-- /bin/sh /var/db/rrd/updaterrd.sh root 40744 0.0 0.0 14644 3284 - SN Sat11 0:50.56 |-- /bin/sh /var/db/rrd/updaterrd.sh root 43487 0.0 0.0 14644 3296 - IN 19Aug25 27:40.89 |-- /bin/sh /var/db/rrd/updaterrd.sh root 45279 0.0 0.0 14644 3280 - IN 19Aug25 27:21.49 |-- /bin/sh /var/db/rrd/updaterrd.sh root 49592 0.0 0.0 14644 3288 - IN 19Aug25 27:20.34 |-- /bin/sh /var/db/rrd/updaterrd.sh root 52501 0.0 0.0 14644 3276 - IN 19Aug25 27:39.09 |-- /bin/sh /var/db/rrd/updaterrd.sh root 82361 0.0 0.0 14644 3280 - SN 19Aug25 27:21.90 |-- /bin/sh /var/db/rrd/updaterrd.sh root 94685 0.0 0.0 14644 3272 - SN 11:31 0:00.00 | `-- /bin/sh /var/db/rrd/updaterrd.sh root 91882 0.0 0.0 14644 3276 - IN 19Aug25 27:23.96 |-- /bin/sh /var/db/rrd/updaterrd.sh -

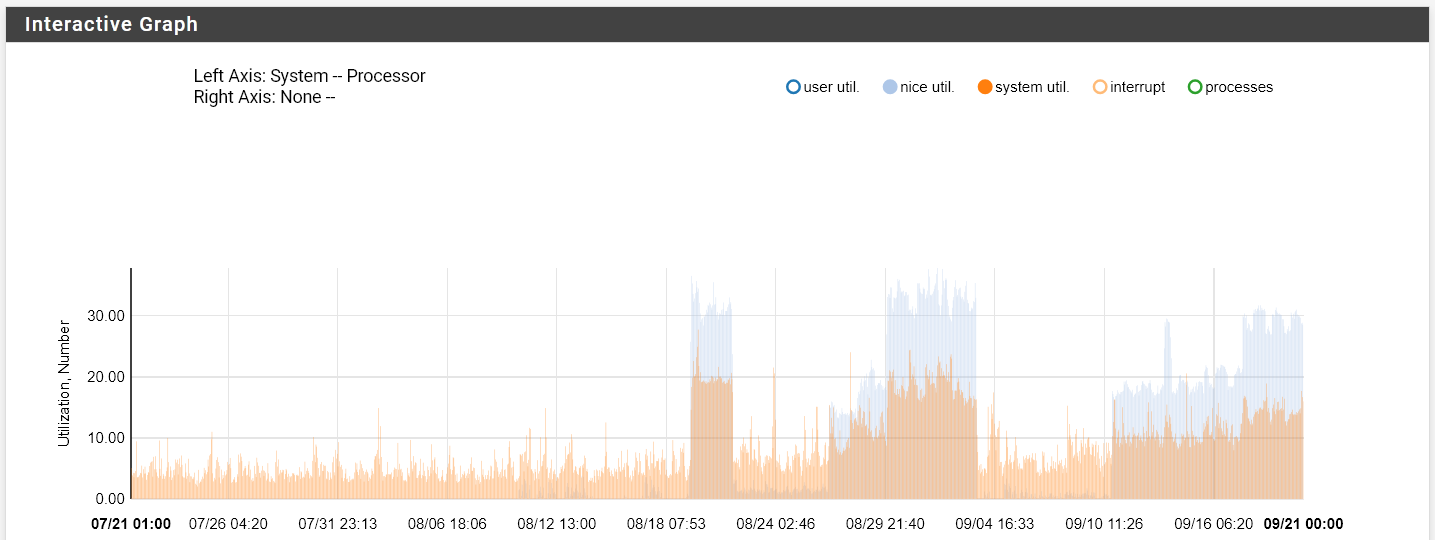

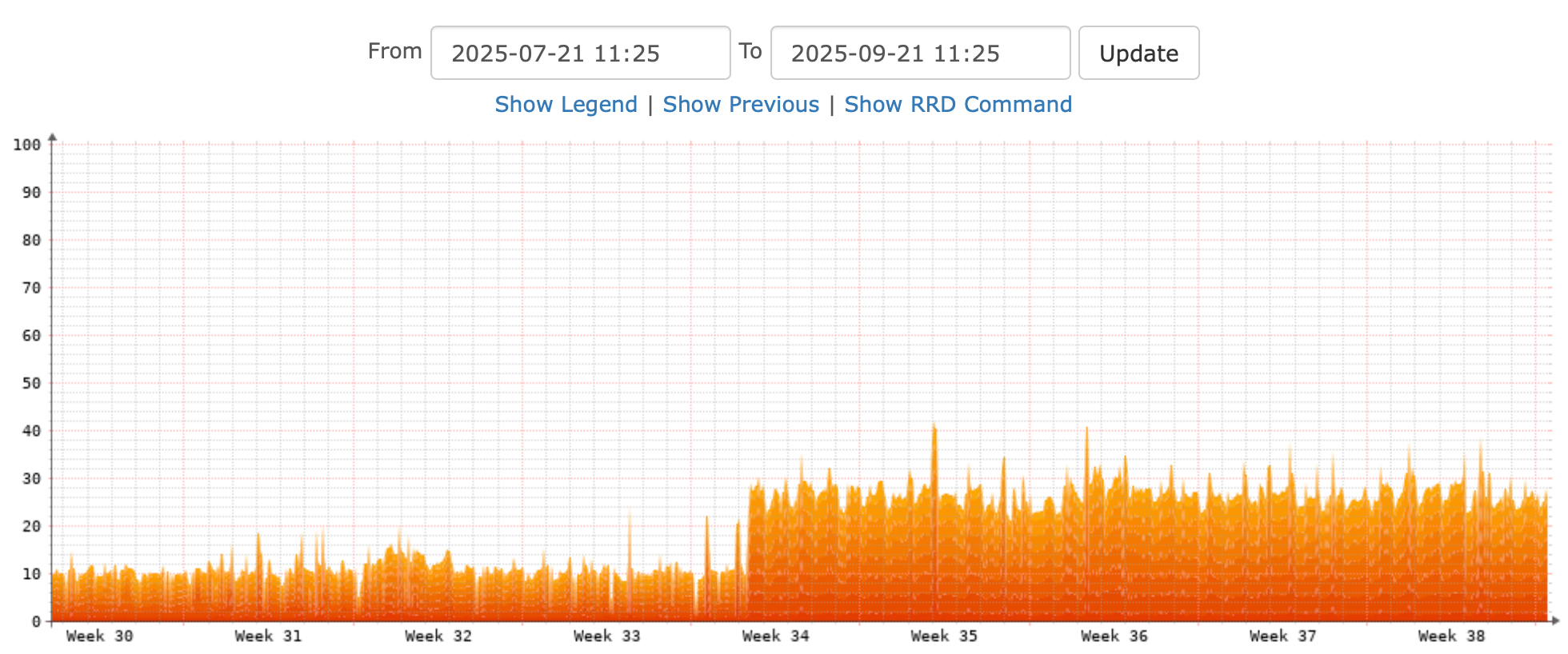

@q54e3w That's great insight to look back at the graphs. This is what I'm seeing.
Can essentially see where I reboot for something then randomly it goes high. I think this graphs resolution isn't quite high enough to see the exact amount of CPU utilisation since its so brief that it hits near 100% for a second but cumulatively you can see a trend here of abnormal usage.
Definitely started after I upgraded the version I'm using.
-
Hmm. Good data. Let me see if I can find anything....
-
@stephenw10 I tried removing my dashboard widgets tracking gateway performance but the same number of updaterrd.sh exist a few days later.
I have a similar number of VPN connections to updaterrd.sh files.
Not sure if thats helpful but wanted to share. -
Still nothing logged at the point the RRD process start to rack up?
-

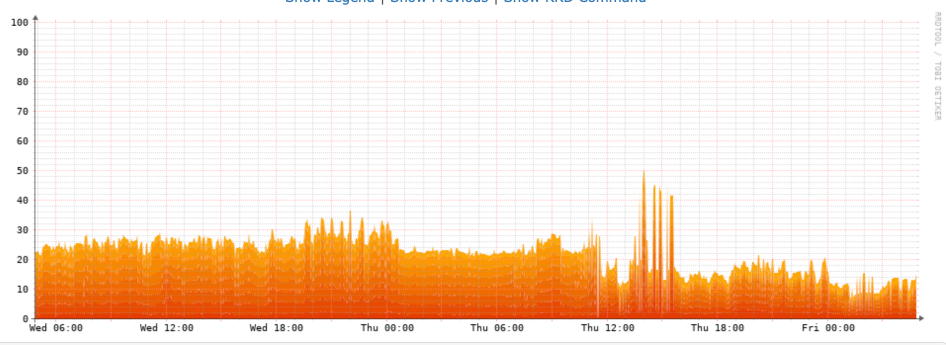

@stephenw10 Found some time to reboot the system so will monitor over the coming days. So far utilisation is back to pre-spiked levels. I disabled RRD graphs associated with NTP statistics that I had enabled too.
This is my current ps aux output
ps -auxwwd | grep updaterrd root 5801 0.0 0.0 14644 3280 - IN 11:34 0:36.49 |-- /bin/sh /var/db/rrd/updaterrd.sh root 5901 0.0 0.0 14644 3288 - IN 11:34 0:36.20 |-- /bin/sh /var/db/rrd/updaterrd.sh root 11559 0.0 0.0 14076 2708 0 S+ 04:52 0:00.00 | `-- grep updaterrd root 47789 0.0 0.0 14644 3292 - SN 01:18 0:07.50 |-- /bin/sh /var/db/rrd/updaterrd.sh root 97262 0.0 0.0 14644 3288 - SN 04:52 0:00.00 | `-- /bin/sh /var/db/rrd/updaterrd.sh root 53209 0.0 0.0 14644 3288 - SN 11:34 0:36.96 |-- /bin/sh /var/db/rrd/updaterrd.sh root 63648 0.0 0.0 14644 3076 - IN 11:29 0:35.54 |-- /bin/sh /var/db/rrd/updaterrd.sh
-
Yeah, I've yet to hit it here. We are reviewing it.
