Traffic between OPT1 net and other networks e.g. LAN net

patient0

@jogovogo said in Traffic between OPT1 net and other networks e.g. LAN net:

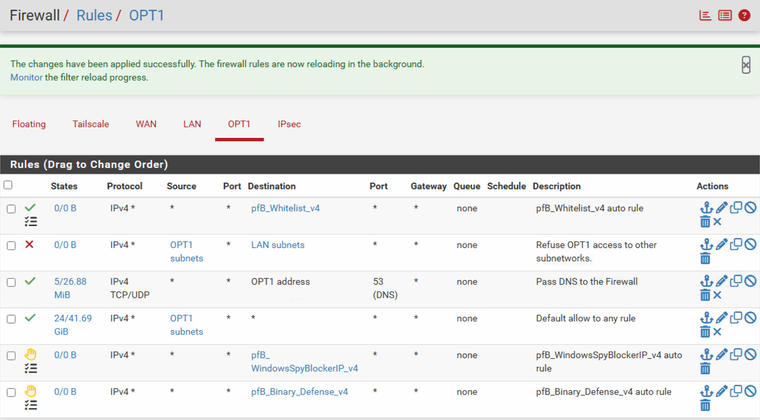

But what I noticed now is that the rule somehow slips down by itself...

Ah, that would explain it. The rules are first-match so that rule won't run because the third rule matches first.
Moving it above the "OPT1 subnets * *" will make work.

jogovogo

@patient0

That's how it's meant, but it just slides down by itself...

tinfoilmatt

@jogovogo said in Traffic between OPT1 net and other networks e.g. LAN net:

But what I noticed now is that the rule somehow slips down by itself...

You need to read and understand the setting at: Firewall / pfBlockerNG / IP / 'IP Interface/Rules Configuration' / Firewall 'Auto' Rule Order.

jogovogo

@tinfoilmatt

Okay, but that doesn't postpone the rule I created by itself, does it?

tinfoilmatt

@jogovogo The setting affects the ordering of all rules in the ruleset.

jogovogo

@tinfoilmatt

I have now switched to floating so that he leaves me my rules alone. (and kill states, one time)

tinfoilmatt

@jogovogo I personally only use floating rules as a matter of absolute last resort. I've therefore found pfBlockerNG's default ordering format to be the setting that works best for my use case.

jogovogo

@tinfoilmatt

Okay, I understand, how would you approach my case without floating?

tinfoilmatt

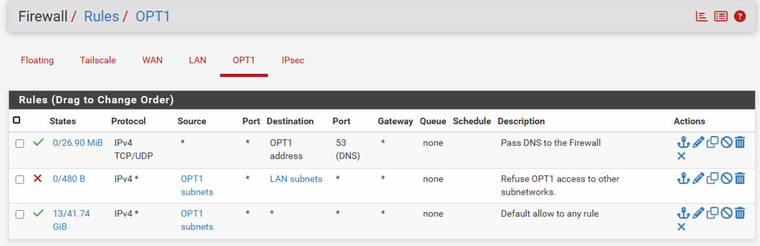

@jogovogo From what you've shared, it appears the default ordering format (i.e., "| pfB_Pass/Match/Block/Reject | All other rules | (Default format)") works perfectly for you—as long as you keep the "Refuse OPT1 access to other subnetworks." deny rule above the "Default allow to any rule" pass rule of course...

~~And unless you expect any non-"OPT1 subnets" DNS traffic to arrive on OPT1, the "Pass DNS to the Firewall" pass rule is unnecessary.~~

EDIT: The "Pass DNS to the Firewall" pass rule may be necessary if the "OPT1 address" IP is contained within the "LAN subnets" alias. (And in such as a case, it would need to remain above the "Refuse OPT1 access to other subnetworks." deny rule.)

SECOND EDIT: I maintain that unless you expect any non-"OPT1 subnets" DNS traffic to arrive on OPT1, the "Pass DNS to the Firewall" pass rule is unnecessary.

patient0

@jogovogo what I forgot: what pfSense version are you using? There was an issue with changing rule orders in certain situations on pfSense+ 23 and 24.

https://forum.netgate.com/topic/196601/rules-order-randomly-changes
https://redmine.pfsense.org/issues/16076
