HA XMLRPC sync appears to “merge” but does not actually write changes on the Backup

w0w

@marcosm
I have removed only pfBlocker, and the configuration has synced successfully.

w0w

Even with synchronization completely disabled, simply having pfBlocker installed prevents synchronization between the firewalls.

SteveITS

@w0w oh do you mean any change, not just pfB? Then disregard my post above. That’s only pfB.

w0w

@SteveITS said in HA XMLRPC sync appears to “merge” but does not actually write changes on the Backup:

do you mean any change, not just pfB?

Exactly. Anyway it looks like this bug is related to pfB somehow.

w0w

It looks like config sync stops working when pfBlocker is installed on the secondary node. Even if I completely remove all pfBlocker settings, on a new install sync still stops, even when pfBlocker is not configured at all.

w0w

<package>
			<name>pfBlockerNG</name>
			<descr><![CDATA[Manage IPv4/v6 List Sources into &#039;Deny, Permit or Match&#039; formats.&lt;br /&gt;
			GeoIP database by MaxMind Inc. (GeoLite2 Free version).&lt;br /&gt;
			De-Duplication, Suppression, and Reputation enhancements.&lt;br /&gt;
			Provision to download from diverse List formats.&lt;br /&gt;
			Advanced Integration for Proofpoint ET IQRisk IP Reputation Threat Sources.&lt;br /&gt;
			Domain Name (DNSBL) blocking via Unbound DNS Resolver.]]></descr>
			<pkginfolink>https://docs.netgate.com/pfsense/en/latest/packages/pfblocker.html</pkginfolink>
			<version>3.2.9_1</version>
			<configurationfile>pfblockerng.xml</configurationfile>
			<include_file>/usr/local/pkg/pfblockerng/pfblockerng.inc</include_file>
			<plugins>
				<item>
					<type>plugin_xmlrpc_send</type>
				</item>
				<item>
					<type>plugin_xmlrpc_recv</type>
				</item>
			</plugins>
		</package>

If I remove the section shown below on the secondary firewall, sync starts working again immediately.

			<plugins>
				<item>
					<type>plugin_xmlrpc_send</type>
				</item>
				<item>
					<type>plugin_xmlrpc_recv</type>
				</item>
			</plugins>

w0w

This post is deleted!

w0w

I have ended up modifying function pkg_call_plugins from

/etc/inc/pfsense-utils.inc

During XMLRPC config merges the core calls pkg_call_plugins("plugin_xmlrpc_recv", $pkg_sections). In stock code this invokes every installed package that registers a plugin_xmlrpc_recv* handler, regardless of whether that package’s own config is present in the incoming payload. That means unrelated plugins (e.g., pfBlockerNG on the secondary) can run on every merge and interfere with sync.

I modified pkg_call_plugins() in /etc/inc/pfsense-utils.inc to add one small guard:

For plugin_xmlrpc_recv* calls only, call a package’s handler iff the XMLRPC payload contains installedpackages/<pkgname>* keys for that package.

All other plugin types (send, normal hooks, etc.) are untouched.

In other words: only the packages whose config is actually being synced get their recv-hook called. This is just a workaround. Please don’t judge me too harshly.

function pkg_call_plugins($plugin_type, $plugin_params) {
    $results = array();
    $is_recv = (strncmp($plugin_type, 'plugin_xmlrpc_recv', 19) === 0);

    foreach ((array)config_get_path('installedpackages/package', []) as $package) {
        $items = (array)array_get_path($package, 'plugins/item', []);
        if (empty($items)) {
            continue;
        }

        // Derive package code name from configuration file (e.g. "pfblockerng.xml" -> "pfblockerng")
        $cfg = $package['configurationfile'] ?? '';
        $pkgname = $cfg ? substr(reverse_strrchr($cfg, '.'), 0, -1) : ($package['name'] ?? '');

        foreach ($items as $plugin) {
            if (!is_array($plugin) || (($plugin['type'] ?? '') !== $plugin_type)) {
                continue;
            }

            // Minimal guard: on XMLRPC receive, only call the plugin if payload has installedpackages/<pkgname>*
            if ($is_recv) {
                $ip = $plugin_params['installedpackages'] ?? null;
                $has_match = false;
                if (is_array($ip)) {
                    foreach ($ip as $k => $_) {
                        if (strncmp($k, $pkgname, strlen($pkgname)) === 0) {
                            $has_match = true;
                            break;
                        }
                    }
                }
                if (!$has_match) {
                    continue;
                }
            }

            $inc = $package['include_file'] ?? '';
            if (!$inc || !file_exists($inc)) {
                continue;
            }
            require_once($inc);

            $fn = $pkgname . '_' . $plugin_type;
            if (function_exists($fn)) {
                $results[$pkgname] = call_user_func($fn, $plugin_params);
            }
        }
    }

    return $results;
}

marcosm

I installed pfBlockerNG on an HA system and tested with and without the package sync enabled. Config changes made on the primary correctly synced to the secondary in both cases.

First check that the pkg version is correct. See:
https://forum.netgate.com/post/1231033

Then, if you haven't yet, try reinstalling pfBlockerNG.

You can also try testing pfBlockerNG-devel - make sure to make a config backup since that makes config changes to the DNSBL VIP that are incompatible with pfBlockerNG.

w0w

@marcosm

Yes, I’ve tried removing all packages and installing the devel version, and even just installing it without configuring it, and ONLY on the backup node; there was no pfBlocker at all on the primary. All of these variants lead to the same result: if pfBlocker is present on the backup node, there is no synchronization.

The only thing I haven’t tried yet is wiping everything and installing from scratch. With the patch, synchronization of the main settings works in any scenario, as well as package sync, at least for Filer. I haven’t checked pfBlocker itself.

It’s possible that the actual bug is somewhere else, maybe in the rules… but then there’s still the question: why is pfBlocker, for which synchronization is disabled and which is not configured at all, interfering with the main config sync at all? Anyway, these are just my rhetorical questions from a non-expert…

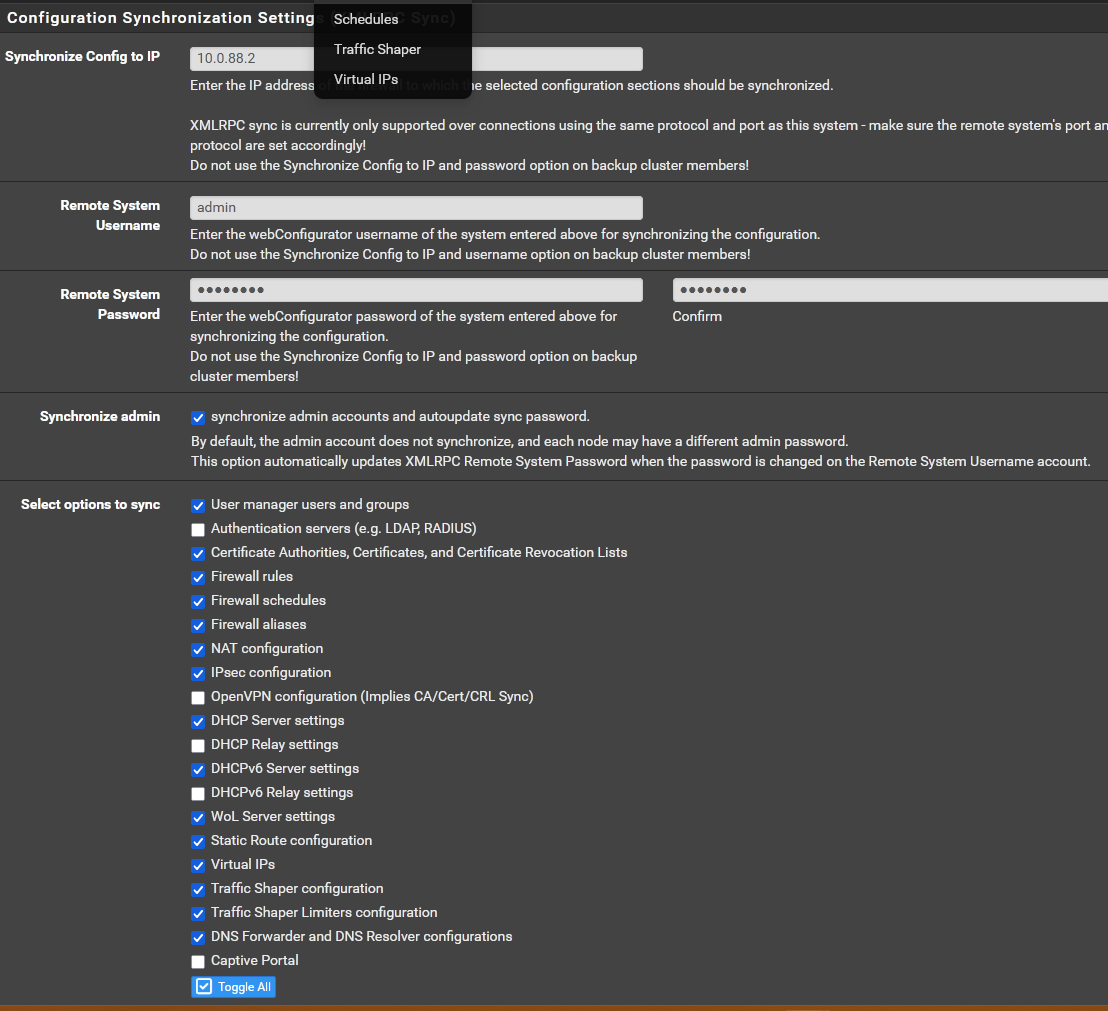

By the way, here are my sync settings:

And on the backup everything is unchecked.
