    Pfsense Cpu advice

    Hardware
    2
    11
    1444
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • L
      lcbbcl last edited by

      Hello,i learned a lot about hw requirements reading this forum but still i have my doubts what CPU to chose.
      First i chose a G3930 -38 Euro ,then i start thinking about power consumption and i saw G4560T-88 Euro.
      I know the difference its huge as Price,but G4560T its TDP 35W and its 2 cores 2 threads.
      I will do openvpn,suricata,plugins,video surviliance,etc ,apart from the 2 extra threads i will get a benefit from the G4560T?
      For the record this is my setup
      MB Asrock H110M-ITX - 61 Euro
      Ram Ballistix Sport LT 4GB DDR4 2400 MT - 49Euro
      Case+Psu MHero-L-B Mini-ITX - 70 Euro + shipping
      Nic 4 ports HP NC364T 436431-001 - 23 euro + shipping ,from eBay.
      Thanks

      1 Reply Last reply Reply Quote 0
      • ?
        Guest last edited by

        Is the total price comparable to a china box like a Minisys or Qotom? Maybe that would be a better choice (with the i3 and 4x intel NICs).
        Other than that, your setup seems reasonable (but it will be physically large), also keep in mind that the TDP is the maximum power it will be putting out as heat. Thermal Design Power. So that's only a figure of maximum power it burns. You should probably take 50% off of that for a firewall-under-load type of power consumption, and probably less since if you activate PowerD it will use very little power. Also disable everything you don't need in the UEFI/BIOS, like Parallel port, audio, wake-on-lan, OpROMs etc.

        A fairly modern system will use maybe 15w under normal usage (the U-series i5 and i3 boxes I have at least do that), a custom system might use more because components might not support sharing power state information, ASPM support is rather mixed even still for example.

        1 Reply Last reply Reply Quote 0
        • L
          lcbbcl last edited by

          I don´t want to go for a china box(support,reliability are a major concern for me),if i will like how pfsense work i might go for a netgear ítem and this pc will go to my son.
          So in conclusion both cpu under the same circumstances(load) will consume the same no?then i might go with g4560 non T to get better perfomance if its needed.
          Cpu TDP include also the igpu no?
          Thanks for your answer.

          1 Reply Last reply Reply Quote 0
          • ?
            Guest last edited by

            Don't forget that all of the stuff you'll be putting together comes from the same china factory and is designed by the same china people ;-) And support is in india, so it's not really much different. On the forum here, we have tested some stuff, and mostly the Qotom and MiniSys stuff seems good. We use it in deployments as well because due to the low cost and good performance, it's easier to just keep one on stock in case one fails. Support is good too, you just receive a new one within a week if you get a DoA or failure within warranty.

            The CPU type and performance mostly makes a difference when you make a lot of IDS or NAT rules, or if you do multiple VPN connections. Otherwise, get the cheapest CPU since it won't matter at all.

            1 Reply Last reply Reply Quote 0
            • L
              lcbbcl last edited by

              Hello again,
              For cpu i got the g4600 and under prime95 he draw 26W max, at idle 2 3W so its perfect,i doubt that pfsense will act like prime95.
              Now i have another problem,in my case i can use pcie only horizontal.
              What pcie riser i should use without losing performance for my quad nic.
              Thanks

              1 Reply Last reply Reply Quote 0
              • ?
                Guest last edited by

                @lcbbcl:

                Hello again,
                For cpu i got the g4600 and under prime95 he draw 26W max, at idle 2 3W so its perfect,i doubt that pfsense will act like prime95.
                Now i have another problem,in my case i can use pcie only horizontal.
                What pcie riser i should use without losing performance for my quad nic.
                Thanks

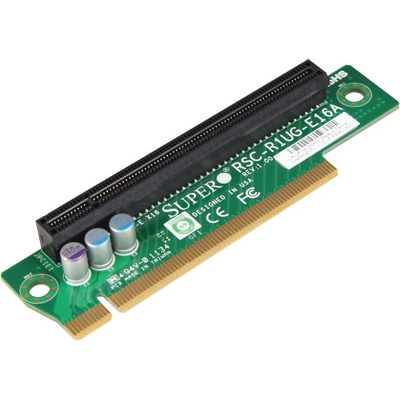

                Get a solid riser (not a flex one), x16 should work.

                1 Reply Last reply Reply Quote 0
                • L
                  lcbbcl last edited by

                  I can use one like miners?or its better a 90 degree?

                  1 Reply Last reply Reply Quote 0
                  • ?
                    Guest last edited by

                    No, a solid one: not a flexible one.

                    1 Reply Last reply Reply Quote 0
                    • L
                      lcbbcl last edited by

                      Thanks for your time,i got a cheap one from ebay.

                      1 Reply Last reply Reply Quote 0
                      • ?
                        Guest last edited by

                        Did you measure size and check orientation before you ordered? ;-) there are many styles and sizes.

                        1 Reply Last reply Reply Quote 0
                        • L
                          lcbbcl last edited by

                          90 degree right angle pci express pci-e 16x male female converter card adapter,its what description say.
                          Size should be fine,at least measuring with my eye :)

                          1 Reply Last reply Reply Quote 0
