    Trunking VLANs on interfaces II

    Scheduled Pinned Locked Moved General pfSense Questions
    18 Posts 4 Posters 1.2k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • B
      BlankMan
      last edited by

      Hey I went to post in a thread I had started and there's no Reply button? What's up with that?

      Dare to think and do outside the conventional box…

      1 Reply Last reply Reply Quote 0
      • johnpozJ
        johnpoz LAYER 8 Global Moderator
        last edited by

        It was locked… My guess would the mods got tired of the stupidity... Seems to me your just trolling now... Nobody in networking for a year, let a lone the 40 you state could be that completely clueless to how vlans work.

        I do not do vlans every day all day like I use to to do back a few years when supported DC lan infrastructure for global player with 100's different customers in the DCs, etc.  But have been using vlans since really there was any such thing as "vlans"  And your layer 2 had to be isolated physically... Early 2k's I think it was when you could actually isolate with vlans..

        Yeah I remember running thicknet as well ;)

        That other thread makes really no sense.. Sure and the F would not bridge interfaces on my router to extend a layer 2 when I can just do that with click click in my switching infrastructure way more efficiently.

        Where I might create a bridge is when media changes, like I have a fiber sfp that connects to some remote switch.. And my local switch does not have way to connect the fiber too.  But that would really be a jury rig until I could fix my layer 2 infrastructure to do what I need it to do..

        Or if for some strange reason I needed to be able to firewall X from Y that need to reside in the same layer 2 where X is connected via interface A and Y is connected via interface B... But would be just easier to break them up into their own layer 2s and put each network on its own interface.

        Pfsense is a ROUTER.. its interfaces are router interfaces and would be in different layer 2's... If you need a "router" that has switch ports on it so you can have multiple connections in the same layer 2 then I would really suggest the sg-3100 which has a 4 port switch that has a uplink into the routing function..  And if need be you can always isolate even though switch ports into their own layer 2 networks via vlans.

        An intelligent man is sometimes forced to be drunk to spend time with his fools
        If you get confused: Listen to the Music Play
        Please don't Chat/PM me for help, unless mod related
        SG-4860 24.11 | Lab VMs 2.8, 24.11

        1 Reply Last reply Reply Quote 0
        • B
          BlankMan
          last edited by

          No not trolling. I would like to know who locked it and why it was locked.

          I do not believe that bridging a VLAN on router ports violates any RFC's. In google'n for a HowTo last week I was directed to this forum to a number of threads where others were also asking how to do it. But they were never told how to do it, they were usually told not to do it.

          How are VLANs presented on multiple interfaces? Bridging I do believe. But is seems router purists do not allow that to be done if the hardware is labeled a router. (No offense intended.)

          For my 3 subnets coming off the router, 2 subnets are 2 switches deep, the remaining subnet is 3 switches deep. These all are 8 or 10 port switches. This is not a mega network.

          It's not a stupid network configuration. It's a network that fits my needs performance and flexibility wise and will never be utilized to it's fullest potential by any means.

          Is that against the forum's rules policies or charter?

          Below is my current pfSense router utilization. Bridging a VLAN onto other two network interfaces is not going to degrade performance in any way shape or form that will be noticeable.

          State table size 0% (435/1625000) Show states
          MBUF Usage 1% (6076/1011574)
          Temperature 27.9°C
          Load average 0.04, 0.08, 0.08
          CPU usage 1%
          Memory usage 2% of 16257 MiB
          SWAP usage 0% of 3979 MiB
          Disk usage:    / 0% of 222GiB - ufs
          /var/run 4% of 3.4MiB - ufs in RAM

          Dare to think and do outside the conventional box…

          1 Reply Last reply Reply Quote 0
          • B
            BlankMan
            last edited by

            So what happened to my post in this thread that provided a link to the "How To Add and Use Cisco Switch Like VLANs in pfSense Routers" instructions I wrote up?

            Censorship?

            Dare to think and do outside the conventional box…

            1 Reply Last reply Reply Quote 0
            • DerelictD
              Derelict LAYER 8 Netgate
              last edited by

              It was reported as and considered to be spam.

              Chattanooga, Tennessee, USA
              A comprehensive network diagram is worth 10,000 words and 15 conference calls.
              DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
              Do Not Chat For Help! NO_WAN_EGRESS(TM)

              1 Reply Last reply Reply Quote 0
              • B
                BlankMan
                last edited by

                How is a HowTo to configure VLANs considered to be SPAM?

                Dare to think and do outside the conventional box…

                1 Reply Last reply Reply Quote 0
                • DerelictD
                  Derelict LAYER 8 Netgate
                  last edited by

                  Not a link farm to promote your blog.

                  Chattanooga, Tennessee, USA
                  A comprehensive network diagram is worth 10,000 words and 15 conference calls.
                  DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
                  Do Not Chat For Help! NO_WAN_EGRESS(TM)

                  1 Reply Last reply Reply Quote 0
                  • B
                    BlankMan
                    last edited by

                    This is NOT SPAM, this is NOT a BLOG, this is not promoting anything.

                    This is a stand alone document showing by example how to create Tagged and Untagged VLAN Trunks on pfSense interfaces.

                    This is done within the scope of what pfSense allows to be configured from within its GUI.

                    How To Add and Use Taggged and Untagged VLANs Trunks on pfSense Router Interfaces

                    Dare to think and do outside the conventional box…

                    1 Reply Last reply Reply Quote 0
                    • johnpozJ
                      johnpoz LAYER 8 Global Moderator
                      last edited by

                      It is a blog – Says so right there..

                      Called Curts Blog... Dude really... All things Curt... How is that not a blog?  Its listed right next to tuna casserole - really really good ;) and Power Air Fryer Oven..

                      This is starting to get really funny ;)  Is it a not a blog kind of how a router interface is not a switch port - yet you can bridge them?? ROFL

                      An intelligent man is sometimes forced to be drunk to spend time with his fools
                      If you get confused: Listen to the Music Play
                      Please don't Chat/PM me for help, unless mod related
                      SG-4860 24.11 | Lab VMs 2.8, 24.11

                      1 Reply Last reply Reply Quote 0
                      • B
                        BlankMan
                        last edited by

                        @johnpoz:

                        It is a blog – Says so right there..

                        Called Curts Blog... Dude really... All things Curt... How is that not a blog?  Its listed right next to tuna casserole - really really good ;) and Power Air Fryer Oven..

                        This is starting to get really funny ;)  Is it a not a blog kind of how a router interface is not a switch port - yet you can bridge them?? ROFL

                        You got the old link. This link which is the above link

                        http://www.curtronics.com/Networking/pfSense/pfSenseTrunkedVLANs.html

                        Is not a blog. Take a screenshot for that link and show me the blog Dude.

                        Dare to think and do outside the conventional box…

                        1 Reply Last reply Reply Quote 0
                        • DerelictD
                          Derelict LAYER 8 Netgate
                          last edited by

                          I am going to leave that up as an example of how not to solve that problem.

                          ETA: Attachment reflecting how someone might accomplish the same task.

                          ![Switch Trunks.png](/public/imported_attachments/1/Switch Trunks.png)
                          ![Switch Trunks.png_thumb](/public/imported_attachments/1/Switch Trunks.png_thumb)

                          Chattanooga, Tennessee, USA
                          A comprehensive network diagram is worth 10,000 words and 15 conference calls.
                          DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
                          Do Not Chat For Help! NO_WAN_EGRESS(TM)

                          1 Reply Last reply Reply Quote 0
                          • B
                            BlankMan
                            last edited by

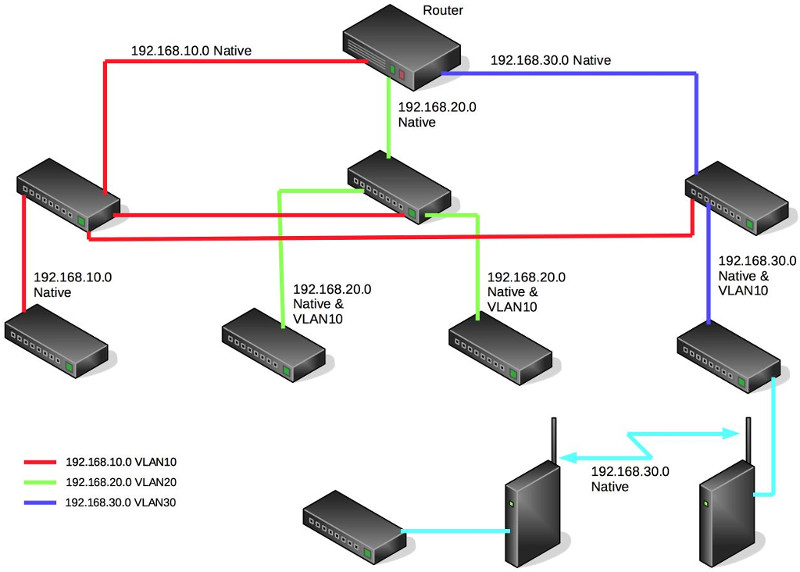

                            This is my network as cofigured and running just fine performance wise.

                            This is how you want me to configure it.

                            All because you don't like Bridging VLANs on a router.

                            Dare to think and do outside the conventional box…

                            1 Reply Last reply Reply Quote 0
                            • DerelictD
                              Derelict LAYER 8 Netgate
                              last edited by

                              Nope. Not even close.

                              You burned up two router ports instead of two switch ports and inserted a software/CPU bridge where one need not exist.

                              It is sad.

                              Chattanooga, Tennessee, USA
                              A comprehensive network diagram is worth 10,000 words and 15 conference calls.
                              DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
                              Do Not Chat For Help! NO_WAN_EGRESS(TM)

                              1 Reply Last reply Reply Quote 0
                              • B
                                BlankMan
                                last edited by

                                Where did I burn up two router ports? I'm using three router ports either way.

                                Your way I use an additional 4 switch ports.

                                I'm not putting 3 VLANs over 1 wire to the first switch and spreading out from there. That's what I had. That's what I don't want. That was the purpose of this whole exercise. To NOT do that. Let the router do it's job and keep the three subnets isolated.

                                And I have two unused router ports still with no current need for them. So I'm not burning up noth'n.

                                Here's current traffic graphs. I don't think that traffic peak of 1K on VLAN EM310 nor the peak of 50 bytes, yes bytes, on EM410 is going to degrade network performance.

                                Which is what I've been saying all along…

                                ![VLAN Traffic.png](/public/imported_attachments/1/VLAN Traffic.png)
                                ![VLAN Traffic.png_thumb](/public/imported_attachments/1/VLAN Traffic.png_thumb)

                                Dare to think and do outside the conventional box…

                                1 Reply Last reply Reply Quote 0
                                • DerelictD
                                  Derelict LAYER 8 Netgate
                                  last edited by

                                  With those traffic levels there is zero reason to even think about tagging all three VLANs to your layer 2. Just do it and remove the nonsense bridge that will in no way EVER perform as well as tagging everything on one trunk link if traffic levels ever increase in any meaningful way.

                                  You have pigeonholed yourself into not being able to put any VLAN anywhere, too.

                                  Adds/Moves/Changes happen. Requirements change.

                                  But, for the third time, good luck. Glad you got it sorted and you think it works for you.

                                  Chattanooga, Tennessee, USA
                                  A comprehensive network diagram is worth 10,000 words and 15 conference calls.
                                  DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
                                  Do Not Chat For Help! NO_WAN_EGRESS(TM)

                                  1 Reply Last reply Reply Quote 0
                                  • johnpozJ
                                    johnpoz LAYER 8 Global Moderator
                                    last edited by

                                    No I followed that link… Its still listed on your blog.. You think people not going to flow up to the parent domain?

                                    See how simple and sleek the design Derelict posted... This way you can put any vlan anywhere in your switch environment..  Your limited to where vlan 20 and 30 can go..  So you could tie up 2 extra router ports on the same layer 2.

                                    Because of why exactly?  You don't know how to change the default vlan on your switch - you think its 10...You do understand the default vlan on a switch is ANY untagged traffic right.. Switch calls it vlan X - but just means untagged traffic outside of the switch environment.. That vlan 10 only means anything on that switch.. You can get to the management vlan be it tagged or untagged into the switch its up to you.

                                    You can call that vlan anything you want as you connect switches together.. Or as you connect to them.. As to the layer 3 you put on it - can be anything you want.. Sure doesn't have to be the same layer 2 through out your network.

                                    Why is it you think vlan 10 has to be same layer 2 through out your infrastructure?  Its just a management IP why can it not be vlan 10, 11 and 12 on your different branches of switches  on 192.168.10, 192.168.11 and 192.168.12

                                    As I stated before if you wanted a "switch" on your router - should of gotten the sg-3100..

                                    An intelligent man is sometimes forced to be drunk to spend time with his fools
                                    If you get confused: Listen to the Music Play
                                    Please don't Chat/PM me for help, unless mod related
                                    SG-4860 24.11 | Lab VMs 2.8, 24.11

                                    1 Reply Last reply Reply Quote 0
                                    • stephenw10S
                                      stephenw10 Netgate Administrator
                                      last edited by

                                      This is getting out of hand!  :-\

                                      Can we stick to constructive criticism please.

                                      I think we can all agree that if you just need a single layer 2 available at all the switches and you don't need filtering between the segments then trunking the VLAN directly between the switches is preferable.

                                      If however you don't have a direct connection between those switches already then bridging the VLANs in pfSense can work. It's ugly and if you find yourself doing it then you might want to think about adding a direct link instead. But it can work in a pinch. I've done it myself to avoid a major change for a 5min test.

                                      Steve

                                      1 Reply Last reply Reply Quote 0
                                      • B
                                        BlankMan
                                        last edited by

                                        stephenw10; Thank you.

                                        johnpoz: If a person goes to the parent domain and sees that I have a blog that makes the article I linked to SPAM? Get real.

                                        You're making assumptions again without facts in evidence. The default VLAN is not the same on all my switches.

                                        I purposely limited where 20 and 30 can go, that is by design and is why they are isolated. 30 is high continuous traffic 24/7, 20 can be at times for hours at a time. The traffic on each is confined on each. I do not want either to adversely affect one another or 10 which has its own purpose besides being the default for the majority of the switches

                                        Look, I came to this forum to ask how to configure pfSense to do exactly what I have done. Instead of getting help all I got was hostility and telling me how stupid this configuration is and how stupid I am and many other personal attacks. And I had to figure it out myself in the end.

                                        In case you haven't realized it Mr. Hero Member, you were of no help in this case. Put aside your I know the best way and it's the only way and help people do what they want whether you like it or not. And if you don't like it and can't do that then for God's sake leave the peole alone!

                                        I've told you more and showed you more then you need to know. Once again I came here for help configuring pfSense to do what I want that's all you needed to know.

                                        IF YOU ARE NOT GOING TO HELP PLEASE JUST LEAVE ME AND THIS TOPIC ALONE!!!

                                        This is what I want to do. This is what I did. This will work for my environment. It will have all the performance and flexibility I will ever need.

                                        Dare to think and do outside the conventional box…
