IPSEC VTI Tunnels

jimp

Palo Alto seems unhappy as well. I have a new patch to test but it does need testing. It comes up and works for me but I don't have access to any of these other devices (ubnt, sonicwall, PA, etc). Also need to be sure it doesn't interfere with other non-IPsec traffic and other non-VTI IPsec tunnels.

From my other post:

Try the attached patch and see if it helps. I could not get the VTI to come up and pass traffic with only 0.0.0.0/0 in the rightsubnet and leftsubnet, but it did seem to connect and work with the attached patch that has both the VTI endpoints and all zeroes. I haven't testing to see if it interferes with anything else yet, though, just VTI itself (BGP connects and exchanges routes, traffic passes)

0_1538745996158_ipsec-vti-0.0.0.0.diff

Use the System Patches package to apply the diff, or make the changes by hand. After applying the patch, stop IPsec, then edit/save/apply the IPsec VTI P1 or P2 and it should restart with the new policy in place.

turbulence

Hi Jim,

Long time pfSense user here.

Thought I would sign up to the forum to contribute to this. I have just installed patch 0_1538745996158_ipsec-vti-0.0.0.0.diff and setup a VTI between the pfSense and an EdgeRouter 4 (running the latest firmware) and I can report that the VPN is now working correctly. I'll let you know if I come across any subsequent strange behaviors, but everything is looking good so far.

fsamareanu

@jimp I've encountered a similar issue (I could ping the tunnel IP addresses but nothing else) by doing a pfsense-debian buster ipsec connection. I can prepare a testcase on a vultr VM pair if required and ship you the credentials.

EDIT: I still see these in the log file(s) when I go to status-ipsec:

But the tunnels are up and passing traffic.

jimp

@fsamareanu said in IPSEC VTI Tunnels:

@jimp I've encountered a similar issue (I could ping the tunnel IP addresses but nothing else) by doing a pfsense-debian buster ipsec connection. I can prepare a testcase on a vultr VM pair if required and ship you the credentials.

But the tunnels are up and passing traffic.

Is this with the new patch applied? If not, apply that patch.

EDIT: I still see these in the log file(s) when I go to status-ipsec:

Oct 8 13:04:37 192.168.100.1 charon: 04[KNL] <con3000|3> querying policy 0.0.0.0/0|/0 === 0.0.0.0/0|/0 in failed, not found

I'm not terribly surprised there, since VTI doesn't actually install the policy in the kernel since it isn't needed. That may be prohibitively difficult to suppress that warning but if I do end up committing this patch we can look into it after.

fsamareanu

@jimp the warning is with the patch applied. The error was there before as well, just showing the /30 subnet and the corresponding remote tunnel ip.

I have not tested the pfsense-Linux ipsec tunnel after the pfsense patch. Will get to it tomorrow and update here.

BluRay

@turbulence said in IPSEC VTI Tunnels:

Hi Jim,

Long time pfSense user here.

Thought I would sign up to the forum to contribute to this. I have just installed patch 0_1538745996158_ipsec-vti-0.0.0.0.diff and setup a VTI between the pfSense and an EdgeRouter 4 (running the latest firmware) and I can report that the VPN is now working correctly. I'll let you know if I come across any subsequent strange behaviors, but everything is looking good so far.

Mind sharing your configuration?
I am trying to get IPSec VTI running between PfSense and EdgeRouter X but i'm not able to get it working. (I already applied latest patch)
alt text

Logging:

Oct 12 09:11:40	charon		12[KNL] creating acquire job for policy X.X.X.X/32|/0 === X.X.X.X/32|/0 with reqid {0}
Oct 12 09:11:40	charon		12[KNL] received an SADB_ACQUIRE with policy id 8936 but no matching policy found
Oct 12 09:11:38	charon		06[CFG] vici client 148 disconnected
Oct 12 09:11:38	charon		16[CFG] vici client 148 requests: list-sas
Oct 12 09:11:38	charon		16[CFG] vici client 148 registered for: list-sa
Oct 12 09:11:38	charon		08[CFG] vici client 148 connected

turbulence

Sure thing.

Here's the ER4 config to start with. BTW, you need to be using IKEV2.

==PEER CONFIG==
show vpn ipsec site-to-site peer X.X.X.X
authentication {
mode pre-shared-secret
pre-shared-secret SECRETGOESHERE
}
connection-type initiate
description TUNNEL-NAME-HERE
ike-group FOO4
ikev2-reauth yes
local-address Y.Y.Y.Y
vti {
bind vti4
esp-group FOO4
}

==ESP CONFIG==
show vpn ipsec esp-group FOO4
compression disable
lifetime 28800
mode tunnel
pfs dh-group14
proposal 1 {
encryption aes256
hash sha256
}

==IKE CONFIG==
show vpn ipsec ike-group FOO4
ikev2-reauth yes
key-exchange ikev2
lifetime 28800
proposal 1 {
dh-group 14
encryption aes256
hash sha256
}

==VTI CONFIG==
show interfaces vti vti4
address 10.10.202.2/30
mtu 1436

==ROUTE CONFIG==
show protocols static interface-route 172.24.16.0/24
next-hop-interface vti4 {
description TUNNEL-NAME-HERE
}

turbulence

And here's the PFSense configuration.

Let me know if you need any further assistance!

BluRay

@turbulence said in IPSEC VTI Tunnels:

And here's the PFSense configuration.

Let me know if you need any further assistance!

Thank you for the information. Will try it out later today and report back.

BluRay

@turbulence said in IPSEC VTI Tunnels:

And here's the PFSense configuration.

Let me know if you need any further assistance!

Ok, I tried to do it with IKEv2 and instead of Type 'Network' on Remote Network in PfSense Phase 2 setting, I used Type 'Address'.

With those settings the tunnel will come online. But I'm still not able to pass traffic.
What I found out is the following:
When I start a packetdump on PfSense I see ICMP traffic. (192.168.111.1 --> 192.168.111.2)
On EdgeRouter X side I see the ICMP messages arrive and the router also responds, but the response packets never reach the IPSEC1000 interface on the PfSense.

PfSense
alt text

EdgeRouter
alt text

volga629

Hello Everyone,
I got vti setup working between pfsense and edgerouter pro with ebgp in place . Patch for 0.0.0.0/0 is required.

key point was Address in phase 2 and on edge router firewall allow BGP in VPN zone. VPN configuration on edge router is standard vti setup.

Phase 2

The only one think is that tunnel goes down time to time. In logs I see

Oct 13 08:48:58 php-fpm 35862 /rc.newipsecdns: Gateway, none 'available' for inet6, use the first one configured. ''
Oct 13 08:48:58 php-fpm 35862 /rc.newipsecdns: The command '/sbin/ifconfig 'ipsec3000' create reqid '3000'' returned exit code '1', the output was 'ifconfig: create: bad value'
Oct 13 08:48:57 check_reload_status Reloading filter
Oct 13 08:48:57 php-fpm 35862 /rc.newipsecdns: IPSEC: One or more IPsec tunnel endpoints has changed its IP. Refreshing.
Oct 13 08:48:42 php-fpm 61417 /rc.openvpn: Gateway, none 'available' for inet6, use the first one configured. ''
Oct 13 08:48:41 check_reload_status Reloading filter

BluRay

My problem is solved. On the other side (EdgeRouter side) I use Dual-WAN with LB. I'm migrating this tunnel from VyOS to PfSense. The PfSense public IP was being loadbalanced. This caused the IPSec traffic to go over the wrong outside interface. After adding the public IP to the LB Exclude list, things started working.

Now I am running into another (NAT) problem. Maybe one of you can test if you get the same result. If I add an NAT rule to masquerade traffic with IP-address of VTI interface I am not able to reach anything on the EdgeRouter side.

What I am doing to test:
Ping from PfSense CLI to 192.168.111.2 (EdgeRouter). This works without the NAT rule. When I enable the NAT rule it stops working.

So far my observations are:
Traffic is leaving IPsec1000 interface on PfSense with correct NAT address (192.168.111.1). Traffic arrives on interface EdgeRouter and EdgeRouter sends traffic back which also arrives back at the IPsec1000 interface. But PfSense never gets reply on ICMP-echo request.

NAT rule looks like this. (Interface is VTI interface)
alt text

@turbulence

volga629

I am watching tunnel and it not 100% stable. Sometimes pfsense stop reply to traffic from vpn tunnel. I see traffic arrive on vti interface, but never send reply.

jimp

@bluray said in IPSEC VTI Tunnels:

Now I am running into another (NAT) problem. Maybe one of you can test if you get the same result. If I add an NAT rule to masquerade traffic with IP-address of VTI interface I am not able to reach anything on the EdgeRouter side.

That's a known issue, NAT doesn't work with VTI currently. There is some weirdness between if_ipsec/VTI and pf where the traffic hits both the ipsecX interface and enc0. You might try putting the NAT rule on the "IPsec" interface in the GUI and not the assigned VTI interface.

BluRay

@jimp said in IPSEC VTI Tunnels:

@bluray said in IPSEC VTI Tunnels:

Now I am running into another (NAT) problem. Maybe one of you can test if you get the same result. If I add an NAT rule to masquerade traffic with IP-address of VTI interface I am not able to reach anything on the EdgeRouter side.

That's a known issue, NAT doesn't work with VTI currently. There is some weirdness between if_ipsec/VTI and pf where the traffic hits both the ipsecX interface and enc0. You might try putting the NAT rule on the "IPsec" interface in the GUI and not the assigned VTI interface.

Hello Jim,

Thank you for your feedback.
Unfortunately that doesn't work in my case. Is there a bugreport for this so I can track this issue? If not how can I make one?

jimp

I don't recall if I made an issue for it on Redmine, but it's not one that we can address. It will need to be taken upstream to FreeBSD directly.

BluRay

I already searched in Redmine, but I couldn't find one. Your explanation explains why there is no. (Due to it being a bug in FreeBSD IPSec implementation which must be fixed by FreeBSD Developers)

I'm not familiair with reporting bugs. Will do some research how to submit one. Hopefully this can be resolved in the future.

The_Saint

Bumping this because I'm experiencing a similar problem.

I have 2 IPsec Tunnels to an ISP.

IPSec Phase 1 works good. When Phase 2 would come up for a short period of time, then fail. and the whole tunnel would collapse and restart.

I observed a bunch of logs stating

Nov 19 19:40:41	charon		14[KNL] <con2000|3> querying policy 10.0.255.248/30|/0 === 10.0.255.248/30|/0 in failed, not found
Nov 19 19:40:41	charon		14[KNL] <con2000|3> querying policy 10.0.255.248/30|/0 === 10.0.255.248/30|/0 in failed, not found
Nov 19 19:40:41	charon		14[KNL] <con2000|3> querying policy 10.0.255.248/30|/0 === 10.0.255.248/30|/0 in failed, not found
Nov 19 19:40:41	charon		14[KNL] <con2000|3> querying policy 10.0.255.248/30|/0 === 10.0.255.248/30|/0 in failed, not found

If I had the VTI settings to retain /0 on the remote, that's when my tunnels would constantly fail and restart after about a minute or so. So I executed the PFShell commands above to set /30. After doing so the IPSec/VTI 'appear' stable. But I can see my Security Association Database creating tons of new SPIs. So something still, just isn't right.

I've setup my interfaces, OPT1 and OPT2, but I'm baffled as to why I don't see any Firewall Rule options for OPT1 like I saw in @ScottS post.


I guess I'm curious if I should expect to see OPT1/OPT2 under my firewall rules and further, and further wonder if my accumulation of SPIs is an indication that things aren't quite right.

I can PING

Any help, or insights would be appreciated.

bradlay

I also have a similar issue with the same error message - the tunnel comes up fine, routing is working bi-directionally but if I attempt to do an iperf across the tunnel stops transferring packets almost immediately.
Tried changing the MTU down to 1300, but didn't change anything.

I have 2 SG-3100's setup with ikev2 VTI.

$ tracert 192.168.11.10

Tracing route to 192.168.11.10 over a maximum of 30 hops

1 <1 ms <1 ms <1 ms 192.168.1.1
2 35 ms 20 ms 31 ms 10.255.255.2
3 18 ms 28 ms 32 ms 192.168.11.10

$ tracert 192.168.1.150

Tracing route to 192.168.1.150 over a maximum of 30 hops

1 <1 ms <1 ms <1 ms 192.168.11.1
2 18 ms 23 ms 29 ms 10.255.255.1
3 25 ms 35 ms 29 ms 192.168.1.150

Nov 19 21:37:02 charon 13[KNL] <con2000|2> querying policy 10.255.255.2/32|/0 === 10.255.255.1/32|/0 in failed, not found

$ iperf3 -c 192.168.11.10
Connecting to host 192.168.11.10, port 5201
[ 4] local 192.168.1.150 port 51858 connected to 192.168.11.10 port 5201
[ ID] Interval Transfer Bandwidth
[ 4] 0.00-1.01 sec 256 KBytes 2.07 Mbits/sec
[ 4] 1.01-2.00 sec 0.00 Bytes 0.00 bits/sec
[ 4] 2.00-3.00 sec 0.00 Bytes 0.00 bits/sec
[ 4] 3.00-4.00 sec 0.00 Bytes 0.00 bits/sec
[ 4] 4.00-5.00 sec 0.00 Bytes 0.00 bits/sec
[ 4] 5.00-6.00 sec 0.00 Bytes 0.00 bits/sec
[ 4] 6.00-7.01 sec 0.00 Bytes 0.00 bits/sec
[ 4] 7.01-8.00 sec 0.00 Bytes 0.00 bits/sec
[ 4] 8.00-9.00 sec 0.00 Bytes 0.00 bits/sec
[ 4] 9.00-10.02 sec 0.00 Bytes 0.00 bits/sec

[ ID] Interval Transfer Bandwidth
[ 4] 0.00-10.02 sec 256 KBytes 209 Kbits/sec sender
[ 4] 0.00-10.02 sec 7.97 KBytes 6.52 Kbits/sec receiver

The_Saint - check that your local and remote assignment is different, in the screenshot it looks like you have both local and remote as the same /32 (10.0.255.248)?

The_Saint

@bradlay

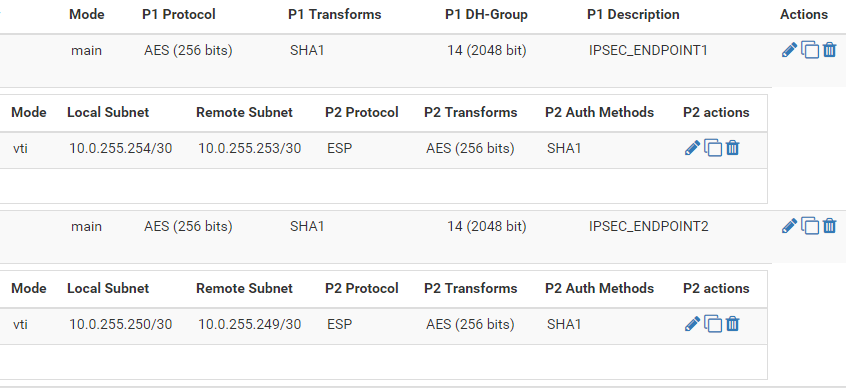

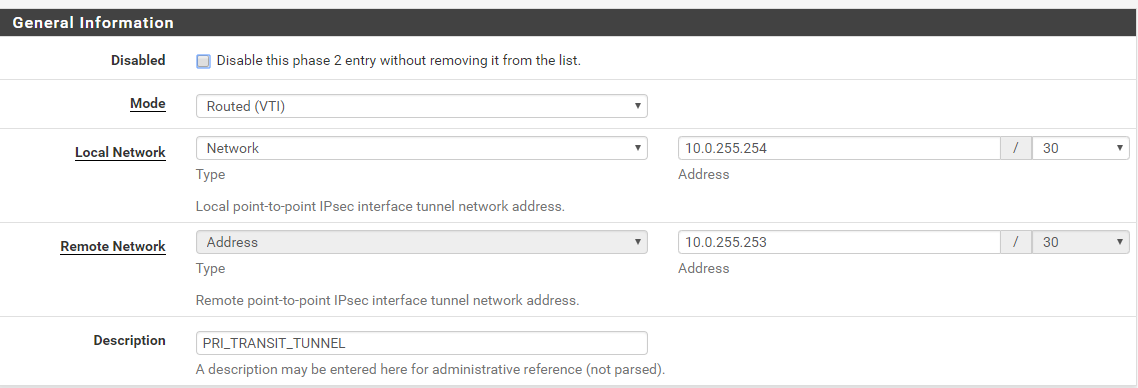

Thank you for your reply Bradly. This is my config
I used PFShell to edit the fields manually though it doesn't seem to take the

$config['ipsec']['phase2'][0]['remoteid']['type'] = "network";
$config['ipsec']['phase2'][1]['remoteid']['type'] = "network";


For your issue, does your FW actually have interfaces for your VTI (besides the IPSec)?
Also, do you have MSS settings enabled?
