How to assign Domain Controller to VLAN Systems

Scheduled Pinned Locked Moved General pfSense Questions
61 Posts 4 Posters 11.3k Views
Loading More Posts
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • S
    slkamath
    last edited by Sep 26, 2018, 1:55 PM

    Hi,

    Myself Lokesh Kamath.

    We have below mentioned configuration with 8 Network Ports.

    1. WAN - 203.xxx.xxx.xxx
    2. LAN - 192.168.20.1
    3. Fin-VLAN - 192.1968.30.1
    4. Marketing-VLAN - 192.168.40.1
    5. Purchase-VLAN - 192.168.50.1
    6. Toolroom-VLAN - 192.168.60.1

    In the above configuration Domain Controller with Active Directory in LAN.
    Primary DC 1 - 192.168.20.100
    Secondary DC 2- 192.168.20.102

    Apart from DC there are 2 software's running in DC1 (Tally & Salary Soft - Finance Software)

    Windows Systems are there in Fin-VLAN & Toolroom-VLAN

    How can give LAN-DC 1 & 2 access to Fin-VLAN & Toolroom-VLAN. Also that software's to Fin-VLAN?

    Tally work on Port # 9000 & 9999
    Salary Soft Don't know the port #

    I tried below configuration.

    I have created DC 1 & DC 2 alias.

    In Fin-VLAN firewall rules i set any source from Fin-VLAN any port to Destination DC1 & DC2 to any port. This is not working (I may be wrong in creating rules).

    So please guide me.

    Thanks in advance

    Lokesh Kamath

    1 Reply Last reply Reply Quote 0
    • K
      KOM
      last edited by Sep 26, 2018, 2:44 PM

      It sounds like you had it mostly right, but perhaps you made an error when creating your rules. Try again, and if it doesn't work then post a screenshot of your VLAN rules.

      S 1 Reply Last reply Sep 27, 2018, 4:42 AM Reply Quote 0
      • S
        slkamath @KOM
        last edited by Sep 27, 2018, 4:42 AM

        @kom
        Thanks for your response.

        I tried that but no luck.

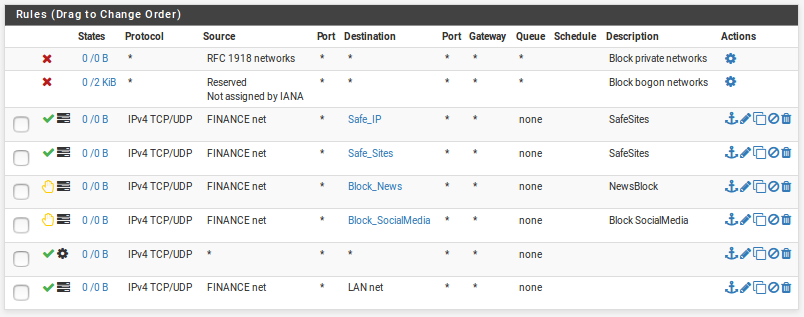

        Firewall Fin-VLAN Rules
        0_1538023203484_    FirewallRulesFINANCE.png

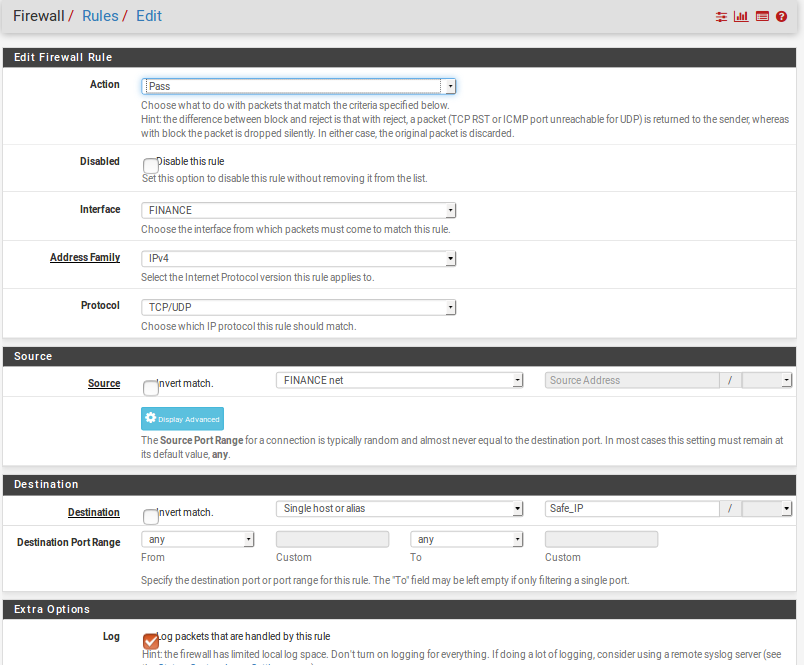

        Fin-VLAN Edit
        0_1538023252796_    FirewallRulesEdit.png

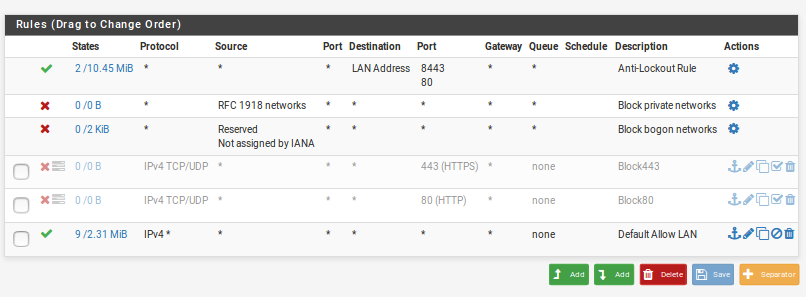

        Firewall LAN Rules
        0_1538023351018_    FirewallRulesLAN.png

        Lokesh Kamath

        1 Reply Last reply Reply Quote 0
        • K
          KOM
          last edited by Sep 27, 2018, 2:14 PM

          What is this Finance network? I thought it was Fin-VLAN? Try changing it to 'any'. Are your domain controllers in any of those aliases for sure?

          1 Reply Last reply Reply Quote 0
          • J
            johnpoz LAYER 8 Global Moderator
            last edited by Sep 27, 2018, 2:35 PM

            Why are you blocking rfc1918 and bogon on lan side interfaces? With rfc1918 blocked your not going to be able to talk to any vlans no matter what rules you put on the interfaces.

            An intelligent man is sometimes forced to be drunk to spend time with his fools
            If you get confused: Listen to the Music Play
            Please don't Chat/PM me for help, unless mod related
            SG-4860 24.11 | Lab VMs 2.8, 24.11

            S 1 Reply Last reply Sep 28, 2018, 3:41 AM Reply Quote 0
            • S
              slkamath @johnpoz
              last edited by Sep 28, 2018, 3:41 AM

              @johnpoz @KOM

              Thanks for your response.

              @KOM Finance Network means - Fin-VLAN. Domain Controller, Backup Server, Network Printer, Network Shared Server, File Server all these System IP's are there in the Alias.

              @johnpoz - I will remove that block and I will check.

              Also I created Gateway for all the VLANS apart from WAN Gateway. Giving Gateway for all - Is this correct?

              WAN Gateway - 203.xxx.xxx.xxx
              LAN Gateway - 192.168.10.1
              Fin-VLAN-Gateway - 192.168.20.1
              Marketing-VLAN-Gateway - 192.168.40.1
              Purchase-VLAN-Gateway - 192.168.50.1
              Toolroom-VLAN-Gateway - 192.168.60.1

              Lokesh Kamath

              1 Reply Last reply Reply Quote 0
              • J
                johnpoz LAYER 8 Global Moderator
                last edited by johnpoz Sep 28, 2018, 10:05 AM Sep 28, 2018, 9:58 AM

                @slkamath said in How to assign Domain Controller to VLAN Systems:

                Also I created Gateway for all the VLANS apart from WAN Gateway

                NO!!!

                Your telling pfsense the gateway to get to network xyz is itself?? NO!! there is no gateways setup on pfsense to talk to networks its directly attached too..

                Think about it for 2 freaking seconds.. How would 192.168.20 talk to 192.168.40 --- BOTH rfc1918 if you have rule that says hey BLOCK rfc1918 source from talking anywhere..

                Rules are evaluated as traffic enters an interface from the network its attached too, first rule to trigger wins, no other rules are evaluated... You have a rule right at the top that says hey your blocked!! No other rules are even looked at.

                And where could it EVER be possible to see a bogon as source on your own freaking network? Do you even understand what a bogon is? Why are you blocking it? You do understand rfc1918 is part of bogon ;) Pfsense pulls it out of the bogon table - but it is by definition a bogon. So You have 2 rules that state - HEY.. 192.168.x.x - your Blocked... So from those rules NOTHING would work, you couldn't even ask pfsense for dns with those rules.

                An intelligent man is sometimes forced to be drunk to spend time with his fools
                If you get confused: Listen to the Music Play
                Please don't Chat/PM me for help, unless mod related
                SG-4860 24.11 | Lab VMs 2.8, 24.11

                S 1 Reply Last reply Sep 29, 2018, 5:12 PM Reply Quote 0
                • S
                  slkamath @johnpoz
                  last edited by Sep 29, 2018, 5:12 PM

                  @johnpoz
                  Thank You Very Much.

                  I removed the RFC1918 and also I removed all the Gateway for VLAN.

                  Thank you so much. Now VLAN is talking with LAN.

                  Every now & then they need to disconnect network & re-connect then only mails or shared server is working. Is that any rules issue?

                  For that purpose i hive given access to all the Mails port (143, 993, 110, 465, 25, 995)

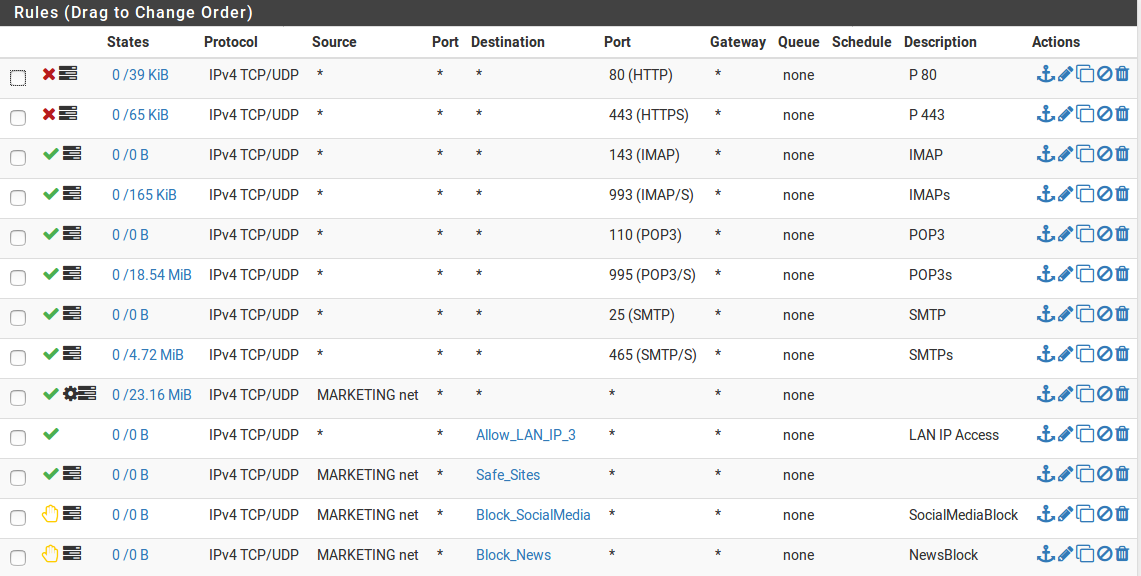

                  Marketing-VLAN

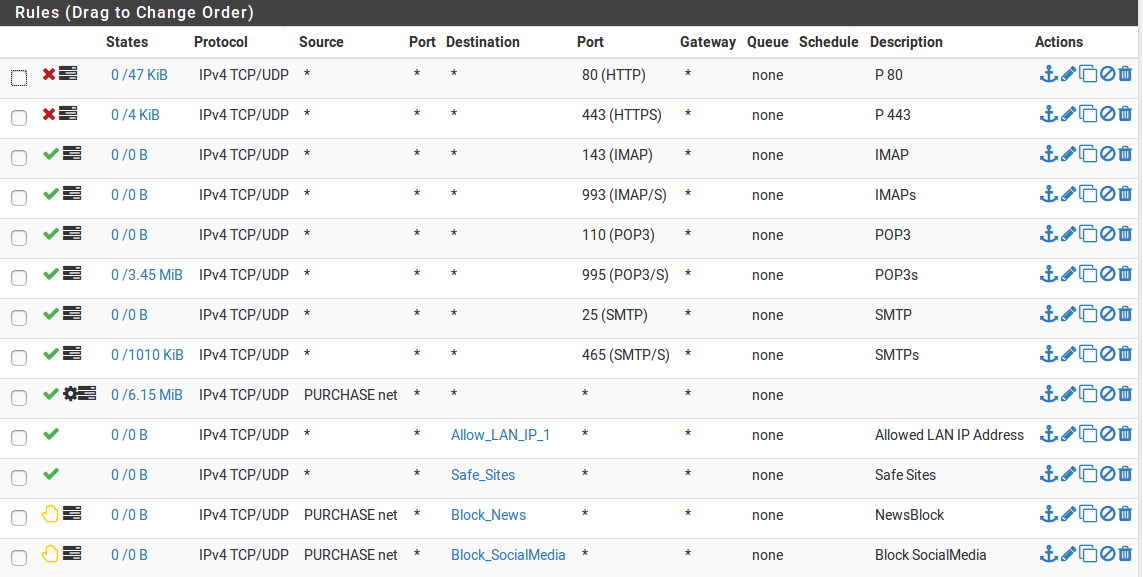

                  Purchase-VLAN

                  Fin-VLAN is working apart Finance Software Tally. It says The Tally Server is not in the same Gateway

                  Tally Server is in LAN. Tally Users are in Fin-VLAN

                  Tally Server IP - 192.168.10.100 (ODBC Server port 9000, Tally Port 9999)
                  Fin-VLAN - 192.168.20.50

                  So any guidance.

                  Lokesh Kamath

                  1 Reply Last reply Reply Quote 0
                  • J
                    johnpoz LAYER 8 Global Moderator
                    last edited by johnpoz Sep 29, 2018, 6:41 PM Sep 29, 2018, 6:41 PM

                    You don't seem to understand how rules work. Rules are evaluated TOP down.. First rule to trigger wins and NO OTHER rules are evaluated.

                    All of those allow rules are pointless because you have that allow purchase net tcp/udp any rule..

                    And then you have 2 rules below that allow to specific sites?

                    How would you ever get to the reject rules?

                    An intelligent man is sometimes forced to be drunk to spend time with his fools
                    If you get confused: Listen to the Music Play
                    Please don't Chat/PM me for help, unless mod related
                    SG-4860 24.11 | Lab VMs 2.8, 24.11

                    S 1 Reply Last reply Sep 30, 2018, 1:38 PM Reply Quote 0
                    • S
                      slkamath @johnpoz
                      last edited by Sep 30, 2018, 1:38 PM

                      @johnpoz
                      Thank you very much.

                      What i understood was it will check 1st rule if it is not matching will go to 2nd like that so on. If the rule is not specified or not matching i thought it will be blocked. 😇

                      Based on the idea given by you i have did few changes. Please correct me if i am wrong.

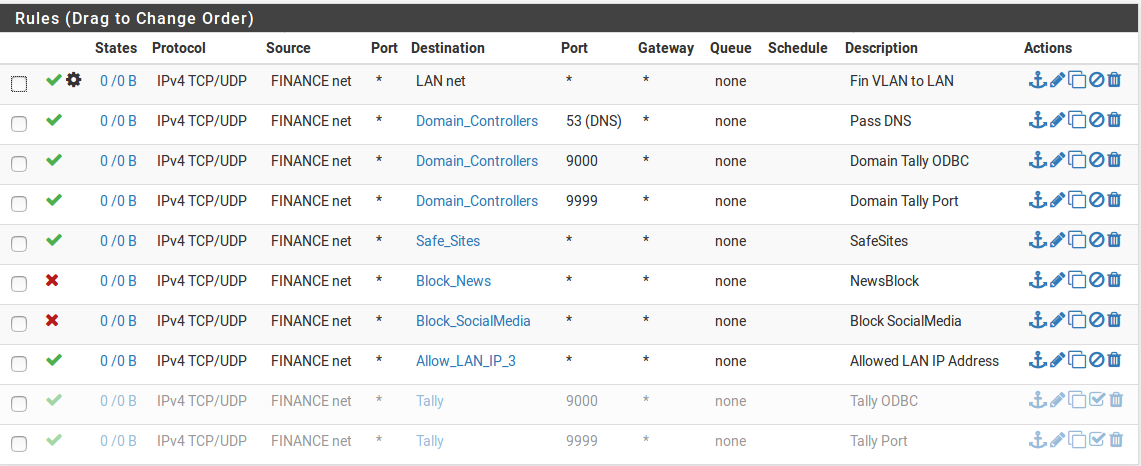

                      Fin-VLAN

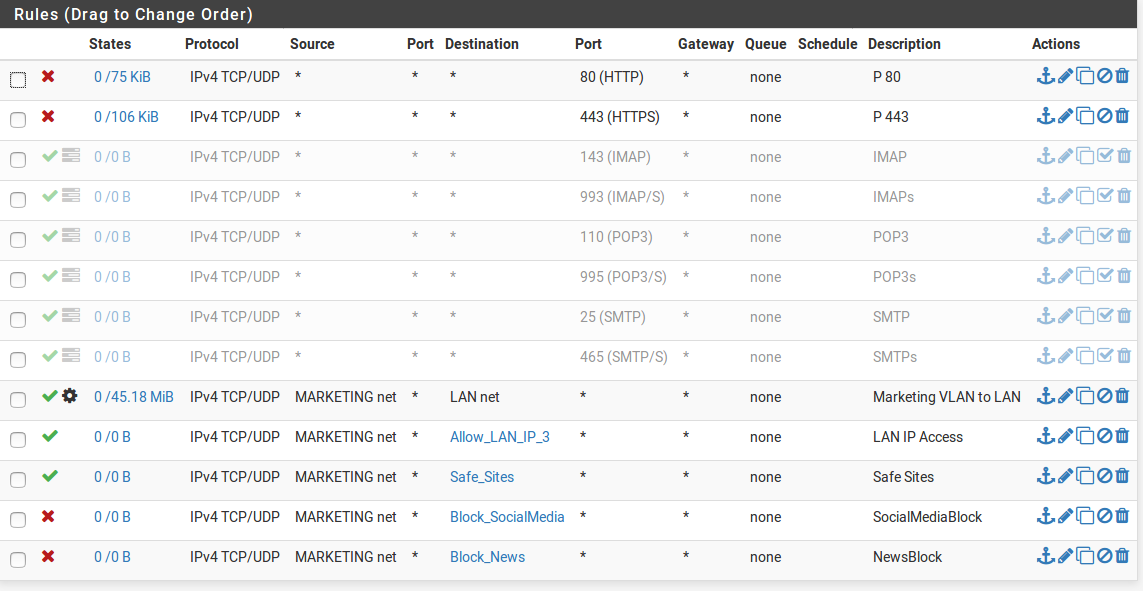

                      Marketing-VLAN
                      0_1538314140084_Marketing VLAN.png

                      Purchase-VLAN
                      0_1538314165255_Purchase VLAN.png

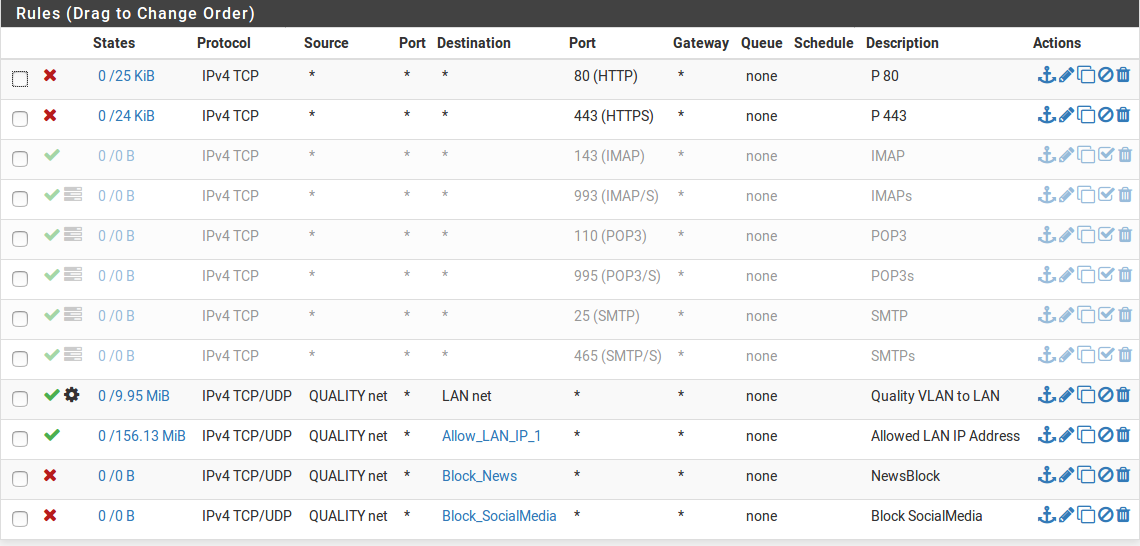

                      Quality-VLAN
                      0_1538314175450_Quality VLAN.png

                      Allow Specific Sites are the sites of Government Sites which is required for few departments. Due to block of News & Social Media (Squid Guard) few sites will not work so created alias and allowing it (Don't know this is right or wrong).

                      I thought if the rule is not specified means it will reject directly. No idea how to reject other than that. I think I am having very poor knowledge. 😖

                      Lokesh Kamath

                      J 1 Reply Last reply Sep 30, 2018, 3:08 PM Reply Quote 0
                      • J
                        johnpoz LAYER 8 Global Moderator @slkamath
                        last edited by johnpoz Sep 30, 2018, 3:12 PM Sep 30, 2018, 3:08 PM

                        @slkamath said in How to assign Domain Controller to VLAN Systems:

                        What i understood was it will check 1st rule if it is not matching will go to 2nd like that so on.

                        Exactly - but what is the point of allowing X, above a rule that allows ALL? And blocking something below a rule that allow ALL will never be evaluated.

                        And yes there is a default deny that is not shown - so if you run through your rules and its not allowed then it will be blocked.

                        Your block rules on the end of your quality net are pointless.. They would just be blocked by the default deny if not allowed above. So unless you wanted to specifically log them or reject them vs just deny those rules are pointless.

                        What option do you have set in that allow to lan net? The gear symbol. That rule makes no sense because it allows all lan net, so what is the point of allowing to a specific lan IP?

                        An intelligent man is sometimes forced to be drunk to spend time with his fools
                        If you get confused: Listen to the Music Play
                        Please don't Chat/PM me for help, unless mod related
                        SG-4860 24.11 | Lab VMs 2.8, 24.11

                        S 1 Reply Last reply Sep 30, 2018, 4:47 PM Reply Quote 0
                        • S
                          slkamath @johnpoz
                          last edited by Sep 30, 2018, 4:47 PM

                          @johnpoz
                          Thank you very much.

                          How to put default deny rule (please find the pic below is it correct)?

                          Again did some changes.

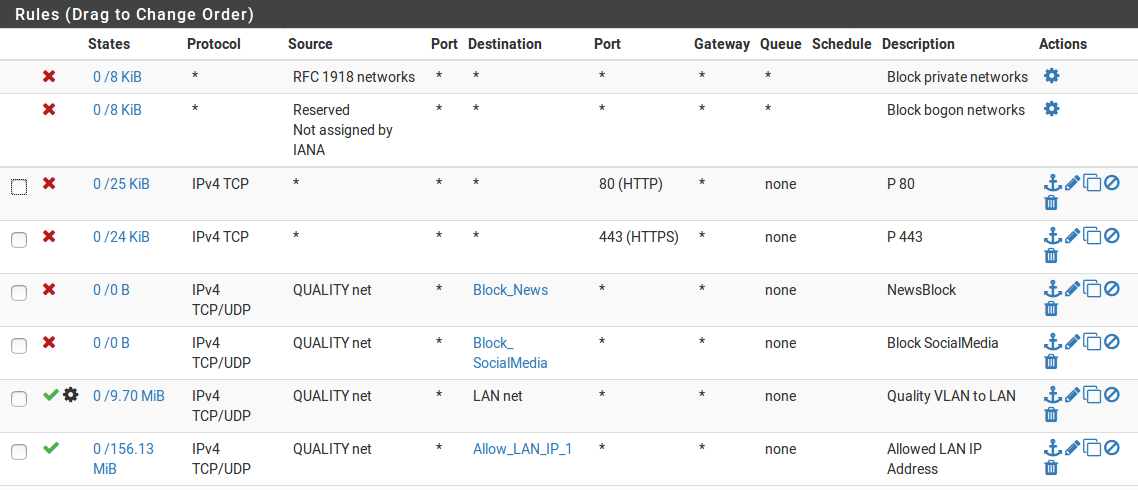

                          Quality-VLAN
                          0_1538325663826_Quality VLAN.png

                          Gear Symbol is for Upload & Download limit set so it shows that symbol. In LAN there are nearly 10 IP's. All VLAN has to access those IP's (Shared Folder, Network Printer, Backup, Domain Controller, Tally).

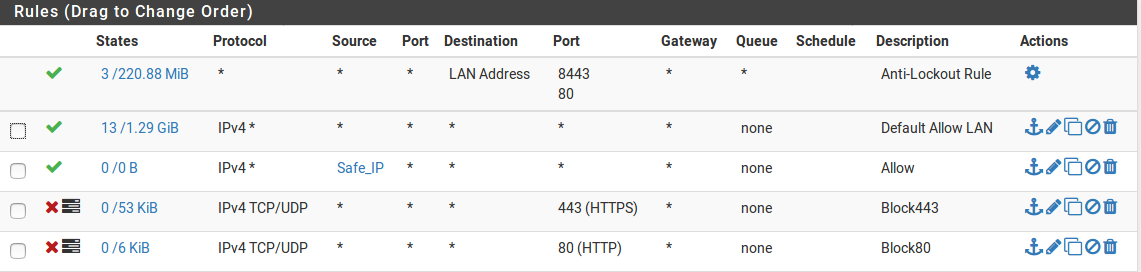

                          LAN

                          Can you suggest any book or something so that i will get some knowledge to make it correct.

                          Lokesh Kamath

                          1 Reply Last reply Reply Quote 0
                          • S
                            stephenw10 Netgate Administrator
                            last edited by Sep 30, 2018, 6:08 PM

                            I suggest reading this chapter from the pfSense book:
                            https://www.netgate.com/docs/pfsense/book/firewall/firewall-fundamentals.html

                            Steve

                            S 1 Reply Last reply Sep 30, 2018, 6:09 PM Reply Quote 0
                            • S
                              slkamath @stephenw10
                              last edited by Sep 30, 2018, 6:09 PM

                              @stephenw10
                              Thank you Stephen.

                              1 Reply Last reply Reply Quote 0
                              • J
                                johnpoz LAYER 8 Global Moderator
                                last edited by johnpoz Oct 1, 2018, 11:04 AM Oct 1, 2018, 11:02 AM

                                Did you post the wrong pic - your qual ne has the block rfc1918 and bogon again..

                                Your lan rules everything below your any any is just pointless!! Not sure why this is so difficult to understand..

                                Imagine a source IP:PORT and DESTIP:PORT and protocol - now run through your rules top to bottom.

                                You have an ANY ANY rule - any protocol and source any dest.. So when would that rule not trigger and get to the safe_IP rule??

                                When would something not trigger that any any rule and fall through to your block rules? Your any any allows ANY, so
                                clearly ports 80 and 443 are part of ANY..

                                If you don't want IPs getting to 80/443 then those rules go ABOVE your any any rule.. Those will then be blocked and other ports like say 123 would not trigger those rules and be allowed through the any any rule.

                                An intelligent man is sometimes forced to be drunk to spend time with his fools
                                If you get confused: Listen to the Music Play
                                Please don't Chat/PM me for help, unless mod related
                                SG-4860 24.11 | Lab VMs 2.8, 24.11

                                S 1 Reply Last reply Oct 3, 2018, 8:31 AM Reply Quote 0
                                • S
                                  slkamath @johnpoz
                                  last edited by slkamath Oct 3, 2018, 8:35 AM Oct 3, 2018, 8:31 AM

                                  @johnpoz
                                  Thank you Very Much

                                  Sorry for the delay.

                                  I made few changes. Please have a look. Also any mistake please guide me.

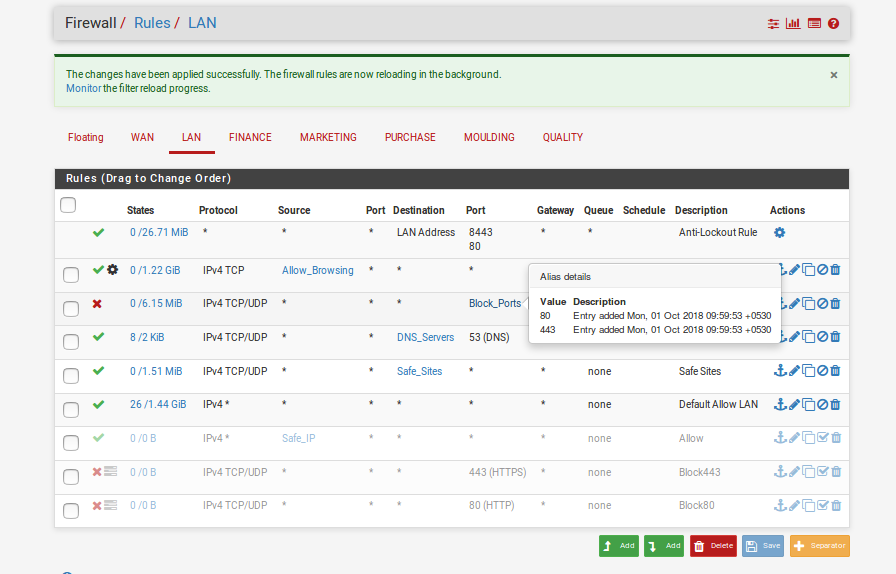

                                  LAN - Allow Browsing is only for 5 IP's

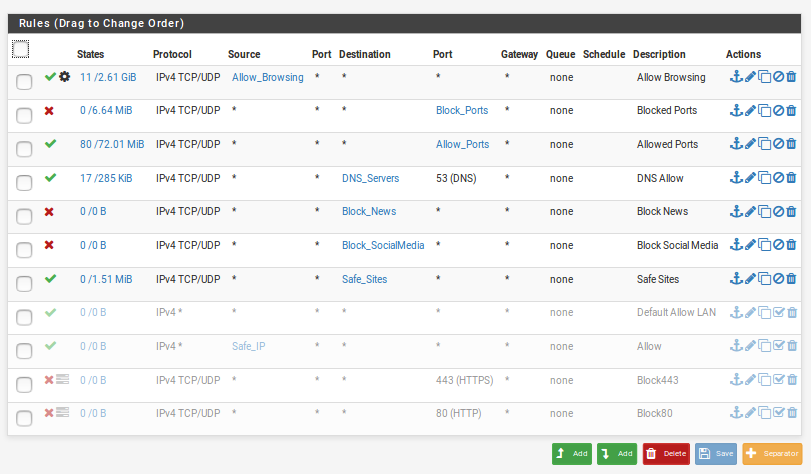

                                  LAN-UPDATED

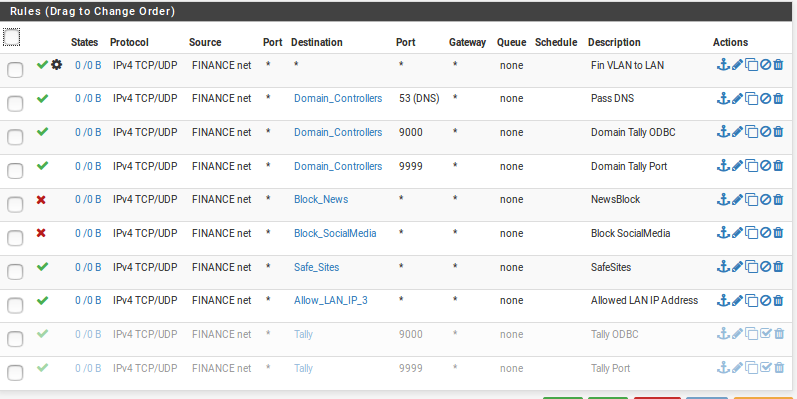

                                  Fin-VLAN

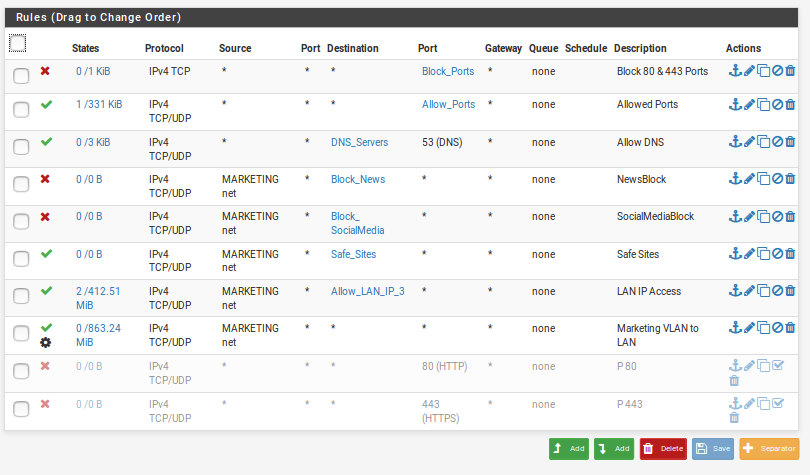

                                  Marketing-VLAN

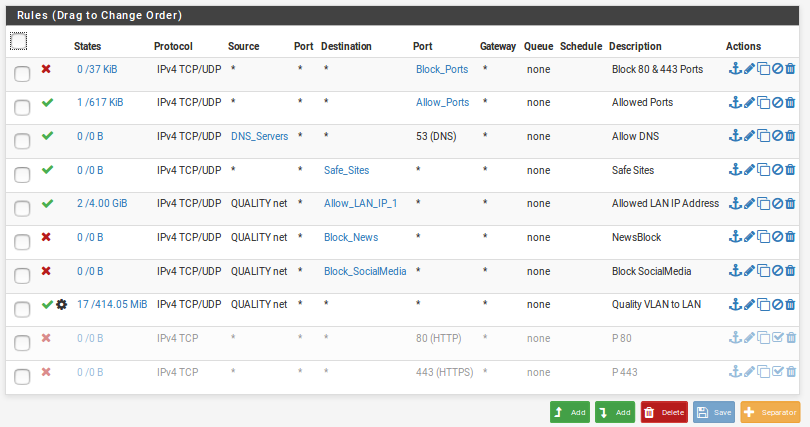

                                  Quality-VLAN

                                  One more issue that i am facing is
                                  All the VLAN systems need to Disable & Enable the network to Send/Receive Mails or Accessing Shared Folder else share folder or mails will not work. (timeline of 2 to 5 min we need to disable & enable network)
                                  Where I need to change this?

                                  Lokesh Kamath

                                  1 Reply Last reply Reply Quote 0
                                  • S
                                    stephenw10 Netgate Administrator
                                    last edited by Oct 3, 2018, 4:23 PM

                                    Looks like you still have an allow all rule on the Fin-VLAN interface that will catch all traffic before it hits any of the other rules.

                                    Steve

                                    S 1 Reply Last reply Oct 3, 2018, 6:34 PM Reply Quote 0
                                    • S
                                      slkamath @stephenw10
                                      last edited by Oct 3, 2018, 6:34 PM

                                      @stephenw10
                                      Thank you Stephen.

                                      I will change the Fin-VLAN. Thanks. Other VLAN is correct?

                                      Lokeh Kamath

                                      1 Reply Last reply Reply Quote 0
                                      • S
                                        stephenw10 Netgate Administrator
                                        last edited by Oct 3, 2018, 7:09 PM

                                        Well they don't look immediately wrong. Without knowing exactly what you need to do I can't say more than that.

                                        Steve

                                        S 1 Reply Last reply Oct 4, 2018, 5:46 AM Reply Quote 0
                                        • S
                                          slkamath @stephenw10
                                          last edited by Oct 4, 2018, 5:46 AM

                                          @stephenw10

                                          Thank You Very Much Steve.

                                          One more issue that i am facing is
                                          All the VLAN systems need to Disable & Enable the network to Send/Receive Mails or Accessing Shared Folder else share folder or mails will not work. (timeline of 2 to 5 min we need to disable & enable network) Where I need to change this?

                                          Lokesh Kamath

                                          1 Reply Last reply Reply Quote 0
