Inter VLAN routing



  • Hi,

    I'm new to pfsense. I am trying to setup VLAN routing. I have multiple VLANs setup but they can't communicate with each other. How do I allow for inter VLAN routing?


  • Galactic Empire

    @sunruh said in Inter VLAN routing:

    Hi,
    I'm new to pfsense. I am trying to setup VLAN routing. I have multiple VLANs setup but they can't communicate with each other. How do I allow for inter VLA

    Rules on the vlan interfaces to allow any out?

    The networks are directly attached so its not a routing issue.



  • @nogbadthebad I have firewall rules set for each VLAN as such, example for VLAN10

    Action: Pass
    Interface: VLAN10
    Address Fam: IPv4
    Protocol: Any
    Source: VLAN10 net
    Destination: any

    Am I missing something?


  • Rebel Alliance Global Moderator

    No per what you stated you have done that would work. But then again we had a user just awhile ago that had also enabled blocking rfc1918 on his vlan interfaces and bogon ;) Which would be above any rules you create on the interface.

    Did you set a gateway on these rules? If so that could be stopping it.

    Do the devices in the other vlans have host firewalls? Those could be stopping it.

    Please post up screenshot of your vlan rules.. Because its many times where the user says they put in rule X, but they really have Y... For example use state any for protocol but maybe you put in just tcp or just udp.. Or maybe vs vlan net, you put vlan address when dropping down, etc..

    To be sure its just easier to see the rules ;)


  • Galactic Empire

    Nope looks fine, normally when people post the same question its they've not created the firewall rules.

    What happens if you do a packet capture on vlan 10 on pfsense and do a ping from a host on vlan 20.

    You should see something like this:-

    16:12:44.655402 IP 172.16.2.20 > 172.16.1.2: ICMP echo request, id 50436, seq 0, length 64
    16:12:44.656579 IP 172.16.1.2 > 172.16.2.20: ICMP echo reply, id 50436, seq 0, length 64
    16:12:45.655706 IP 172.16.2.20 > 172.16.1.2: ICMP echo request, id 50436, seq 1, length 64
    16:12:45.656919 IP 172.16.1.2 > 172.16.2.20: ICMP echo reply, id 50436, seq 1, length 64
    16:12:46.659663 IP 172.16.2.20 > 172.16.1.2: ICMP echo request, id 50436, seq 2, length 64
    16:12:46.660846 IP 172.16.1.2 > 172.16.2.20: ICMP echo reply, id 50436, seq 2, length 64


    If you don't see anything on vlan 10 move the capture to vlan 20.

    Is traffic even hitting the firewall interfaces, it could be your tagging on the switch ?

    Also is the subnet masking correct, I've seen people use the wrong mask and the pc has thought its on the same subnet when it actually isn't.



  • Here are screen shots of my rules:
    1_1539099296199_vlan20rules.JPG 0_1539099296198_vlan10rules.JPG

    I did the capture and it looks like this:

    I also captured vlan 20:

    If I'm understanding the capture correctly they get to the gateway but not any farther. Am I reading that right?


  • Galactic Empire

    There are no hits on your firewall rules.

    Is the first rule you posted from vlan 20 or vlan 10?



  • The first rule is VLAN20 the second is VLAN10


  • Galactic Empire

    I'd be looking at the switch config.

    Do any mac addresses appear in the ARP table ?



  • Both of the Mac addresses show up in the ARP table.


  • Galactic Empire

    I meant devices that aren't the router, i.e. PCs on vlan 10 & 20


  • Rebel Alliance Global Moderator

    There are zero hits on those rules... Can a device in a vlan even ping pfsense IP in that vlan?



  • Yes, there are other devices showing up in the ARP table from vlan 10 & 20.

    I was able to ping the pfsense IP from each vlan. I just can't seem to ping/communicate from vlan to vlan.


  • Netgate

    Local firewalls on the hosts preventing traffic from other subnets?



  • @derelict šŸ¤¦ yes, that was the issue. Thank you everyone for you help with this!


  • Rebel Alliance Global Moderator

    If you were hitting pfsense trying to go to another vlan, then the allow rules would show hits - or the default deny would log it, etc.

    Do you have rules in your floating tab? Those are evaluated before the interface rules..

    BTW - I stated host firewalls over 4 hours ago ;) heheeh



  • I have similar issue, 2 vlans, 103 and 203, I was trying to ping from iphone to printer or windows to printer or windows to iphone, no luck. All should be good imho. I even added extra rules to pass traffic between vlans but based you what you have here this is not needed.
    rules for 103
    0_1540085778385_Screen Shot 2018-10-20 at 9.35.31 PM.png
    same logic for 203

    Diagnostics is a pass, weird

    0_1540085670478_Screen Shot 2018-10-20 at 9.16.09 PM.png


  • Netgate

    VLAN103 will never see traffic sourced from VLAN203 coming into it. That first rule is useless (note the 0/0 counters there since it's impossible for traffic to match it). If you want 203 to be able to ping 103, put the rule passing that traffic on 203.

    That ping works because you are sourcing it from the firewall.

    https://www.netgate.com/docs/pfsense/firewall/firewall-rule-basics.html

    https://www.netgate.com/docs/pfsense/firewall/firewall-rule-troubleshooting.html



  • Both vlans 103 and 203 have imo correct rules

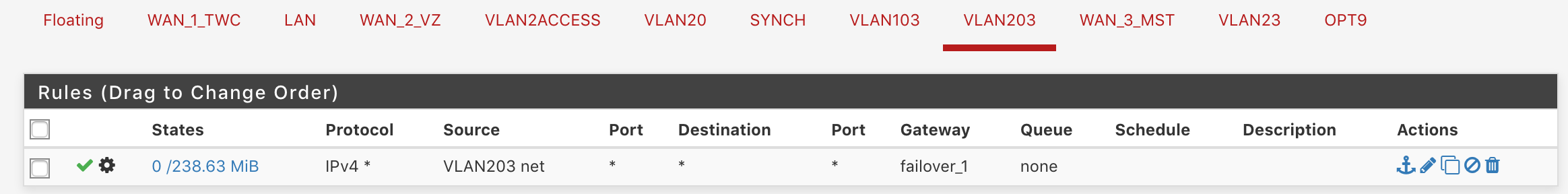

    0_1540130805917_Screen Shot 2018-10-21 at 10.05.07 AM.png

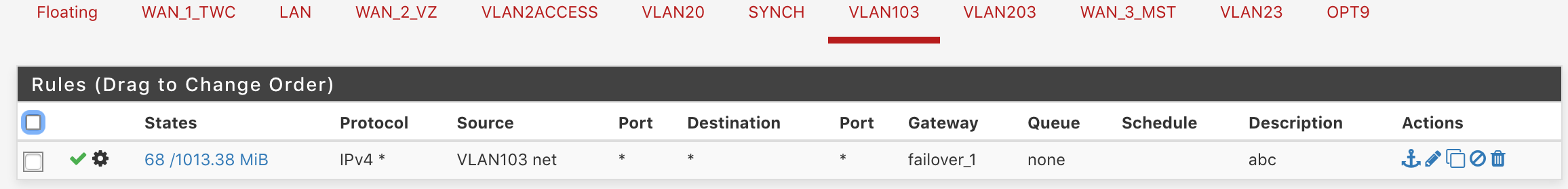

    0_1540130813113_Screen Shot 2018-10-21 at 10.06.36 AM.png


  • Rebel Alliance Global Moderator

    your forcing traffic out the gateway how can traffic from 1 vlan get to the other vlan - via that gateway your sending it out of.

    If you want vlan 103 to talk to 203 then you need a rule that allows said traffic before you send traffic out some gateway. On the vlan 103 interface, and vise versa for 203 to talk to 103

    You also have to be concerned that the device your trying to get to on the other vlan allows access from the source network IPs - ie the devices local firewall if any.



  • @johnpoz said in Inter VLAN routing:

    If you want vlan 103 to talk to 203 then you need a rule that allows said traffic before you send traffic out some gateway. On the vlan 103 interface, and vise versa for 203 to talk to 103

    The thing is I don't have internal gateway defined like 10.103.0.1 or 10.203.0.1, all are gateways form public blocks. Can I define internal one and use it then?


  • Rebel Alliance Global Moderator

    DONT assign a gateway... Just leave it the default * so it can use its internal routing tables.. Which is knows how to get to networks its direcctly attached to, ie the vlan 103 and 203.

    Create a rule on vlan 103 that says dest vlan203 net and does not assign it a gateway. Put this rule ABOVE the rule where your forcing traffic out that failover gateway.

    Reverse that for your vlan 203 interface


  • Netgate

    Yeah I didn't notice the policy routing in your rules. Sorry.

    https://www.netgate.com/docs/pfsense/routing/bypassing-policy-routing.html



  • Sth is hitting the rule but still getting timeouts

    0_1540315191501_Screen Shot 2018-10-23 at 1.19.37 PM.png
    0_1540315198139_Screen Shot 2018-10-23 at 1.19.42 PM.png

    13:16:54.028880 IP 10.203.0.33 > 10.103.0.12: ICMP echo request, id 30840, seq 30840, length 64
    13:16:54.466404 IP 10.203.8.26 > 10.103.0.12: ICMP echo request, id 1, seq 432, length 40
    13:16:55.032488 IP 10.203.0.33 > 10.103.0.12: ICMP echo request, id 30840, seq 30840, length 64
    13:16:56.032418 IP 10.203.0.33 > 10.103.0.12: ICMP echo request, id 30840, seq 30840, length 64
    13:16:57.032991 IP 10.203.0.33 > 10.103.0.12: ICMP echo request, id 30840, seq 30840, length 64
    13:16:58.030264 IP 10.203.0.33 > 10.103.0.12: ICMP echo request, id 30840, seq 30840, length 64
    13:16:59.032380 IP 10.203.0.33 > 10.103.0.12: ICMP echo request, id 30840, seq 30840, length 64
    13:16:59.467559 IP 10.203.8.26 > 10.103.0.12: ICMP echo request, id 1, seq 433, length 40
    13:17:00.032288 IP 10.203.0.33 > 10.103.0.12: ICMP echo request, id 30840, seq 30840, length 64
    13:17:00.476238 IP 10.203.8.26 > 10.103.0.12: ICMP echo request, id 1, seq 434, length 40
    13:17:01.032384 IP 10.203.0.33 > 10.103.0.12: ICMP echo request, id 30840, seq 30840, length 64
    13:17:02.032336 IP 10.203.0.33 > 10.103.0.12: ICMP echo request, id 30840, seq 30840, length 64
    13:17:03.032353 IP 10.203.0.33 > 10.103.0.12: ICMP echo request, id 30840, seq 30840, length 64


  • Rebel Alliance Global Moderator

    And does the other end have a firewall? Windows machines for example out of the box will not answer ping from something not on its local network.

    Simple do a sniff on the vlan 103 or 203 interface in pfsense when you ping from the other vlan - do you see the request go out.. If so and no response then its the host..



  • I am not on site but the ping was tested from iphone to printer and from laptop(windows) to printer also


  • Rebel Alliance Global Moderator

    Does the printer even have a gateway set... Have seen this too many times to count there the printer does not have gateway set so you can only talk to it from the same network.



  • Yes it does have properly gateway, it was manually changed with IP and subnet.
    In my case it is carp IP gw 10.103.0.3 .1 is master .2 is slave


  • Rebel Alliance Global Moderator

    Then I suggest you sniff... This is not any difficult here.. You connect a vlan, you allow it from the other vlan it works.. Sniff sure the ping is being sent/seen on pfsense ingress interface, and validate it going out the egress interface towards the printer. Maybe someone F'd up the mask on the printer or typo's the gateway.


  • Netgate

    Diagnostics > Ping Set the source interface to the other VLAN. Ping the printer. PCAP on the printer VLAN.

    Pretty much guarantee that you will see the requests going out and no reply so you will need to look at the printer configuration.



  • Ping test

    0_1540319903498_Screen Shot 2018-10-23 at 2.38.09 PM.png

    Result

    14:35:44.331343 IP 10.203.0.1 > 10.103.0.11: ICMP echo request, id 17098, seq 0, length 64
    14:35:44.331427 IP 10.103.0.11 > 10.203.0.1: ICMP echo reply, id 17098, seq 0, length 64
    14:35:45.334231 IP 10.203.0.1 > 10.103.0.11: ICMP echo request, id 17098, seq 1, length 64
    14:35:45.334294 IP 10.103.0.11 > 10.203.0.1: ICMP echo reply, id 17098, seq 1, length 64
    14:35:46.334539 IP 10.203.0.1 > 10.103.0.11: ICMP echo request, id 17098, seq 2, length 64
    14:35:46.334604 IP 10.103.0.11 > 10.203.0.1: ICMP echo reply, id 17098, seq 2, length 64
    14:35:47.338676 IP 10.203.0.1 > 10.103.0.11: ICMP echo request, id 17098, seq 3, length 64
    14:35:47.338740 IP 10.103.0.11 > 10.203.0.1: ICMP echo reply, id 17098, seq 3, length 64
    14:35:48.338985 IP 10.203.0.1 > 10.103.0.11: ICMP echo request, id 17098, seq 4, length 64
    14:35:48.339051 IP 10.103.0.11 > 10.203.0.1: ICMP echo reply, id 17098, seq 4, length 64
    14:35:49.343685 IP 10.203.0.1 > 10.103.0.11: ICMP echo request, id 17098, seq 5, length 64
    14:35:49.343749 IP 10.103.0.11 > 10.203.0.1: ICMP echo reply, id 17098, seq 5, length 64
    14:35:50.344756 IP 10.203.0.1 > 10.103.0.11: ICMP echo request, id 17098, seq 6, length 64
    14:35:50.344820 IP 10.103.0.11 > 10.203.0.1: ICMP echo reply, id 17098, seq 6, length 64
    14:35:51.350321 IP 10.203.0.1 > 10.103.0.11: ICMP echo request, id 17098, seq 7, length 64
    14:35:51.350390 IP 10.103.0.11 > 10.203.0.1: ICMP echo reply, id 17098, seq 7, length 64
    14:35:52.352486 IP 10.203.0.1 > 10.103.0.11: ICMP echo request, id 17098, seq 8, length 64
    14:35:52.352550 IP 10.103.0.11 > 10.203.0.1: ICMP echo reply, id 17098, seq 8, length 64
    14:35:53.355214 IP 10.203.0.1 > 10.103.0.11: ICMP echo request, id 17098, seq 9, length 64
    14:35:53.355276 IP 10.103.0.11 > 10.203.0.1: ICMP echo reply, id 17098, seq 9, length 64


  • Rebel Alliance Global Moderator

    So great - are you sure your client you were pinging from pings actually got to pfsense?



  • yes



  • That is what is happening when the real client pings printer while I capture vlan 103 and printer IP 10.103.0.11

    14:55:21.548856 IP 10.103.0.11.5353 > 224.0.0.251.5353: UDP, length 184


  • Rebel Alliance Global Moderator

    that is NOT a ping.. that is a mdns query to the multicast address.

    Pfsense not going to do shit with that.. Unless you had avahi installed and configured.



  • Ok my bad it works, if you look up last screenshoot you will know what I screwed up
