      Hi,

      I have set up pfSense 2.4.4 with a ethernet DHCP WAN1 and PPP WAN2.
      If I manually switch the default gateway I can connect to Internet over both WANs.
      But via Gateway Groups it can't switch to WAN2 when I pull the cable on WAN1.

      Any ideas???

      See the settings:

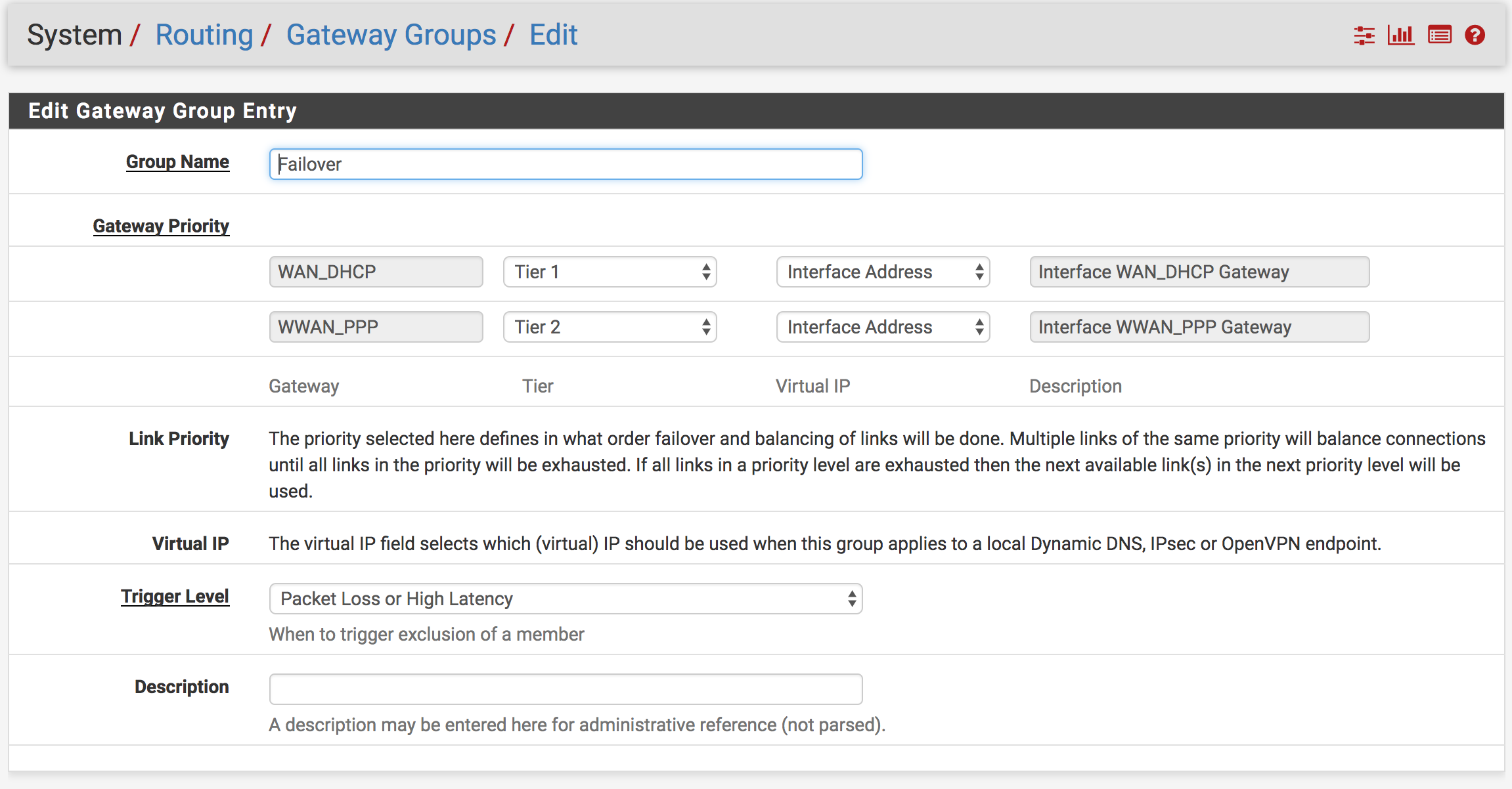

      0_1539595524794_Bildschirmfoto 2018-10-15 um 11.23.34.png
      0_1539595548275_Bildschirmfoto 2018-10-15 um 11.23.55.png

      Error Log:

      Oct 15 11:14:17 pfSense kernel: igb0: link state changed to DOWN
      Oct 15 11:14:17 pfSense check_reload_status: Linkup starting igb0
      Oct 15 11:14:18 pfSense php-fpm[86340]: /rc.linkup: DEVD Ethernet detached event for wan
      Oct 15 11:14:20 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:20 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:20 pfSense php-fpm[86340]: /rc.linkup: Shutting down Router Advertisment daemon cleanly
      Oct 15 11:14:20 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:20 pfSense check_reload_status: Reloading filter
      Oct 15 11:14:21 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:21 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:22 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:22 pfSense php-fpm[13985]: /rc.filter_configure_sync: Keep current gateway, its already part of the group members.
      Oct 15 11:14:22 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:23 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:23 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:24 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:24 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:25 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:25 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:26 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:26 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:27 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:27 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:28 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:28 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:29 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:29 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:30 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:30 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:31 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:31 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:31 pfSense rc.gateway_alarm[85665]: >>> Gateway alarm: WAN_DHCP (Addr:8.8.4.4 Alarm:1 RTT:7.847ms RTTsd:.152ms Loss:21%)
      Oct 15 11:14:31 pfSense check_reload_status: updating dyndns WAN_DHCP
      Oct 15 11:14:31 pfSense check_reload_status: Restarting ipsec tunnels
      Oct 15 11:14:31 pfSense check_reload_status: Restarting OpenVPN tunnels/interfaces
      Oct 15 11:14:31 pfSense check_reload_status: Reloading filter
      Oct 15 11:14:32 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:32 pfSense kernel: arpresolve: can't allocate llinfo for 10.1.120.3 on igb0
      Oct 15 11:14:33 pfSense php-fpm[82166]: /rc.openvpn: MONITOR: WAN_DHCP is down, omitting from routing group Failover 8.8.4.4|10.1.120.170|WAN_DHCP|7.85ms|0.145ms|23%|down
      Oct 15 11:14:33 pfSense php-fpm[82166]: /rc.openvpn: Keep current gateway, its already part of the group members.
      Oct 15 11:14:33 pfSense php-fpm[82166]: /rc.openvpn: Gateway, none 'available' for inet6, use the first one configured. 'WAN_DHCP6'
      Oct 15 11:14:33 pfSense php-fpm[338]: /rc.dyndns.update: Keep current gateway, its already part of the group members.
      Oct 15 11:14:33 pfSense php-fpm[45991]: /rc.filter_configure_sync: Keep current gateway, its already part of the group members.
      Oct 15 11:14:33 pfSense kernel: arpresolve: can't al
